Graphite electrode is made of high quality calcined petroleum coke,imported needle coke and modified coal asphalt,the grade are RP,HD(impregnation),HP and UHP graphite electrodes,the specification is Ø75-700mm.
Graphite electrode produced by our company has the advantages of low resistivity,high electrical conductivity and thermal conductivity,good oxidation resistance,good thermal shock resistance,high mechanical strength,easy to machine,etc.
Graphite electrode is widely used to smelt the steel,alloy steel and other metal or nonmetal material in electric arc furnace.

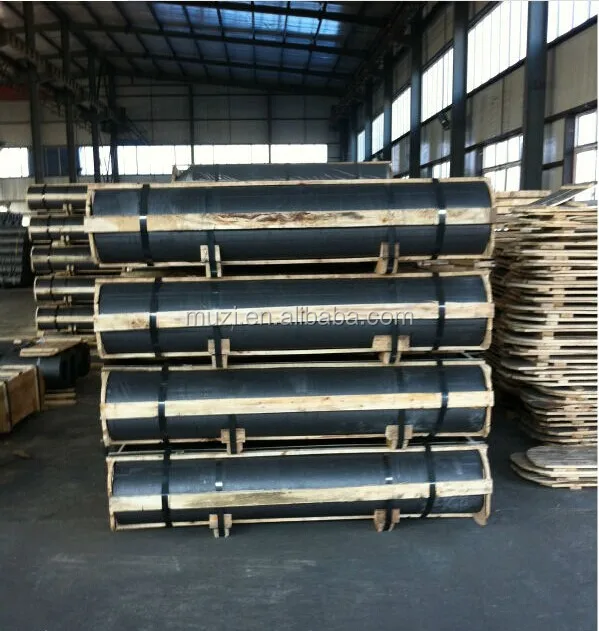

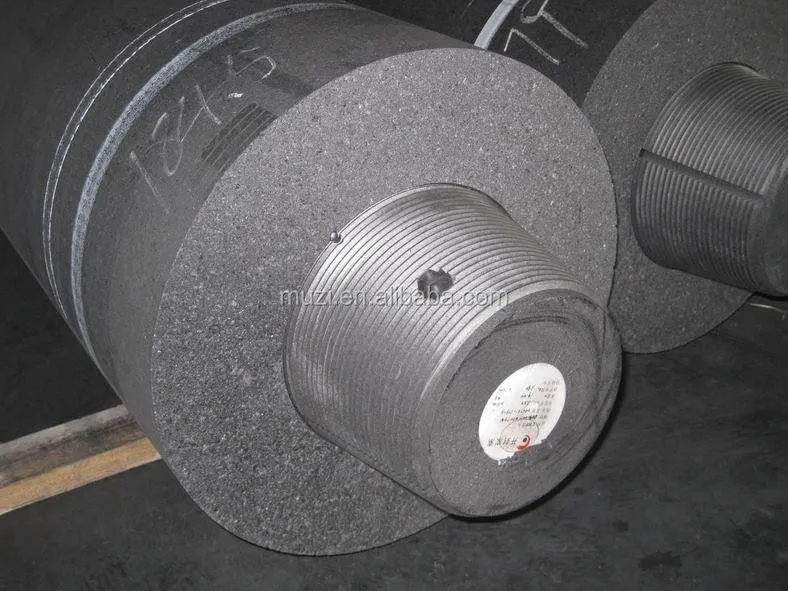

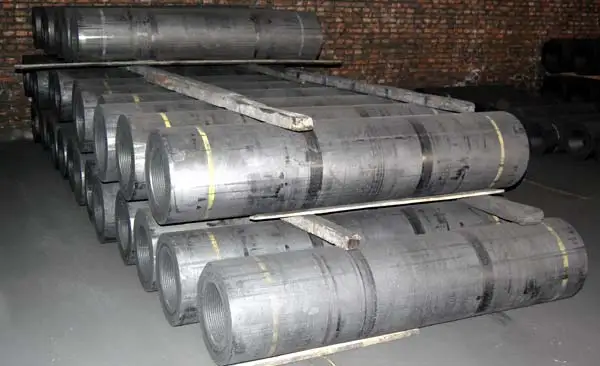

Product photos
Physical & chemical
Items
Unit
RP
HP
UHP
250-300mm
350-550mm
200-400mm
450-550mm
300-400mm
450-550mm
Resistivity(Max)
Electrode
μΩ·m
9.0
7
7.5
6.2
6.5
Nipple
8.5
6.5
5.5
Bending Strength(Min)
Electrode
Mpa
7.8
6.4
10.5
9.8
10.5
10.0
Nipple
13.0
14.0
16.0
Elastic Modulus
Electrode
Gpa
9.3
12.0
14.0
Nipple
14.0
16.0
18.0
Bulk Density
Electrode
g/cm3
1.52
16.0
1.65
1.64
Nipple
1.68
17.0
1.72
1.70
Ash(Max)
Electrode
%
0.5
0.3
0.3
Nipple
CTE(Max)
Electrode
10-6/°C
2.9
2.4
1.5
Nipple
2.8
2.2
1.4
Product Introduction
Graphite electrode product Introduction
Graphite electrode, mainly petroleum coke, needle coke as raw material, coal pitch as binder, calcination, ingredients, kneading, molding, baking and graphitization, machining and made, which is released in electric arc furnace in the form of arc conductor of electricity to heat melting furnace charge, according to its quality index, can be divided into ordinary power, high power and high power.
Tolerances of electrode diameters and lengthes(mm):
Nominal Diameter
Actual Diameter
Length
Max
Min
Black surface min
250
256
251
248
1600/1800
300
307
302
299
1600/1800
350
357
352
349
1600/1800
400
409
403
400
1600/1800/2000/2200
450
460
454
451
1600/1800/2000/2200
500
511
505
502
1800/2000/2200/2400
550
562
556
553
1800/2000/2200/2400
Recommended current carrying capacity:
Product processing

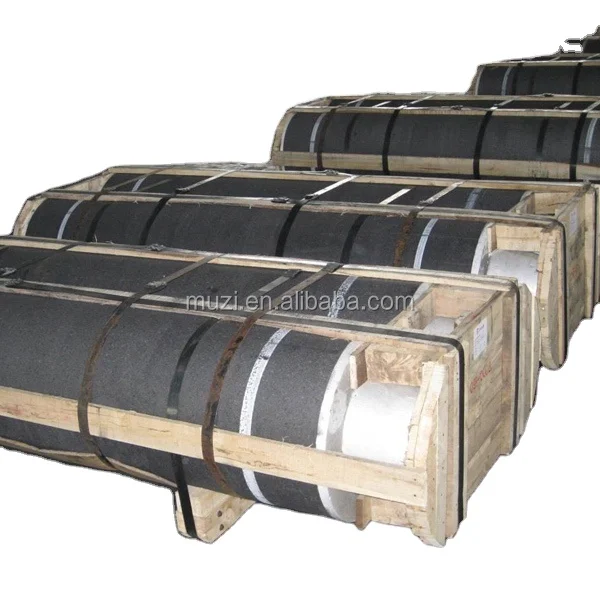

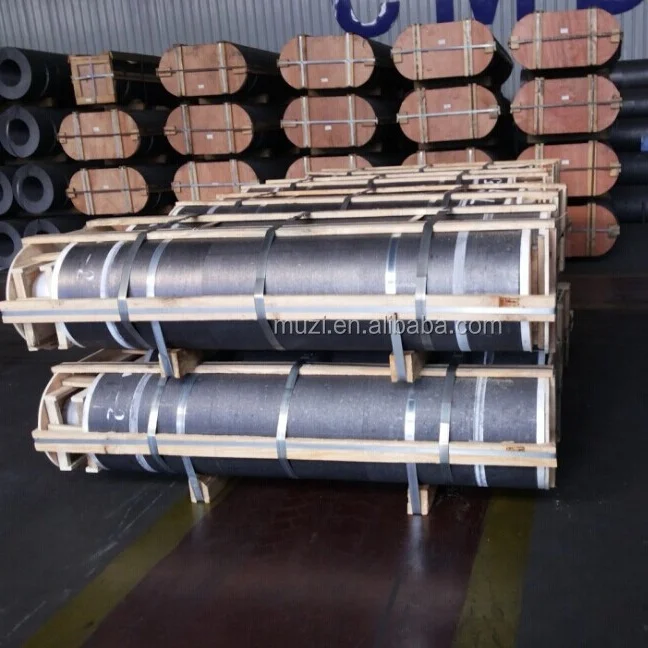

Packaging & Shipping
Main Products
FAQ
