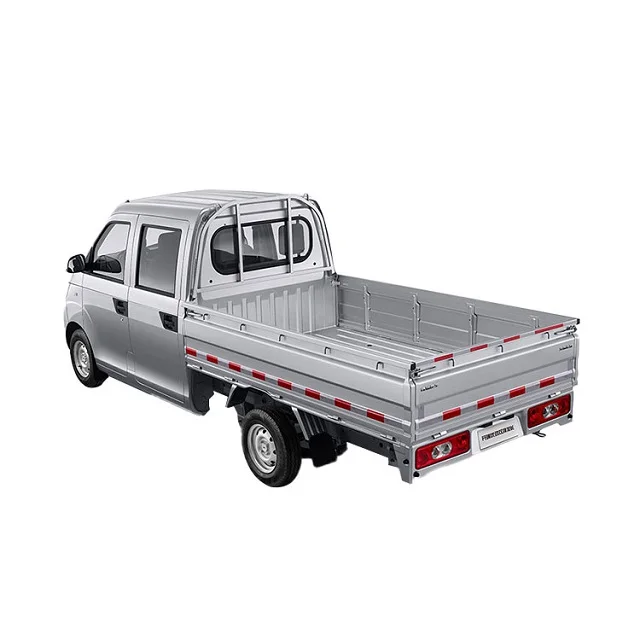

Double cabin 1.5L Rated payload 800 KG Gasoline cargo

Model

CDW3110

Cab and Panel

2080 cab,Double torsion bar

Engine

Type: YC4E160-33

Type:4 cylinder, direct injection, water cooling,4 stroke,Euro III

Max horse power: 160hp

Rated revolution: 2600 rpm

Max. Torque: 520 N.m at 1300~1700 r/min

Displacement: 4.257 L

Cylinder bore×route: 110×112 mm

Gearbox

Type: HW90710,Manual with synchro, 10 forward and 2 reverse

Ratio: 11.987,8.973,6.748,4.644,3.805,2.581,1.932,1.453,1,0.819,

9.989(R1),2.151(R2)

Axle

Front type: 145D1A,driven front axle

Rear axle type: 153N1,Pipa Style,casting axle,with differential

Rear axle ratio: 6.5

Frame

Frame: 280/10,ladder shaped frame,280mm height,800mmwideth,10mm thickness

Front overhang: 1061-Ⅱ++,11pcs,telescopic shock absorber

Rear overhang: 153+,11pcs main spring and 8pcs assistance spring

Fuel tank:Iron steel,Volume 150L

Steering

Type:Steering wheel

Steering diameter:450mm

Max. cycles:5.5

Brake system

Motor brake:Double Circuit air brake

Parking brake: Brake

Auxiliary brake: Exhausted Brake

Tyre

Tyre:9.00-20×7

Electronic

Voltage: 24V,cathode ground connection

Dimension

Wheelbase: 3650 mm

Wheeltrack: 1750 mm/ 1725mm

Overhang: 1260 mm / 1490 mm

Approaching angle/Departure angle: 24 / 23

Inner dimension: 4140mm×2200mm×800mm

Total dimention: 6395 ×2300×2630mm

Lifting

Single cylinder 180mm×660mm

Weight

Rated mass:4800Kg

Load capacity:10000 kg

Total mass:14800 kg

Front axle load capacity:4590 kg

Rear axle load capacity:6905 kg
