Производитель 12ft 3 6 м BLDC 220VAC 90 об/мин крупные промышленные гигантский потолочный вентилятор с большой размах крыльев hvls 8
- Категория: Fans >>>
- Поставщик: Shenzhen,Jenvos,Electric,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 690.15 $* | 725.71 $* |
| Aug-19-2025 | 684.30 $* | 718.71 $* |
| Jul-19-2025 | 574.91 $* | 603.58 $* |
| Jun-19-2025 | 673.95 $* | 707.34 $* |
| May-19-2025 | 586.0 $* | 615.19 $* |
| Apr-19-2025 | 661.59 $* | 694.87 $* |
| Mar-19-2025 | 655.84 $* | 688.77 $* |
| Feb-19-2025 | 650.69 $* | 683.95 $* |
| Jan-19-2025 | 644.85 $* | 676.61 $* |
Характеристики
Product Description
Manufacturer 12ft 3.6m BLDC 220VAC 90 rpm large Industrial giant ceiling fan with big wingspan hvls 8 fan
Product parameters:
Model Numbe | Voltage(V) | Power(W) | Speed (RPM) | Blade Diameter (meter) | Air Volume（m³/min） | Noise | Blade Quantity（pcs） | Weight (Kg) |
PMSM330-735 | 220/380 | 1560 | 50 | 7.35 | 13185 | 40 | 6 | 113 |
PMSM330-675 | 220/380 | 1152 | 55 | 6.75 | 12862 | 40 | 6 | 110 |
PMSM330-625 | 220/380 | 1000 | 60 | 6.25 | 12261 | 40 | 6 | 106.5 |
PMSM330-550 | 220/380 | 800 | 65 | 5.5 | 11963 | 40 | 6 | 103.1 |
PMSM330-520 | 220/380 | 750 | 70 | 5.2 | 11175 | 40 | 6 | 99.65 |
PMSM255-470 | 220 | 700 | 75 | 4.7 | 7075 | 40 | 6 | 96.3 |
PMSM255-420 | 220 | 530 | 80 | 4.2 | 5213 | 40 | 6 | 79.5 |
PMSM255-360 | 220 | 410 | 95 | 3.6 | 3326 | 40 | 6 | 88 |
PMSM255-220 | 220 | 330 | 115 | 2.2 | 1669 | 40 | 6 | 79 |
Jing Si Dun permanent magnet synchronous fan is a super large energy saving ceiling fan with a maximum diameter of 7.32 meters. It is made of high strength materials such as forging steel and aviation aluminum, which is strong and safe. Only 1.5 kws can be used to drive a large amount of air, creating a large area of natural breeze system, which can serve as a dual function of ventilation and cooling. It covers an area of 1300 square meter. Our fan standard diameter from 2.2 m (7ft) to 7.32 m (24ft).
industrial air cooler fan，industrial factory big ceiling fans，Ceiling Fan，Industrial HVLS Ceiling Fan，ceiling industrial fans，bldc Industrial ceiling fan，Hvls Large Ceiling fan，Big exhaust Ceiling fan，Hvls industrial ceiling fan，Hvls giant ceiling fan，industrial large ceiling fan，bldc ceiling fan，PMSM industrial ceiling fan
Application:
Animal husbandry: large farms, livestock farms, breeding industry.
Sports industry: gymnasium, gymnasium, sports training hall, training room.
Recreation: large playground, animal botanical garden, children's playground.
Transportation hub: airport, high-speed railway station, bus station, subway station, pier.
Business places: exhibition center, 4S shop, large professional products market, large shopping malls and supermarkets.
Other types: front office, villa, canteen, museum, large outdoor commercial activity lease.
Sports industry: gymnasium, gymnasium, sports training hall, training room.
Recreation: large playground, animal botanical garden, children's playground.
Transportation hub: airport, high-speed railway station, bus station, subway station, pier.
Business places: exhibition center, 4S shop, large professional products market, large shopping malls and supermarkets.
Other types: front office, villa, canteen, museum, large outdoor commercial activity lease.
Product parts

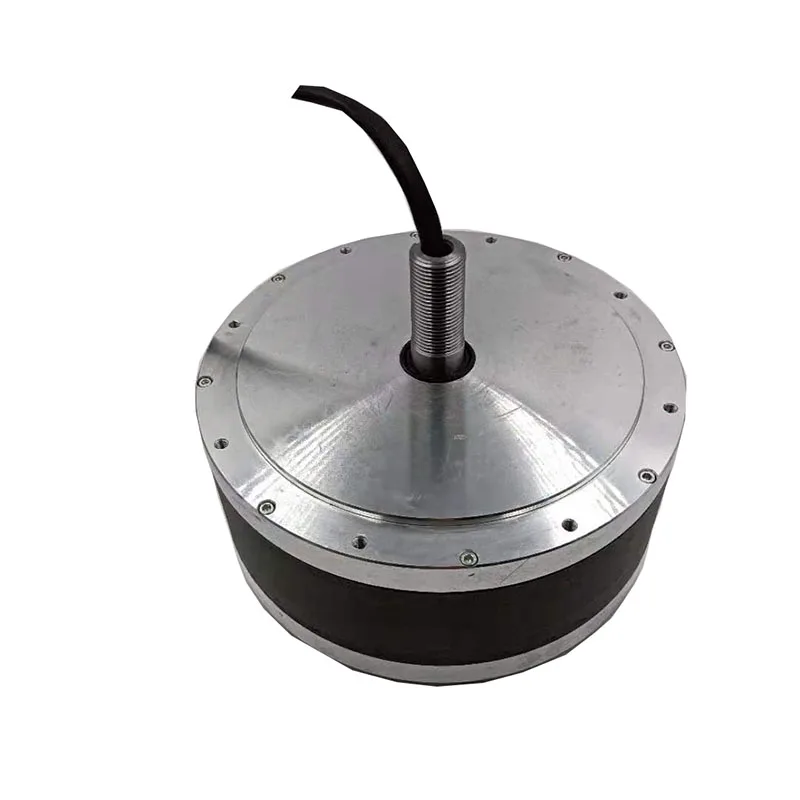

The Industrial fan We use the most advanced permanent magnet synchronous motor.
Without the Hall, carbon brush, big torque, ac drive motor FOC algorithm, it’s the worldwide first technology and newly independent research and development. This type of motor adopts unique design making the torque ripple is almost zero, so that the motor in quite state during operation. It can replace the traditional motor and deceleration machine which can realize the high integration and improve the reliability and transmission efficiency. Driven by low speed high torque motor at the same time, with it’s own configuration of IMU, it can realize the ESC + coordination control strategy for regenerative braking strategy actively. Driven by motor directly, it can satisfy the peak torque within any recycling or auxiliary braking torque. The drive adopts double closed loop control to realize ultra precise speed error control that the speed error of positive and negative 1 rotation can be achieved. On a condition that the running surface is only 55 ~ 60 ℃ in extremely low motor temperature rising at full capacity, so the overall heat dissipation performance is excellent.
Features and advantages:
1.Brushless motor has no spark.
2.The service life is over 50,000 hours
3. High efficiency, large power, small volume, light weight.
4.Good starting and speed adjustment.
5.Energy saving： 35%- 50%.
6.The explosion-proof type
7. Low noise, Just 60 decibels
8.Without reduction gearbox,No oil leakage, no maintenance costs

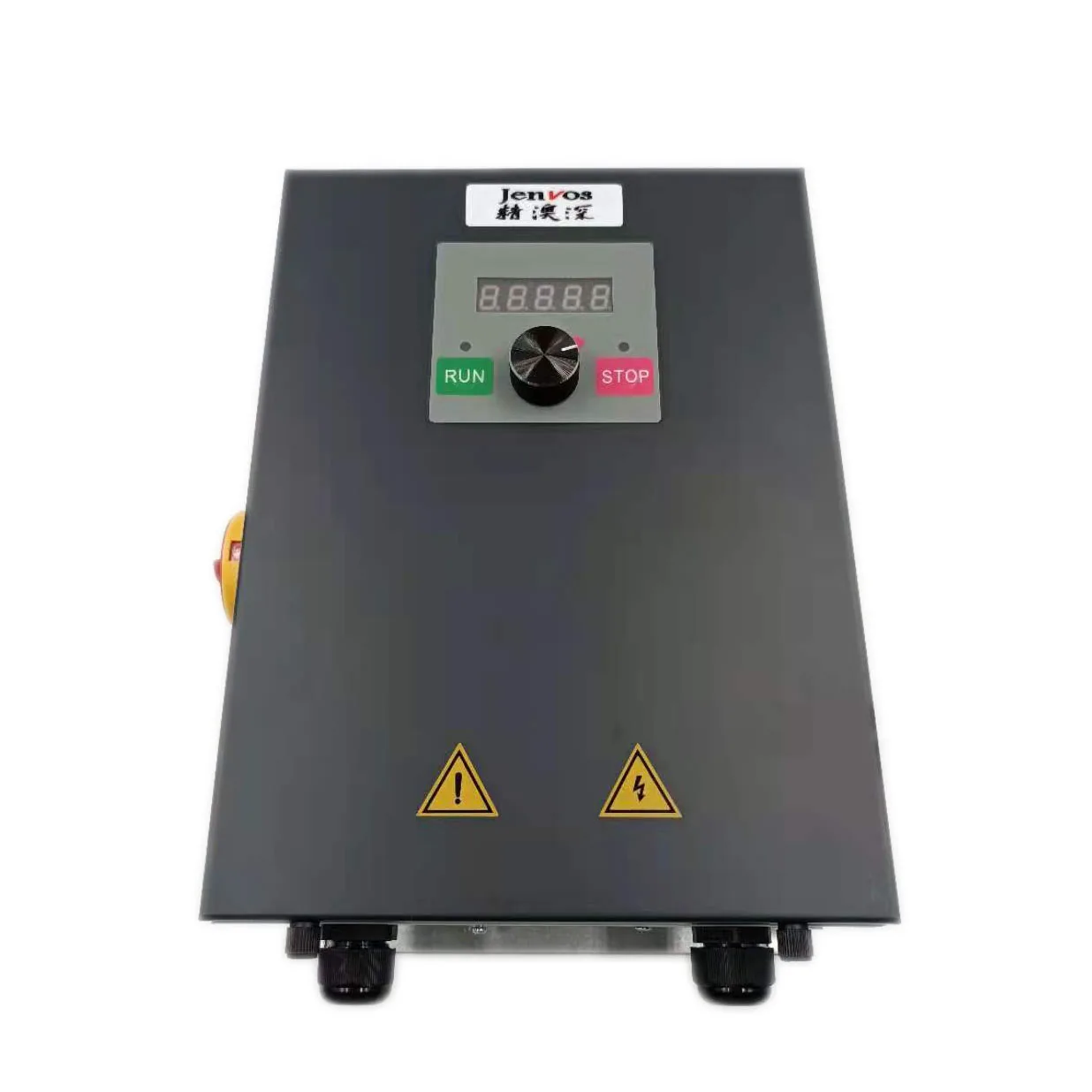

Pmsc Driver:
1.Power range:0.05-5kw
2.Rotation speed:10 rpm-3000 rpm
3.General speed ratio can reach 100%
4.Low speed fluctuation (0.1%)
5.effective range(between motor and driver):
more than 50 meters
6.With RS-232,RS-485 and other communications interface.
Our Company
Shenzhen Jenvos electrical equipment Co.,ltd. Is a leading industrial fan R&D, manufacturing, sales of high-tech enterprises. Plant area of 3000 square meters; now has employees, management, more than 200 tech-nical staff.
All the fan parts are produced by us, so our industrial fan high quality and inexpensive.
Our company has passed ISO9001: 2008 quality system certification, ISO14001 environmental management system certification.
All the fan parts are produced by us, so our industrial fan high quality and inexpensive.
Packing & Delivery
Packing:
Fan blade and Motor Packing by wooden case separately. The inner layer is packed in pearl cotton, outer packing by wooden case.
Packing list:
1>PMSM Motor
2>PMSM Drive
3>Connecting plate
4>Blade holder
5>Fan Blade
6>connecting rod
7.Power Distribution Cabinet
8.Wire rope and screws
9.Steel beam fixing plate or cement fixing plate (Alternative)
2>PMSM Drive
3>Connecting plate
4>Blade holder
5>Fan Blade
6>connecting rod
7.Power Distribution Cabinet
8.Wire rope and screws
9.Steel beam fixing plate or cement fixing plate (Alternative)
Certifications
Our Service
1.Are you a foreign trade company or a manufacturer ?
A:Yes , we are a manufacturer . Our factory located in Shenzhen City, Guangdong Provin,
All of our staffs work in Factory, welcome to visit our factory.
2. Could you print customer company LOGO ?
A: Yes , we accept OEM orders, Printing your own logo on fan
3. What is the price per industrial ceiling fan ?
A: We will offer the best to you ,according your order quantity
4. How do you control your product quality ?
A: We provide customers with 1 years warranty, if the product of the problem will only give us the trouble and costs, all products before shipment must be tested strictly by QC
