1. This machine is suitable for medicine, cosmetic, food, etc.
3. We use high-quality stainless steel to make machine shell, the working surface closed by the plexiglassdoors and windows, in strict accordance with the pharmaceutical industry "GMP" standard to be innovative design.
4. With no manual/leaflet automatic rejection function; automatically stop when product into carton is not in place or no carton.
5. Easy to replace the different specifications of the product.
6.PLC control system, color touch screen display, the machine has an automatic count, fault alarm function.
7. This machine can work alone, also can work with filling production lines.
Technical parameters:
Model
JB-WZ80
Capacity
30-100 cartons/min
Power supply
1Ph 220V or 3Ph 380V, 50/60Hz
Main motor power
2.5 KW
Gas consumption
5-20L/min
Press air
0.5-0.8 Mpa
Carton paper
250-300g (white card) or 300-350g (gray card)
Carton Specification
L 45-85mm x W 28-53mm x H 28-53mm
Instruction book
Paper specification
60-70g/square meter
Unfolding size
L(80-250)mm x W(90-170)mm
Folding range
Customized
The number of folding
1-4
Machine weight
About 1000kg
Machien dimension
L3500xW1100xH1600mm

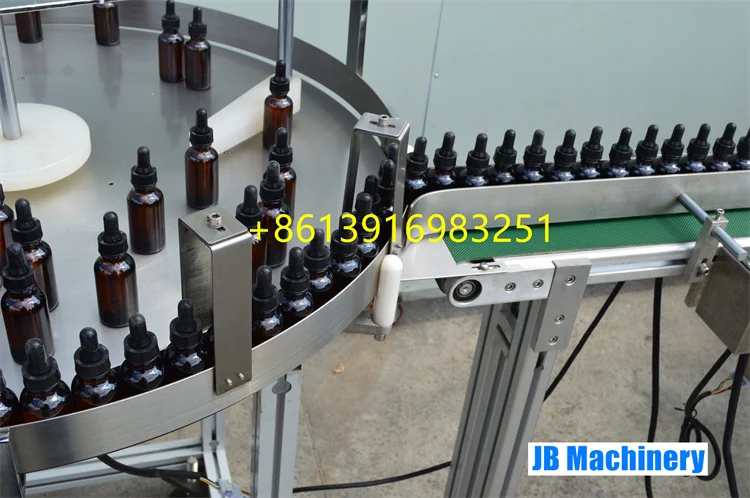

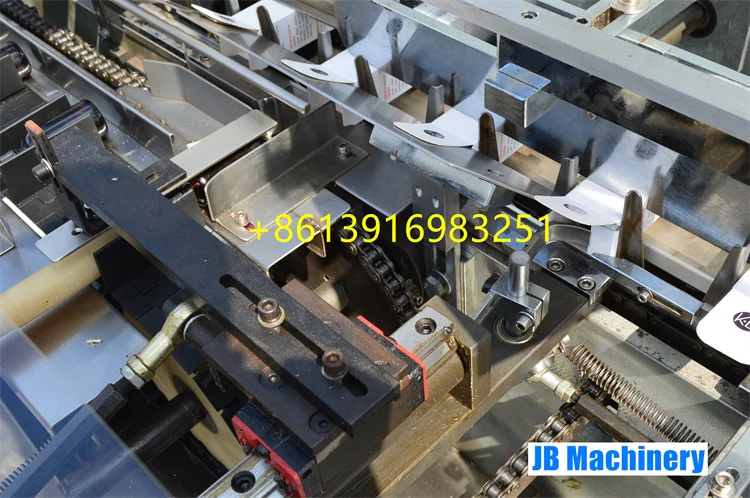

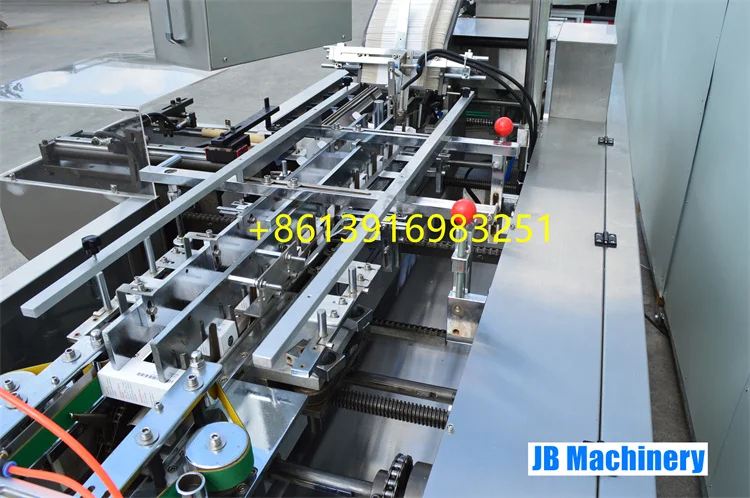

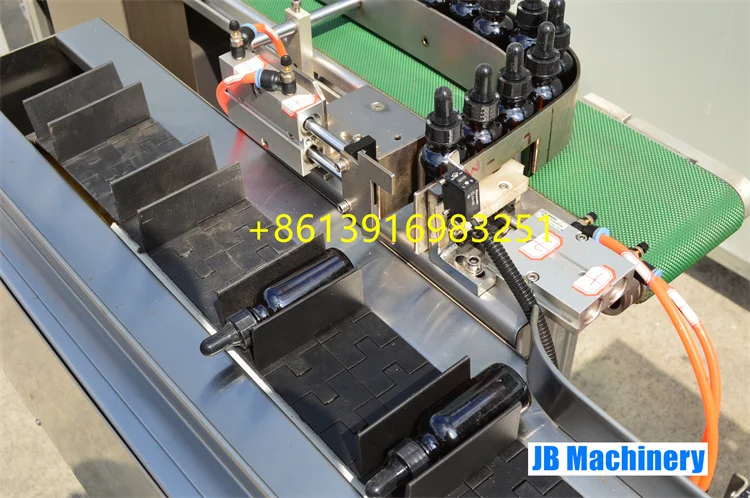

Detailed pictures

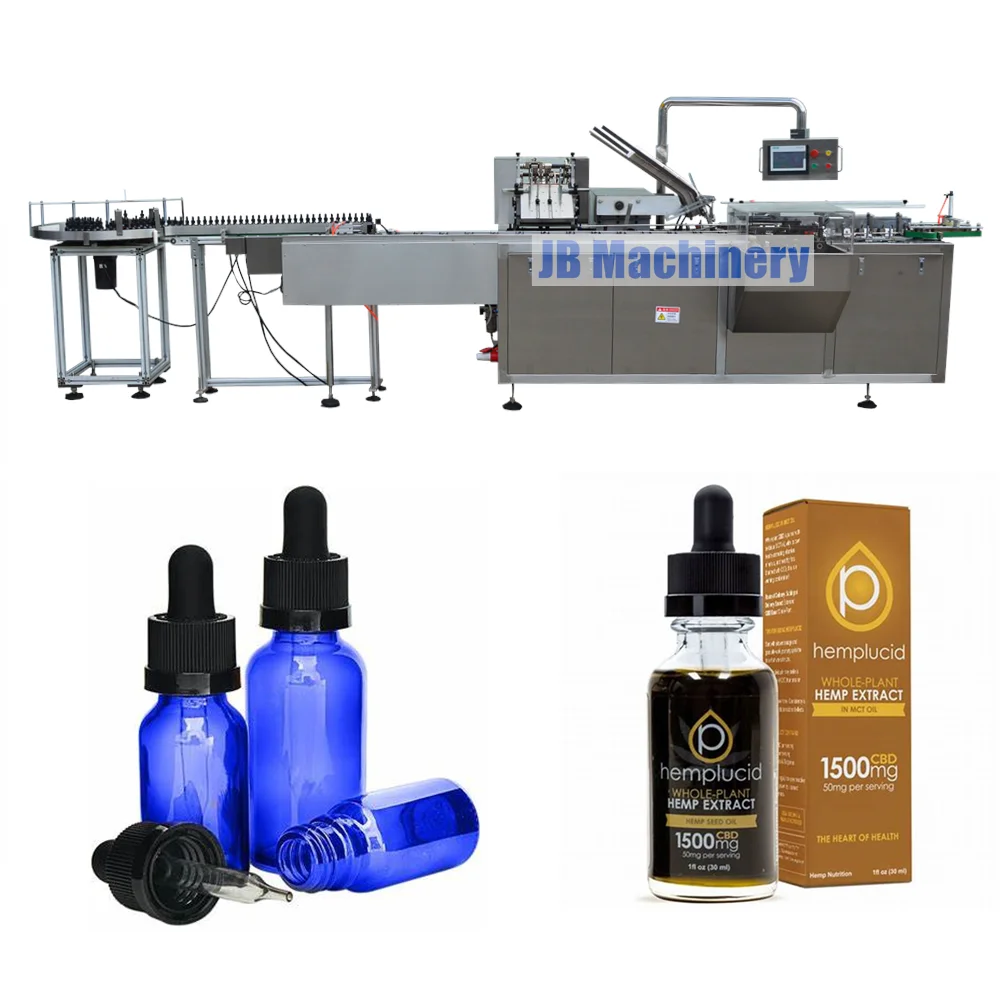

Automatic cartoning/ packaging machine for bottle cbd oil perfume

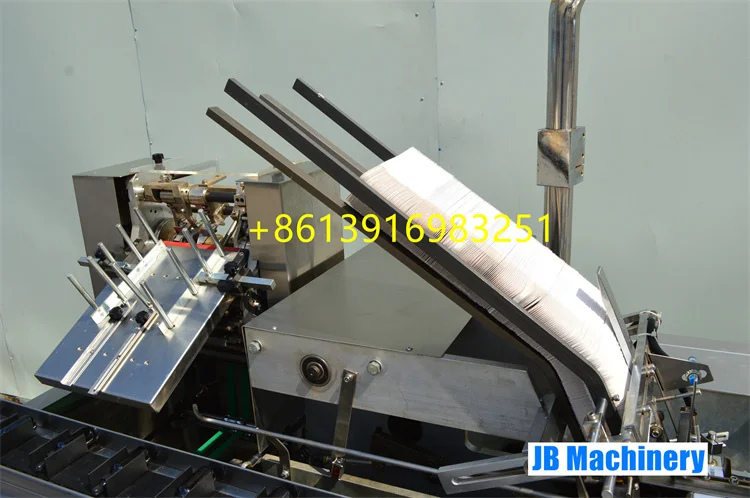

Cartons folding and sealing:
