* Europe type & French type * Mini size,lightweight * Build in ESP32 module integrated WIFI&BT wireless technology * The maximum scanning distance of bluetooth can reach 130m * Support OTA firmware upgrade * Support multiple server platforms such as EMQTT, AWS, ALI,also provide configuration protocol for customers to access their own server platform * Provide IOS and android SDK for customers to develop their own APP * Schematic diagrams are available for customers to develop firmware * UL/ FCC certification
Specification
Physical Characteristics
NO.
Item
Remarks
1
Wireless technology
WIFI&Bluetooth
2
Input voltage
230VAC, 50/60HZ
3
Output voltage
230VAC
4
Max load
11A, 2530W, continuous load
5
Operation temperature
0 ºC~ 40 ºC ( 32°F ~ 104°F)
6
Plug type
Type E/F
7
EU directives compliance
RED 2014/53/EU
Technology Parameters
NO.
Item
Remarks
Hardware
MCU
ESP32
Software
Communication protocol
MQTT V3.1.1
Firmware
Built-in MOKO standard firmware, also provide schematic diagrams for customers to develop firmware
APP configuration
Mokoscanner supports IOS & Android, also provide APP SDK for customers to develop their own APP
WIFI specification
Frequency
2.4GHz-2.5Ghz（2400MHz-2483.5MHz）
Protocol
802.11b/g/n
Coverage
100 meters in open space
Encryption mode
OPEN/WEP/WPA_PSK/WPA2_PSK/WPA_WPA2_PSK
Transmission power
13dB@802.11n；18.5dB@802.11b
Bluetooth specification
Bluetooth standard
Bluetooth 4.2
Max scanning range
130m in open space
Scanning rate
150 times/s（150 Bluetooth frames per second）
Max scanning capacity
100 BLE devices max
Receiving sensitivity
-97dB
Indicator & Button Status
Item
Indicator status
Operation
Factory reset
Flash green and blue alternately once
Press and hold the button for 10s
Bluetooth OFF
LED off
When Bluetooth is advertising, click the button to turn OFF the device Bluetooth
Bluetooth advertising
Flash green
When Bluetooth is OFF, click the button to turn ON the device Bluetooth
Bluetooth connected
Solid green
APP is connected to device’s Bluetooth
Network connection
Flash blue
Device is connecting to router and server
Network connected
Solid blue
Device has connected to router and server
OTA upgrading
Flash green
To indicate OTA process
OTA successful
Solid green
To indicate OTA result
OTA failed
Solid red
To indicate OTA result

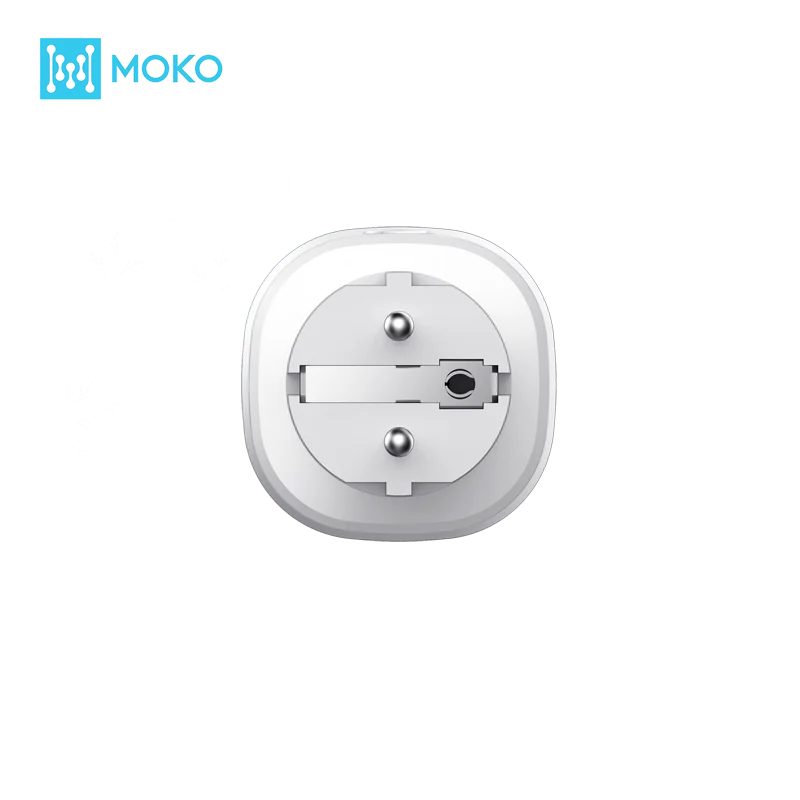

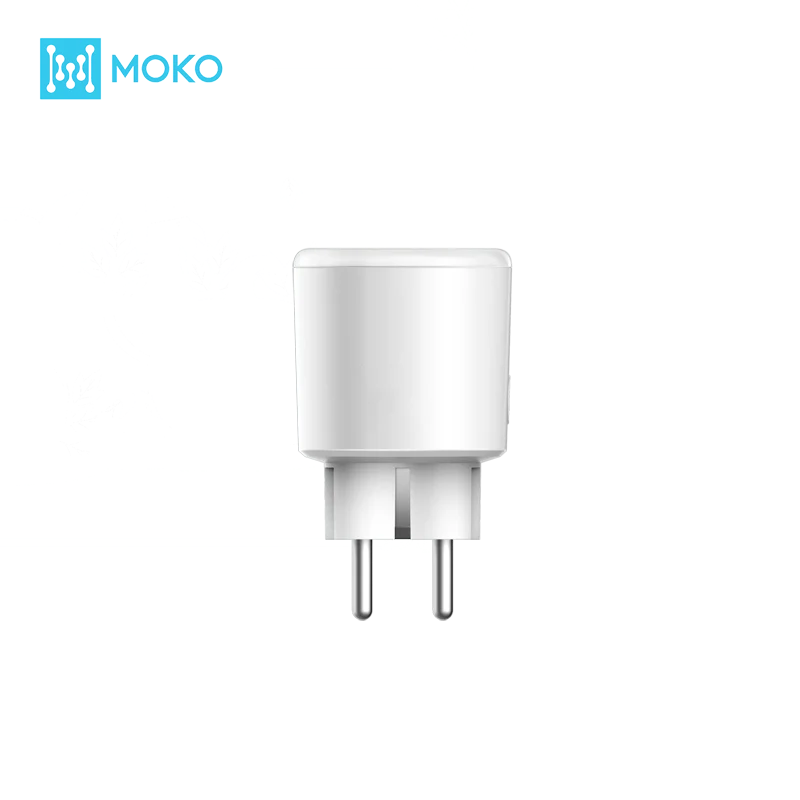

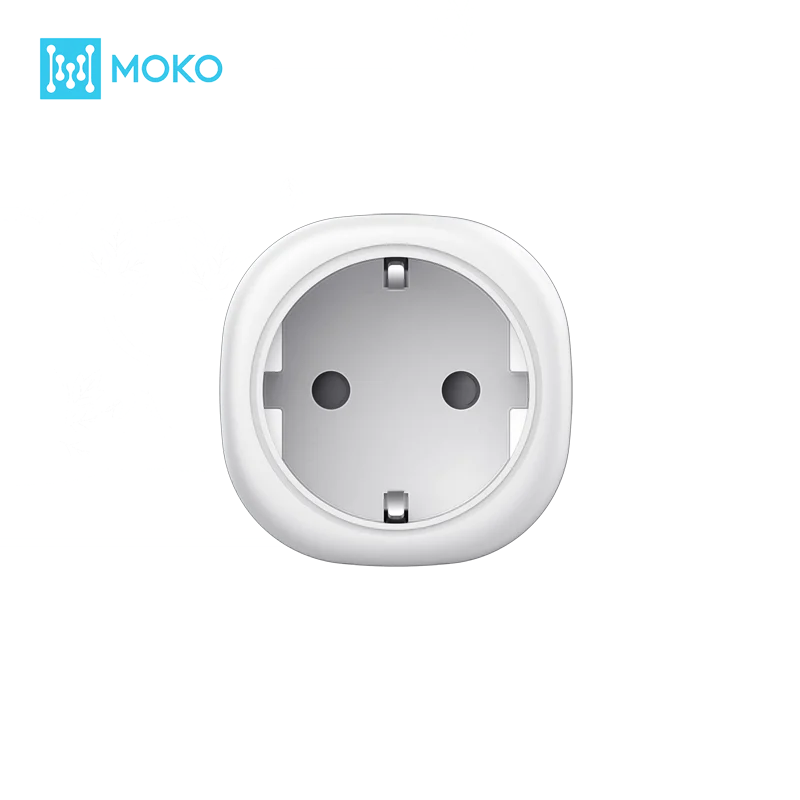

Europe type-top Europe type-bottom French type-top French type-bottom
Dimensions
Dimensions (diameter x height): Type E: 51.5mm x 84.5 mm/Type F: 51.5mm x 87.5 mm
