Лучший самый мощный 20 кВт 50 100 купить электромобиль ev ac грузовик автобус PMSM контроллер двигателя инвертор
- Категория: Electric Motors >>>
- Поставщик: Chengdu,Yiwei,New,Energy,Automobile,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.44 $* | 0.66 $* |
| Aug-19-2025 | 0.52 $* | 0.59 $* |
| Jul-19-2025 | 0.20 $* | 0.85 $* |
| Jun-19-2025 | 0.41 $* | 0.94 $* |
| May-19-2025 | 0.37 $* | 0.12 $* |
| Apr-19-2025 | 0.21 $* | 0.65 $* |
| Mar-19-2025 | 0.2 $* | 0.49 $* |
| Feb-19-2025 | 0.37 $* | 0.54 $* |
| Jan-19-2025 | 0.51 $* | 0.54 $* |
Характеристики
Products Description
Specifications
YIWEI NEW ENERGY AUTOMOBILE CO., LTD. is a high-tech enterprise specializing in the design of electric chassis for trucks, the development and production of motor and MCU, e-axle, vehicle control, and intelligent networked information technology.

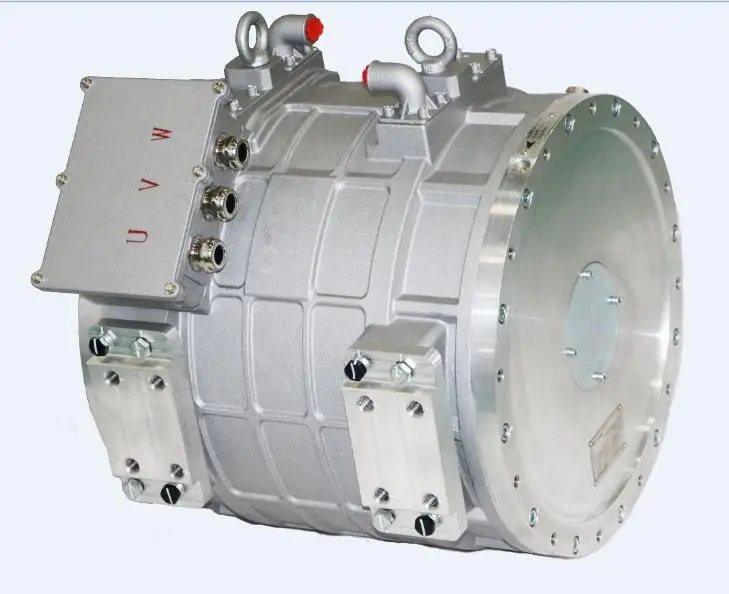

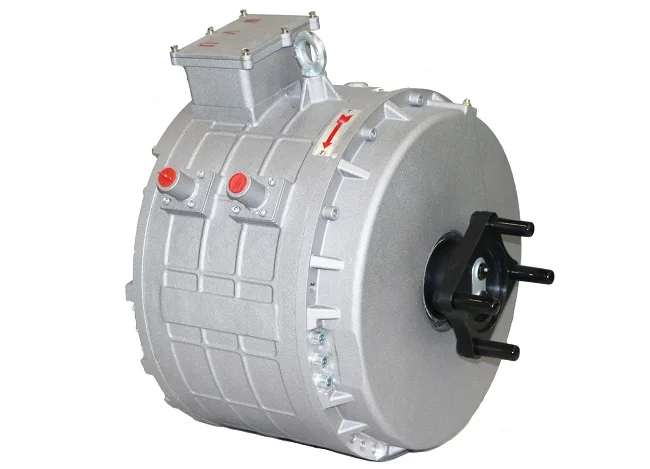

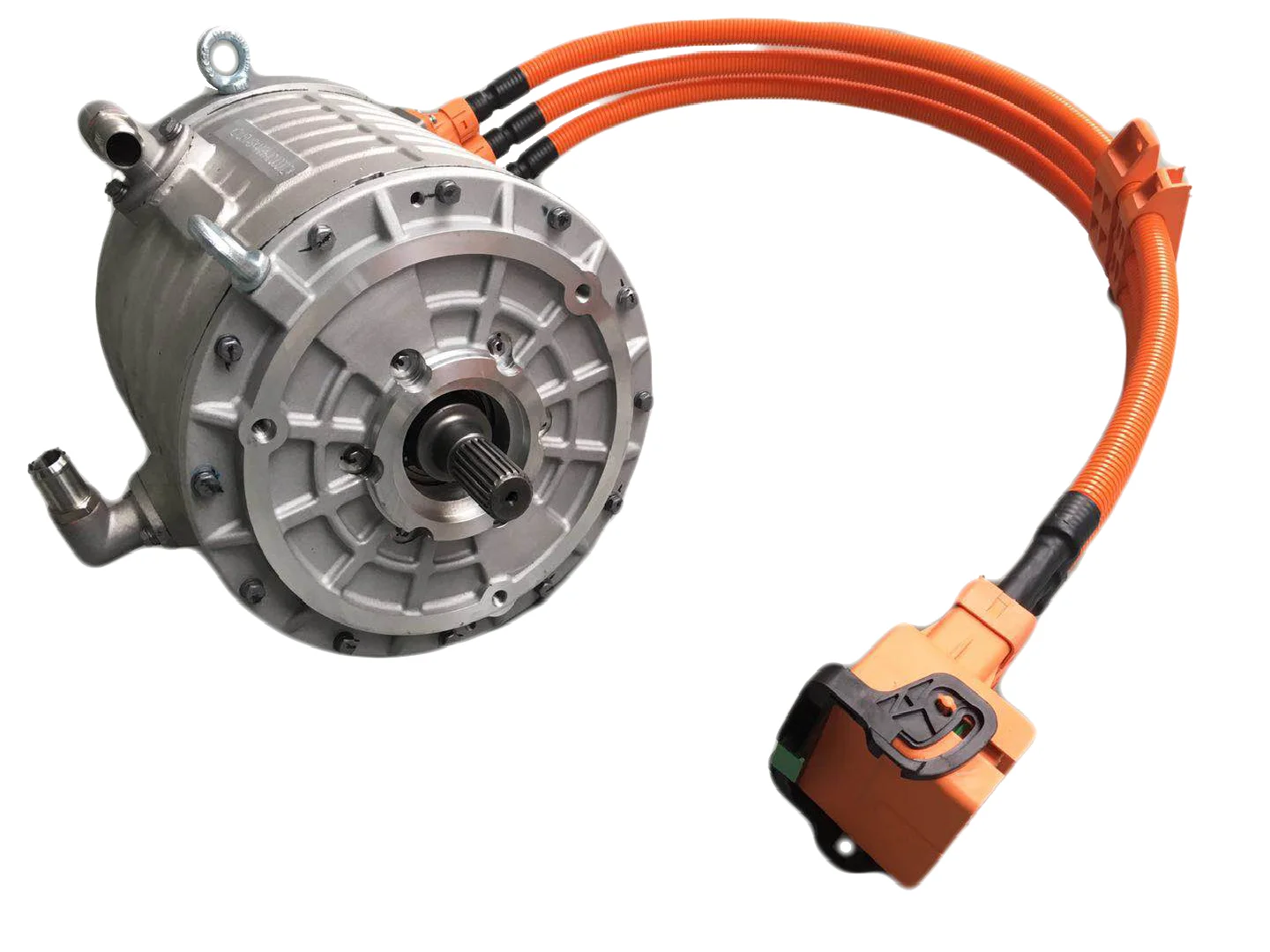

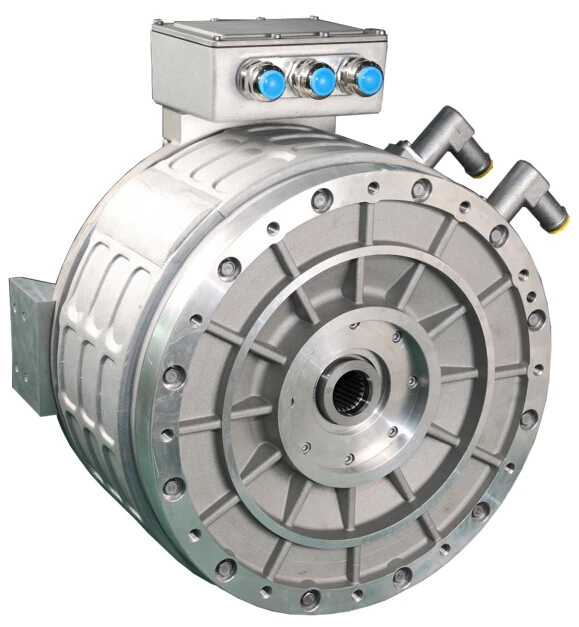

Products Real Shot
Show Details
Series Number | APEV11 2in1 | APEV2000 | APEV60-8(15) | APEV70-12(07B) | APEV70-12(04D) | APEV80-12(16) |
Poles | 8 | 8 | 8 | 12 | 12 | 12 |
Rated Battery Voltage (VDC) | 350 | 380 | 540 | 540 | 540 | 540 |
Rated current (A) | 120 | 180 | 170 | 240 | 120 | 270 |
Peak Current (A) | 235 | 400 | 400 | 400 | 250 | 650 |
Rated Power (kW) | 25 | 60 | 60 | 70 | 70 | 150 |
Peak Power (kW) | 55 | 100 | 100 | 135 | 120 | 200 |
Rated Speed (RPM) | 3500 | 1600 | 1600 | 786 | 2000 | 1200 |
Peak Speed (RPM) | 9000 | 3600 | 3600 | 3000 | 4500 | 3500 |
Rated Torque (N.m) | 68 | 358 | 360 | 850 | 335 | 1194 |
Peak Torque (N.m) | 175 | 1000 | 1000 | 1500 | 600 | 3000 |
BEMF (VAC)/rpm rms | 400/9000 | 340/3600 | 380/3600 | 420/3000 | 640/4500 | 660/2401 |
Working System | S9 | S9 | S9 | S9 | S9 | S9 |
Insulation | H | H | H | H | H | H |
Protection | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
Cooling | Water | Water | Water | Water | Water | Water |
Weight(kg) | 44 | 146 | 160 | 160 | 87 | 280 |

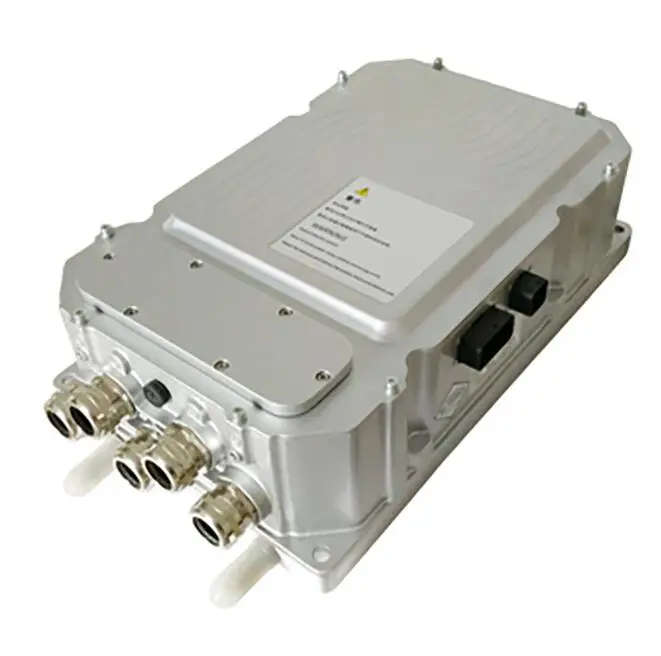

AEV100-D540120L5 motor controller Specification | ||||||
Input Voltage range from battery (VDC) | 200-720 | weight(kg) | 15 | |||
Motor Controller low voltage input range (VDC) | 9-36 | Rated capacity(KVA) | 90 | |||
Max output current(A) | 400 | Peak capacity(KVA) | 150 | |||
Protection | IP67 | Cooling flow | >=15L/min | |||
Coolant | Water + Ethylene glycol | Max Coolant Inlet temperature °C | ≤65 | |||
Working temperature | -40°C - 65 °C | Storage temperature | -40°C - 85 °C | |||
AEV100-D540D540200L2 motor controller Specification | ||||||
Input Voltage range from battery (VDC) | 250-720 | weight(kg) | 28 | |||
Motor Controller low voltage input range (VDC) | 18-36 | Rated capacity(KVA) | 180 | |||
Max output current(A) | 800 | Peak capacity(KVA) | 250 | |||
Protection | IP67 | Cooling flow | >=15L/min | |||
Coolant | Water + Ethylene glycol | Max Coolant Inlet temperature °C | ≤65 | |||
Working temperature | -40°C - 65 °C | Storage temperature | -40°C - 90 °C | |||
More Products
Company Profile
CHENGDU YIWEI NEW ENERGY AUTOMOBILE CO., LTD. is located in Jingrong Town, Chengdu's innovation and entrepreneurship demonstration base. It is a high-tech enterprise specializing in the design of electric chassis for refuse trucks, the development and production of electrical systems, vehicle control, and intelligent networked information technology.
YIWEI AUTOMOBILE actively responds to the battle to defend the blue sky, fulfills its social responsibility and mission,
andcontributes to building a beautiful China with "blue sky, green land and clean water".
andcontributes to building a beautiful China with "blue sky, green land and clean water".
We focus on the "standardized electric chassis + personalized top-mounted electrical control program + information platform service" combination of products; deepen the market segmentation of Electric Refuse trucks.
Production Line
Packaging Logistics
FAQ
Q: What is the production time? A: Normally, the production time is about 35-40 days. Q: Do you have a warranty on your products? A: Yes! Normally, our products come with a 1-year warranty. Q: Do you support customization? A: Yes, we can design products upon your request. Q: What are the requirements to be your agent/distributor? A: We welcome agents from all over the world. Please contact us to know more details. |
