1U 19inch 24 Port Cat6 FTP Metal Shielded Patch
- Категория: Patch Panel >>>
- Поставщик: Shenzhen,Sunsoont,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.94 $* | 0.30 $* |
| Aug-18-2025 | 0.77 $* | 0.68 $* |
| Jul-18-2025 | 0.58 $* | 0.64 $* |
| Jun-18-2025 | 0.61 $* | 0.15 $* |
| May-18-2025 | 0.64 $* | 0.85 $* |
| Apr-18-2025 | 0.52 $* | 0.86 $* |
| Mar-18-2025 | 0.8 $* | 0.26 $* |
| Feb-18-2025 | 0.81 $* | 0.82 $* |
| Jan-18-2025 | 0.75 $* | 0.84 $* |
Характеристики
1U 19inch 24 Port Cat6 FTP Metal Shielded Patch Panel
Product Description
SunSoont 24 port shield patch panel supports shielded Ethernet cables. Made for Cat 6 cabling, but backwards compatible with Cat 5e and Cat 5 cabling.
Future-proof your network connection for 10-Gigabit Ethernet with this durable RJ45 patch panel; Designed for superior protection against EMI/RFI and suppression of alien crosstalk (AXT).
Install this Ethernet patch panel effortlessly in universal 19" racks, cabinets, or wall mount brackets with 1U (1.75") standard height.
Gold plated contacts ensure a correction free connection; Numbered ports and color-coded T568A and T568B wiring diagram give quick reference.
The integrated cable management bar and cable separation rows relives cable strain and reduces cable clutter.
Product Feature
1. Front Panel: 1.5mm thickness metal, panel(SPCC), painting on surface
2.Metallic Frame: 1.5mm thickness
3. Housing material: ABS or PC, UL94-V0 or UL94-V2
4. Meet or exceed the current T568A and T568B standard
5. Termination: Dual IDC, 110 IDC, Krone IDC
6. Panel frame: black or Ivory electrostatic powder-coated steel
7. IDC contact material: phosphor brone with tin plating over nickel
8. contact material: phosphor brone with gold plating over nickel
9. Punching duration:≥250 times
10. Inserting duration:≥750 times
11. Dielectric withstand voltage: 1000V AC RMS, 60Hz 1min
12. Insulation Resistance: 500M-ohm
13.High reliability and superior performance.
Specifications
1U 19inch 24 Port Cat6 FTP Metal Shielded Patch Panel
Product Type | Shield FTP Network Patch Panel |
Color | Black, Optional |
Material | Support Bar : SPCC, 1.5mm thickness with optional color Panel : SPCC, 1.5mm thickness with optional color painted Rear Panel: SPCC, 1.5mm thickness with 5~8um Nickel plated Ground Wire: 18AWG Wire, with Green/Yellow striped color, length 40 cm |
Connector | RJ45 Female |
Application | Home, commercial building, school cabling system |
Wiring Scheme | T568A &T568B |
Storage Temperature | -40°C to 70°C |
Operating Temperature | -10°C to 60°C |

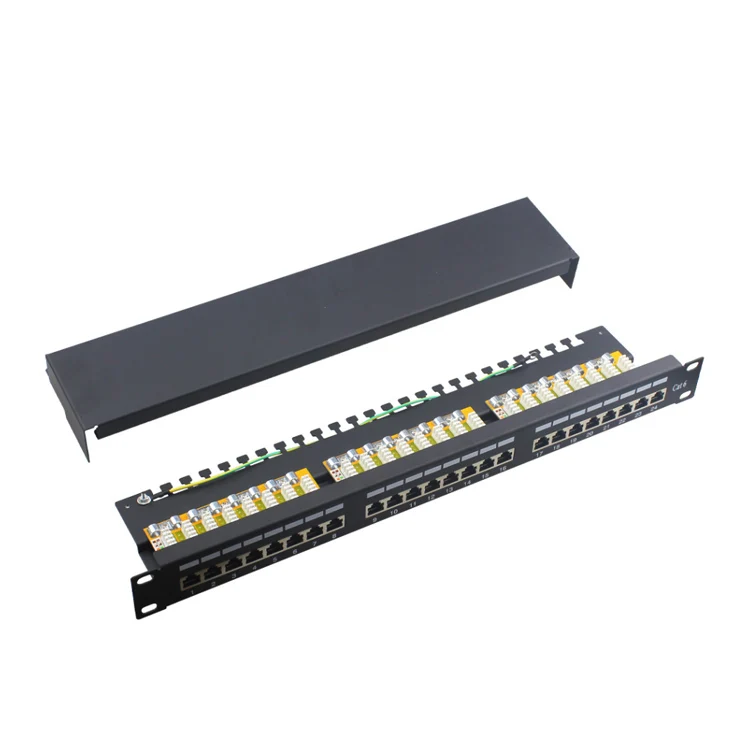

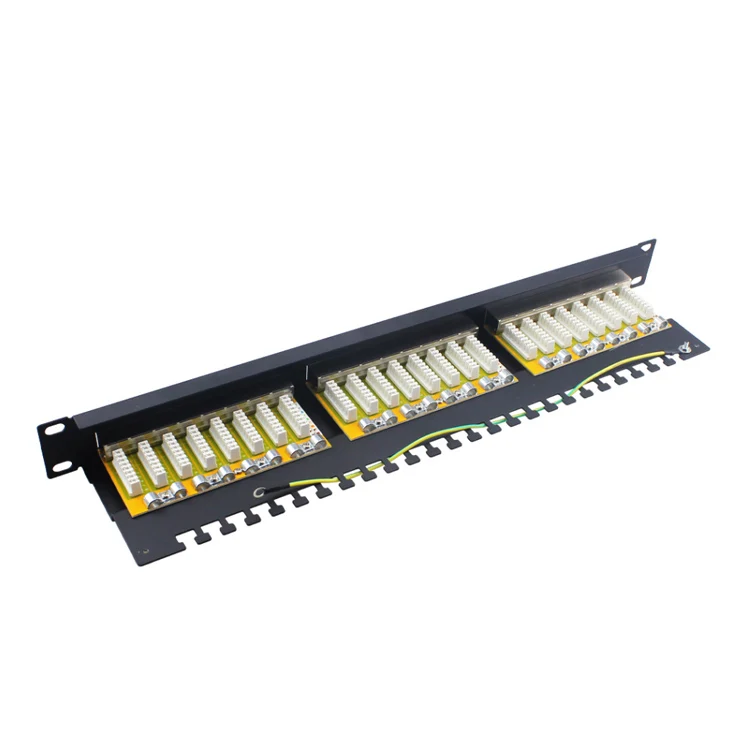

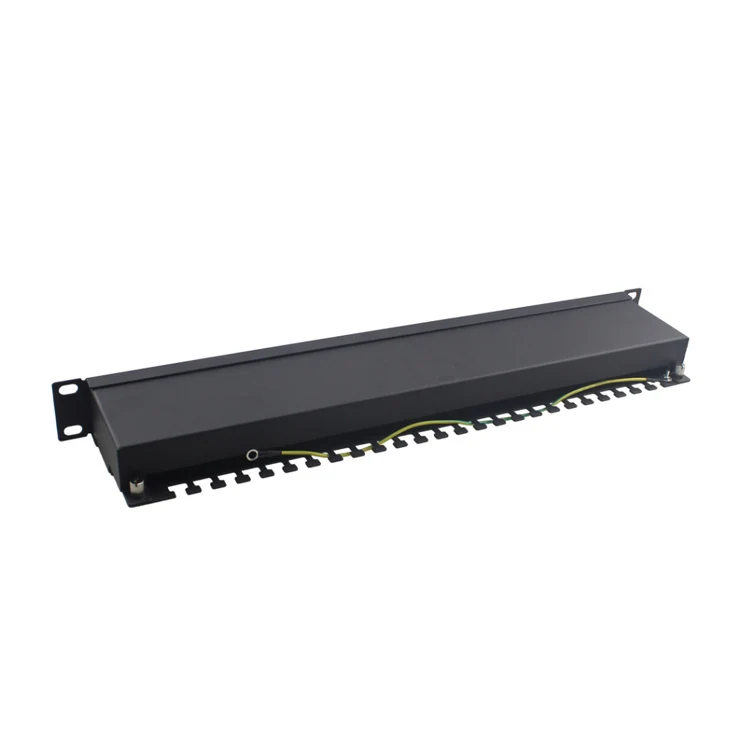

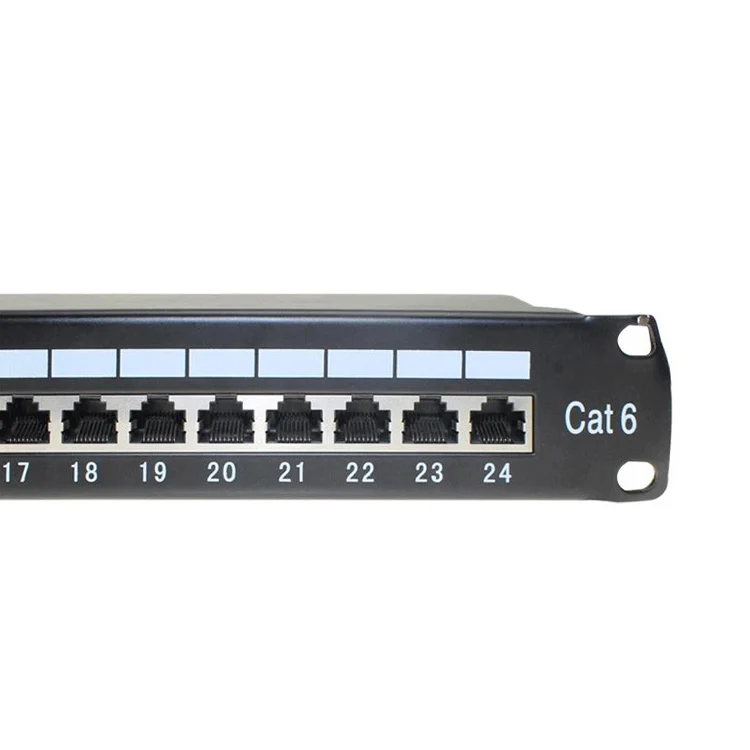

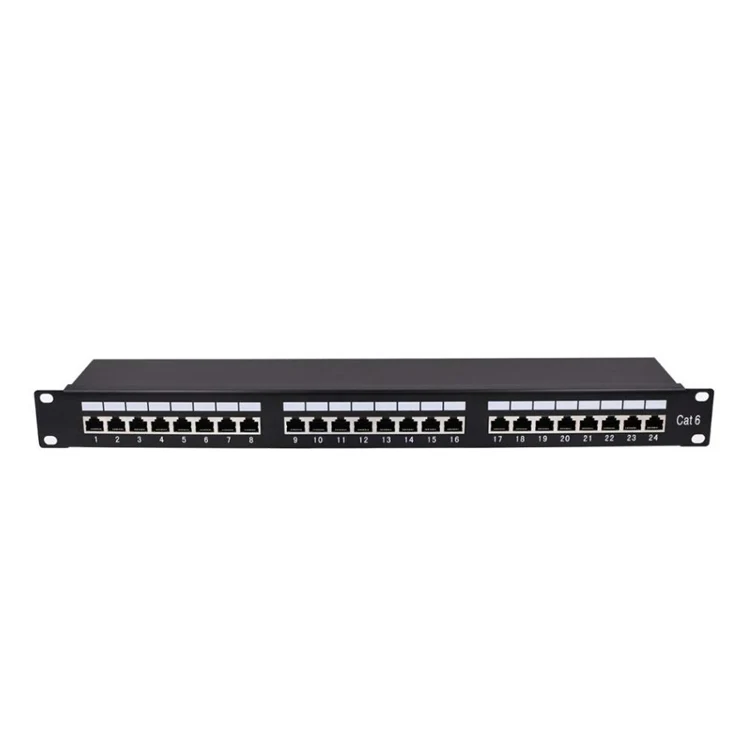

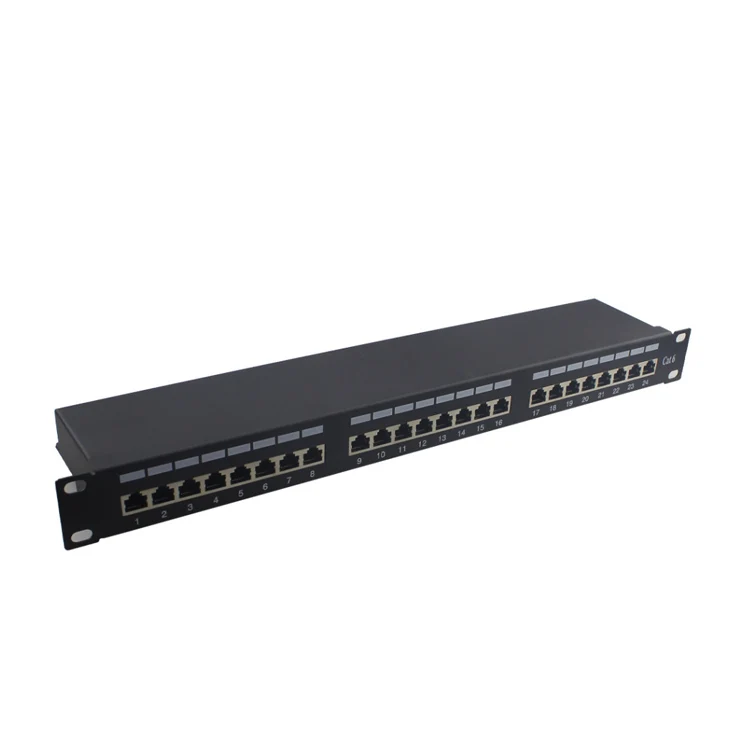

Detailed Images
