Одиночный Картридж 10 дюймов 304 Корпус жидкостного фильтра из нержавеющей стали для стерилизующее
- Категория: >>>
- Поставщик: Hangzhou,Dute,Filter,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.5 $* | 0.59 $* |
| Aug-17-2025 | 0.18 $* | 0.8 $* |
| Jul-17-2025 | 0.65 $* | 0.7 $* |
| Jun-17-2025 | 0.65 $* | 0.63 $* |
| May-17-2025 | 0.38 $* | 0.72 $* |
| Apr-17-2025 | 0.49 $* | 0.22 $* |
| Mar-17-2025 | 0.81 $* | 0.42 $* |
| Feb-17-2025 | 0.95 $* | 0.54 $* |
| Jan-17-2025 | 0.38 $* | 0.64 $* |
Характеристики
Product Description
Single-Cartridge Liquid Filter Housing
Liquid filter is an indispensable device in the transmission medium pipeline. It is usually installed at the inlet end of pressure reducing valve, pressure relief valve, fixed water level valve or other equipment to eliminate impurities in the medium and protect the normal use of valves and equipment. When the fluid into a certain specification of the filter cartridge, its impurities are blocked, and clean filtrate is discharged from the filter outlet, when the need to clean, as long as the removable filter cartridge is removed, after processing can be re-loaded, therefore, the use and maintenance is very convenient.
Product Name | Single-Cartridge Liquid Filter Housing |
Material | Stainless steel(ss304 ss316l) |
Designed Pressure | 10bar / 16bar |
Max Temperature | 80℃ |
Inlet/Outlet | Tri-clamp/ Flanged DN25/DN38/DN50/DN65 |
Filter Cartridge | PP/PES/PTFE/PVDF |
Length | 5 inches / 10 inches / 20 inches / 30 inches / 40 inches |
Filter Number | Single |
Surface Treatment | Mechanical polishing /Sandblasting |
Interface | 226/222 |
Polishing Type | Mirror polishing, electrolytic polishing |

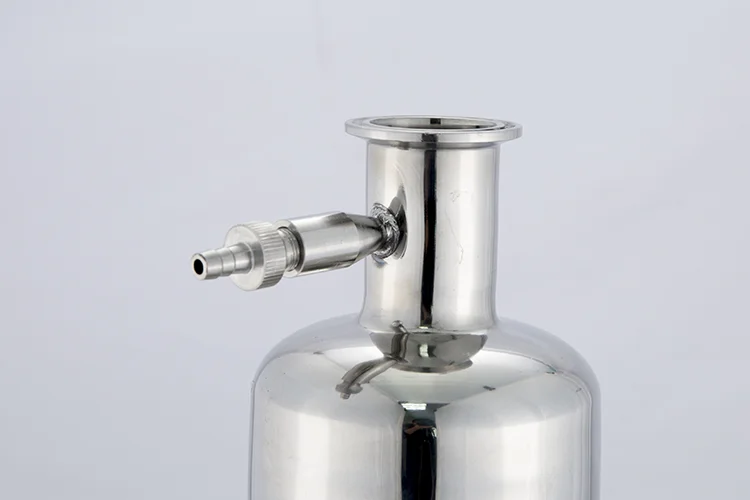

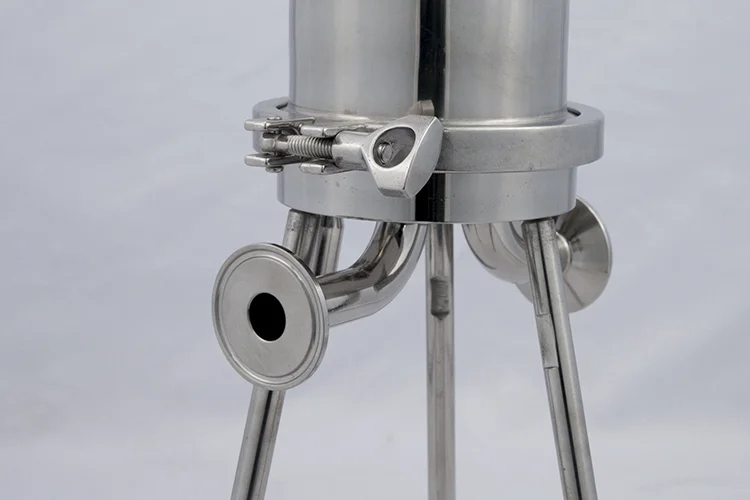

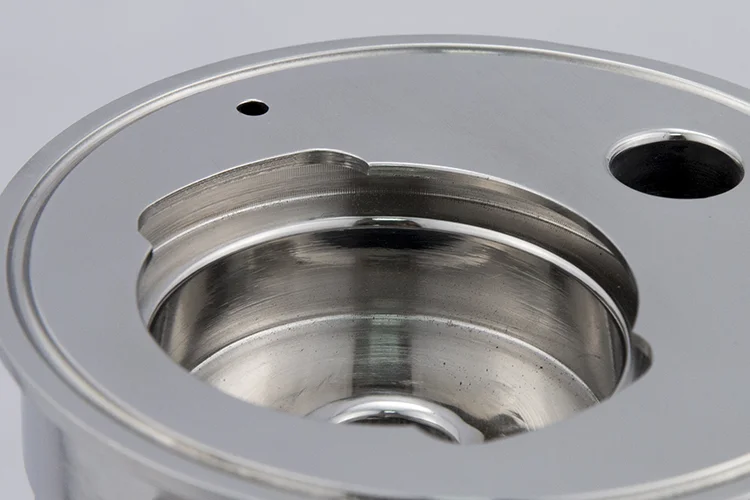

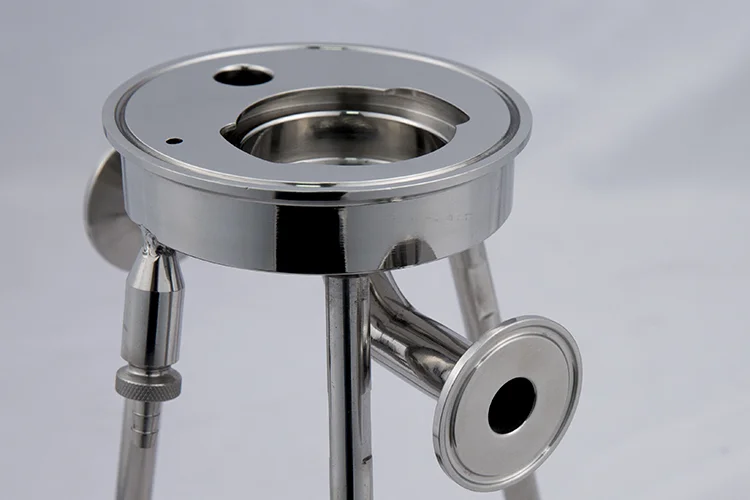

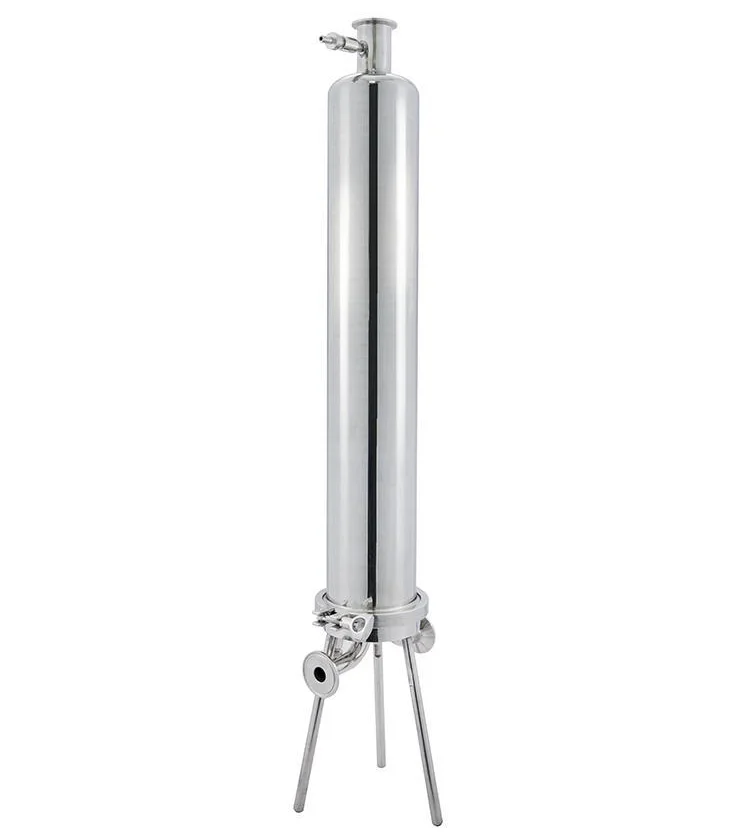

Products Show
Selection Table
Cartridges | Inlet/Outlet | |||||||||
Nos. | Length (inch) | Material | Mode | Size | Steal Ring | Exhaust Nozzle | Outfall | Filter Interface | ||
Single | 5 | SUS304 | Tri-Clamp | 3/4''(DN20) | S-Silicone | K-Quick-opening | K-Quick-opening | 222 | ||
10 | SUS316L | Clamp Flanged | 1'' (DN25) | E-EPDM | L-Needle Valve | L-Needle Valve | 226 | |||
20 | 1 1/2''(DN38) | F-Viton | W-None | W-None | ||||||
30 | 2''(DN50) | T-PTFE | ||||||||
40 | 2.5''(DN64) | |||||||||
Our Company
Factory1
Our Factory
Factory2
Office Building
Factory3
Our Warehouse
Factory4
Our Team
Our Produces
1.Filter Cartridge
2. Air Filter Housing
3. Disc Filter
4. Bag Filter Housing
5. Corrosion Resistant Filter
6. Activated Carbon Filter
Application
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
