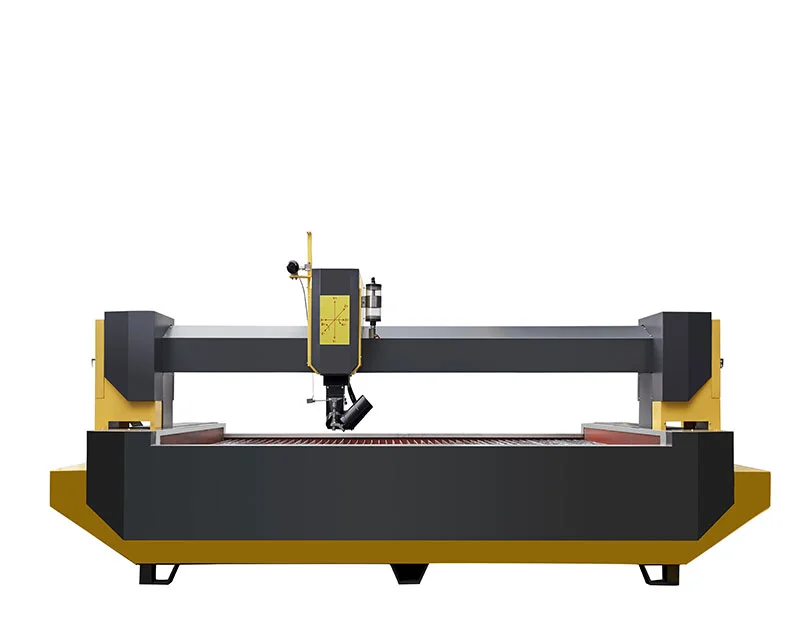

1530 water jet cutting machine 3 axis 5 stone for
1530 water jet cutting machine 3 axis 5 stone for
1530 water jet cutting machine 3 axis 5 stone for
1530 water jet cutting machine 3 axis 5 stone for
1530 water jet cutting machine 3 axis 5 stone for
1530 water jet cutting machine 3 axis 5 stone for
1530 water jet cutting machine 3 axis 5 stone for

1530 water jet cutting machine 3 axis 5 stone for


Поделиться:


Цена:3 442 959,00 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-18-2025 4372558.58 $* 4460009.33 $*
Jul-18-2025 3546248.34 $* 3617173.40 $*
Jun-18-2025 4303699.35 $* 4389773.32 $*
May-18-2025 4269269.53 $* 4354654.54 $*
Apr-18-2025 3408529.28 $* 3476700.33 $*
Mar-18-2025 4200410.81 $* 4284418.90 $*
Feb-18-2025 4165980.56 $* 4249300.21 $*
Jan-18-2025 4131551.51 $* 4214182.87 $*

Характеристики

Machine structure materials and protection:
Finished machine tool base, internal and external double-layer steel plate structure, beam reinforcement, steel plate and beam are fully welded, inner steel thickness 8mm, outer thickness 6mm, strict dust proof and waterproof design improves all operating machinery and the service life of the pieces.
Cooling system:
water cooling, 5 axis 60 degree cut
X axis
gantry beam
Y axis：
Double longitudinal beam base frame
Z axis rotation angle
60 degree
Machine heat treatment
X and Y beams undergo low temperature annealing heat treatment
Linear guide rail brand
Taiwan TBI
Ball screw brand
Taiwan TBI
Servo motor and driver
Adopted AC servo motor
Cutting material thickness
SS：100mm ,Stone：200mm, aluminum： glass:100mm
Ceramic: 60mm Titanium: 50mm
X.Y travel size：
3000*1500mm
Max cutting speed：
0.03～4m/min
Cutting precision：
±0.1mm
Repeat location precision：
0.025mm
Max removing speed：
8000mm/min
Max feed speed：
4000mm/min
X axis precision：
≦±0.05mm per 300mm
Y axis precision：
≦±0.05mm per 300mm
Sample show
Water jet cutting machine is specially used to cut marble and granite, it can compensate 10° cutting angle. It is a kind of bevel cutting machines.
Due to the water jet cutting is a way of flexible cutting, therefore the product cross section after cutting by the traditional 3 axis water jet cutting machine will have a certain degree of inclination. In order to ensure the accuracy of vertical cutting section, it must reduce the cutting speed. However, 5 axis water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the cutting angle, without reducing the cutting speed. So that it can be used for cutting parquet stone, the parquet flooring does not need to be polished again, which can save time and labor.
Product packaging
1. We will send the machine with strong plywood package to your port or door address by sea or by airplane.
Please kindly tell us your near port or address with postcode. 2. We have reliable shipping agent to insure the safe,convenient and timely delivery.
Related Products
Our Service
Guarantee:
36 months for the whole machine. Within 36 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free.;
Out of 36 months, you will get spare part at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consulting, technical support and service by email/fax/tel and lifetime technical support.
