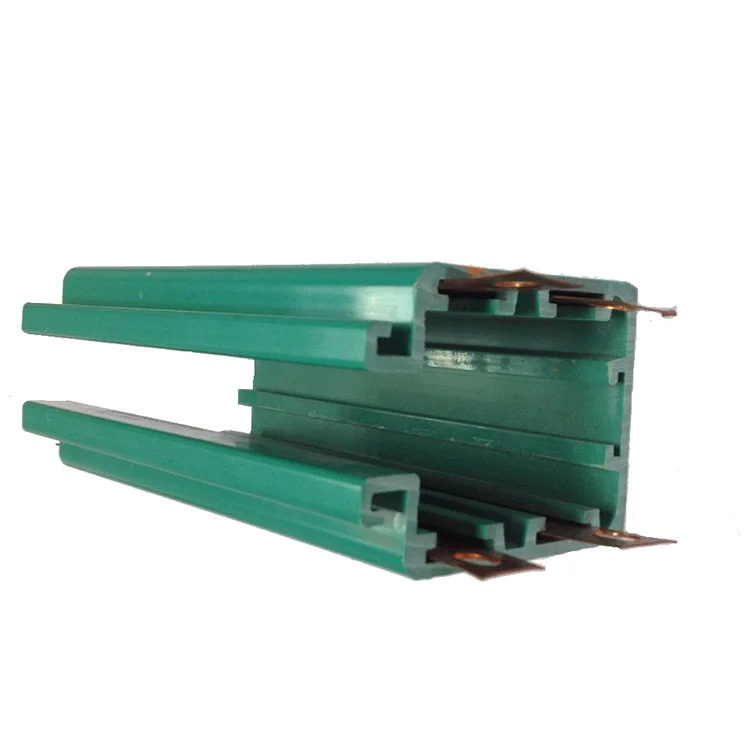

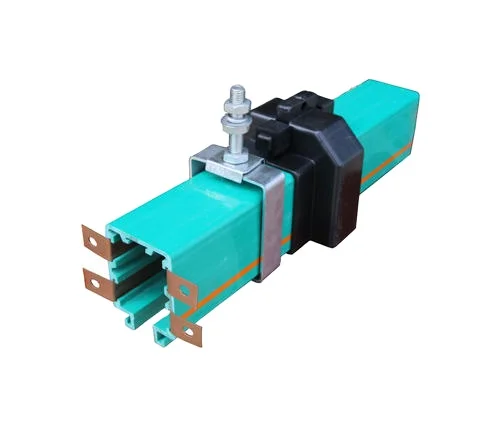

4 Poles Copper Core Enclosed Busbar System 35A-240A Conductor Trolley Tubular Busbar for cranes

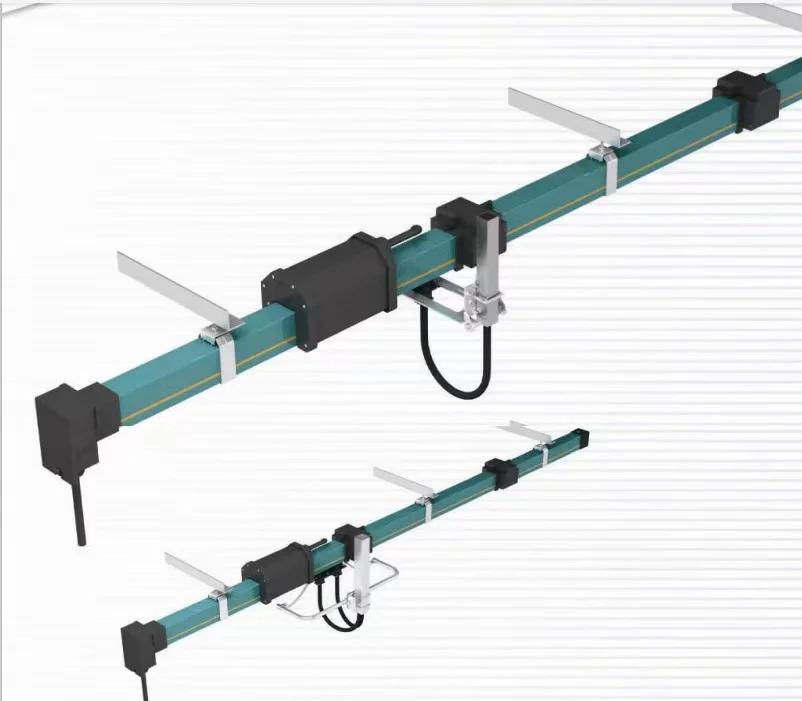

HFP56 series conduit slide line has the greatest advantage of compact design, corrosion prevention and easy installation. HFP56 series of applications include cranes, single track power supply system, lifting equipment, sorting system of the lathe and automatic storage, lighting system and so on. HFP56 series is a slide line with the function of preventing accidental impact and damage, and can be used indoors and outdoors. Its green PVC insulated housing can be loaded into copper wires of different interface shapes. Its current value is 35A to 170A. This series of slide wires is a 4-pole device.









Design and Construction Rules

All the standards which are required for the busbar are the FEM standard, DIN standard and Chinese National standard.

Europe Main National Standards
--  89/392/EEC standard (93/68/EEC)
--  91/368/EEC standard
--  73/23/CEE standard
--  "EMC" standard 89/336/EEC
--  EN 60204-1
--  EN 292 mechanical safety
--  ISO 2141
--  ISO 2766
International Standards
--  June 9, 1993 / Sept. 22, 1993 notice
--  July 29, 1992, 92-765, 92-766, 92-767 notice
--  DIN 5684
--  DIN 15400; DIN 15401
--  NFE 26-010
--  NFE 26-030

Technical Standards
--  FEM 9.511    Mechanical group
--  FEM 9.661    Hoisting and traveling components size and quality standard
--  FEM 9.671    Wire rope quality standard
--  FEM 9.681    Travel motor choice
--  FEM 9.682    Hoisting motor choice
--  FEM 9.755    Electric hoisting equipment
--  FEM 9.811    Electric crane standard
--  FEM 9.901    Hoisting components design reference
--  IEC 34-1      Traveling and allocation performance
--  IEC 34-5      Protection grade standard
--  IEC 947-5-1   Low voltage equipment
China Main National Standards

Design rules for busbar        GB/T 3811-2008
Safety rules for lifting appliances          GB 6067-2010
Common crane technical condition          GB 7592-87
Enclosed Busbar System
