Характеристики
Our Advantages
VIP Profile Customized Glazed C/Z Sheet Post Cutting Purlin Forming Line
We are committed to producing high quality CZ changeable Purlin Forming Machine.

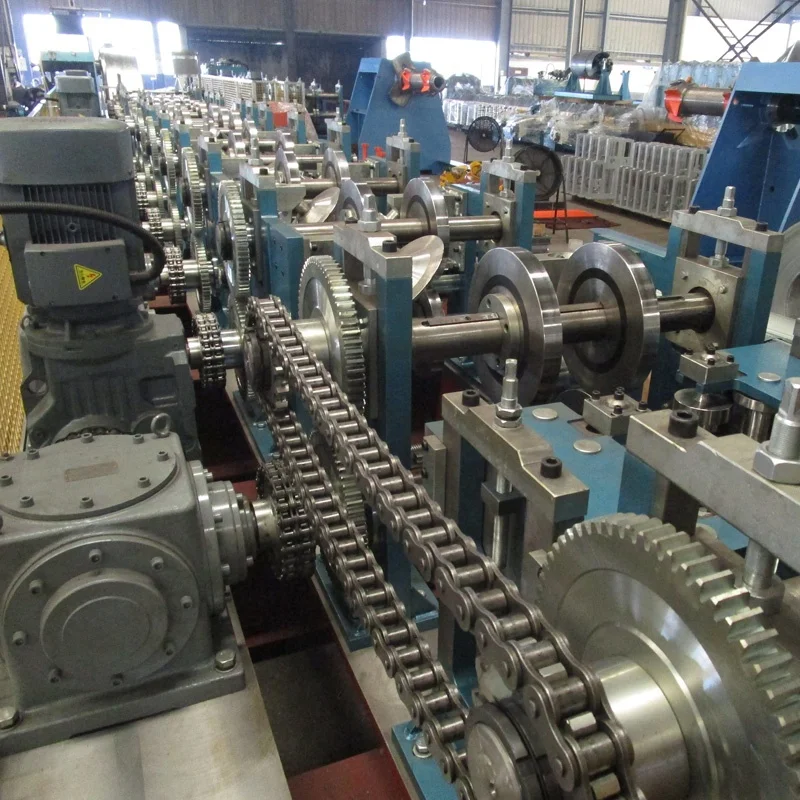

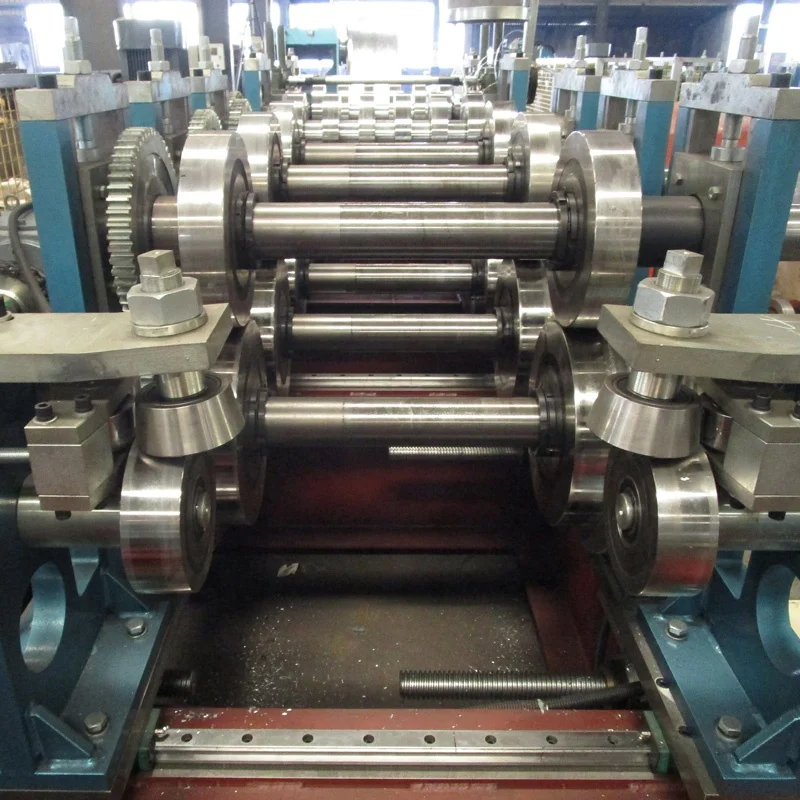

82mm Dia. Shafts for rollers are tooled by grinding machine two times.
Ensure product accuracy.
Cr12 mould steel being quenched for HRC58-60, and
CNC tooled to increase rollers precision.
Production speed: 15-20m/min.
(Not including punching and cutting)
.
Screw for adjusting punching device.
Within one mintue can realize device moving as your requirements.
More easy and convenient
Automatic change sizes
PLC control to change the sizes automatically, only need to set parameters in the PLC for the data of profiles.
Technical data
Suitable Material | Cold-rolled steel strip and heat-treated galvanized steel strip |
Thickness of raw material | 1.5-4.0mm (235-345Mpa) |

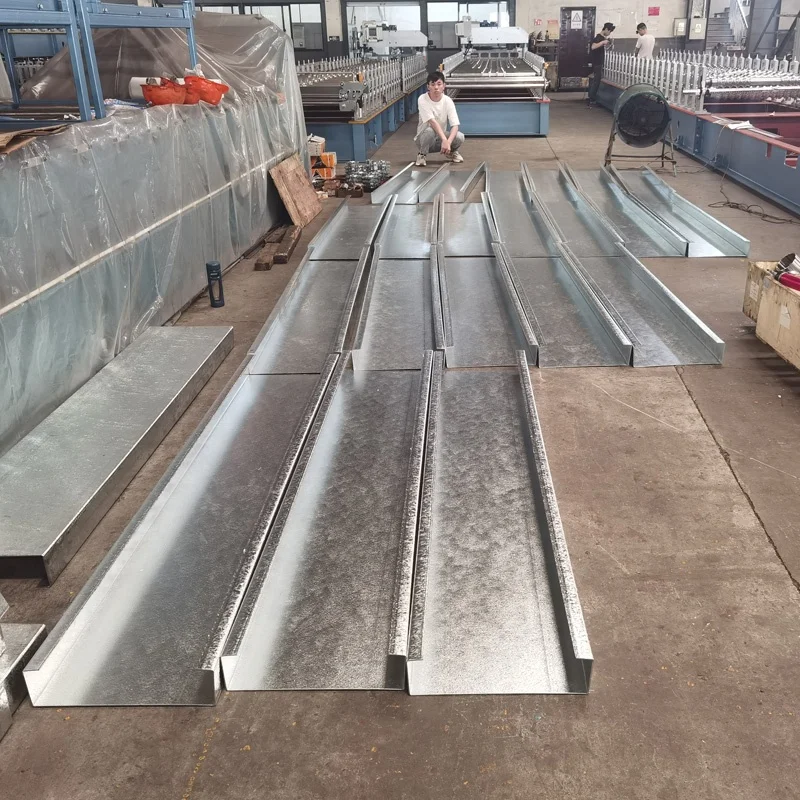

Size of C purlin | 100-305mm adjustable (special size available) |
Material of roller | Cr12 mould steel being quenched treatment,HRC58-60 |
Cr12 mould steel with quenched treatment, HRC58-60 | |
Material of shaft | High quality 45# steel with heat treatment. |
Roller grinder milling. | Cr12 mould steel with quench treatment, HRC58-60 |
Power Requirement | Main motor power: 7.5X3 Kw(Depend on final design) |
Hydraulic station power: 7.5Kw (Depend on final design) | |
Diameter of shaft for rollers | 82mm |
Controlling system | Mitsubishi PLC & converter |
Machine components

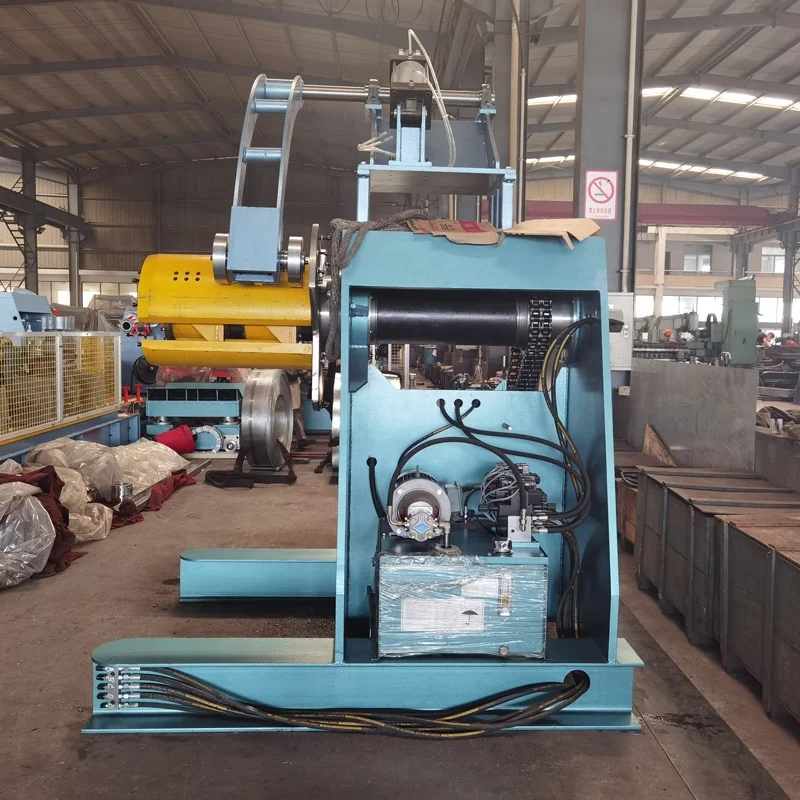

(1)Hydraulic Decoiler
(2)Guiding Equipment
(3)Leveling Device
(4)Punching Device (5)Post-cutting Device

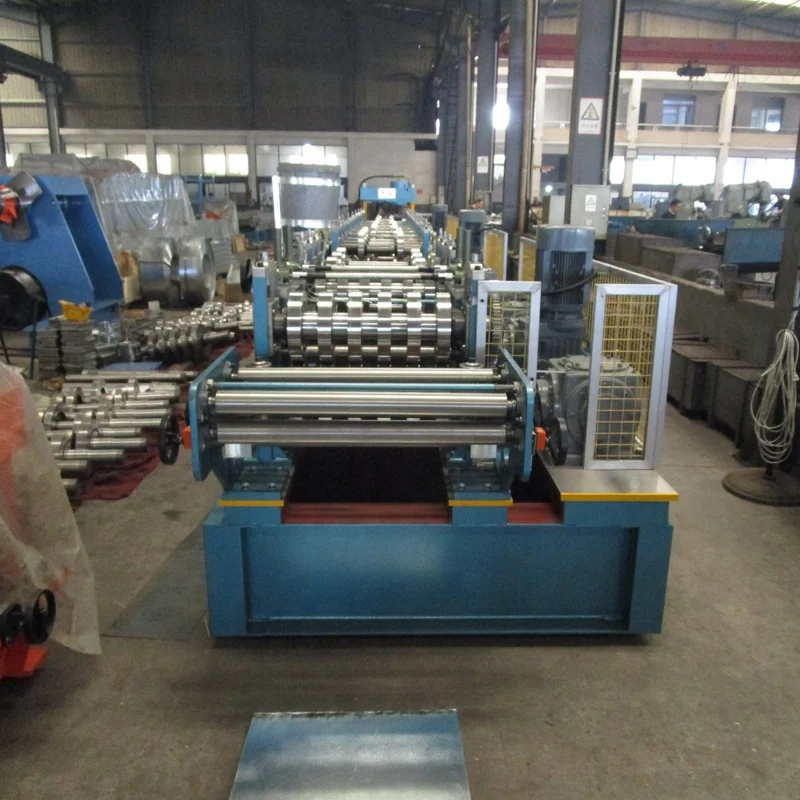

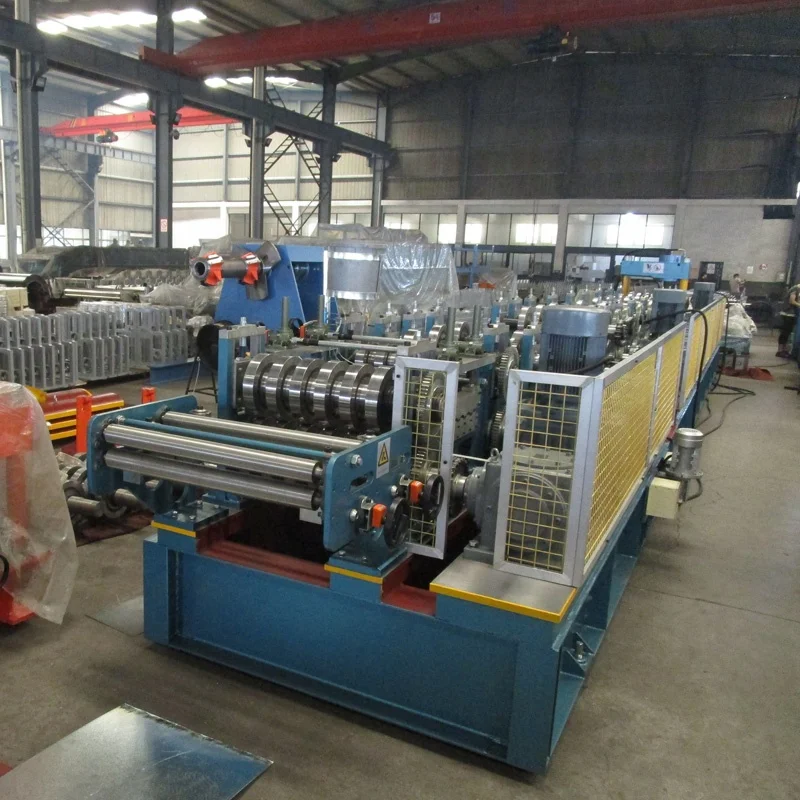

(6)Roll Forming Equipment
(7)Hydraulic Station
(8)PLC Control Panel
(9)Supporter Table
(10)Tool Box
1pc (capacity:5 tons)
1set
1 set
1 set
1set
1set
1set
1set
1set （two pieces, 1.5m/piece)
1pc
Detailed Images
Application
Packing & Delivery
Package Details:
1. One 40GP & one 20GP container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Our Customers
Our Service
