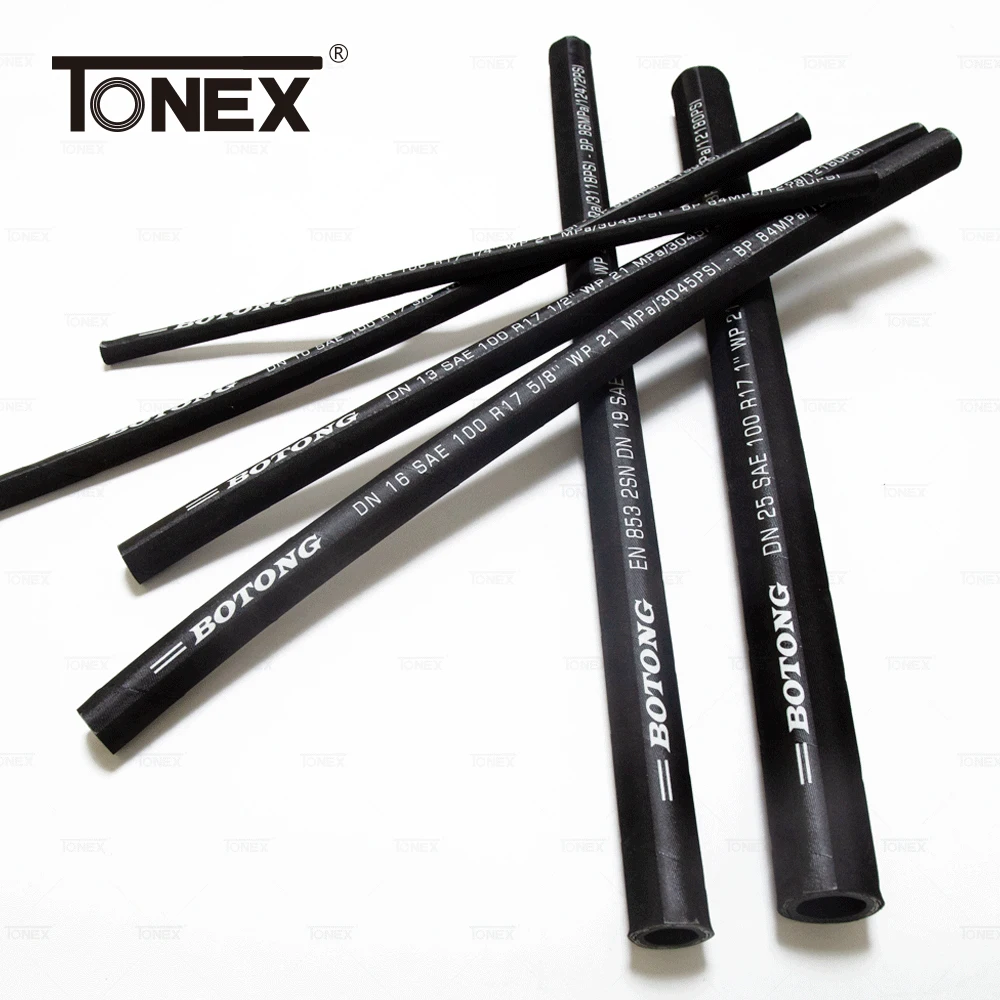

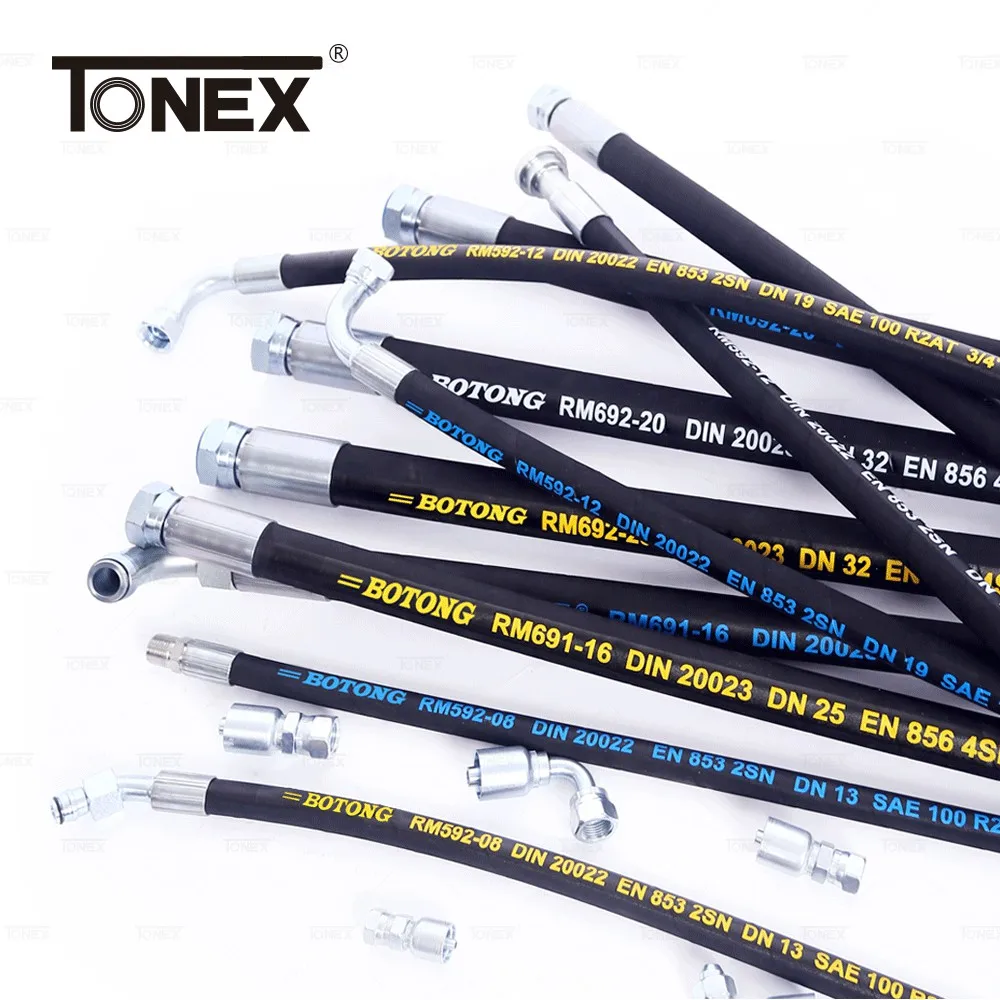

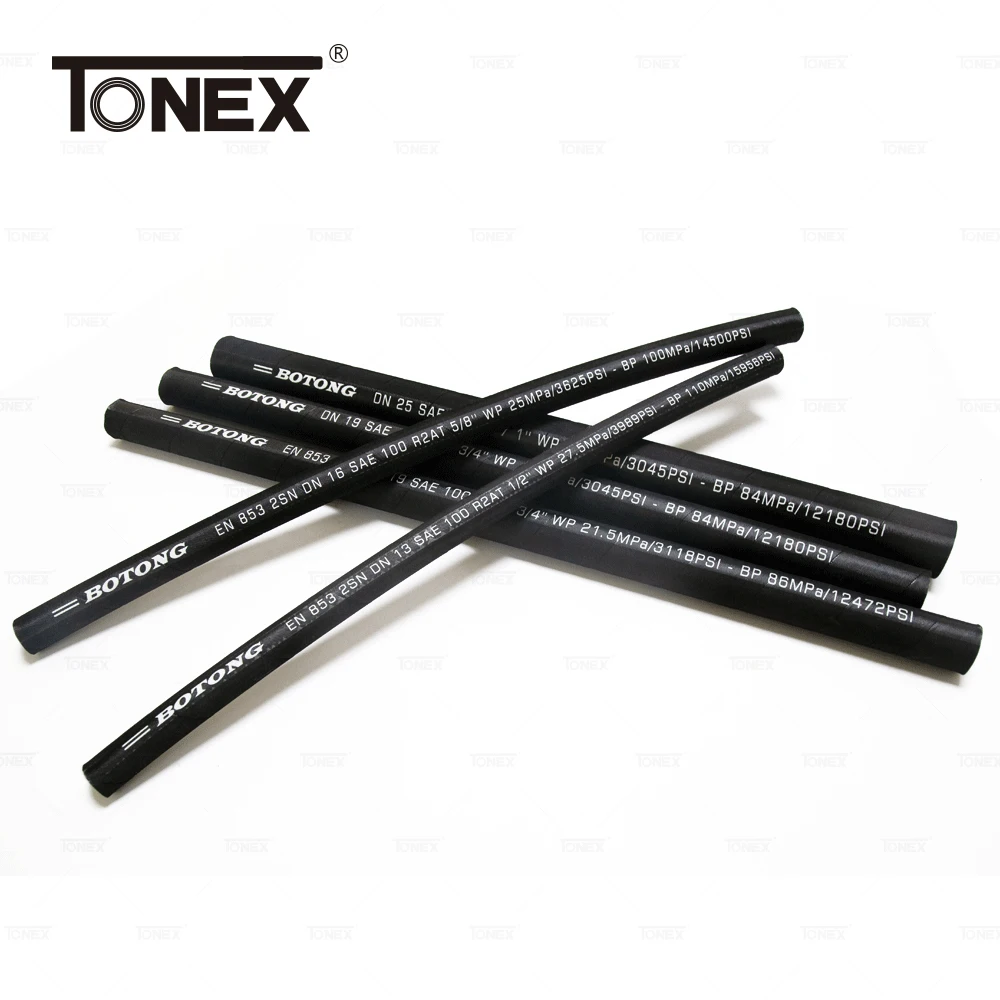

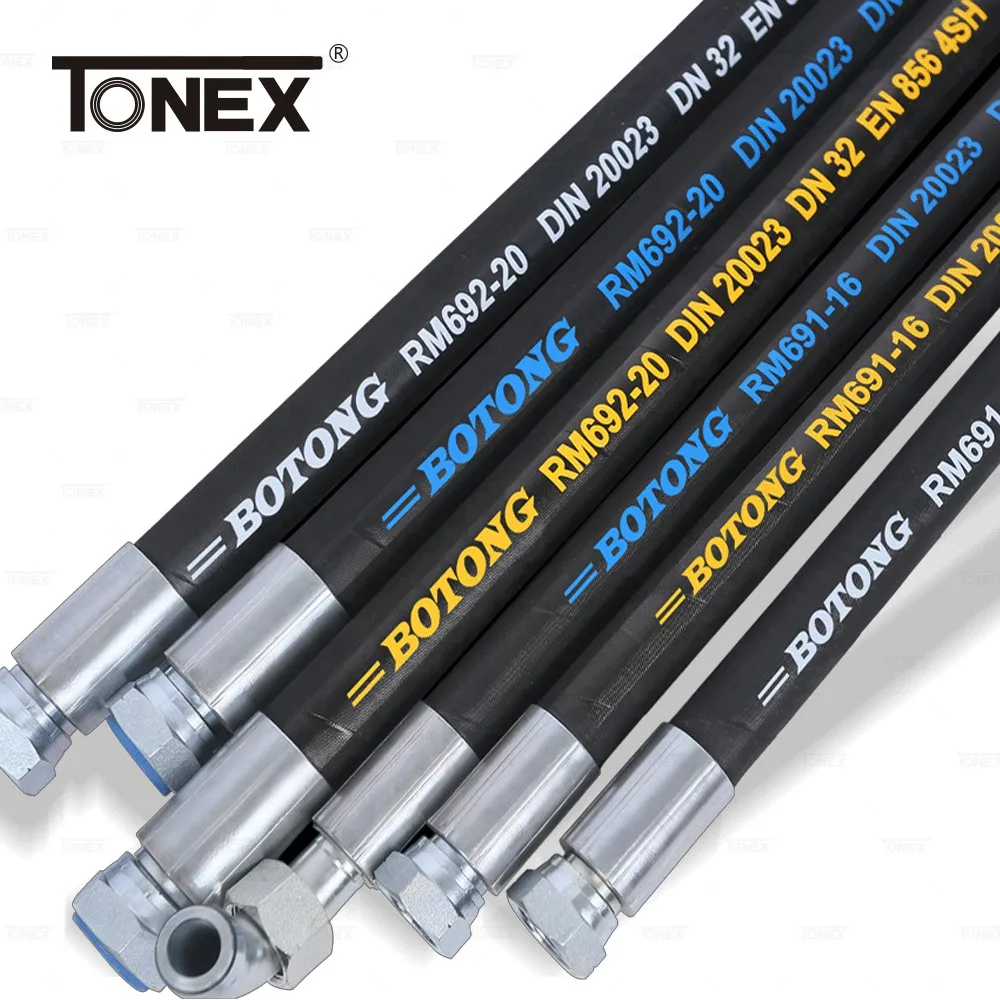

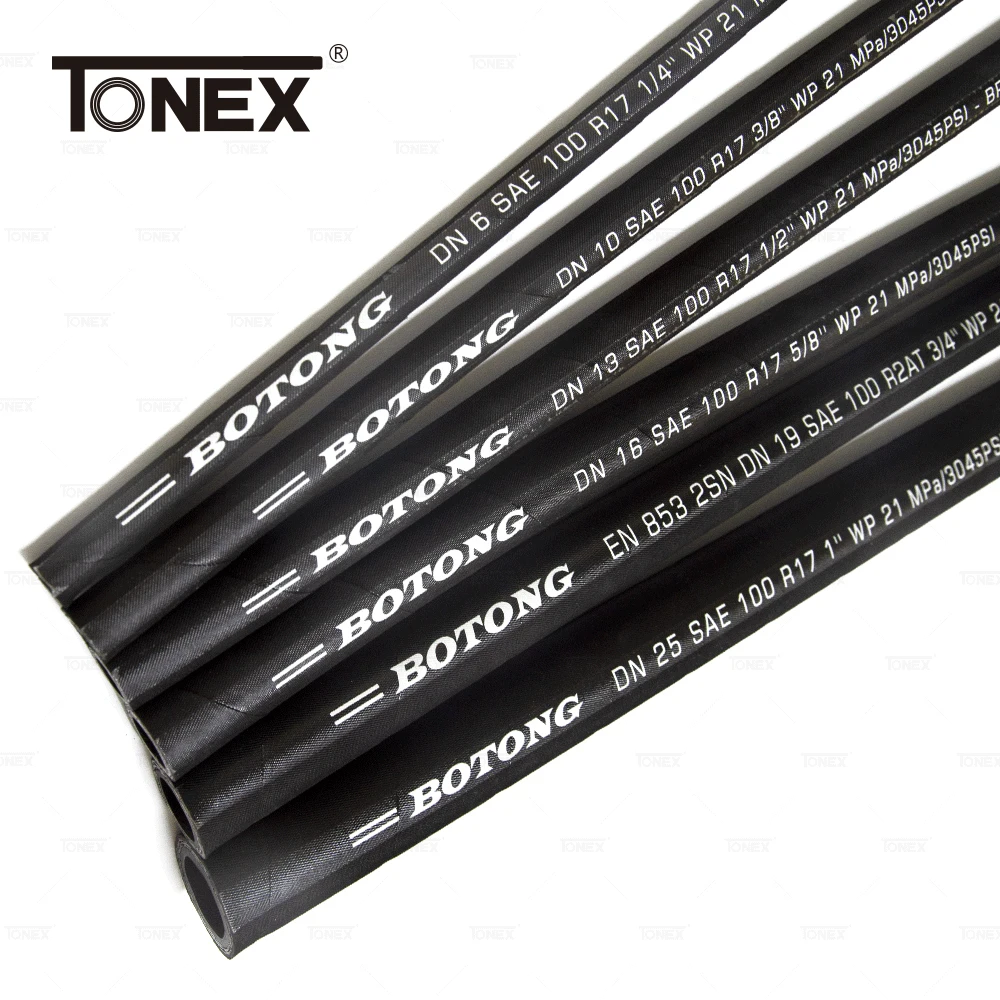

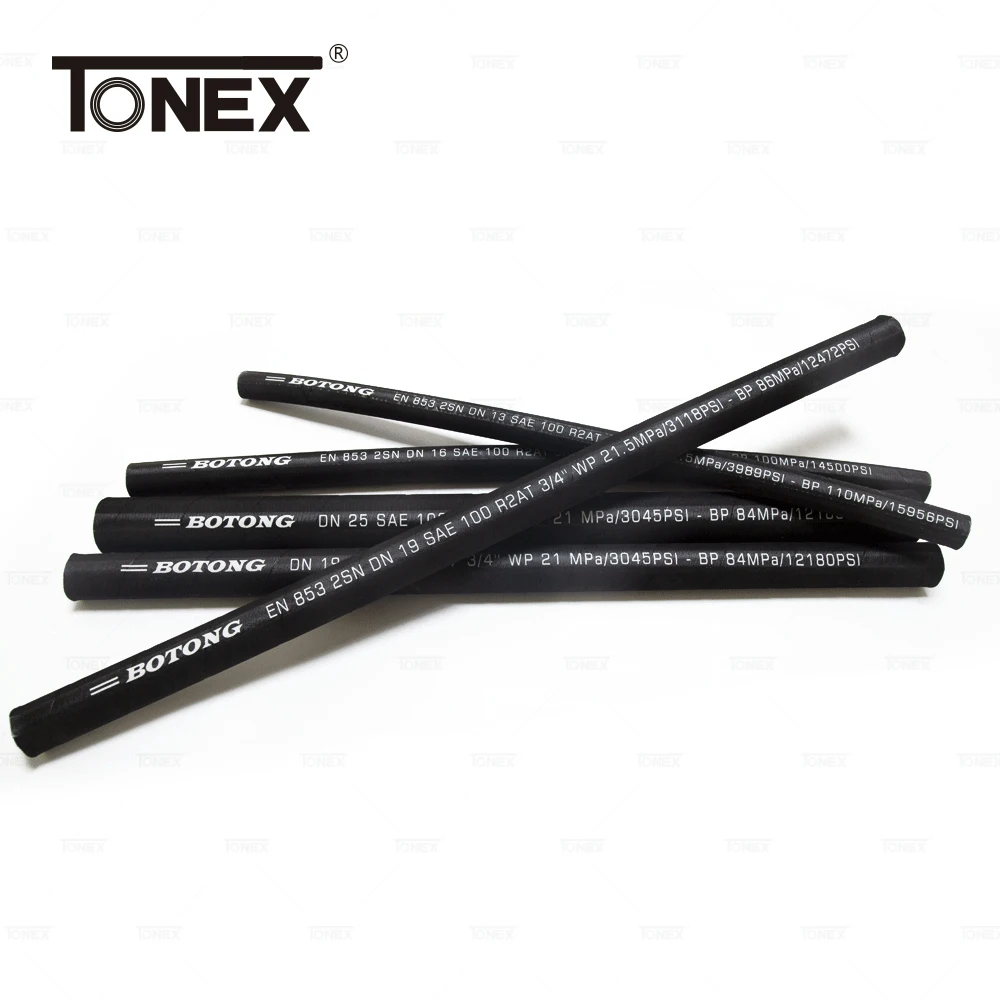

Гидравлический резиновый шланг SAE 100 R1AT/ EN853
- Категория: >>>
- Поставщик: Hebei,Tonex,Rubber,And,Plastic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.96 $* | 0.53 $* |
| Aug-19-2025 | 0.79 $* | 0.14 $* |
| Jul-19-2025 | 0.62 $* | 0.72 $* |
| Jun-19-2025 | 0.42 $* | 0.84 $* |
| May-19-2025 | 0.24 $* | 0.8 $* |
| Apr-19-2025 | 0.93 $* | 0.36 $* |
| Mar-19-2025 | 0.93 $* | 0.25 $* |
| Feb-19-2025 | 0.43 $* | 0.93 $* |
| Jan-19-2025 | 0.90 $* | 0.95 $* |
Характеристики
Main Product
One/Two wires braid hydraulic hose pipe EN 853 1SN/1SC/2SC 2SN 3/16''-2 3/8''
Hydraulic Hose
Inner Tube: Oil resistant synthetic rubber
Reinforcement: One or two braids of high-tensile steel wire
Cover: Environment resistant synthetic rubber
Temperature Range:-40℃ to +100℃
Application: Construction, mining, agriculture and high performance industrial equipments
Inner Tube: Oil resistant synthetic rubber
Reinforcement: One or two braids of high-tensile steel wire
Cover: Environment resistant synthetic rubber
Temperature Range:-40℃ to +100℃
Application: Construction, mining, agriculture and high performance industrial equipments
Type | HOSE I.D. | O.D. | Max W.P. | Min B.P. | Min B.R. | |||||||||||
mm | in | Mpa | psi | Mpa | psi | mm | ||||||||||
SAE 100 R1AT | ||||||||||||||||
BS1SN-05 | 5.0 | 3/16 | 12.5 | 25.0 | 3622 | 100 | 14488 | 90 | ||||||||
BS1SN-06 | 6.3 | 1/4 | 14.1 | 22.5 | 3260 | 90 | 13050 | 100 | ||||||||
BS1SN-08 | 8.0 | 5/16 | 15.7 | 21.5 | 3120 | 85 | 12330 | 115 | ||||||||
BS1SN-10 | 10.0 | 3/8 | 18.1 | 18.0 | 2610 | 72 | 10440 | 125 | ||||||||
BS1SN-13 | 12.5 | 1/2 | 21.5 | 16.0 | 2320 | 64 | 9280 | 180 | ||||||||
BS1SN-16 | 16.0 | 5/8 | 24.7 | 13.0 | 1890 | 52 | 7540 | 205 | ||||||||
BS1SN-19 | 19.0 | 3/4 | 28.6 | 10.5 | 1520 | 42 | 6090 | 240 | ||||||||
BS1SN-25 | 25.0 | 1 | 36.6 | 8.7 | 1280 | 35 | 5080 | 300 | ||||||||
BS1SN-32 | 31.5 | 1 1/4 | 44.8 | 6.2 | 910 | 25 | 3630 | 420 | ||||||||
BS1SN-38 | 38.0 | 1 1/2 | 52.0 | 5.0 | 720 | 20 | 2900 | 500 | ||||||||
BS1SN-51 | 51.0 | 2 | 65.9 | 4.0 | 580 | 16 | 2320 | 630 | ||||||||
SAE 100 R2AT | ||||||||||||||||
BS2SN-05 | 5.0 | 3/16 | 14.1 | 41.5 | 6013 | 165 | 23906 | 90 | ||||||||
BS2SN-06 | 6.0 | 1/4 | 15.7 | 40.0 | 5801 | 160 | 23204 | 100 | ||||||||
BS2SN-08 | 8.0 | 5/16 | 17.3 | 35.0 | 5076 | 140 | 20304 | 115 | ||||||||
BS2SN-10 | 10.0 | 3/8 | 19.7 | 33.0 | 4786 | 132 | 19144 | 130 | ||||||||
BS2SN-13 | 13.0 | 1/2 | 23.1 | 27.5 | 3989 | 110 | 15956 | 180 | ||||||||
BS2SN-16 | 16.0 | 5/8 | 26.3 | 25.0 | 3625 | 100 | 14500 | 200 | ||||||||
BS2SN-19 | 19.0 | 3/4 | 30.2 | 21.5 | 3118 | 86 | 12472 | 240 | ||||||||
BS2SN-25 | 25.0 | 1 | 38.9 | 16.5 | 2393 | 65 | 9430 | 300 | ||||||||
BS2SN-32 | 32.0 | 1 1/4 | 49.6 | 12.5 | 1813 | 50 | 7252 | 420 | ||||||||
BS2SN-38 | 38.0 | 1 1/2 | 56.0 | 9.0 | 1305 | 36 | 5220 | 500 | ||||||||
BS2SN-51 | 51.0 | 2 | 68.6 | 8.0 | 1160 | 32 | 4640 | 630 | ||||||||
