Высокое качество заказной Электрический моторизованный поддон роликовая конвейерная
- Категория: Material Handling Equipment >>>
- Поставщик: Qingdao,Ausense,Packing,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2202.91 $* | 2312.3 $* |
| Aug-15-2025 | 2183.95 $* | 2292.77 $* |
| Jul-15-2025 | 1832.2 $* | 1924.18 $* |
| Jun-15-2025 | 2146.38 $* | 2253.16 $* |
| May-15-2025 | 1869.8 $* | 1962.61 $* |
| Apr-15-2025 | 2109.82 $* | 2214.27 $* |
| Mar-15-2025 | 2091.87 $* | 2196.93 $* |
| Feb-15-2025 | 2072.19 $* | 2176.28 $* |
| Jan-15-2025 | 2054.79 $* | 2157.36 $* |
Характеристики
Product Description
YUPACK Pallet Conveyor System， Automatic Pallet Transfer / Chain / Turntable / Roller Conveyor is a common piece of mechanical handing equipment that moves material from on location to another .Conveyors are especialy useful in application involving the transportation of heavy pallets or goods .It is widely used in various area.
Product Paramenters

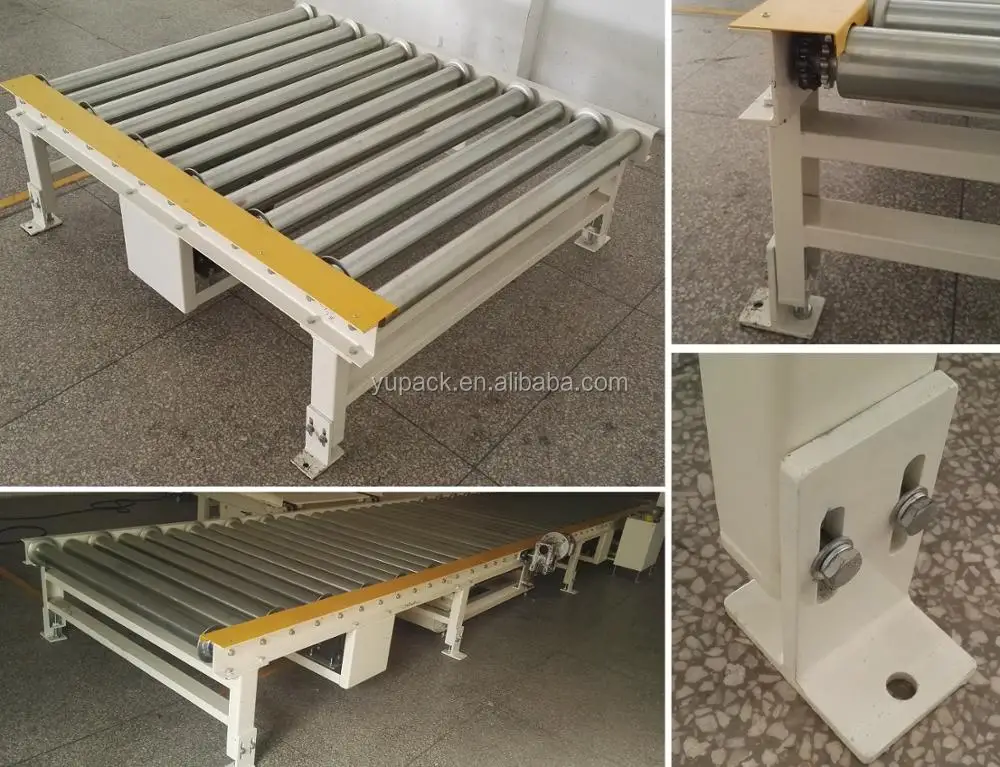

Roller conveyor
Model | TBC-01 | ||||||
As your requirements or pallet sie | CPG or SEW brand | ||||||
Roller diameter | 76 or 89mm | ||||||
Roller material | galvanized steel | ||||||
Max Loading | 1000-2000kg | ||||||
Turntable diameter | 2000mm | ||||||
Table height | 500mm adjustable(also can be customized) | ||||||
Frame material | U shape steel/carbon steel | ||||||
Voltage | 220V-480V 3phase | ||||||
Motor power | 0.75-1.5KW 50HZ/60HZ | ||||||
Conveyor length | As your requirements or depend on your pallet size | ||||||
Conveyor speed | 10-15m/min | ||||||
Warranty period | one year | ||||||
Control system | As Required | ||||||
Lead time | Basised on your order | ||||||
Conveyor wide | Customeried | ||||||
Drive type | Motor driven | ||||||
Chain conveyor
Model | TBC-02 | ||||||
Drive type | Chain | ||||||
Width of conveyor | belt width+ 100mm | ||||||
Length of conveyor | belt width+ 100mm | ||||||
Height of conveyor | 350mm-600mm | ||||||
Power of Motor | 0.75kw | ||||||
Table height | 500mm adjustable(also can be customized) | ||||||
Conveyor speed | 5-15m/min | ||||||
Transfer conveyor
Model | TBC-03 | ||||||
Drive type | Chain drive + motor (Technical parameters:Non - standard can be customized)) | ||||||
Width of conveyor | belt width+ 100mm | ||||||
Length of conveyor | belt width+ 100mm | ||||||
Height of conveyor | 500mm | ||||||
Power of Motor | 0.75kw | ||||||
Conveyor speed | 5-15m/min | ||||||

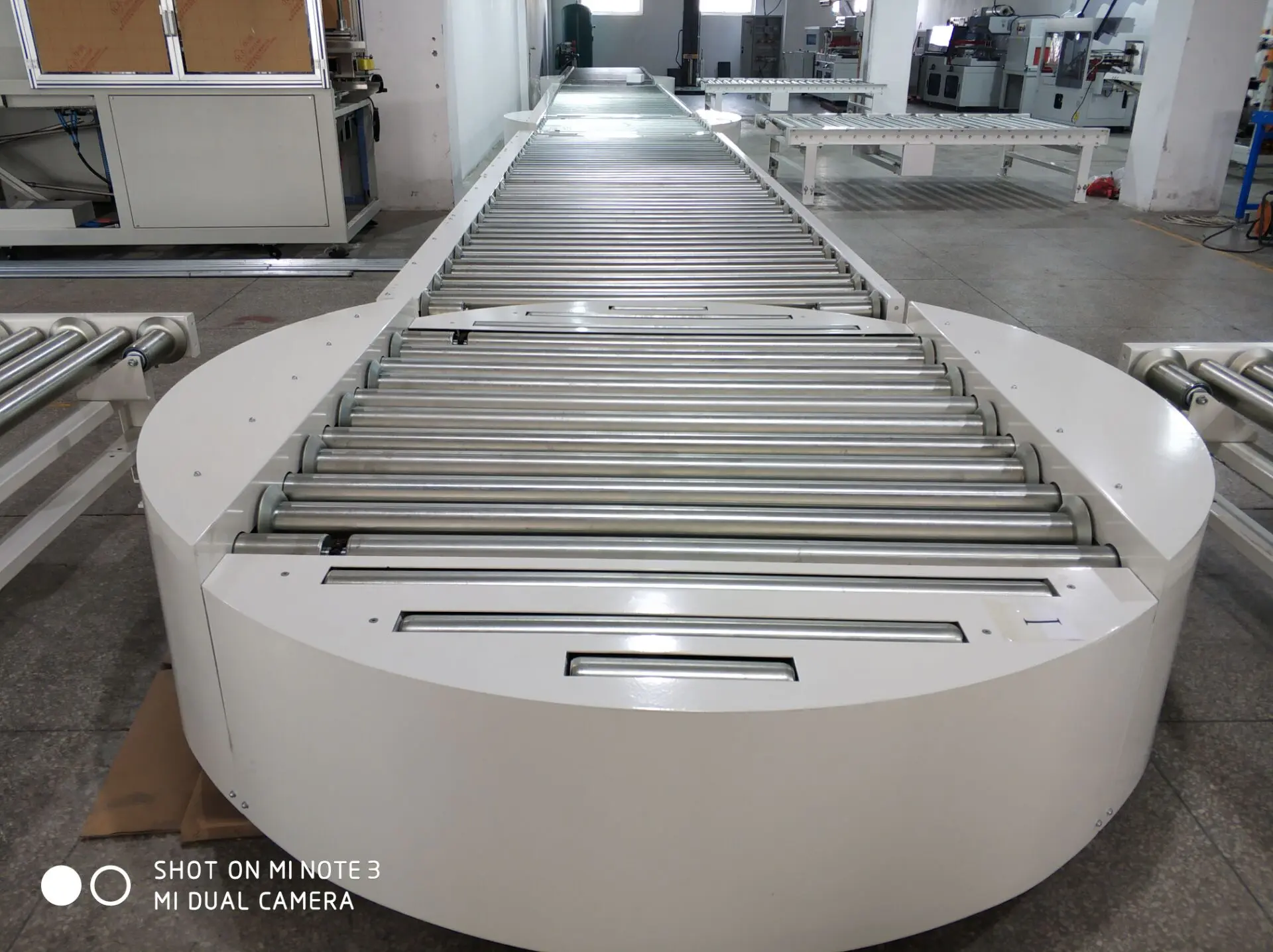

Turntable conveyor
Model | TBC-04 | ||||||
Motor | 2pcs CPG brand(made in Taiwan) | ||||||
Roller diameter | 76mm/89mm | ||||||
Roller material | galvanized steel | ||||||
Max Loading | 1000-2000kg | ||||||
Turntable diameter | 2000mm(customized) | ||||||
Table height | 500mm adjustable(also can be customized) | ||||||
Frame material | 220V-480V 3phase | ||||||
Motor power | 0.75-1.5KW 50HZ/60HZ | ||||||
Conveyor length | As your requirements or depend on your pallet size | ||||||
Conveyor speed | 10-15m/min | ||||||
Warranty period | one year | ||||||
Control system | As Required | ||||||
Lead time | Basised on your order | ||||||
Conveyor wide | Customeried | ||||||
Drive type | Motor driven | ||||||
Related Products
Packing&Shipping
Company Introduction
Qingdao Ausense packing machinery has been established in 2008 which focus on the planning ,R&D and manufacturing of automatic packaging production line .We have very good carton erector ,carton sealer ,strapping machine ,shrink wrapping machine ,pallet wrapping machine and conveyor system .
