220v 300w 400w 800w Single Ended Heating Resistance Rod Cartridge
- Категория: Industrial Heater >>>
- Поставщик: Sinton,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 6.90 $* | 6.6 $* |
| Jul-19-2025 | 5.16 $* | 5.54 $* |
| Jun-19-2025 | 6.53 $* | 6.70 $* |
| May-19-2025 | 6.20 $* | 6.72 $* |
| Apr-19-2025 | 5.34 $* | 5.84 $* |
| Mar-19-2025 | 6.69 $* | 6.40 $* |
| Feb-19-2025 | 6.46 $* | 6.64 $* |
| Jan-19-2025 | 6.84 $* | 6.33 $* |
Характеристики
Product Description

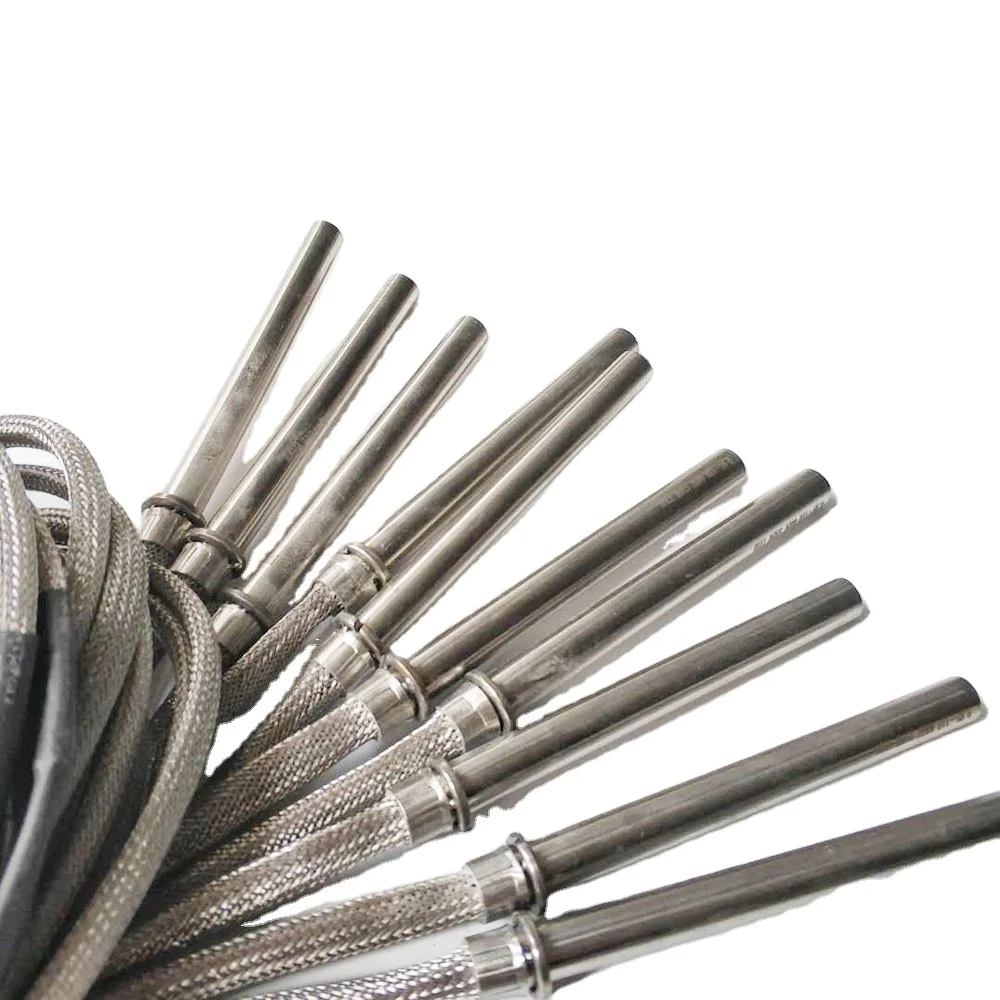

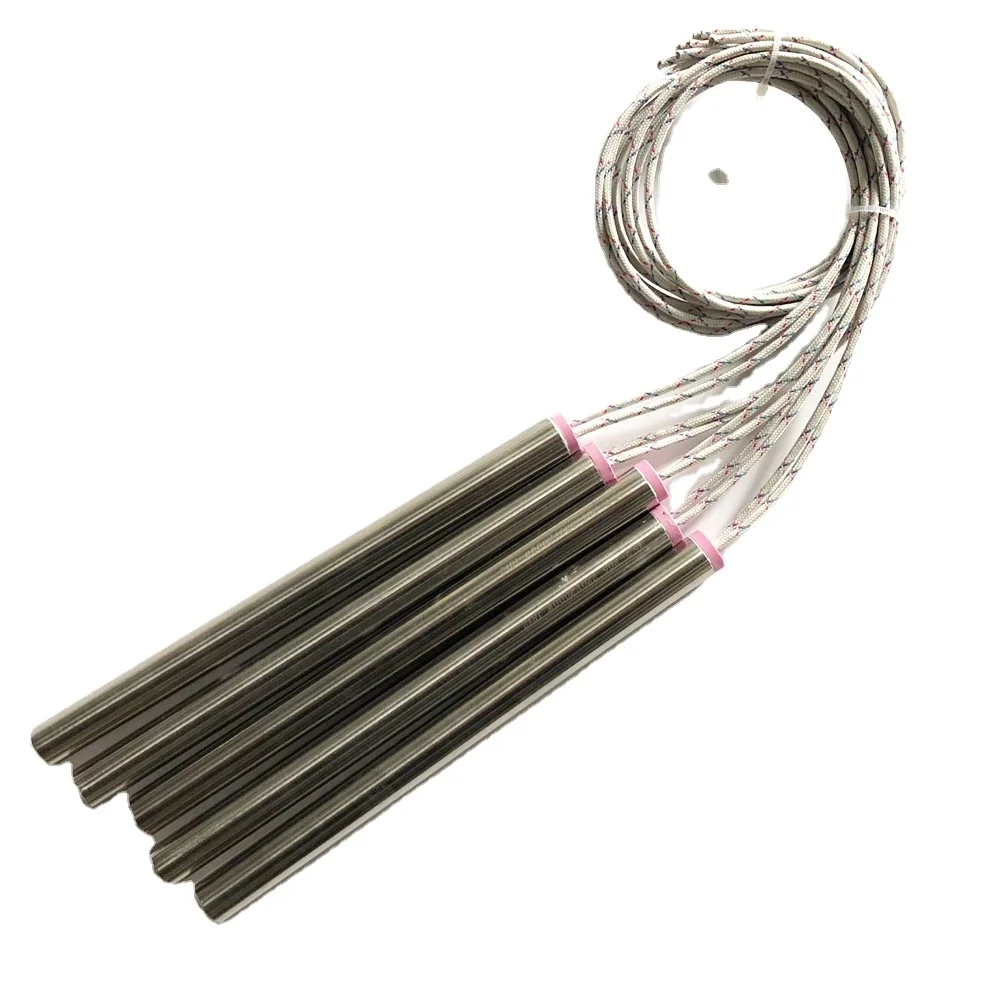

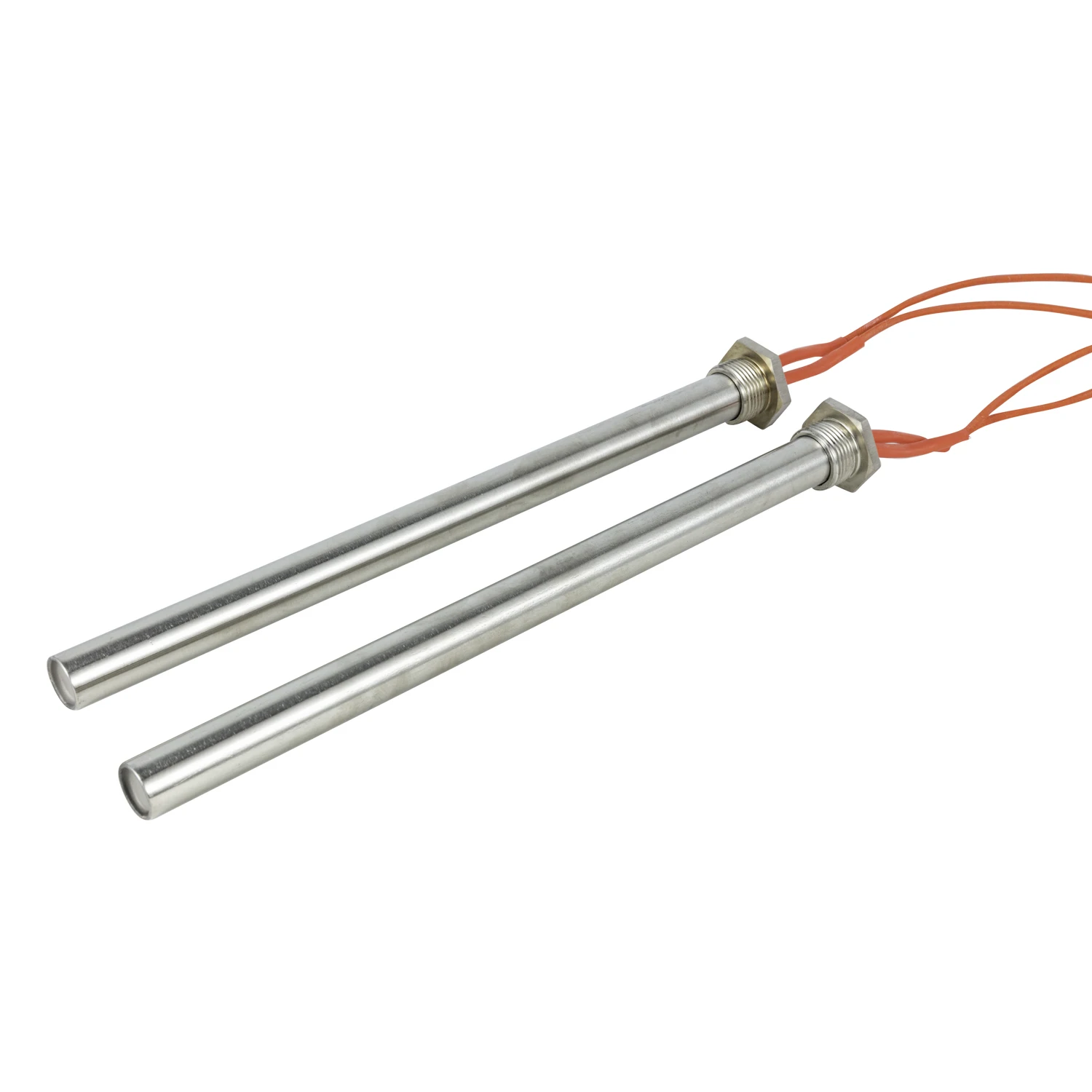

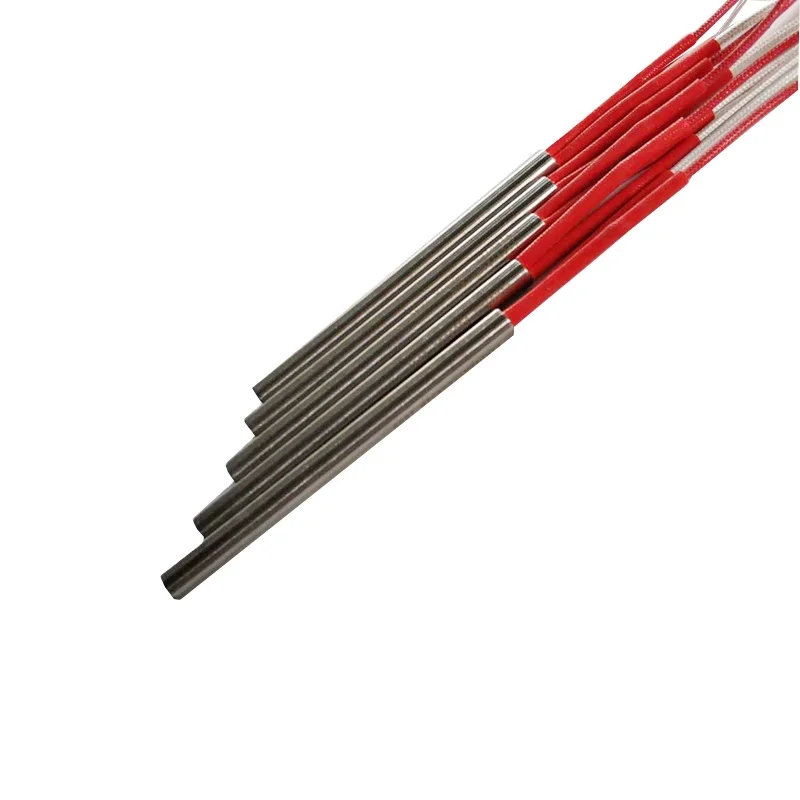

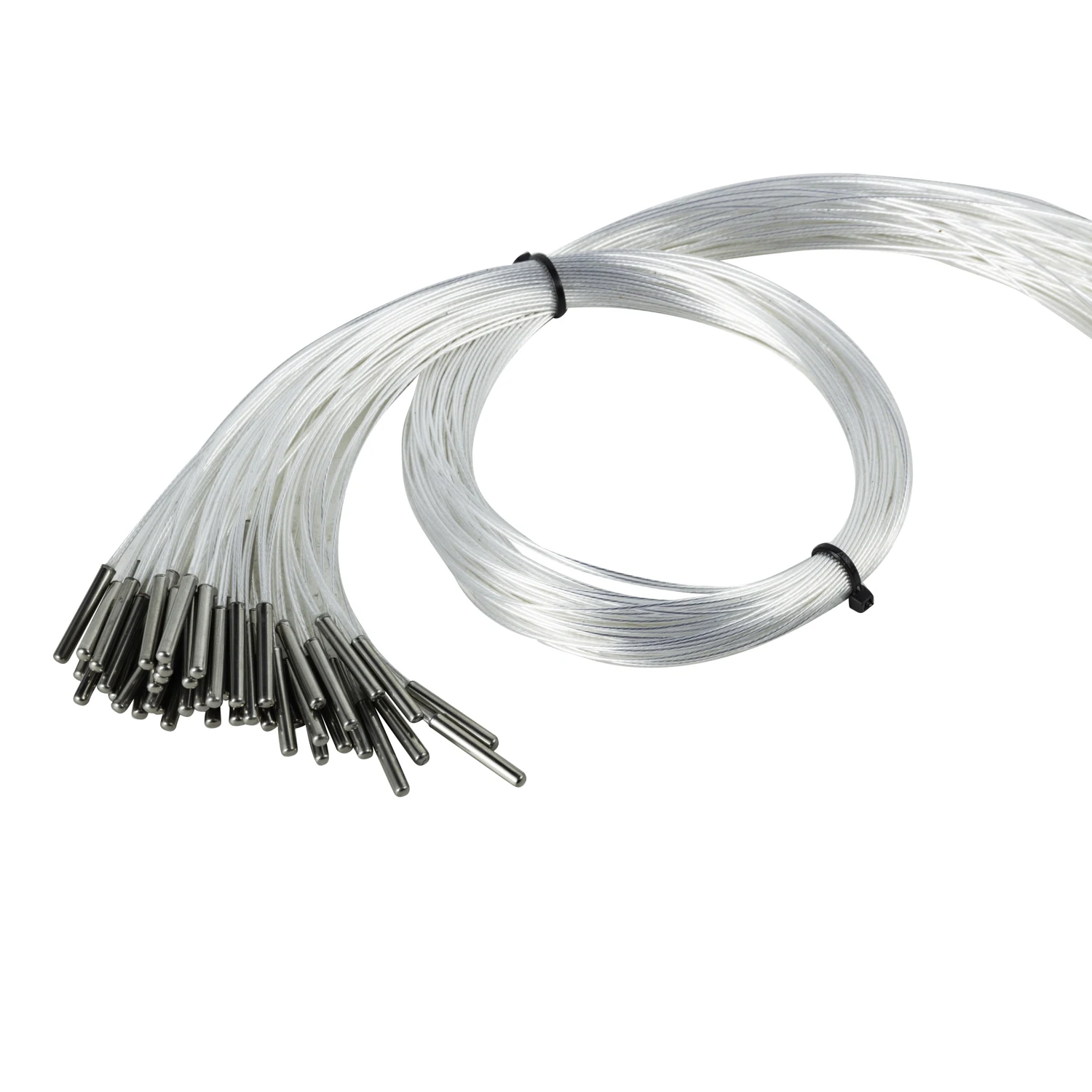

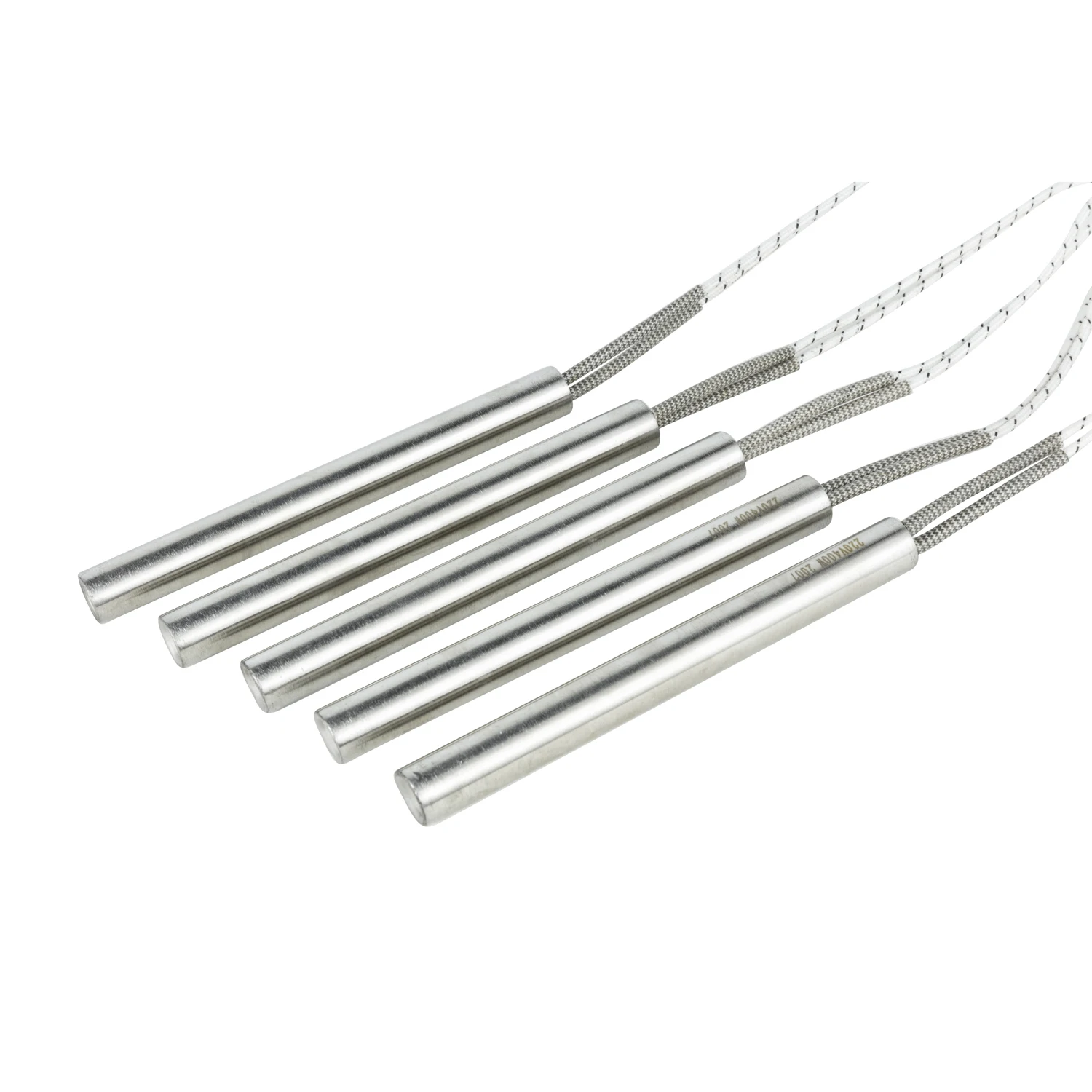

Cartridge heaters are cylindrical electrical heating elements.Mostly used for heating up solids such as injection presses heating plates or various tools,they can also be used for heating up water of gases under certain conditions.Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry,etc they are also commonly found in the chemical,electronics,medical equipment,packing and nuclear industries.
Product name: | Cartridge heater |
Material: | SS 304,SS 316,SS 321,NICOLOY 800 |
Tube diameter: | 2 mm-30mm |
Insulation material: | High purity magnesium oxide powder |
Heating wire: | Fe-Cr or Ni-Cr |
Lead way: | Inner lead or outside wiring |
Lead material: | 300 MM standard glass fiber wire(silicone wire,Teflon wire) |
Tube length: | According to customer's requests |
Feature of Cartridge Heater :
1. The smallest diameter could be 2 to 3 mm.
2. Unlimited length, 15 to 2000mm
3. High power density, and the highest power density could be 50W per square centimeter.
4. Long life time
5. Warranty: One year
6. Different type of wire available according to the usage environment.
1. The smallest diameter could be 2 to 3 mm.
2. Unlimited length, 15 to 2000mm
3. High power density, and the highest power density could be 50W per square centimeter.
4. Long life time
5. Warranty: One year
6. Different type of wire available according to the usage environment.
Applications of Cartridge Heater :
* 3D printer.
* Extruder.
* Injection & blow moulding.
* Food processing machinery.
* Packing machine.
* Hot runner bushing.
* Hot plates, molds & dies.
* Medical equipment.
* 3D printer.
* Extruder.
* Injection & blow moulding.
* Food processing machinery.
* Packing machine.
* Hot runner bushing.
* Hot plates, molds & dies.
* Medical equipment.
\t\t\t\t\t\t\t\t\tProduct details \t\t\t\t\t\t\t
1. Sheath material: stainless steel ss304/316/321/Incoloy 800 etc.
2. Insulation Material:High-purity Mgo powder
3. Heating resistance wire:Cr20Ni80
2. Insulation Material:High-purity Mgo powder
3. Heating resistance wire:Cr20Ni80
4. Working temperature: max 800°C
5. Diameter range (mm):2.6mm-30mm
6. Length range (mm):15mm-3000mm
5. Diameter range (mm):2.6mm-30mm
6. Length range (mm):15mm-3000mm
7. Rated voltage (110-220):max1.27 times
8. Insulation resistance: min5Ω
9. With(and voltage:1500v/min)
10. Designed life:3000 hours
8. Insulation resistance: min5Ω
9. With(and voltage:1500v/min)
10. Designed life:3000 hours
Company Profile
Sinton Industrial Group Co.,Ltd was founded in 2001,formerly known as the trade of electric heating and instrumentation,the group's total assets are RMB120 million,with 360 employees.In 2010,we had our own factory building and 5A office production environment.
