EE13 Common Mode Chokes ( transformers)
We produce 300,000pcs EE13 transofmers for supplying to several famous home appliance manufacturers in China.
The production progress is fully automated including testing, the quality of our products is reliable,please feel free to order.

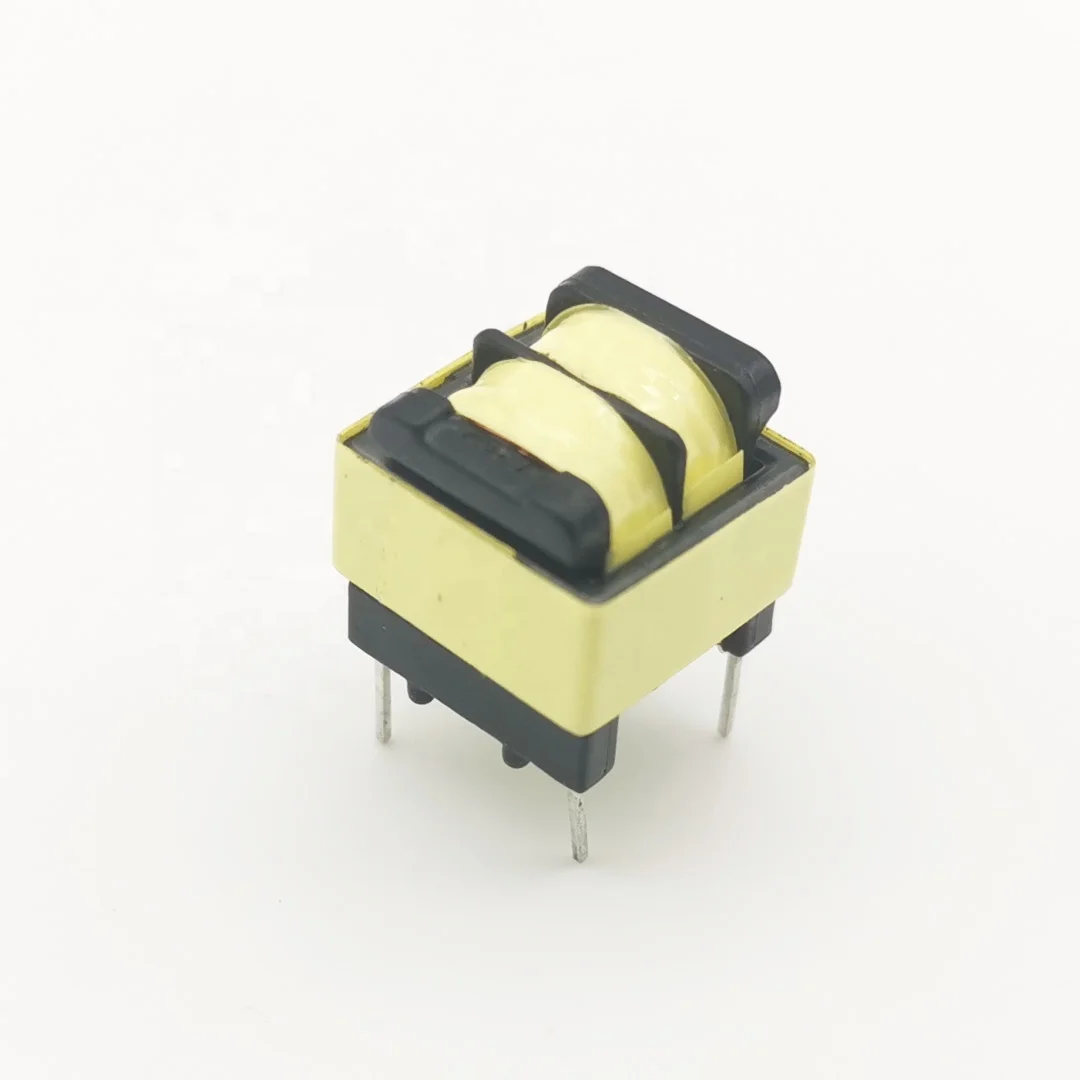

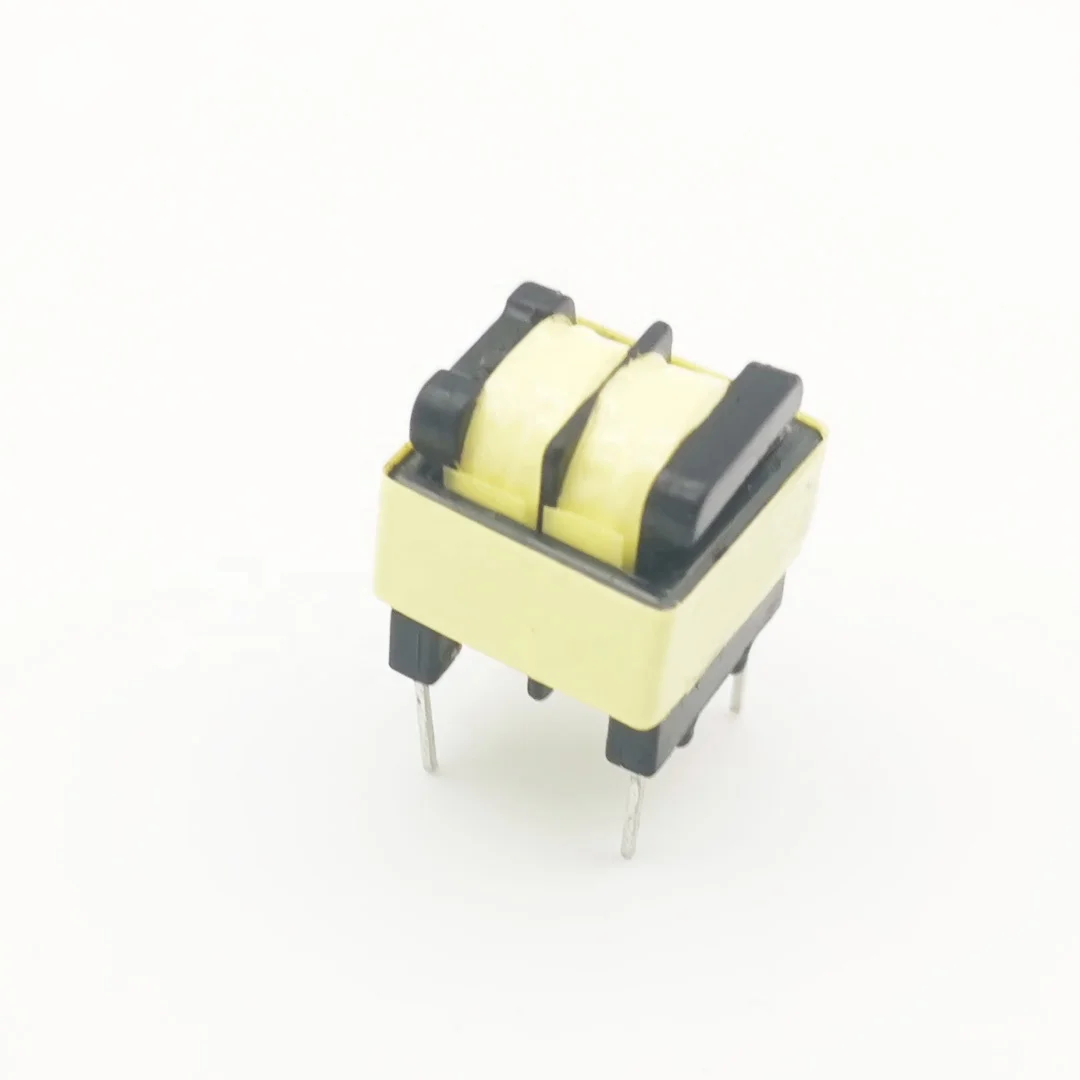

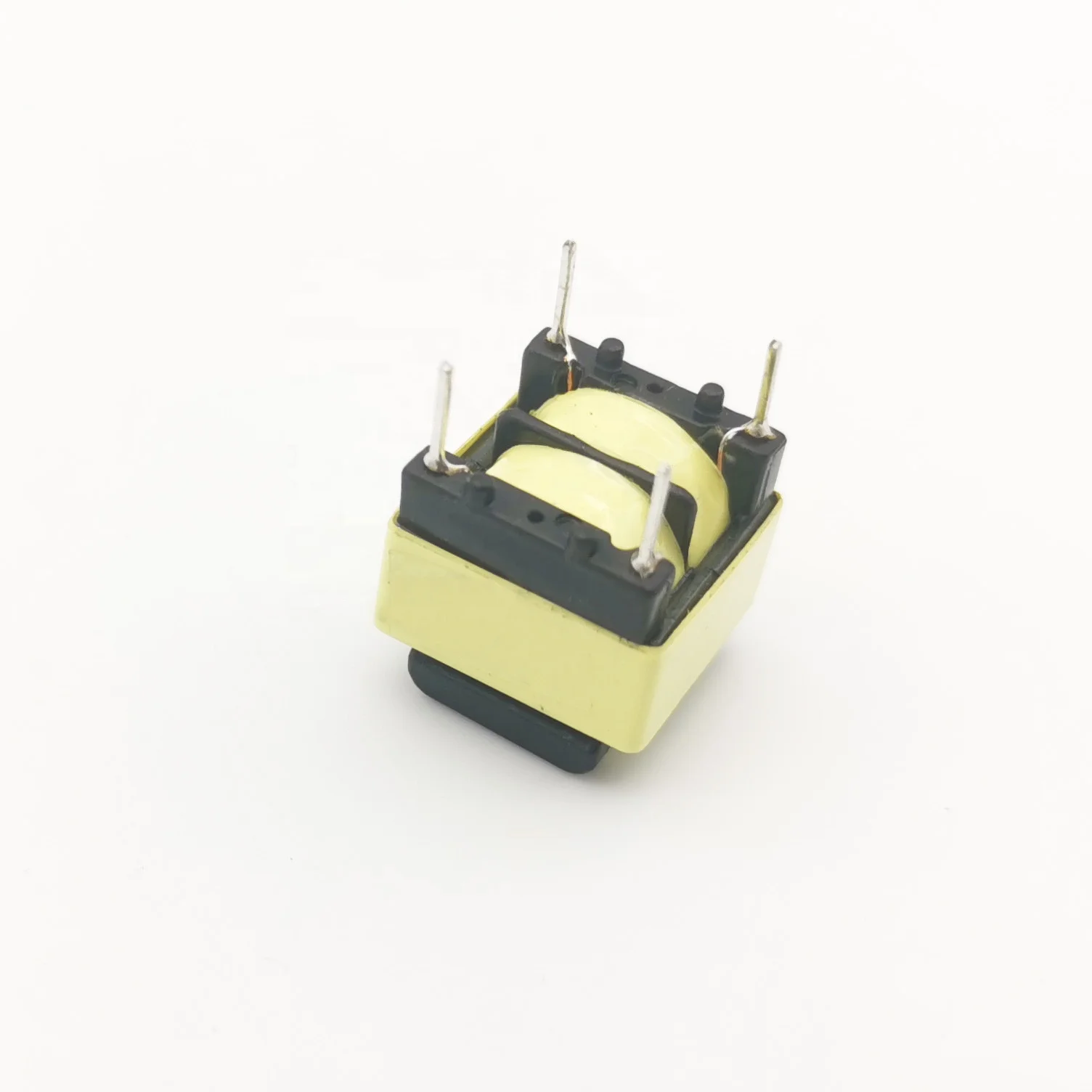

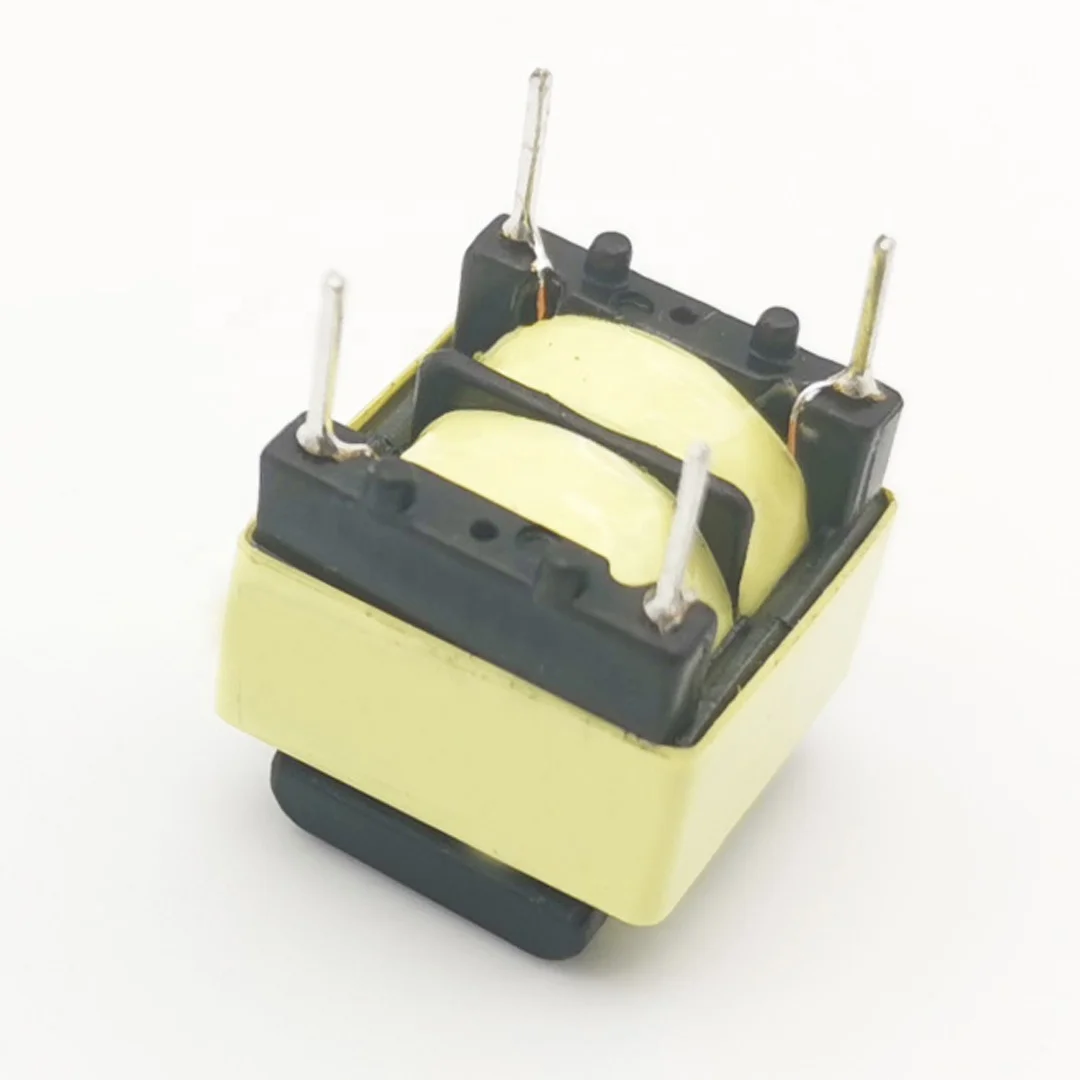

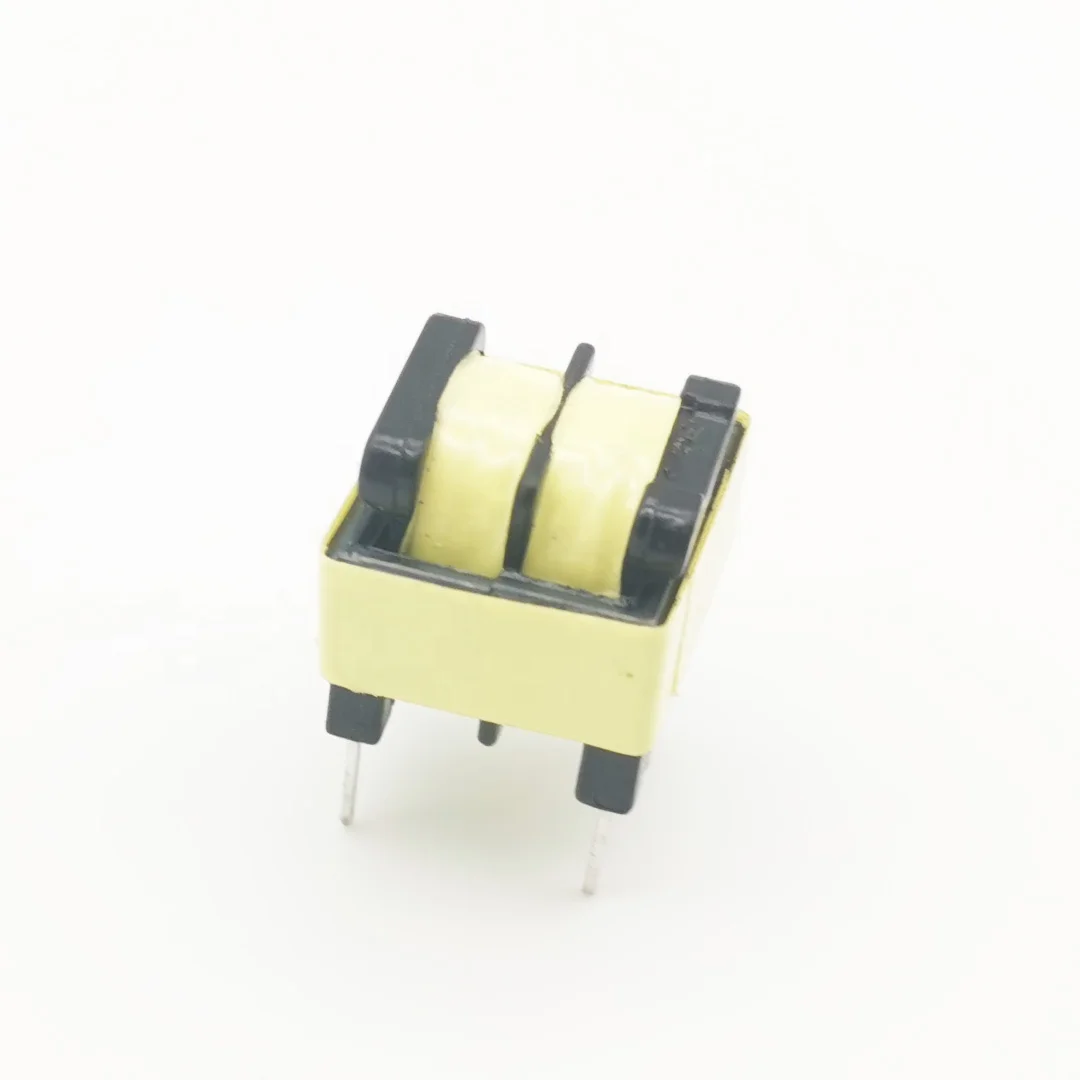

Products Pictures:
![]() | ![]() |
![]() | ![]() |
Best selling-Common mode chokes(Line filters) - UU16 Type
All the raw materials are certified by UL.
Part No.: | TYC-UU16-03 | Materials: | Product Picture: | ||||||||||||||||||||||||||||||||
Features: | Ferrite core: UU16/TL7 | ![]() | |||||||||||||||||||||||||||||||||
Customizable, | Phenolic bobbin: T375J /150℃ 94V-0 | ||||||||||||||||||||||||||||||||||
High inductance | Copper wire: 2UEW Φ0.49mm /130℃ | ||||||||||||||||||||||||||||||||||
Low magnetic flux leakage | Clip: UU16 | ||||||||||||||||||||||||||||||||||
Larger transmission power | Tape:CT280 | ||||||||||||||||||||||||||||||||||
Operating temperature: -40°C to +125°C | |||||||||||||||||||||||||||||||||||
Dimensions:(Unit:mm)
![]() |
Electrical Charactersistics:
No. | Items | Test Terminals | Specification | Test Conditions (At 25℃) | Test meters | ||||||||||||||||||||||||||||
1 | Inductance | 1-2 | L=10mH Min | 1KHz /0.25V | HP4284A | ||||||||||||||||||||||||||||
4-3 | L=10mH Min | ||||||||||||||||||||||||||||||||
2 | Difference inductance | |L1-L2| | 0.2mH Max | 1KHz /0.25V | HP4284A | ||||||||||||||||||||||||||||
3 | Insulation resistance | Coil - Core | 100MΩ Min | DC 500V | NF2511 | ||||||||||||||||||||||||||||
Coil - Coil | 100MΩ Min | ||||||||||||||||||||||||||||||||
4 | Withstand voltage | Coil - Coil | No Abnormal | AC2500V 50Hz 5mA/1Sec. | DZ2672B |
All types:
NO. | Product Name | TYPE | Detailed Type | ||||||||||
1 | High frequency transformers | EE | EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85 | ||||||||||
EC/ER | ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49 | ||||||||||||
ETD | ETD29, ETD35, ETD40, ETD49 | ||||||||||||
EF | EF16, EF20, EF25 | ||||||||||||
EFD | EFD15, EFD20/21, EFD25/26, EFD30 | ||||||||||||
EDR | EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008 | ||||||||||||
EP | EP7, EP10, EP13 | ||||||||||||
EPC | EPC11.5, EPC13, EPC19, EPC25 | ||||||||||||
EQ | EQ2512, EQ2610, EQ3209, EQ4013, | ||||||||||||
POT | POT3016, POT3930 | ||||||||||||
PQ | PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49 | ||||||||||||
RM | RM6, RM8, RM10, RM12, RM14 | ||||||||||||
2 | Common mode chokes(Line filters) | Bobbin | EE8.3, EE12, EE19, EE25 | ||||||||||
UU | UU9.8, UU10.5, UU16 | ||||||||||||
ET | ET20, ET24, ET28, ET35 | ||||||||||||
SQ | SQ1212, SQ1515, SQ2418 | ||||||||||||
FT | FT20-22, FT20-21, FT20-15, FT20-13, FT20-10 | ||||||||||||
Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 25X15X13, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Ferrite core); 16X10X6, 20X12.5X8, 25X16X10, 30X20X10, 30X20X15, 40X25X15, 50X40X20, 63X50X25, 80X63X25, 100X80X25, 130X100X25(Nanocrystalline core) | ||||||||||||
3 | Inductors(Choke coils) | Peaking/Drum | 4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20 | ||||||||||
Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 | ||||||||||||
Rod | 3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30 | ||||||||||||
Bobbin | EE8.3, EE10, EE13, EE16, EER(PFC) | ||||||||||||
4 | SMD power inductors | Unshielded | MT, MTQ, MTF, MTG | ||||||||||
Shielded | MTH, MTHII, MTP, MTB, MTE, MTL, MTF | ||||||||||||
5 | Low frequency transformers | EI | EI14, EI16,EI19, EI24,EI28, EI30, EI35, EI38.5, EI41,EI48, EI57, EI60, EI66, EI74, EI76, EI86, EI96, EI105, EI114 |
We are a manufaturer, and have our own trading company(Nantong Meican International Trading Co., Ltd.) |
We have more than 12 years of experience in this industry. |
We will reply customer within an hour when there is quality complaint. Also we need customer's help to provide relevant pictures and videos, and finish the accident investigation within 24 hours. If it is our responsibility, we will give 8D report within 48 hours, and all the defective product will be returned or replaced. The warranty period is 2 years. |
Yes, we can customize products as your requirements. |
Yes, it is. |
Samples need 2-7 days, mass production time is usually about 1-3weeks, but it depends on the order quantity. |
500PCS, but any small trial orders are welcomed. |
We accept T/T, L/C. |
Yes, we 100% test before shipment, and we have full-automatic testing facilities which can reduce human error. |
Normally Shanghai. |
Fedex, DHL, EMS, SF Express with great discount. |
EXW, CFR, FOB, CIF, DDU, DDP are all acceptable, or online transactions. |
