Электрические паяльники сварочное оборудование ультразвуковое соединение
- Категория: Soldering Irons >>>
- Поставщик: Hangzhou,Cheersonic,Ulltrasonics,Equipments,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.98 $* | 0.93 $* |
| Aug-16-2025 | 0.22 $* | 0.64 $* |
| Jul-16-2025 | 0.84 $* | 0.39 $* |
| Jun-16-2025 | 0.65 $* | 0.44 $* |
| May-16-2025 | 0.35 $* | 0.69 $* |
| Apr-16-2025 | 0.11 $* | 0.65 $* |
| Mar-16-2025 | 0.88 $* | 0.67 $* |
| Feb-16-2025 | 0.68 $* | 0.98 $* |
| Jan-16-2025 | 0.79 $* | 0.56 $* |
Характеристики
Please contact us for more information. Cheersonic Linked with success. We follow this guiding principle by constantly developing our technologies and products so that we can continue to produce optimum plastic connections. Our corporate history is also associated with success: continuous growth ensured that we were able to expand our customer base.
Ultrasonic Apple Sauce Roll cutting machine

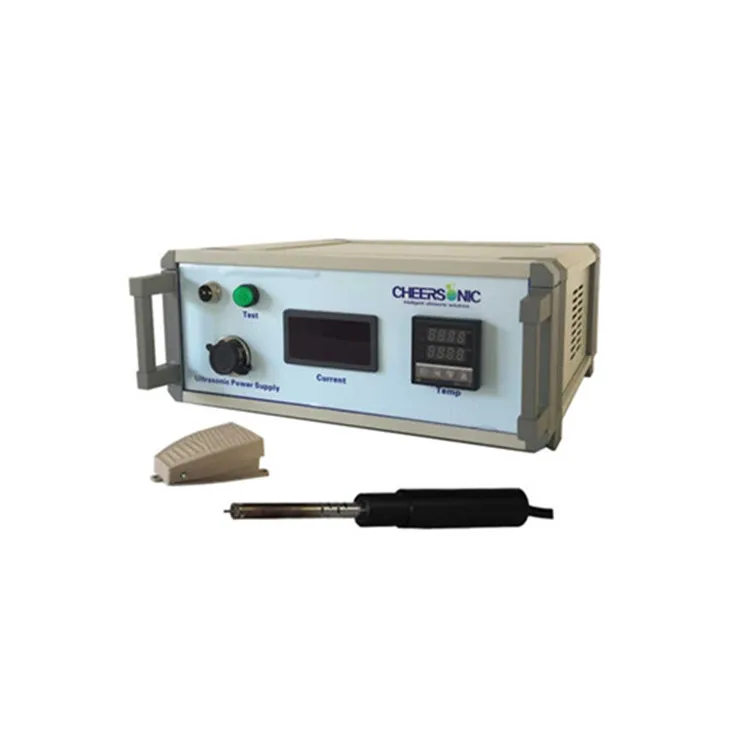

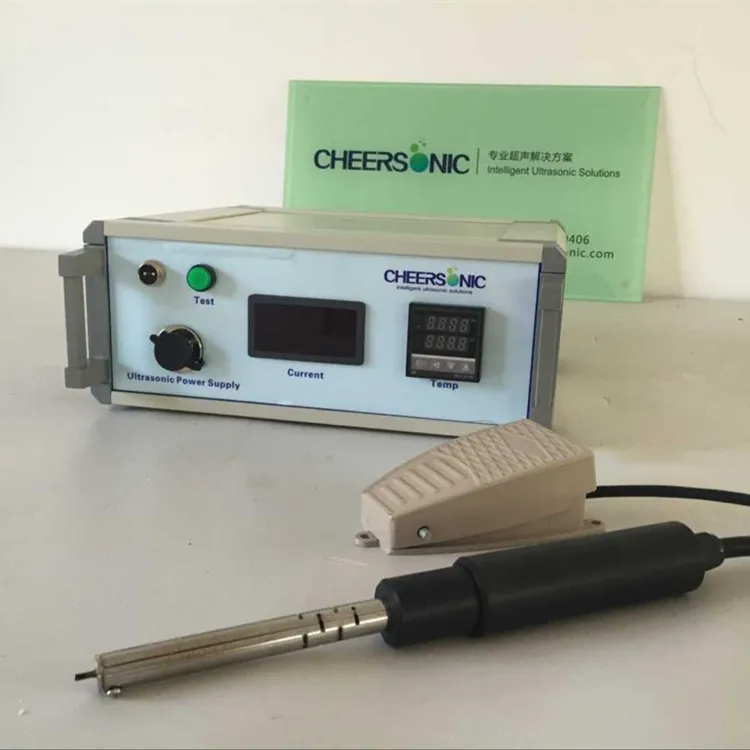

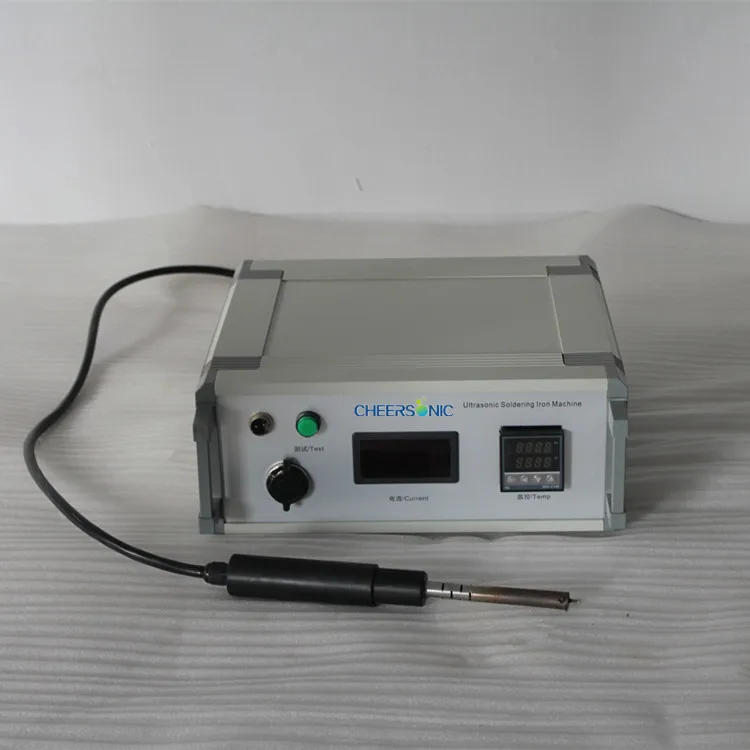

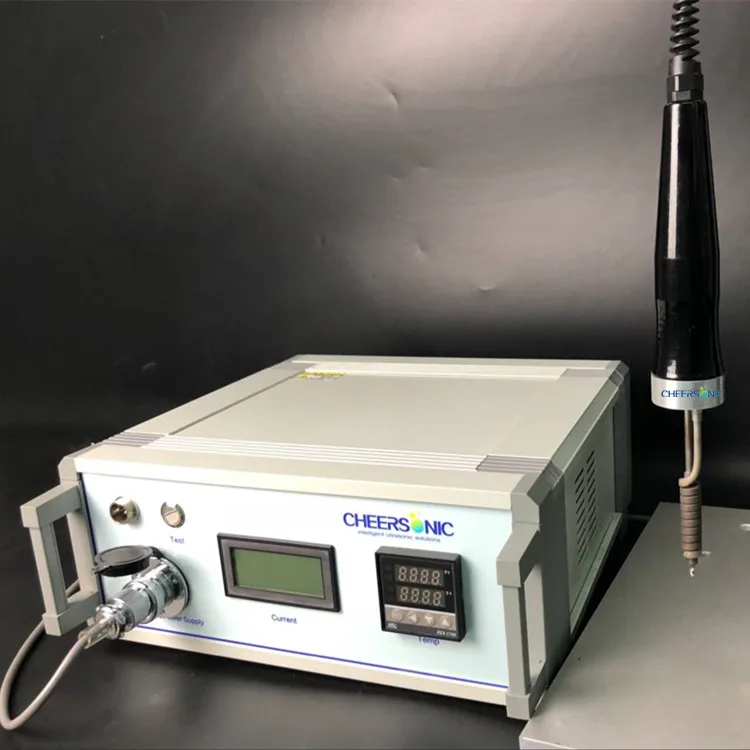

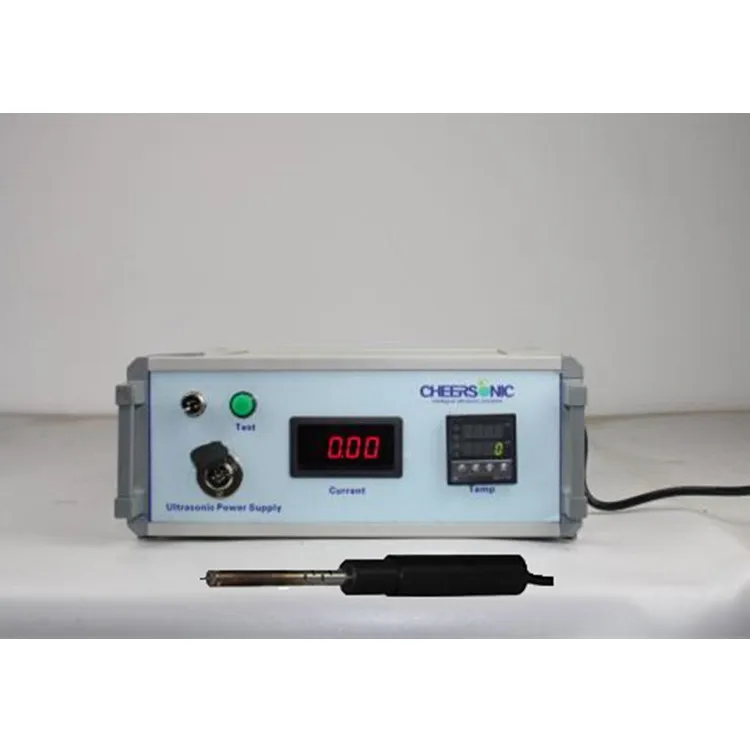

Ultrasonic Soldering Iron - CS100DI Ultrasonic Power Supply
Introduction and Advantages ·
Ultrasonic soldering systems offer the advantage of the fluxless soldering of many metals in common use as well as
previously difficult to solder materials such as aluminium, ceramics, glass and silicon’s used in microelectronic appl-
ications.
The unit consists of the soldering iron itself, which is rated at 80W and can reach temperatures of up to 450°C, and is
fitted with interchangeable screw in copper bits. The ultrasonic transducer is built into the soldering iron handle and the
need to prevent this unit being overheated necessitates the continuous use of a cooling air supply.
The 40 kHz standard ultrasonic generators are separately housed in a sheet metal case with carrying handle and with
soldering iron rest attached to one side. The generator has five levels of power plus a zero power level that allows the
soldering iron to be used in the conventional manner. The ultrasonic power is applied to the iron as required by means
of a footswitch.
working status
Application and Future ·

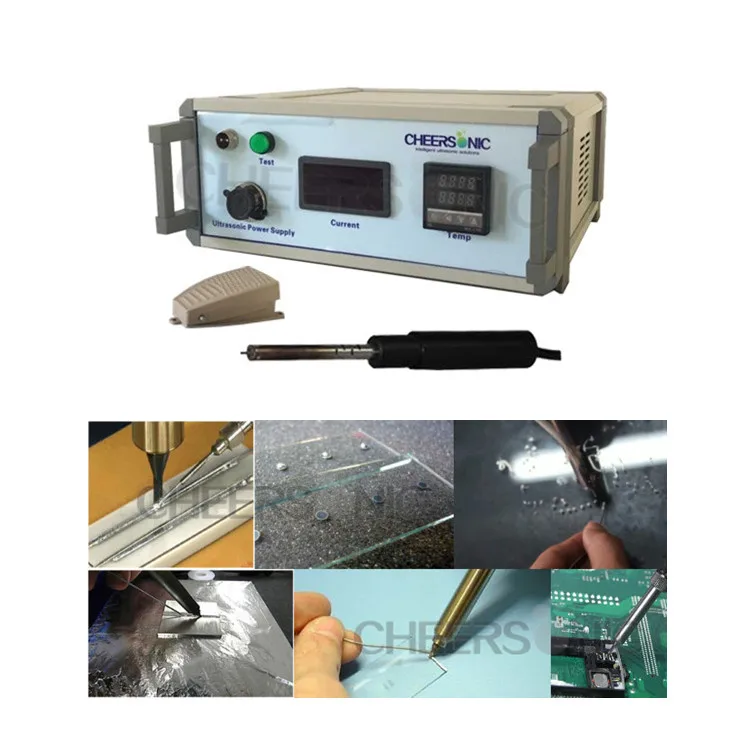

In addition, ultrasonic technology is used for: Glass, ceramics, metal .
Standard Models ·
| Ultrasonic Soldering Iron | |||
| Model | CS55-X15I | Blade Material | Titanium |
| Frequency | 55 Khz | Max Power | 15 Watt |
| Handle Weight | 0.3 Kg | Soldering time | 0.01-99.99s |
| Generator Model | CS100DI | Generator Size | 315x312x135mm |
| Generator Brand | Cheersonic | Generator N/W | 6.5kg |
| Cable Length | 3M/5M/10M | Customized | Yes |
Packaging & Shipping ·
Choose Cheersonic ·
Founded in 1998, Cheersonic is the manufacturer and marketer of industrial ultrasonic products. As an industrial leader of ultrasonic technology, Cheersonic specializes in the design, development, manufacture, and marketing of ultrasonic products in the line of food process, plastics joining, medical coating and ultrasonic processing. Cheersonics principal manufacturing and distribution facility is located in Fuyang, Zhejiang province.
We develop and produce ultrasonic equipments which we sell as complete units or individual assembles such as generators and converters. Our customers and special purpose machine builders benefit from high-quality components and machines with simple, user-friendly operation. We are committed to providing solutions that can meets the needs of our customers, providing the latest in technology, both in products and processes.
For us, quality is not just an empty word but a basic attitude which is the foundation for our thinking and actions. Each product has checked by our QC department before sending to our customers.
Free test
Economic, Environmental & compatible design of all products
Easy maintenance & inexpensive spare parts
24 hours technical supports and after sales services
Diversity of customized services, Strong OEM capability available
One step sourcing on all ultrasonic products
The most professional team in line of ultrasonic
Certificate ·
How to work with cheersonic ·
Visit the website for more details and send us the enquire, we will reply it within 24 hours
Welcome to visit our official website for more details and leave message on“contact us", we will reply it within 24 hours
Let our sale engineers know your condition and requirement and then we will estimate your process and let you know the solutions
We will help you test and estimate if you send us your materials for test
The ultrasonic solutions will be made according to your condition
Please contact us for more detail. Cheersonic Ultrasonics are Looking forward to have a cooperation with you.
