N40 free flow frame plate heat exchanger

Категория: Refrigeration & Heat Exchange Parts >>>
Поставщик: TIANJIN,JINFAN,MOULD,CO.,LTD

Цена:0,90 $ - 1,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.1 $*	0.78 $*
Aug-19-2025	0.98 $*	0.69 $*
Jul-19-2025	0.21 $*	0.40 $*
Jun-19-2025	0.32 $*	0.62 $*
May-19-2025	0.35 $*	0.97 $*
Apr-19-2025	0.17 $*	0.51 $*
Mar-19-2025	0.29 $*	0.94 $*
Feb-19-2025	0.69 $*	0.45 $*
Jan-19-2025	0.23 $*	0.13 $*

Характеристики

Gasket Description

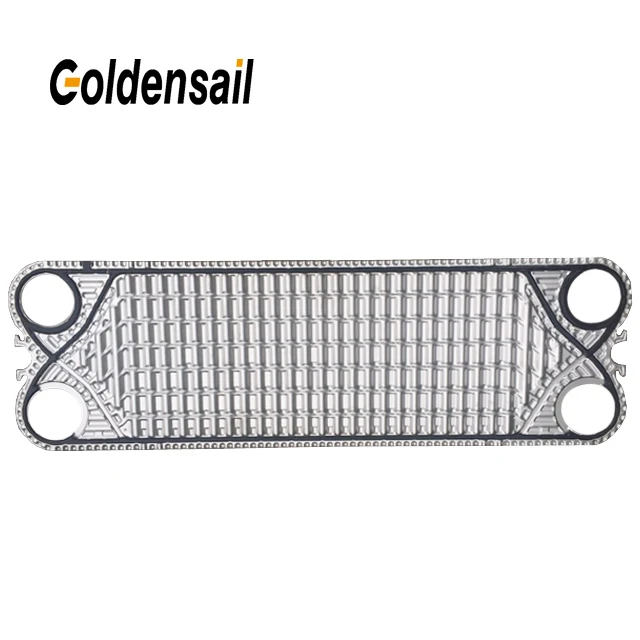

N40 free flow frame plate heat exchanger gasket

Production Ability:

We manufacture about 400 gasket models since 2004.

We produce high quality Non-OEM and OEM PHE Replacement Gaskets for many brands such as: APV,Sondex，GEA,Tranter，Vicarb ,Funke，Thermowave，API,exc. The gaskets can be exchanged with original plates,and we have exported largen quantity in the past 10 years.It taks our client big benefit by saving a lot on the plate heat exchanger maintenance.

No matter you need What modelss,we can make,because we make moulds ourselves.

Quality Control:

We use the best raw material from USA,and can meet the high needs of various of clients and application.

We have a strick quality control procedure for the whole plaet production,from raw material choose,inspection,gasket pressing,gasket flash reaing,to quality inspection by hardness test,Tensile Strength test,Elognation Break test,24Hrs Compression Set test,etc.

Application:

PHE for HVAC, Marine, Food like Beer, Milk, Juice, Chemical,Mine,Refinery, Powerplant，etc

Model:

VT04 VT10 VT20 VT205 VT20P VT40VT40(M) VT405P AT405 VT405 VT80 VT80(M) VT805 VT2508,NT25M NT50T NT50M NT50X NT100T NT100M NT100X NT150L NT150S NT250S NT250M NT250L NT350S NT350M NH350S NH350M,FA184,N40

Gasket Material and Applicaiton
Plate	SS304/316L	Water, river water,	edible oil, mineral oil;
		GRADE 1 Titanium	seawater, brine,	and chloride;
		C276	concentrated sulfuric acid,	hydrochloric acid,phosphoric acid;
Gasket	NBR	-25~+120° C	Water, Sea Water, Mineral Oil, Salty Water
		EPDM	-35~+150° C	Hot Water, Steam, Acid, Caustic
		HNBR	-15~+160° C	High temperature mineral oil and water
	VITON	-20~+180° C	High temperature resistance, strong oxidants, oil, acid and alkali.
		NBR HT	-25~+130° C	High Temperature NBR
		EPDM HT	-35~+150° C	High Temperature EPDM

Gasket Brands&Models

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Our Company

BIG SCALE IN WORLDWIDE FIELD:

Tianjin Jinfan mould co.,ltd is a professioanl Plate,gasket,plate heat exchanger manufacturer since 2004.

The factory occupies 25000㎡，owing 13 press machines like 45000T,15000T,5000T,10 big cutting&shearing machine,NC cutting,laser,cutting machine，welding machine etc.

We produce about 300 gasket plaet heat exchanger models with plate area of 0.03㎡ to 3㎡，and port fromφ28 toφ480.

HIGH POSITION IN PHE MARKET:

As the first and biggest plate & mould source in China,90% of the plates and gaskets moulds are made by us in China, and majority of the plates are from us in Chinese market.

We exported large quantity of plates, gaskets, PHEs and moulds to Europe, Asia, Middel East, USA, Australia, South Afric, owing to equivalent quality with OEM spares, competitive price, large stock, short deliver, technical support (software and experience), certificate suppoert (ISO9001,EN 3.1 and SGS,etc), as well as after work service.

Quality Control System;

We have long time cooperation with big raw material supplier and imported special material like Titanium 245SMO,etc.

The plates ,gaskets ,PHEs, and facilities are all stictly traceable to meet the need of after sale service.The strong manufactring ability and full quality control enable us to provide you world class products.

The Special and Sole Service:

We produce the most complete PHE ranges,including every brands.

Besides our molde list,we make all the brands and models.Because we made moulds ourselves,so no matter you need any model,we can provide and support to you for any possibility!

Quality Test&Packing

Payment & Shipping

Payment Term

*Our normal payment term is 30% deposit,and 70% before shipping.

* We can also accept other payment term according to the request of our clients.

Delivery Time

* Our normal delivery time is 3-15days.

* If there is any urgent order,we would like to help finish it in 1-2day,because we're the real source in Chinese market.

Our Service &Contact

Service
1.We're the real source of PHE plates in China.We are always making new moulds each month according to the need of clients,and produce plates everyday by 13 sets of press machines and 300 sets of moulds.So we can provide you the most complete range of PHE and spares. 2.We kept large stock of raw material like SS304,316L,Titanium,even C276 and254SMO.Delivery time is short.No matter you have any emergency,we can help and support you.Our material all from the famous supplier in USA,Japan,and Korea.Thickness is at least 0.47mm for 0.5mm plate,and at least 0.57mm for 0.6mm plate. 3.Our complete production and quality control system enable us to provide 100% guarantee to the customers. 4.We have software of APV,Tranter,GEA,Sondex,Funke,API,etc.And can provide you technical sheet and PHE drawing.We can support you for the new unit for your PHE project. 5.Most important is high quality and good price.That's why we win more and more customers and friends in worldwide and gain the international position in the PHE field. 6.We work 24hours to service for you.
