Армированный подземный силовой кабель 0 6/1 кВ
- Категория: Power Cables >>>
- Поставщик: Henan,Aoguli,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1.74 $* | 1.59 $* |
| Jul-18-2025 | 1.23 $* | 1.98 $* |
| Jun-18-2025 | 1.3 $* | 1.86 $* |
| May-18-2025 | 1.10 $* | 1.56 $* |
| Apr-18-2025 | 1.64 $* | 1.89 $* |
| Mar-18-2025 | 1.47 $* | 1.96 $* |
| Feb-18-2025 | 1.37 $* | 1.37 $* |
| Jan-18-2025 | 1.2 $* | 1.63 $* |
Характеристики
Product Description
Product feature and purpose
Cross-linked polyethylene insulated power cables is characterized with high mechanical strength,strong resistance to environmental
stress,excellent electrical properties ,powerful resistance to
chemical attack.In addition,the light and simple products are user-friendly.This product is suitable and designed for power
transmission and distribution system of rated voltage 0.6/1kv.In terms
of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only limited to a certain
scope applicable to power station ,subway ,tunnel ,high-rise building,large
industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric cables.
stress,excellent electrical properties ,powerful resistance to
chemical attack.In addition,the light and simple products are user-friendly.This product is suitable and designed for power
transmission and distribution system of rated voltage 0.6/1kv.In terms
of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only limited to a certain
scope applicable to power station ,subway ,tunnel ,high-rise building,large
industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric cables.

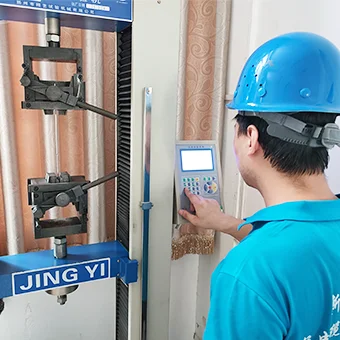

Quality test

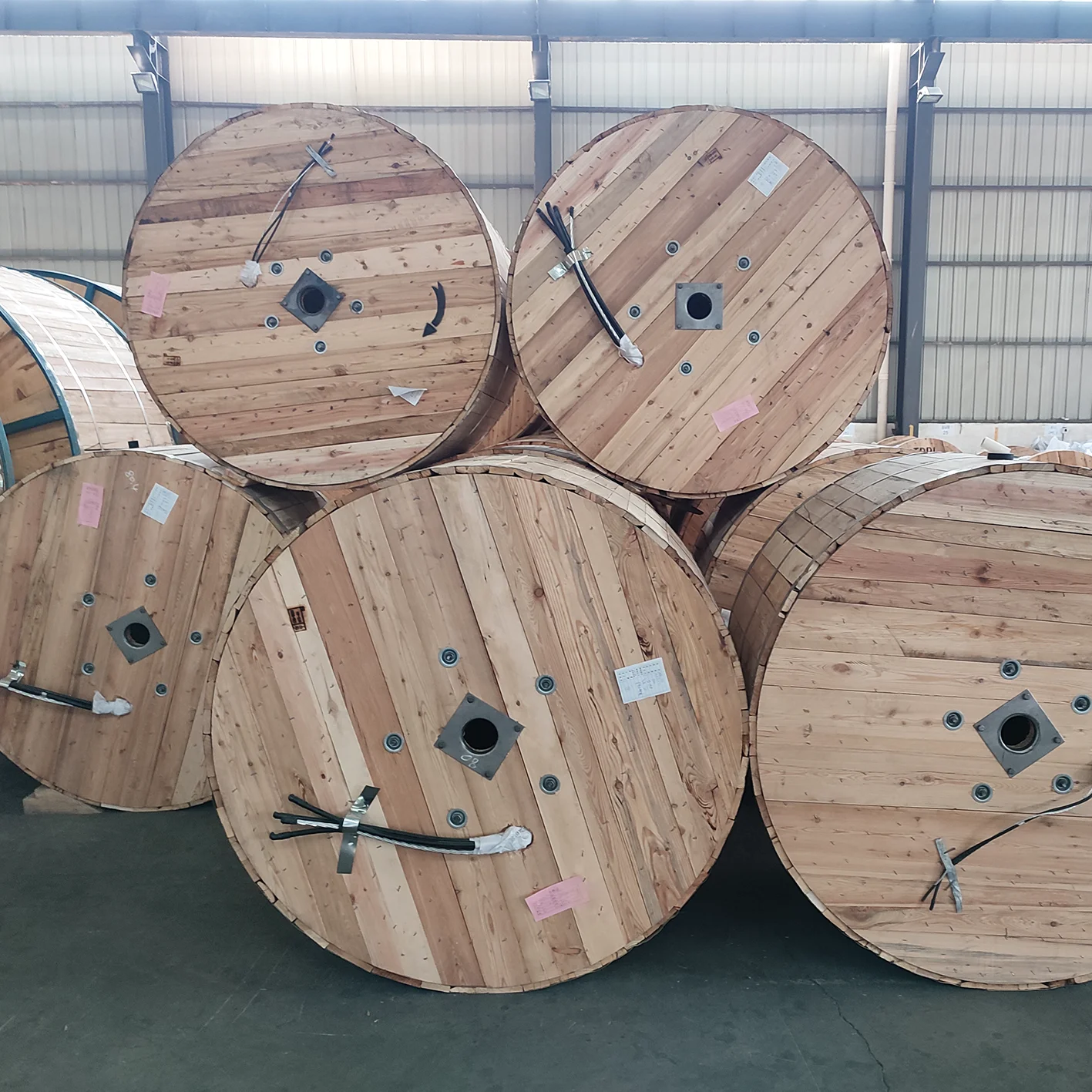

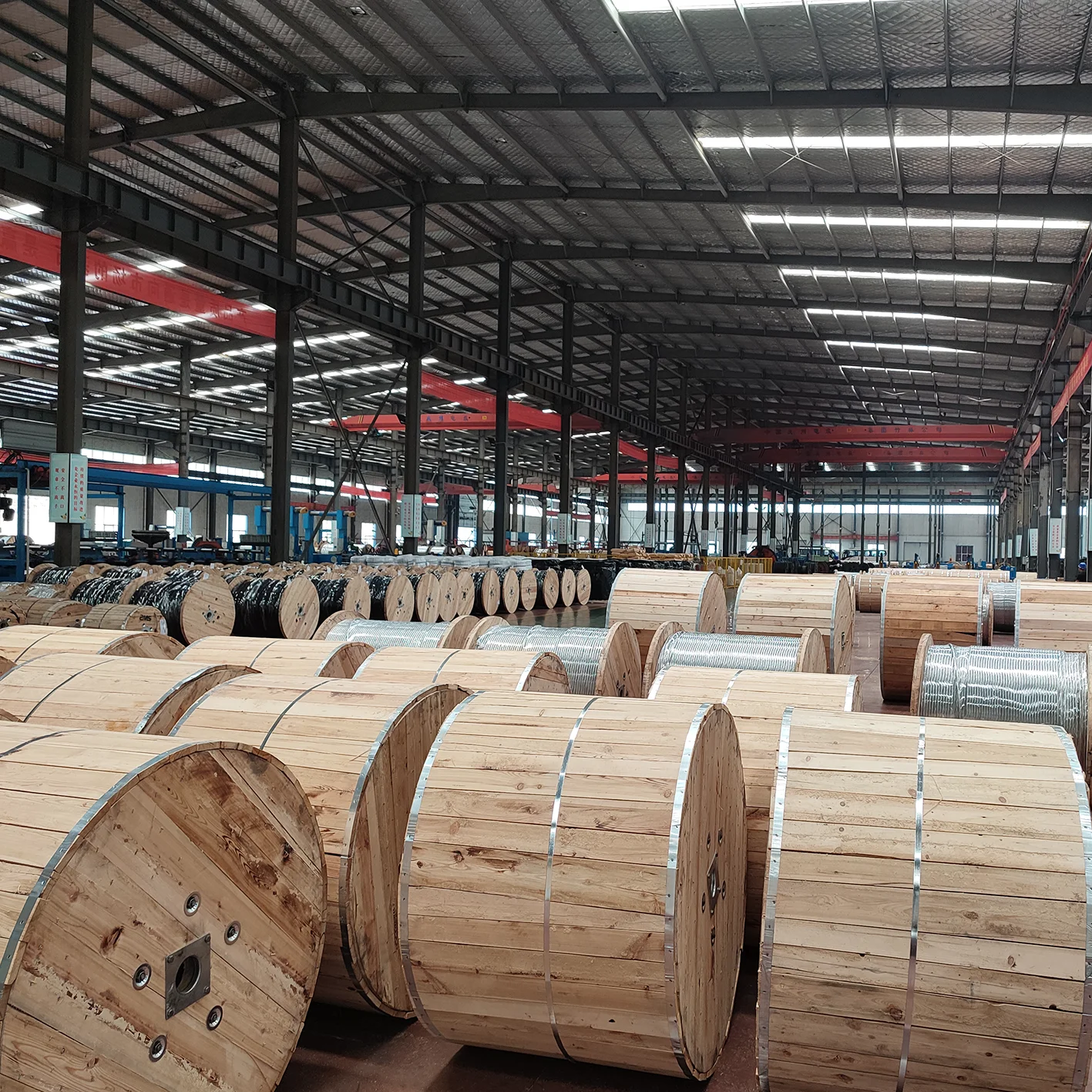

Product packaging

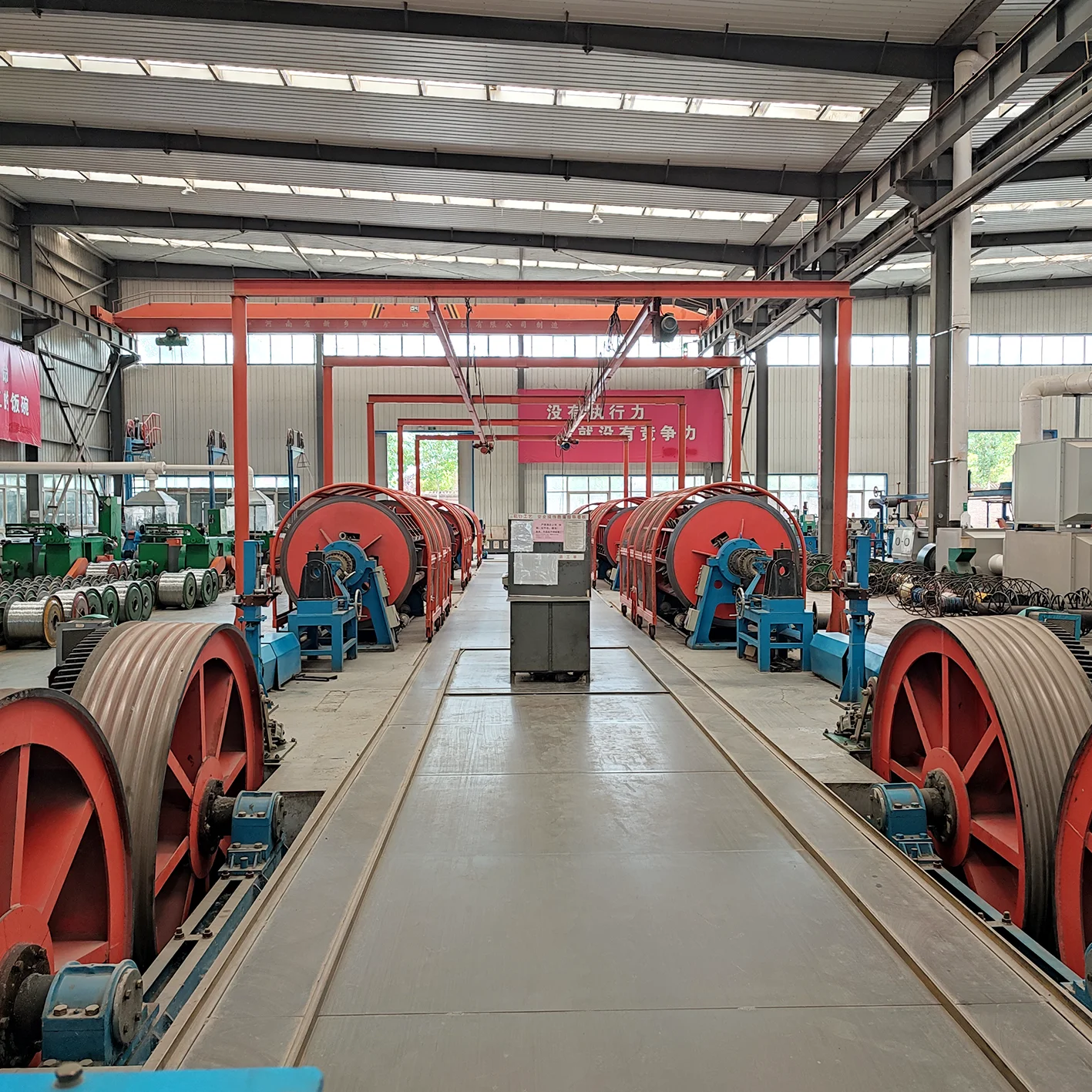

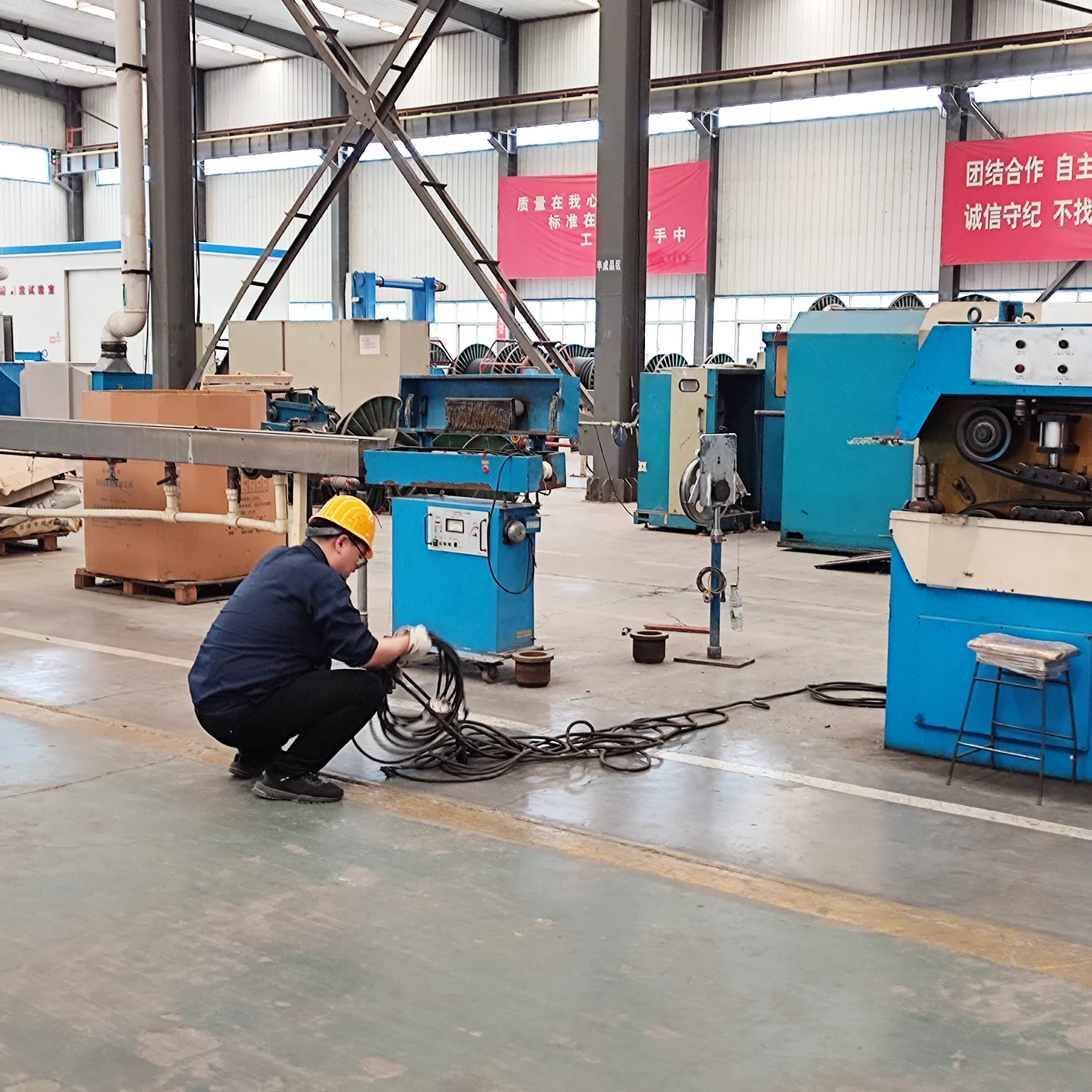

Company Profile
Certifications
Nominal cross-section of conductor mm2 | Unarmored | Armored | |||||||||
Single-core | Three-core | Three-core | |||||||||
In air | Buried | In air | Buried | In-air | Buried | ||||||
Copper conductor | 25 | 165 | 160 | 140 | 150 | 140 | 150 | ||||
35 | 205 | 190 | 170 | 180 | 170 | 175 | |||||
50 | 245 | 225 | 205 | 210 | 205 | 210 | |||||
70 | 305 | 275 | 255 | 260 | 250 | 255 | |||||
95 | 370 | 330 | 310 | 305 | 310 | 305 | |||||
120 | 430 | 375 | 360 | 350 | 350 | 350 | |||||
150 | 490 | 425 | 405 | 390 | 400 | 390 | |||||
185 | 560 | 480 | 465 | 445 | 450 | 440 | |||||
240 | 665 | 555 | 550 | 520 | 530 | 510 | |||||
300 | 765 | 630 | 625 | 585 | 605 | 565 | |||||
400 | 890 | 725 | 730 | 665 | 700 | 645 | |||||
conductor | 25 | 130 | 120 | 110 | 115 | 110 | 115 | ||||
35 | 155 | 145 | 130 | 140 | 130 | 140 | |||||
50 | 160 | 175 | 160 | 165 | 160 | 165 | |||||
70 | 200 | 215 | 200 | 200 | 195 | 200 | |||||
95 | 245 | 255 | 240 | 240 | 240 | 240 | |||||
120 | 280 | 290 | 285 | 275 | 270 | 270 | |||||
150 | 320 | 330 | 315 | 305 | 310 | 300 | |||||
185 | 365 | 370 | 365 | 350 | 350 | 340 | |||||
240 | 435 | 435 | 430 | 405 | 415 | 400 | |||||
300 | 500 | 490 | 490 | 455 | 475 | 445 | |||||
400 | 585 | 565 | 580 | 525 | 555 | 510 | |||||
