5 оси для устройств водоструйной резки стали и
- Категория: Water Jet Cutters >>>
- Поставщик: Jinan,Truster,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.84 $* | 0.89 $* |
| Aug-17-2025 | 0.85 $* | 0.35 $* |
| Jul-17-2025 | 0.68 $* | 0.87 $* |
| Jun-17-2025 | 0.72 $* | 0.16 $* |
| May-17-2025 | 0.28 $* | 0.59 $* |
| Apr-17-2025 | 0.52 $* | 0.25 $* |
| Mar-17-2025 | 0.34 $* | 0.10 $* |
| Feb-17-2025 | 0.46 $* | 0.34 $* |
| Jan-17-2025 | 0.33 $* | 0.48 $* |
Характеристики
Working video

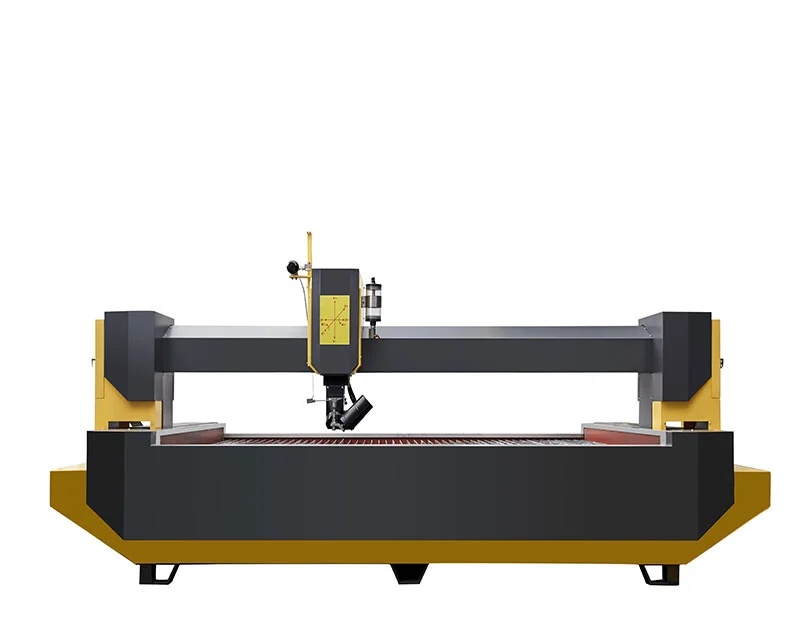

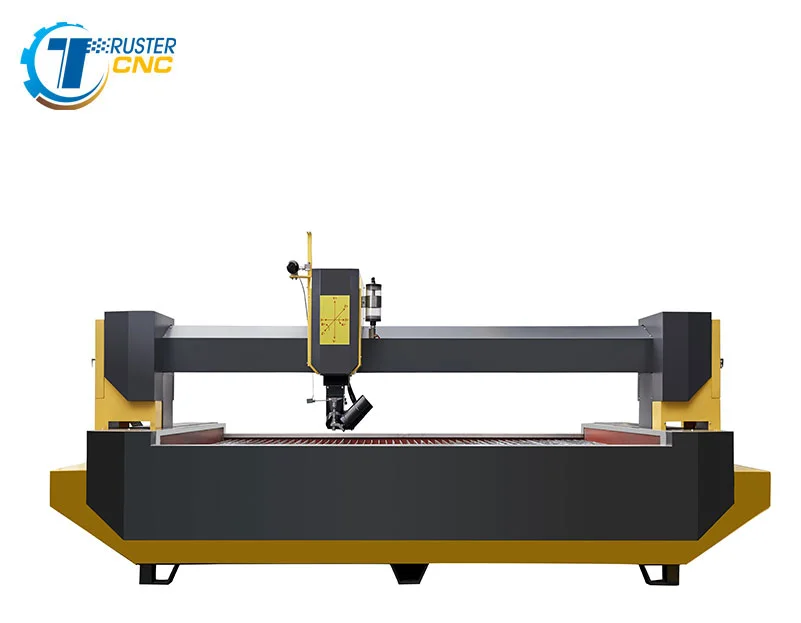

Product Description
Machine structure materials and protection:
Finished machine tool base, internal and external double-layer steel plate structure, beam reinforcement, steel plate and beam are fully welded, inner steel thickness 8mm, outer thickness 6mm, strict dust proof and waterproof design improves all operating machinery and the service life of the pieces.
Cooling system: | water cooling, 5 axis 60 degree cut |
X axis | gantry beam |
Y axis： | Double longitudinal beam base frame |
Z axis rotation angle | 60 degree |
Machine heat treatment | X and Y beams undergo low temperature annealing heat treatment |
Linear guide rail brand | Taiwan TBI |
Ball screw brand | Taiwan TBI |
Servo motor and driver | Adopted AC servo motor |
Cutting material thickness | SS：100mm ,Stone：200mm, aluminum： glass:100mm Ceramic: 60mm Titanium: 50mm |
X.Y travel size： | 3000*1500mm |
Max cutting speed： | 0.03～4m/min |
Cutting precision： | ±0.1mm |
Repeat location precision： | 0.025mm |
Max removing speed： | 8000mm/min |
Max feed speed： | 4000mm/min |
X axis precision： | ≦±0.05mm per 300mm |
Y axis precision： | ≦±0.05mm per 300mm |
Sample show
Product packaging
1. We will send the machine with strong plywood package to your port or door address by sea or by airplane.
Please kindly tell us your near port or address with postcode.
2. We have reliable shipping agent to insure the safe,convenient and timely delivery.
2. We have reliable shipping agent to insure the safe,convenient and timely delivery.
Related Products
Our Service
# 24 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.
# Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
# Software is on update for free whole life.
# Our engineer could support you technology to your country if necessary.
# Our enginner could service on weekend even on vacation.
# Our engineer could train you in our factory for free.
# Our engineer could service you 24 hours online by Skype, WhatsApp, Email, or by cellphone.
# English manual and CD video for machine using and maintaining will send to you with the machine.
# Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
# Software is on update for free whole life.
# Our engineer could support you technology to your country if necessary.
# Our enginner could service on weekend even on vacation.
# Our engineer could train you in our factory for free.
# Our engineer could service you 24 hours online by Skype, WhatsApp, Email, or by cellphone.
# English manual and CD video for machine using and maintaining will send to you with the machine.
