Products Description




OEM/ODM Factory Price Wholesale 5KW Solar Generator LiFePO4 Battery Pack 5KWH Solar Power System Home
With the rapid development and wide application of the solar power system, off-grid energy storage system has more and more market demand as well. For some remote areas lack of grid electricity, or places with unstable grid electricity, off-grid energy storage system is the best choice to get power. Off-grid energy storage system is an independent power supply system, which can store solar power, grid electricity, diesel engine, wind power and other energy. Through the inverter, it can reverse the DC power into AC for family and business use. In addition, the off grid energy storage system is easy to move. Compared with diesel generator, it is more energy-saving, environmentally friendly and silent, and thus widely used in household, hotel, school, hospital, ship, RV and other places.

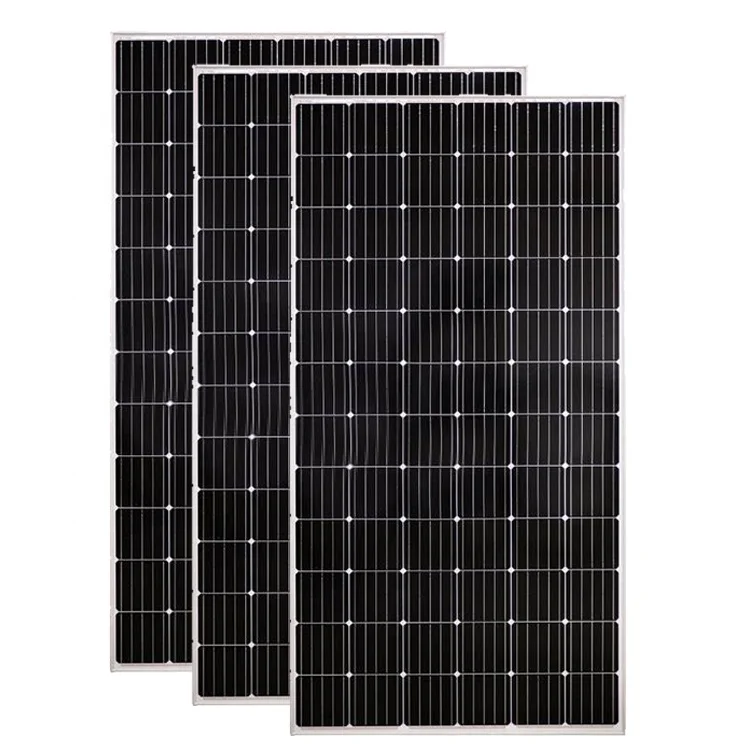

SOLAR PANEL
Rated Power：380W
Rated Current(Imp）：9.52A
Rated Voltage(Vmp)：39.92V
Short Current (Isc)：10.05A
Open Circuit Voltage(Voc)：48.57V
Front Glass: 3.2mm,high transmission,low iron, tempered glass
Junction Box: IP68
Rated Cables: 4mm * 1160mm
Frame: Anodized aluminium-alloy
Dimension（mm）：1956 * 992 * 40
Weight： 22.5kg

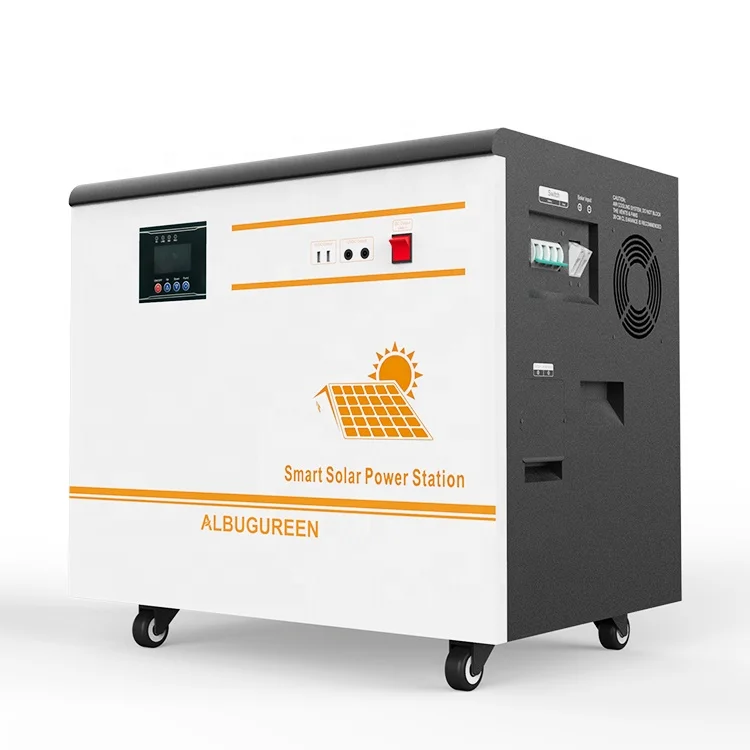

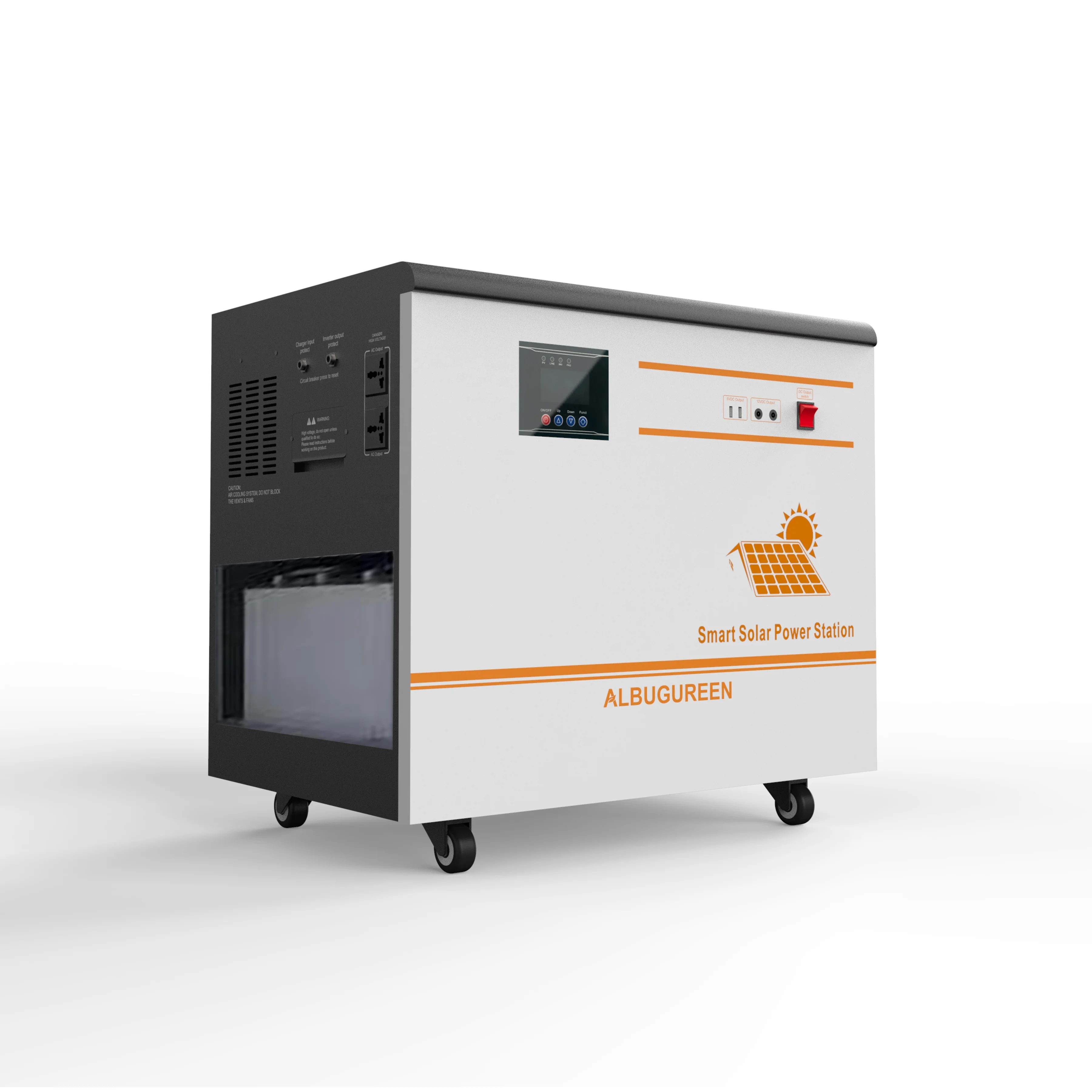

5KW 5KWH Solar power generator
Rated Power: 5KW pure sine wave inverter output Controller：Solar MPPT controller 60A Battery capacity: 5KWH / 51.2V 100AH
Battery Type: Lithium LifePO4
Output AC : 220V-230V AC / 50HZ * 2 (110V as option)
Output DC : 12VDC×2、5VDC×2
Charging Model: DC & AC
Solar PV input: 60VDC-150VDC
AC input :220VAC 50HZ , AC charge current 20A(AC input range 170VAC-270VAC)
Size: 620*420*580MM
Net weight: 86kg
Protections:against short-circuit, overload, battery reverseoutput short-circuit , low-voltage, and over-voltage protection, etc.


PV CABLES
4mm2:PVC insulated,single core,Red meters25
4mm2:PVC insulated,single core,Black meters25


PV MOUNTING RACKS
Installation site:tile roor(optional)
Material:AI6005-T5
Extruded Aluminum Section
High Class Anodized Aluminum
one set brackets can mount 4pcs solar panels
Wind Load:up to 130mph(60m/s)
Snow Load:up to 30psf(1.4kN/m2)

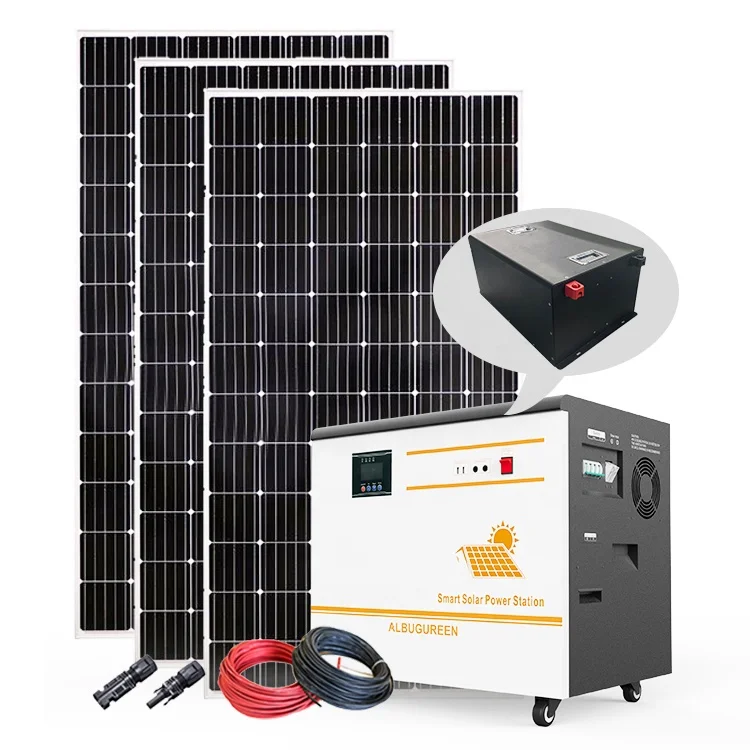

5KW 5KWH Off Grid Solar Power System Components List
Item
Model
Description
Quantity
1
Solar Panel
Mono 380W Solar Panel
4
2
Solar Power Station
Pure sine inverter
5KW
1set
MPPT controller
48V 60A
Battery LiFePO4
51.2V 100AH
3
PV Cable
4mm² PV cable
50m
4
Connector
Y2-1 Connector
1 set
MC4 connector
4pairs
5
Groun/Roof mounting racks
Customized
optional

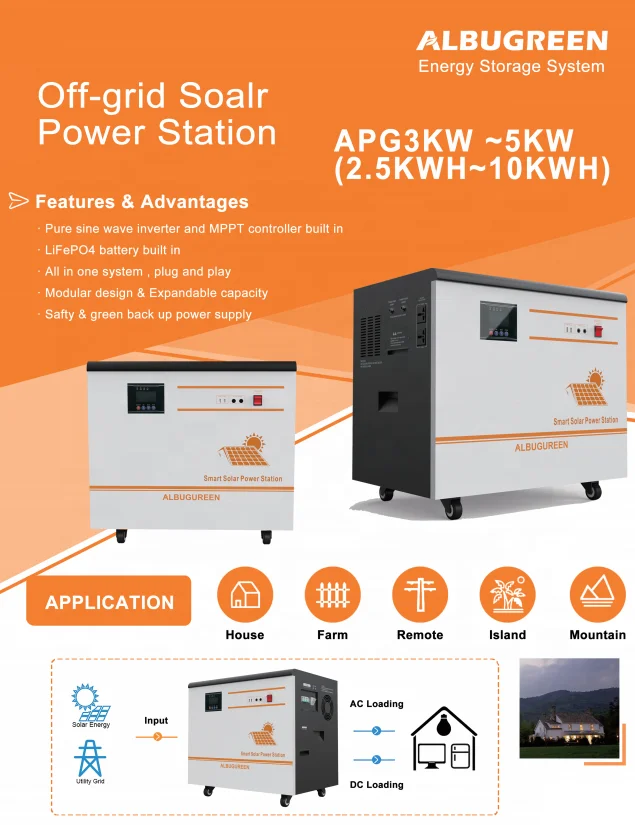

Configuration Details&Specification




Model
APG3-2.5KWH
APG5-5KWH
APG5-10KWH
Rated Power
3KW
5KW
5KW
Rated Battery Capacity
2.5KWH
5KWH
10KWH
AC Input
Phase
Single Phase

Voltage
220VAC±20%

Frequency
50HZ/60HZ±5%
DC Input
DC Voltage
60VDC-150VDC

Current
MPPT Controller60A
Battery
Type
LifePO4

Rated Capacity
51.2V 60AH
51.2V 100AH
51.2V 200AH
AC Output
Phase
Single Phase

Voltage
220VAC±1%(Input range 170VAC-270VAC)

Frequency
50HZ/60HZ±5%

Effciency
≥95%(Load 100%)

Output Waveform
Pure Sine Wave
DC Output
Voltage
12VDC*2、5VDC*2
Stucture
Net Dimension L*W*H(mm)
620*420*580
620*420*580
620*420*580

Net Weight(kg)
55
86
126


Application








Related Products








Certifications






Our Factory






Packing&Delivery










FAQ


FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample order needs about 1week, bulk and container orders need 2-3 weeks.

Q3. Do you have any MOQ requirement?
A: 1pc for sample testing is acceptable.

Q4. How do you ship the goods and how long does it take to arrive?
A: by sea, by air and express for option. Sample orders normally use door to door express DHL, UPS, FedEx or TNT or by air to the local airport. Bulk and container orders by sea.

Q5. How to proceed an order online ?
A: Send us your inquiry online first, we’ll confirm exactly price including shipping cost for you. After your confirmation of total cost, online insurance trading order will be made for you. You can pay through Visa, T/T , WesternUnion online directly.

Q6. Is it OK to print my logo ?
A: With MOQ requirements of different products, OEM service is acceptable. Normally 300pcs is acceptable to print customized logo.

Q7: Do you offer guarantee for the products?
A: Yes, 3-5 years warranty provided for our products.

Q8: How to deal with the after service?
A: Our products are produced in strict quality control system and the defective rate is controlled less than 0.2%.
During the guarantee time, if any unit confirmed failed because of quality problem, we will send new unit to do replacement.
