При индивидуальном заказе планка Тип аэрации лоток могут быть использованы для обновления целлюлозно-пластинчатого типа кислорода в крови-разлива
- Категория: Aquaculture Machine Aerators >>>
- Поставщик: Yixing,Guochen,Environmental,Protection,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 19.88 $* | 19.80 $* |
| Jul-19-2025 | 15.63 $* | 15.72 $* |
| Jun-19-2025 | 19.30 $* | 19.84 $* |
| May-19-2025 | 19.20 $* | 19.24 $* |
| Apr-19-2025 | 15.2 $* | 15.41 $* |
| Mar-19-2025 | 18.82 $* | 18.38 $* |
| Feb-19-2025 | 18.96 $* | 18.50 $* |
| Jan-19-2025 | 18.92 $* | 18.92 $* |
Характеристики
Product Description
Plate microporous aerator
The support plate of the plate aerator is made of ABS engineering plastics, the membrane is laid on it, and the membrane is pressed once to form. The aeration system can be used in intermittent operation system and continuous aeration system. It has the characteristics of high oxygen utilization rate, reliable performance, effective prevention of sewage backflow, long service life, etc
Plate aerator has a unique structure. Its advantage is that it can ensure a constant oxygen transfer rate in a wide range of working gas.
Plate aerator has a unique structure. Its advantage is that it can ensure a constant oxygen transfer rate in a wide range of working gas.

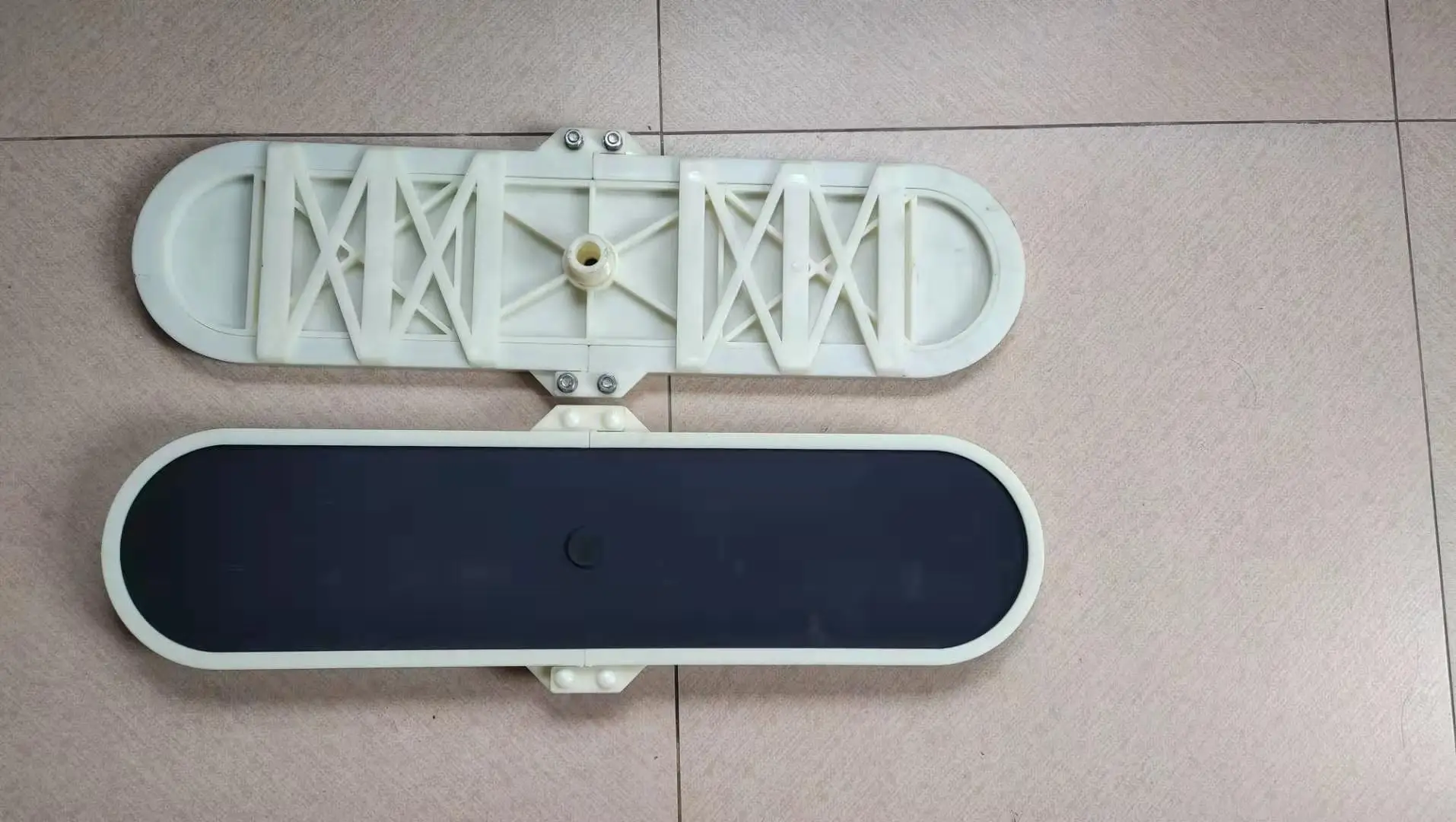

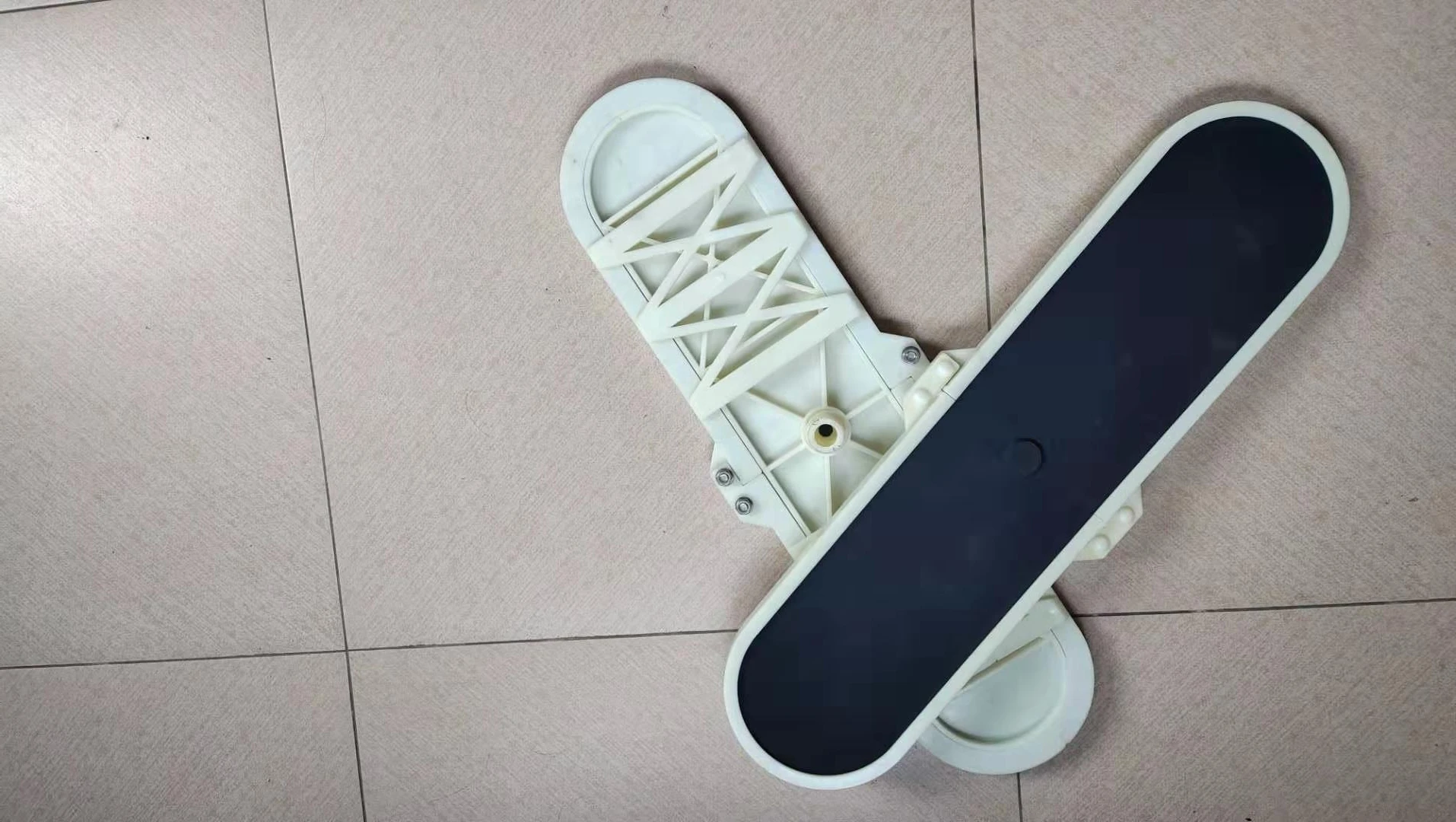

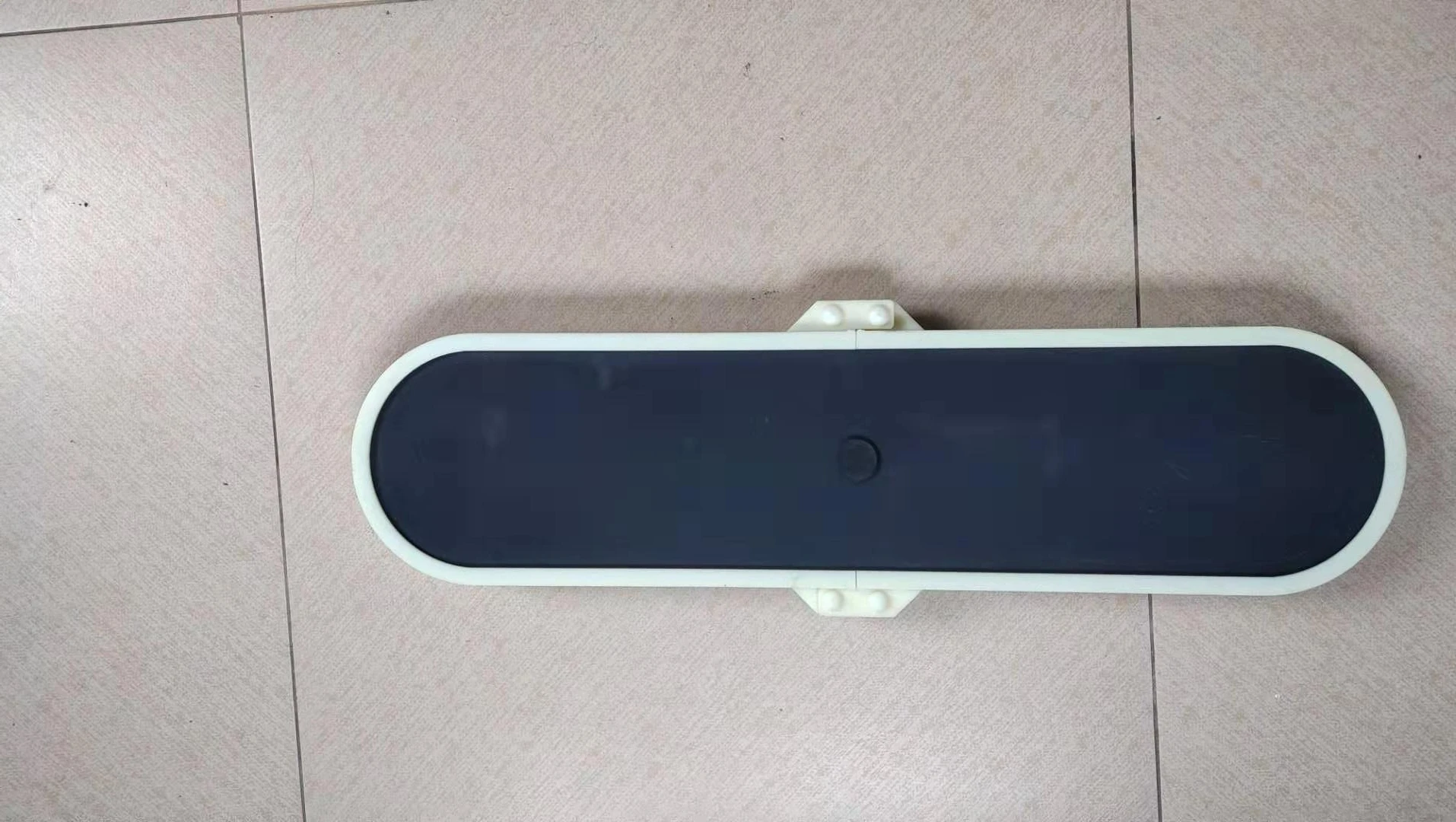

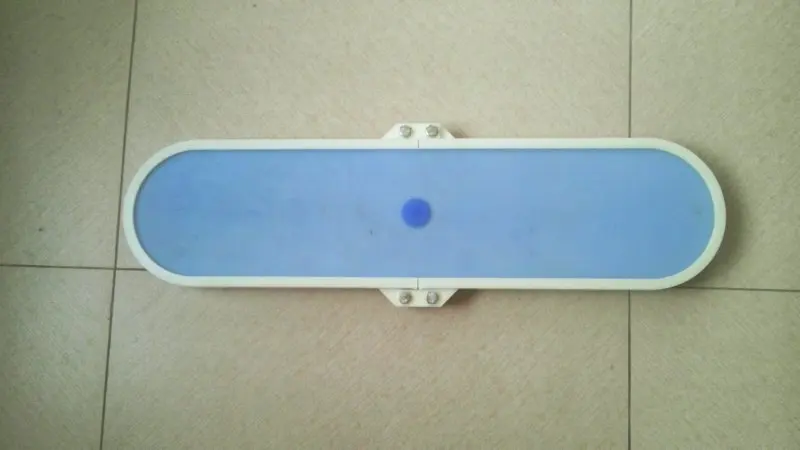

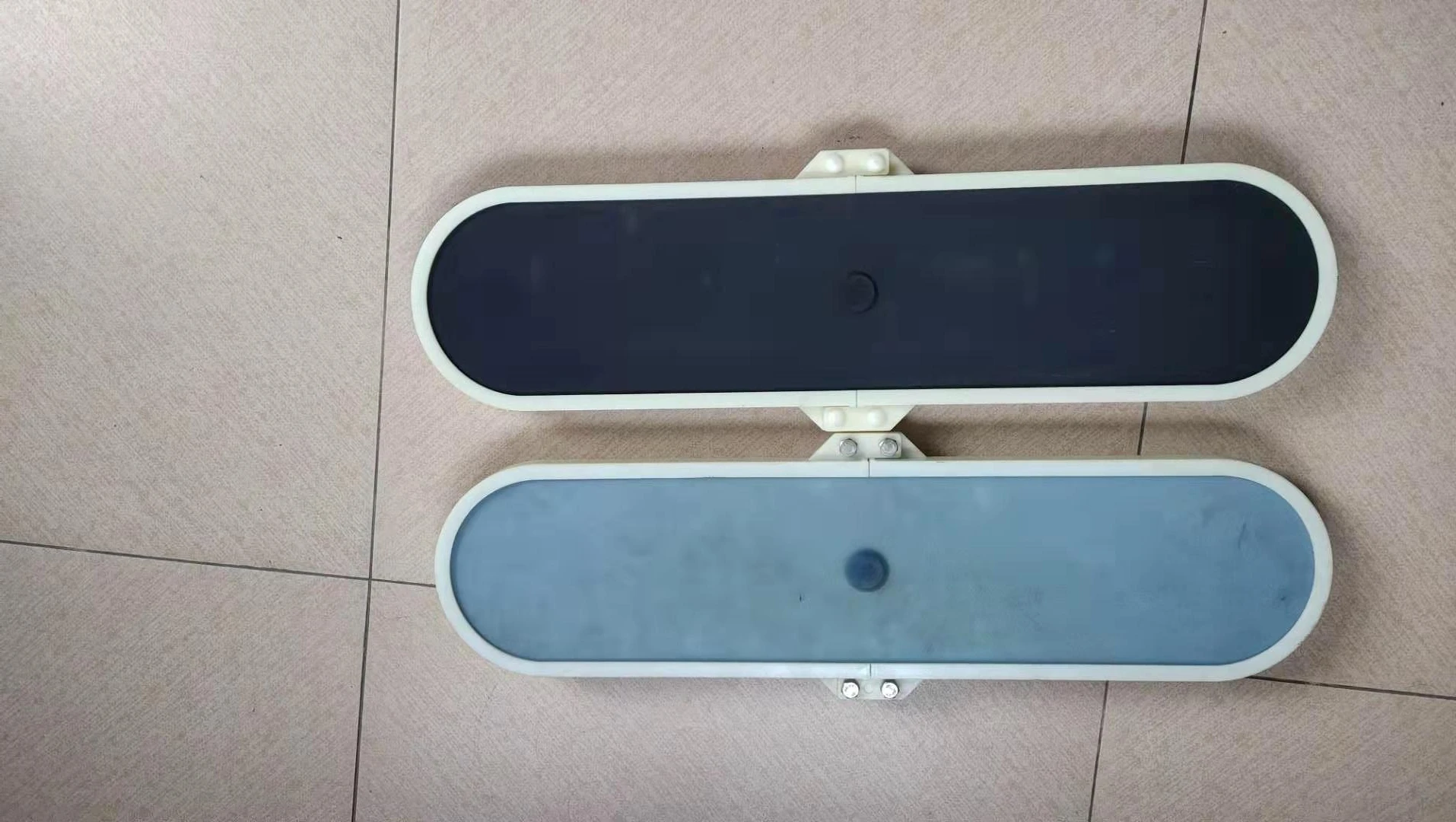

Details Images
Product characteristics
MF type flat membrane microporous aerator has a unique structure. Its advantage is that the aeration system can maintain a constant oxygen transfer rate in a wide range of working gas.
The support plate of the aerator is made of ABS engineering plastics, the membrane is laid on it, and the membrane is pressed once to form, so there is no degumming problem caused by secondary sticking.
The aerator can be used not only for intermittent operation system, but also for continuous operation system. Special drilling technology is used to make the aerator automatically close micropores when it stops running, so as to effectively prevent sewage from pouring into the air pipe.
The surface of aeration equipment chassis is smooth and free of scratches and cracks that affect the use.
The gas supply can be continuously adjusted, but when the gas flow changes greatly, the self closing micropores can still open and close freely, releasing bubbles of uniform distribution and size, with good adjustable performance.
The air flow of the aerator is evenly distributed on the whole surface, and has good anti blocking ability.
The appearance is smooth, flat, free of impurities and even particles.
The aerator has good corrosion resistance and good sealing performance.
MF type flat membrane microporous aerator has a unique structure. Its advantage is that the aeration system can maintain a constant oxygen transfer rate in a wide range of working gas.
The support plate of the aerator is made of ABS engineering plastics, the membrane is laid on it, and the membrane is pressed once to form, so there is no degumming problem caused by secondary sticking.
The aerator can be used not only for intermittent operation system, but also for continuous operation system. Special drilling technology is used to make the aerator automatically close micropores when it stops running, so as to effectively prevent sewage from pouring into the air pipe.
The surface of aeration equipment chassis is smooth and free of scratches and cracks that affect the use.
The gas supply can be continuously adjusted, but when the gas flow changes greatly, the self closing micropores can still open and close freely, releasing bubbles of uniform distribution and size, with good adjustable performance.
The air flow of the aerator is evenly distributed on the whole surface, and has good anti blocking ability.
The appearance is smooth, flat, free of impurities and even particles.
The aerator has good corrosion resistance and good sealing performance.
Specification
Name | MF650*150 |
material | ABS/EPDM(silicon rubber) |
Design ventilation capacity (m3 / h) | 6-7 |
Service area (M2 h) | 1-2 |
Oxygen utilization rate (%) | ＞ 30 |
Oxygen charging capacity (kgo2 / h) | ≥0.6 |
Theoretical dynamic efficiency (kgo2 / kW. H) | 6.0 |
Resistance loss (PA) | < 4500 |
Bubble size(mm) | 1-3 |
Company Profile
The company is a design and development, production and manufacturing, sales and service as one of the aerator production enterprises. After years of hard work and innovation, the company has cooperated with many famous domestic universities in the early 1990s to develop the series of microporous aeration products in sewage
treatment, which has formed a diversified product structure. There are already a series of flat aeration heads, arch aeration heads, tubular aerators, liftable aerators, oxidation ditch aeration series, environmental protection fillers and accessories And
other products.
other products.
Company products
Construction effect
Product packaging
Packing in cartons free of charge. If wooden cases or other special requirements are required, part of the cost shall be added
FAQ
Q: Hello! I have some questions that you need to help me answer, can I?
A: Yes, I am very happy to answer your question.
Q: What is the acceptable MOQ?
A: Two cartons for minimum order quantity.
A: Yes, I am very happy to answer your question.
Q: What is the acceptable MOQ?
A: Two cartons for minimum order quantity.
Q:Can you customize the trademark?
A:Brand and product can be customized
Q: What is the delivery time?
A: For sample, we usually have stock, so the delivery time will be quite short.
For normal order, the delivery time should be in two weeks.
Q: What is acceptable pay term?
A: T/T.
Q: Do you provide sample?
A: We can offer free sample for test, and customer needs to pay the freight charge.
Q: Thank you for your answer.
A: I am very happy to serve you!
Q: What is the delivery time?
A: For sample, we usually have stock, so the delivery time will be quite short.
For normal order, the delivery time should be in two weeks.
Q: What is acceptable pay term?
A: T/T.
Q: Do you provide sample?
A: We can offer free sample for test, and customer needs to pay the freight charge.
Q: Thank you for your answer.
A: I am very happy to serve you!
