M12 A код 3pin 4pin 5pin 6pin 8pin female прямой экранированный литой
- Категория: Connectors and Accessories >>>
- Поставщик: Dongguan,Yuefeng,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 4.40 $* | 4.18 $* |
| Jul-17-2025 | 3.29 $* | 3.28 $* |
| Jun-17-2025 | 4.25 $* | 4.17 $* |
| May-17-2025 | 4.37 $* | 4.42 $* |
| Apr-17-2025 | 3.88 $* | 3.55 $* |
| Mar-17-2025 | 4.30 $* | 4.81 $* |
| Feb-17-2025 | 4.74 $* | 4.61 $* |
| Jan-17-2025 | 4.24 $* | 4.71 $* |
Характеристики
Product Description

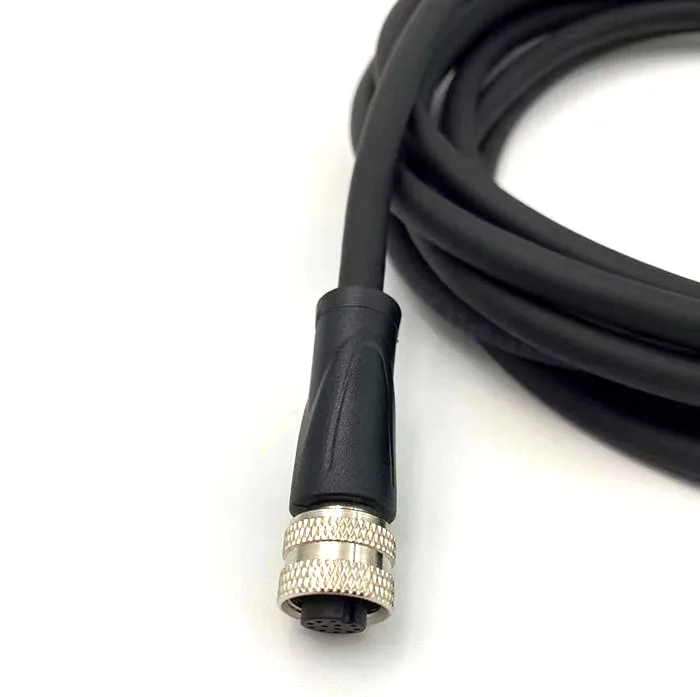

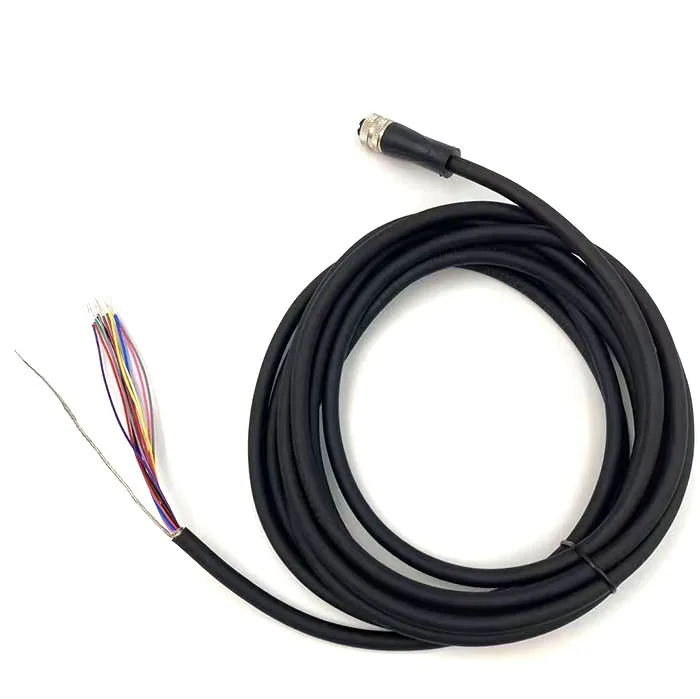

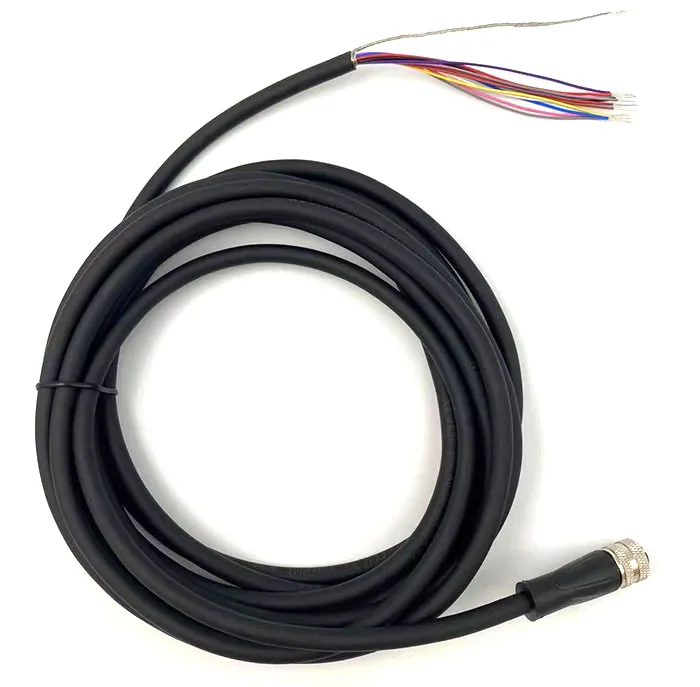

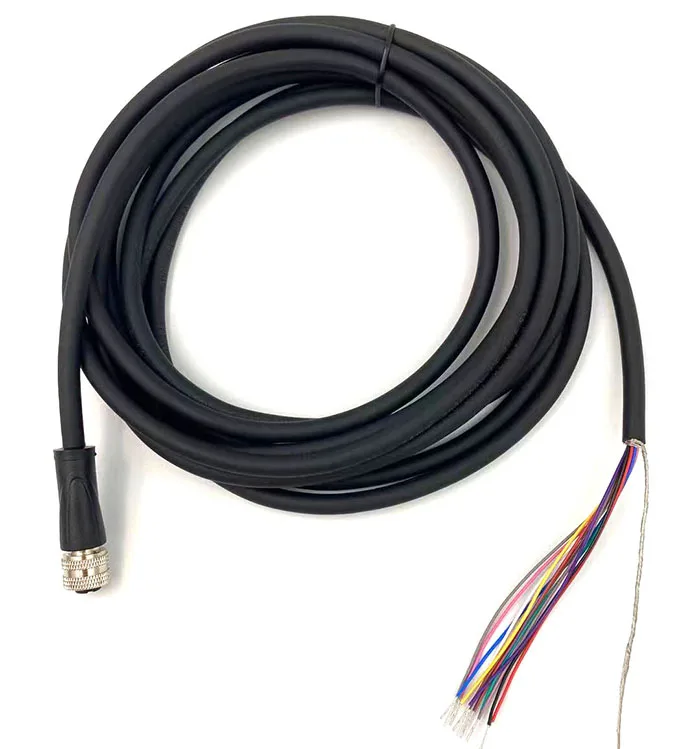

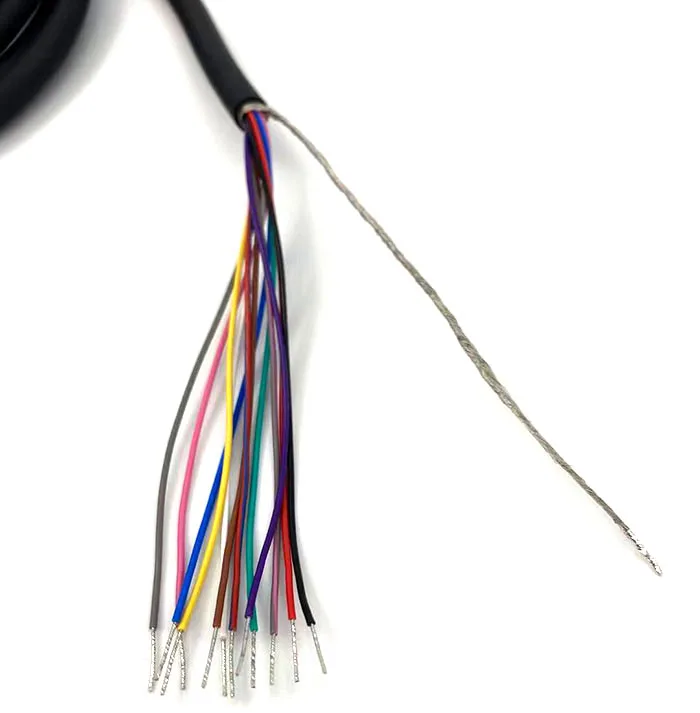

M12 Pre-molded PVC cable connectors with 12mm thread locking mechanism, rated IP67 protection degree,contacts configuration is 12 poles. 360°EMC shielding is available for option. Compliant with IEC 61076-2-101 and mainly designed for signal transmission.
1.Cable length: customize
2. Degree of protection IP 67
3. 5 poles per connector is available
4. Operating voltage 60V; Current range: 4A
5. Anti-vibration locking screw design
Technical Overview Data
| Product | M12 A code molding cable | IP rating | IP67,IP68 |
| Pin positions | 3Pin/4Pin/5Pin/6Pin/8Pin/12Pin/17Pin | Mating cycle | >800 |
| Locking Mechanism | Screw Coupling | Contact Resistance | <5mΩ |
| Termination | Soldering | Insulation Resistance | >100mΩ |
| Shell material | Nickel Plated Brass | Temperature range | -40℃~ +85℃ |
| Insert material | PA66 | Rated voltage | 60V~30V |
| Contact material | Brass with gold Plated | Rated current | 4A/2A/1.5A |
Application:
1.Sensor, actuator, encoder, servo motors
2.Factory automation and process control
3. Packaging, labeling and logistic devices
4. Industrial instrumentation
5. Commercial electronics PCBA
6. Industrial safety light curtain, light grid, switches
7. Power supply
8 .Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
9. LED display panel & outdoor LED lighting
Quality guaranteed:
1.Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.
Packaging & Shipping
1. Generally for Blueendless brand factory carton packaging
2. Can accept customer OEM bulk custom packaging design
Our Services
Company Information
Dongguan Yuefeng Electronic Technology Co., Ltd. was established in May, 2015 and is located in Yangwu, Daling Mountain, Dongguan. The company always adheres to the service concept of "scientific and technological innovation, win-win cooperation, honesty, efficiency and considerate service", and builds an enterprise with high technology and brand. We have a professional team and mature technology, the company's main products: M12 connector,M8 connector,M12 able,M8 cable,Audio and video cable, terminal cable, electrical wire, HD data cable, Apple data cable, USB data, etc, the company's business scope includes processing of supplied materials and customized products.
