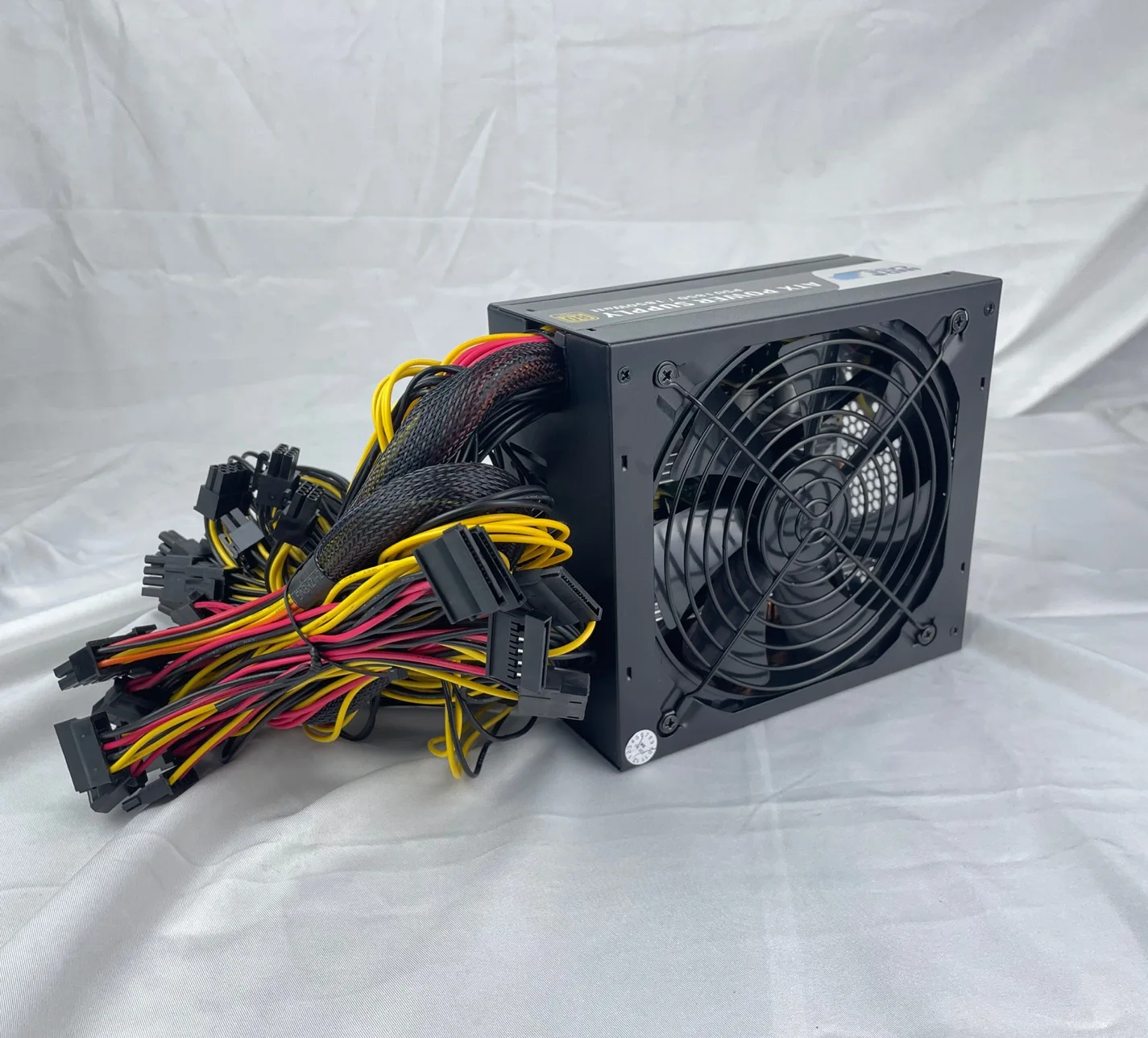

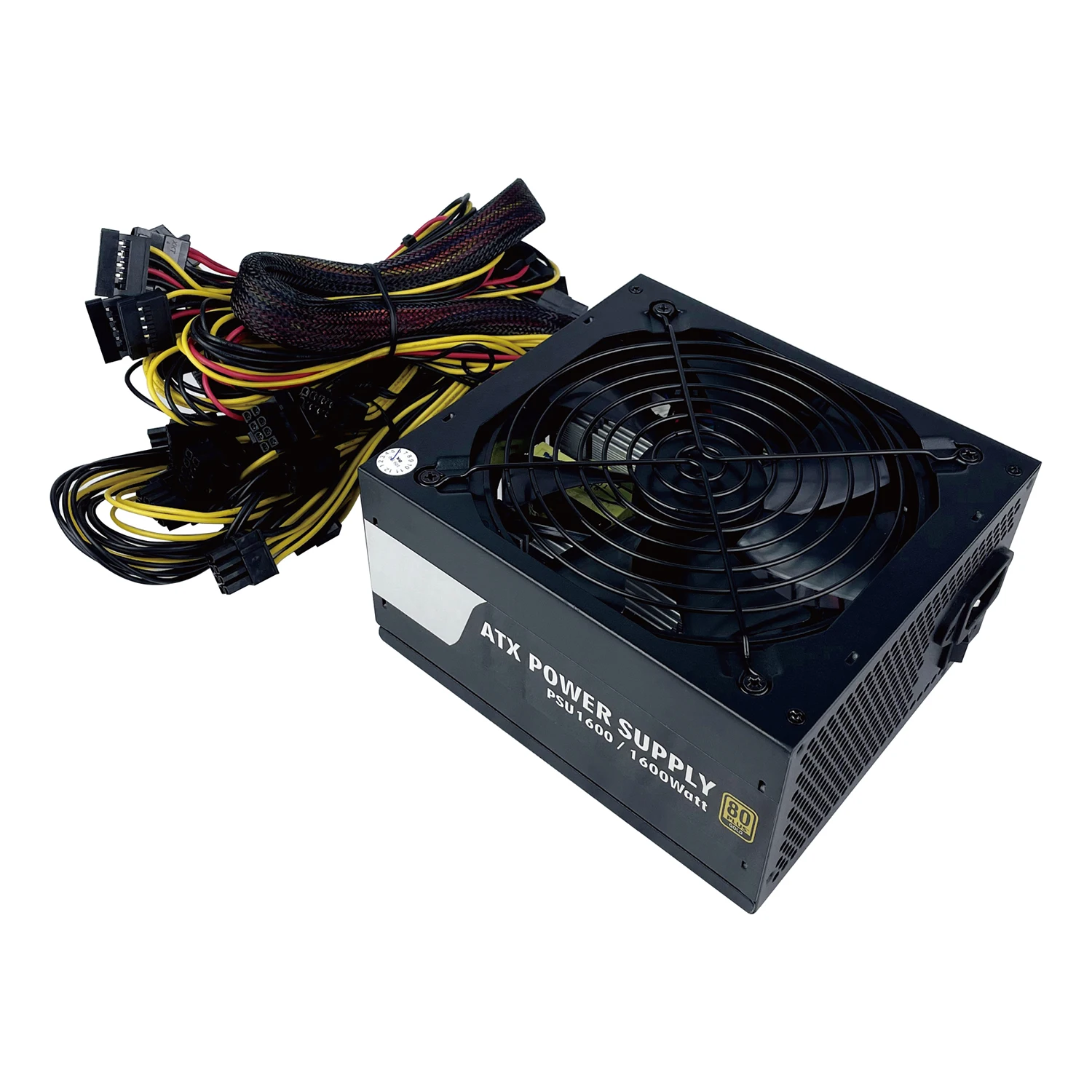

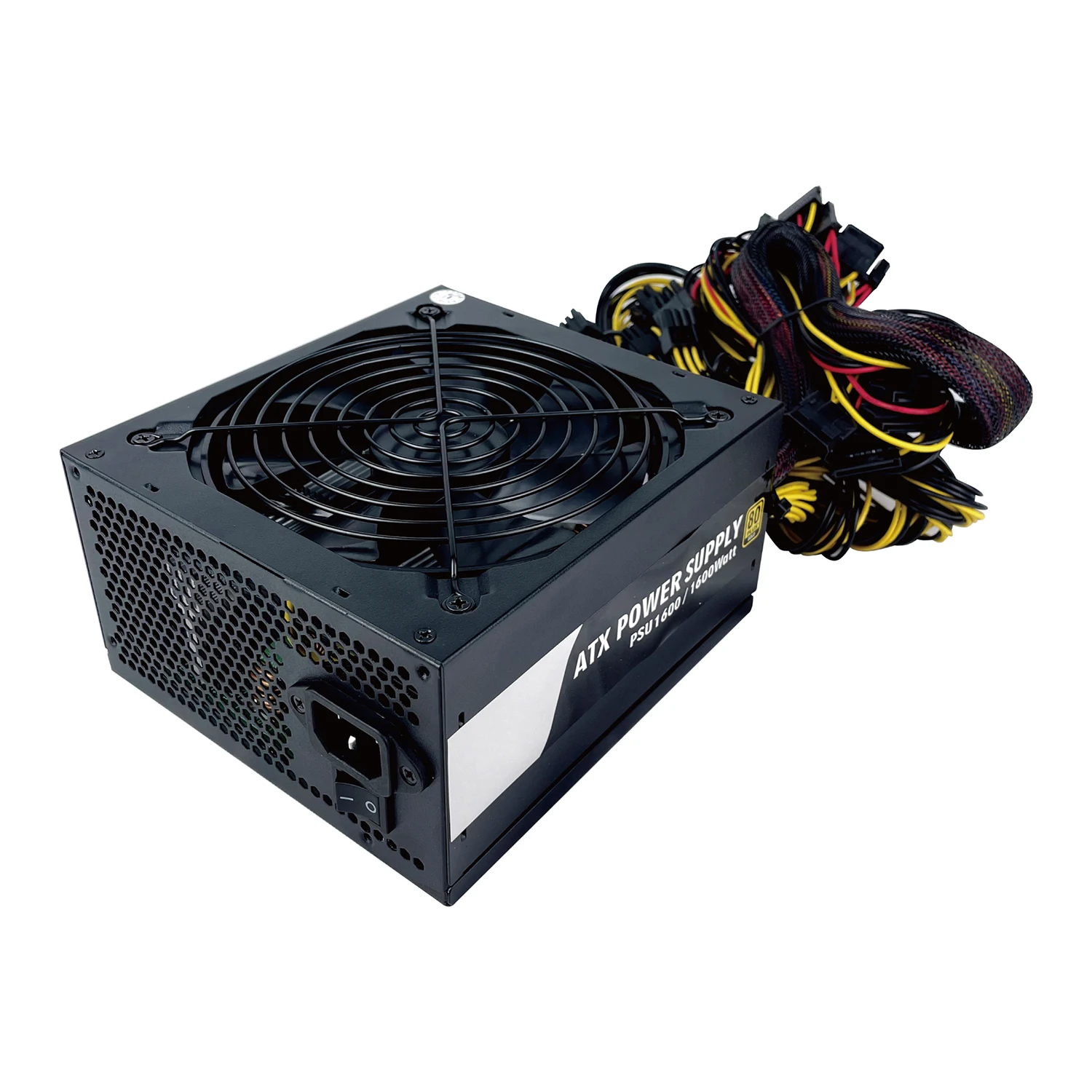

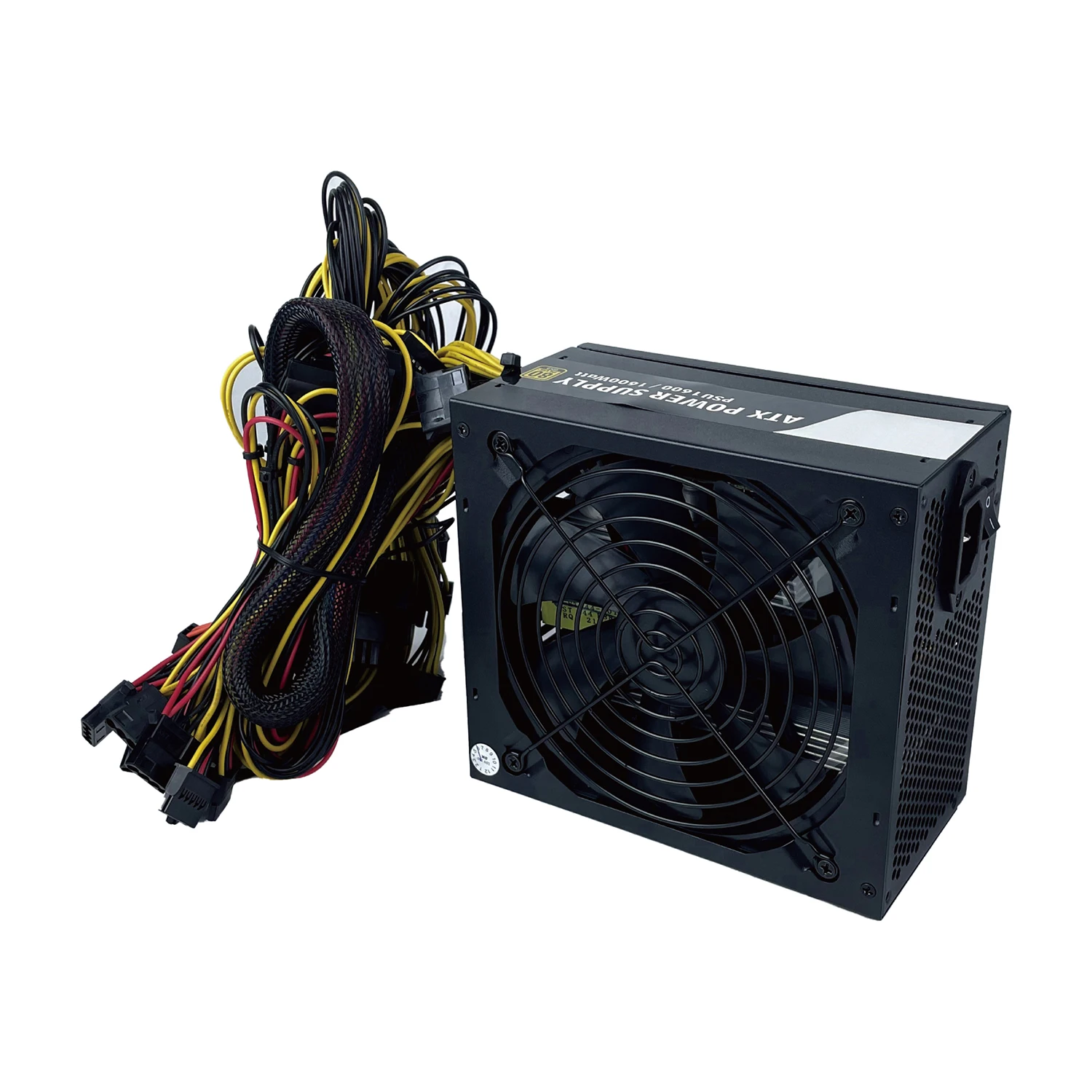

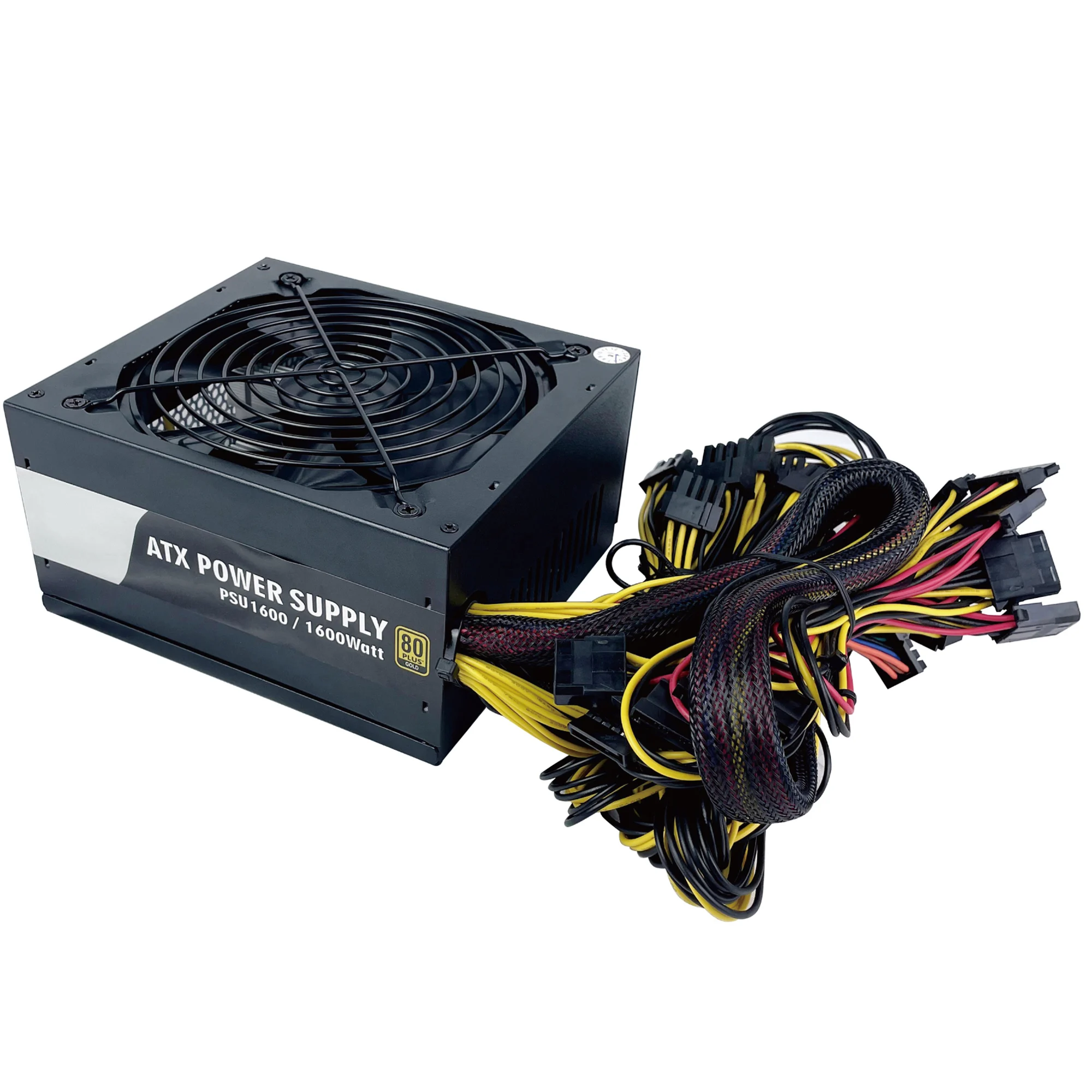

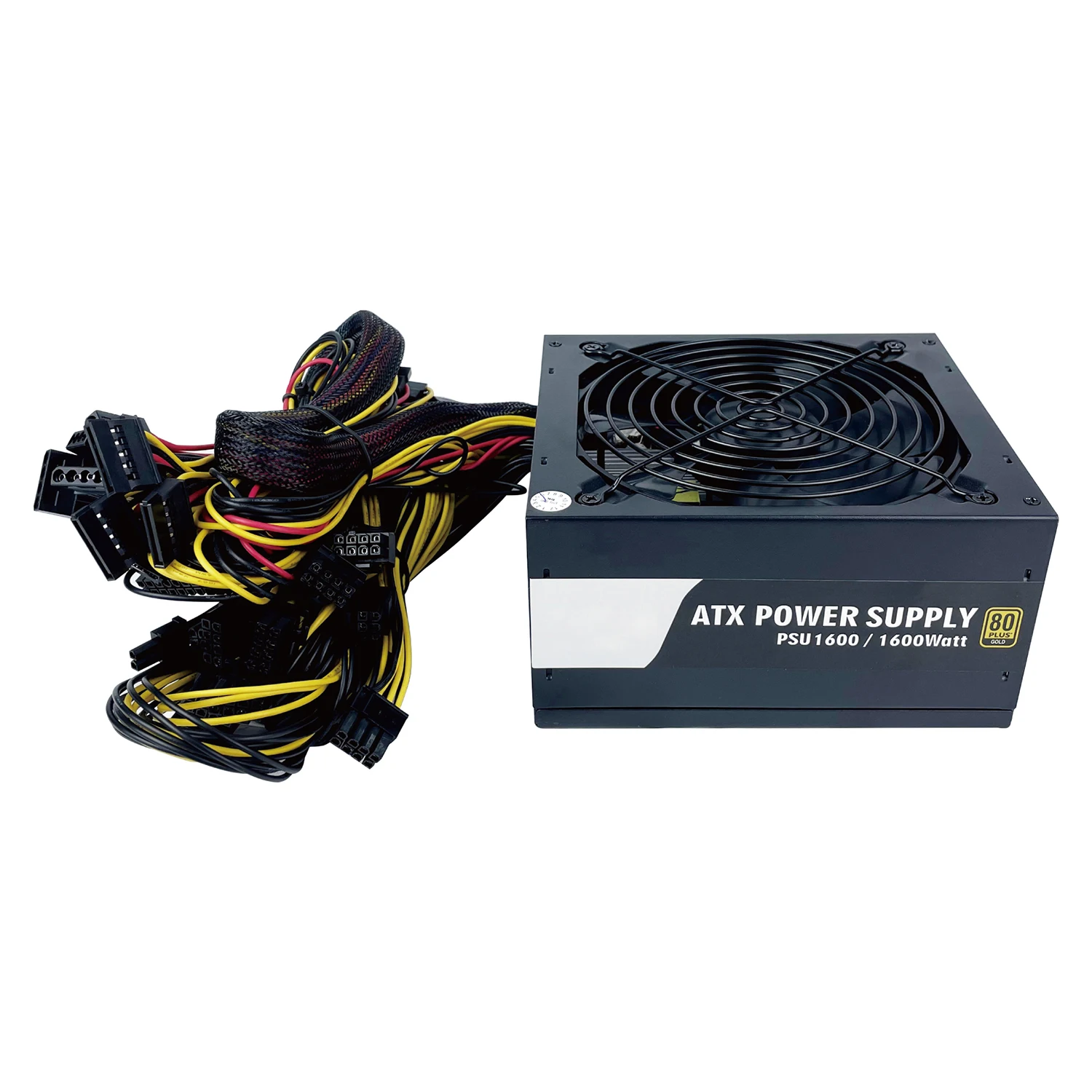

12gpu материнская плата горнодобывающий корпус 80 Gold Plus пк блок питания ATX PSU 1600 вт добыча питание для Eth Gpu добычи
- Категория: Switching Power Supply >>>
- Поставщик: Dongguan,Orient,Electronics,&,Metal,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 80.42 $* | 82.95 $* |
| Jul-18-2025 | 65.12 $* | 66.67 $* |
| Jun-18-2025 | 79.0 $* | 81.67 $* |
| May-18-2025 | 78.63 $* | 80.96 $* |
| Apr-18-2025 | 62.42 $* | 63.48 $* |
| Mar-18-2025 | 77.87 $* | 79.74 $* |
| Feb-18-2025 | 76.23 $* | 78.91 $* |
| Jan-18-2025 | 76.16 $* | 78.62 $* |
Характеристики
Products Description
Product Name: | ATX 1600W Power Supply for bitcoin mining |
Input Voltage: | 180-240V |
Max Current: | 24A |
Efficiency: | 80 plus gold |
Output Power: | 1600W or custom |
Type Of Outpute: | PC |
Output Frequency: | 47-63HZ |
Output Voltage: | 12V |
OEM ODM | welcome |
Detailed Specification:
Input:
1.1 Input Voltage Range: 200~264Vac.
1.2 Normal Voltage Range: 200/240Vac.
1.3 Input Frequency Range: 47-66 Hz.
1.4 Max Input AC current: 12A MAX. @ 230Vac.
1.5 Inrush Current: No hazards at AC input 230VACA and 25° start
1.6 Efficiency: Meet 80 plus Bronze requirement at 230Vac input
Output :
The continuous total output power is 1850W max.
1.2 Normal Voltage Range: 200/240Vac.
1.3 Input Frequency Range: 47-66 Hz.
1.4 Max Input AC current: 12A MAX. @ 230Vac.
1.5 Inrush Current: No hazards at AC input 230VACA and 25° start
1.6 Efficiency: Meet 80 plus Bronze requirement at 230Vac input
Output :
The continuous total output power is 1850W max.
The combined power of +5V and +3.3V is 180W max.
Peak currents may last up to 12 seconds with not more than one occurrence per minute.
Add 0.1uF and 10uF capacitors across output terminal during ripple & noise test.
Protections:
When OVP ,OPP or short protection is triggered, the main outputs will be latched off. The main outputs can be reset by cycling the
DC remote on/off or AC power.
+5Vsb output is auto recovery when fault condition removed.
.1 OVER VOLTAGE PROTECTION
+3.3V output 4.5 Vmax.
+5.0V output 7.0 Vmax.
+12.0V output 15.6 Vmax.
3.2 SHORT PROTECTION
All output to GND.
3.3 OVER POWER PROTECTION
Foldback at 110%~150% over peak load.
Peak currents may last up to 12 seconds with not more than one occurrence per minute.
Add 0.1uF and 10uF capacitors across output terminal during ripple & noise test.
Protections:
When OVP ,OPP or short protection is triggered, the main outputs will be latched off. The main outputs can be reset by cycling the
DC remote on/off or AC power.
+5Vsb output is auto recovery when fault condition removed.
.1 OVER VOLTAGE PROTECTION
+3.3V output 4.5 Vmax.
+5.0V output 7.0 Vmax.
+12.0V output 15.6 Vmax.
3.2 SHORT PROTECTION
All output to GND.
3.3 OVER POWER PROTECTION
Foldback at 110%~150% over peak load.
