Месяц | Минимальная цена | Макс. стоимость |
---|---|---|
Sep-15-2025 | 212.58 $* | 223.0 $* |
Aug-15-2025 | 210.37 $* | 221.76 $* |
Jul-15-2025 | 176.75 $* | 185.10 $* |
Jun-15-2025 | 206.27 $* | 216.42 $* |
May-15-2025 | 180.31 $* | 189.61 $* |
Apr-15-2025 | 203.37 $* | 213.24 $* |
Mar-15-2025 | 201.18 $* | 211.23 $* |
Feb-15-2025 | 199.32 $* | 209.85 $* |
Jan-15-2025 | 198.32 $* | 208.92 $* |

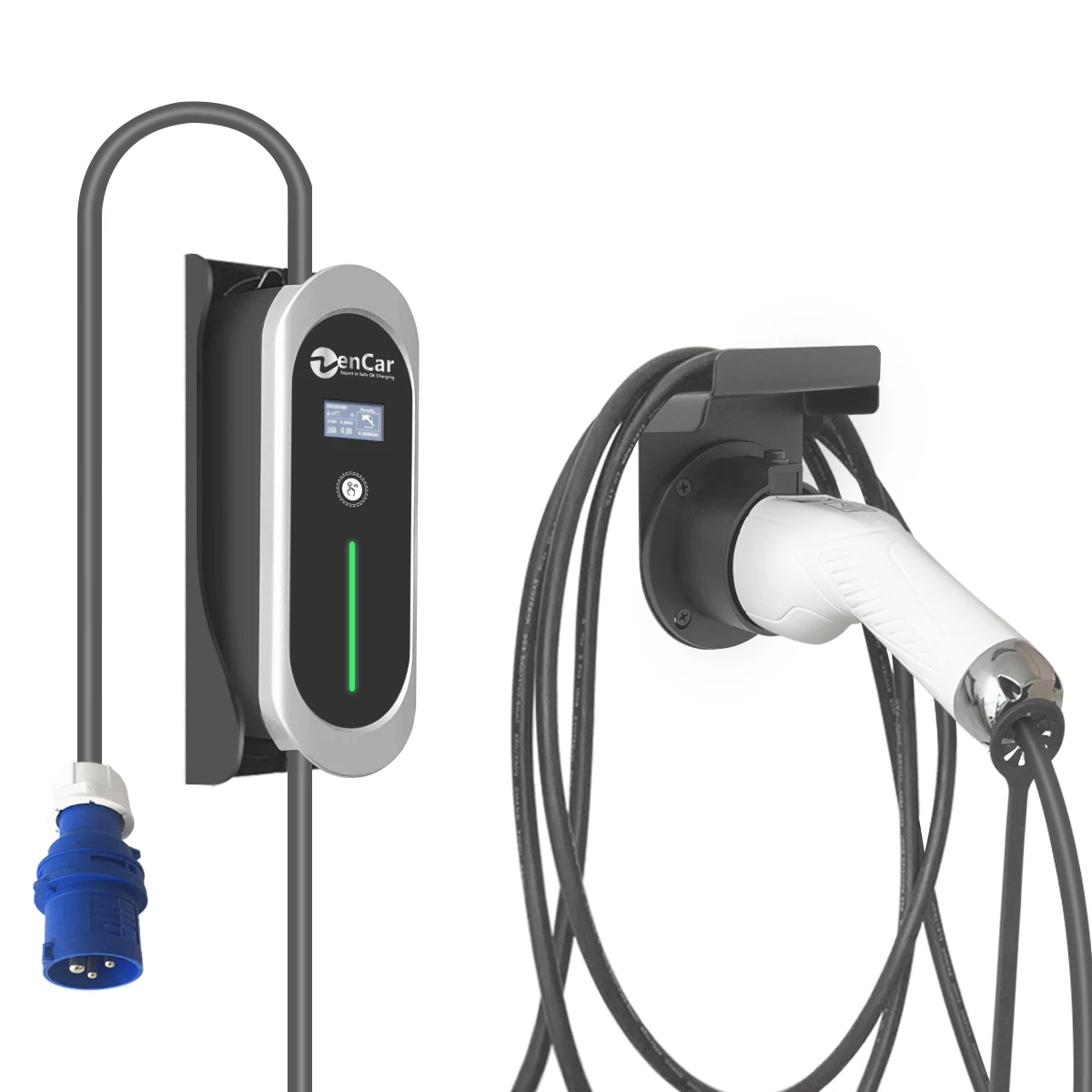

Electrical Data | ||||||||
Max. output current | 16A | Input voltage/Output voltage | 220V AC | |||||

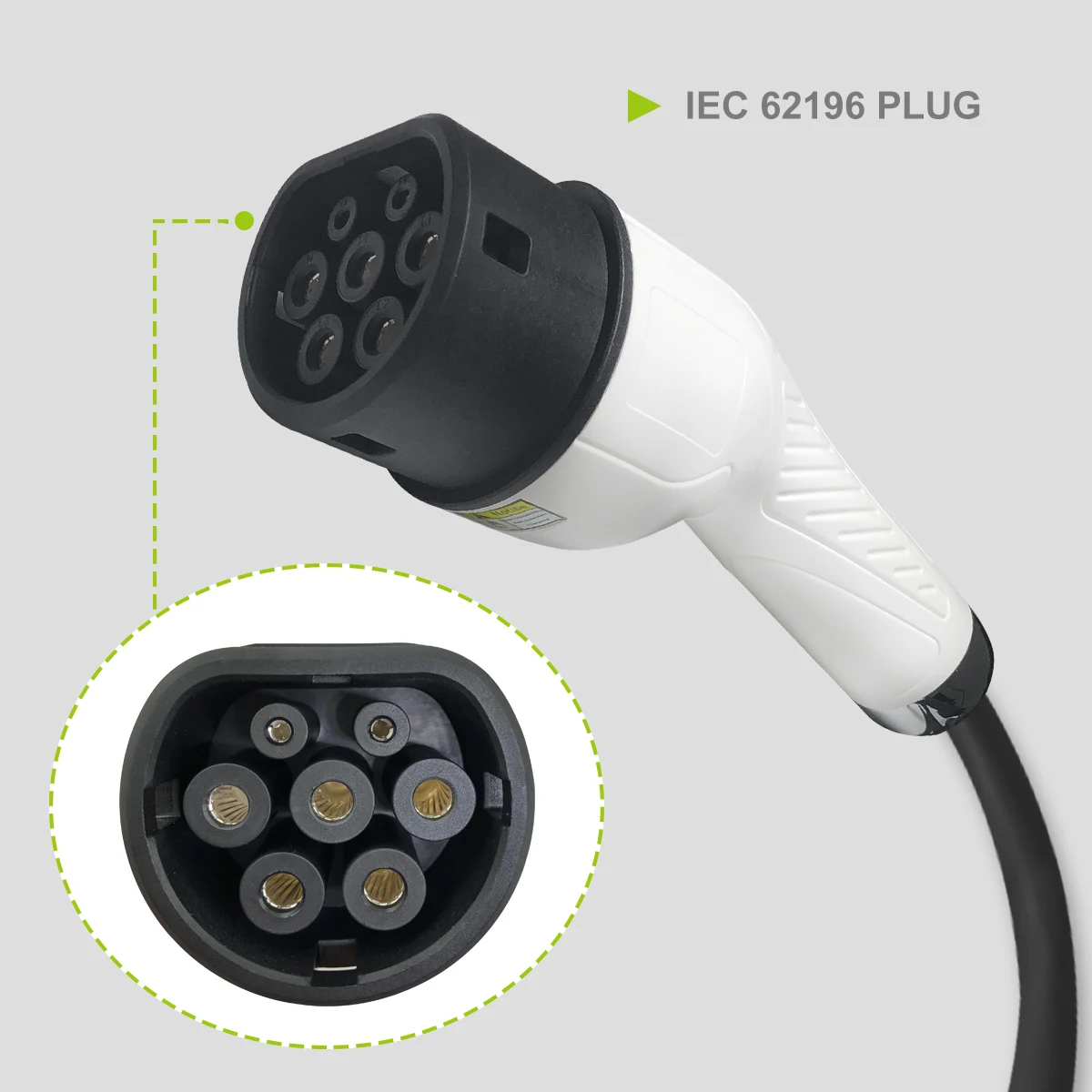

Input frequency | 50-60Hz | Charging Plug | IEC 62196-2 Type 2 | |||||
Max. output power | 3.6KW | Wall side Plug | Blue CEE | |||||

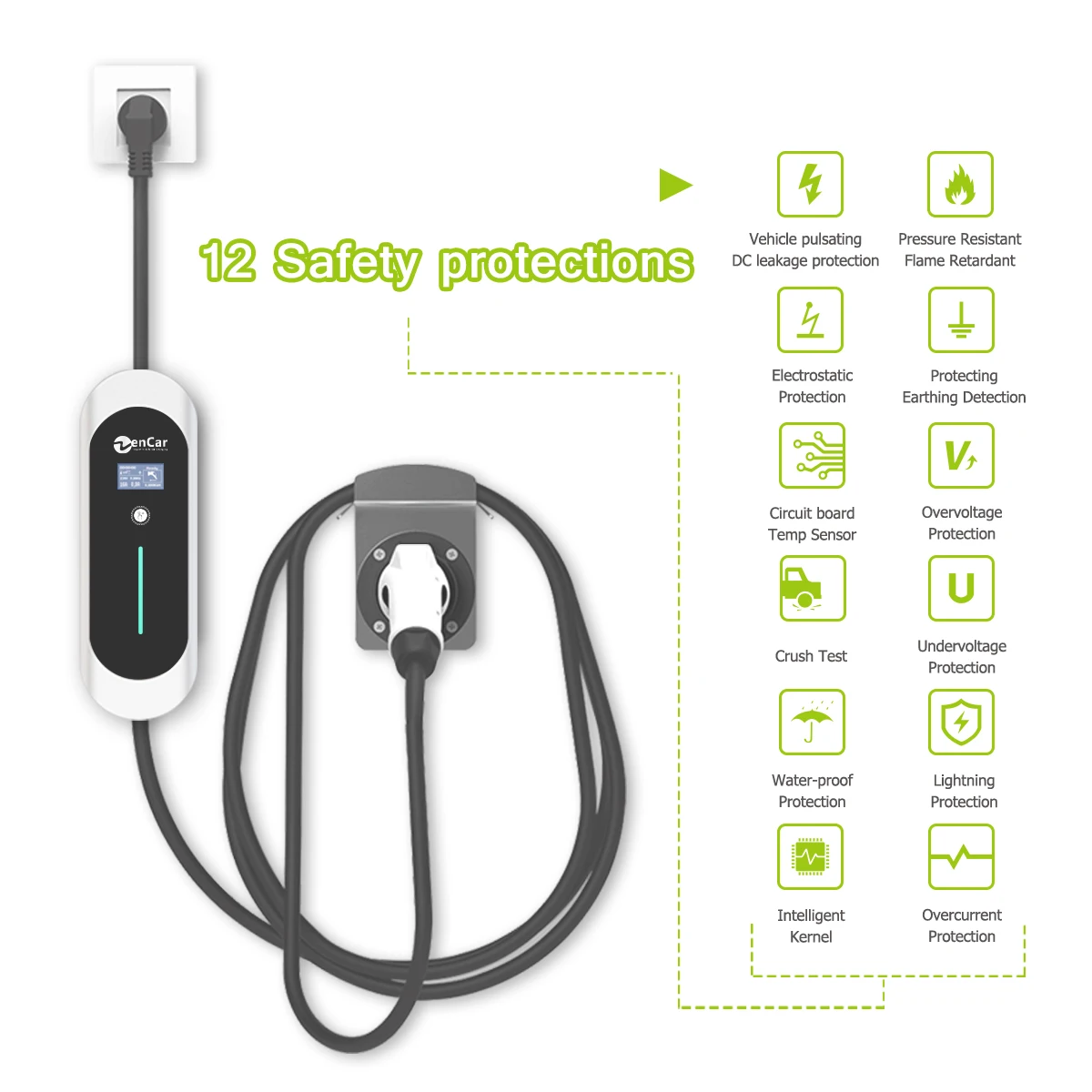

Protection | ||||||||
Over Voltage Protection | Yes | Leakage Protection | Type B AC 30mA + DC 6mA | |||||
Under Voltage Protection | Yes | Over-temp Protection | Yes | |||||
Over Load Protection | Yes | Lightning Protection | Yes | |||||
Short Circuit Protection | Yes | Flame Retardant | Yes | |||||
PE Protection | Yes | Crushing Force | No damage under 5000N | |||||
Electrostatic Protection | Yes | Ingress Protection Degree | IP66 for Box , IP67 for Plug | |||||
Function and Accessory | ||||||||
Ethernet/WIFI/4G/Bluetooth | No | LED Indicator light | Flash | |||||

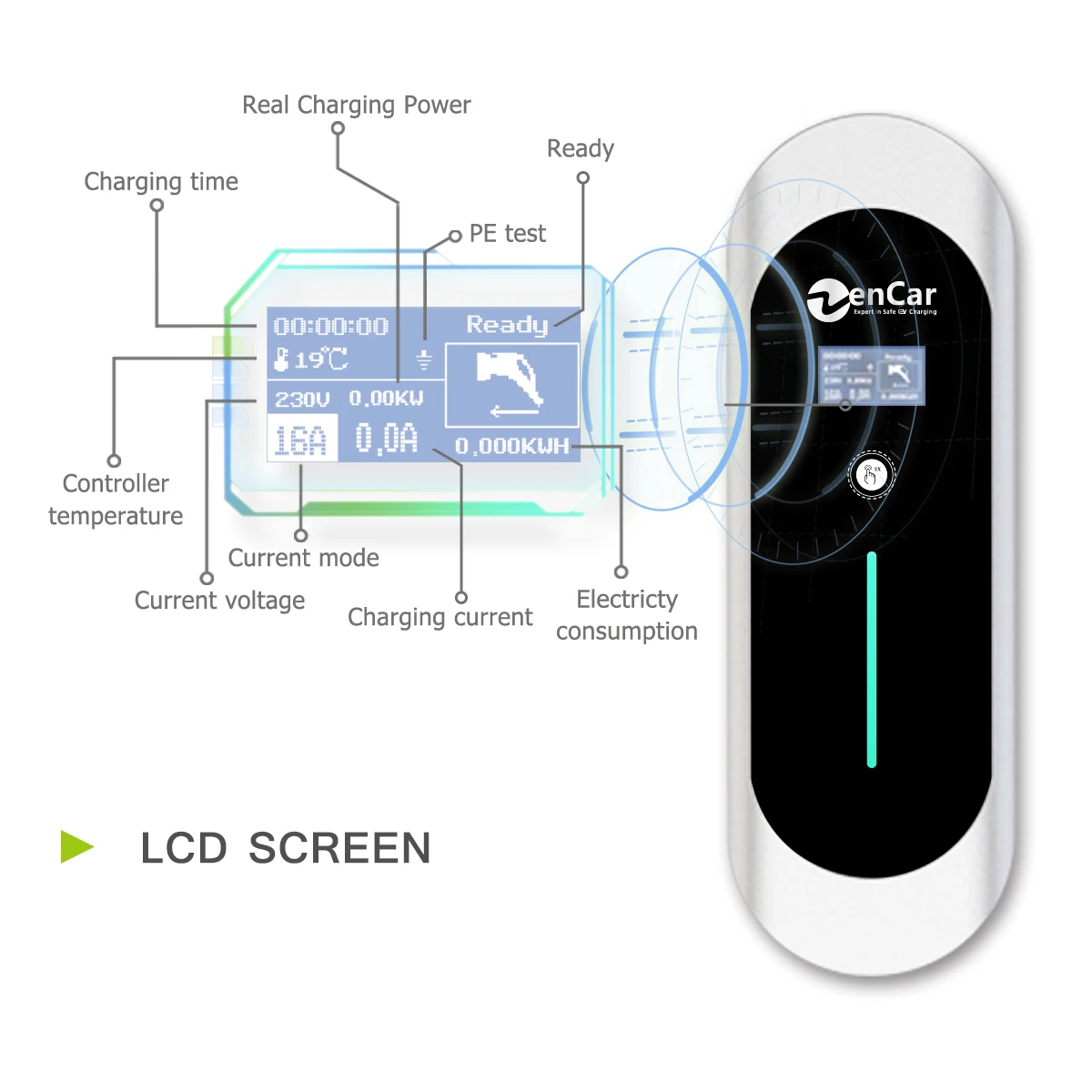

LCD | Yes | Intelligent Current adjustment | Yes , 6A-16A adjustable | |||||
RCD | Type B | Timing Function | Yes / By Double Click | |||||
Working environment | ||||||||
Protection degree | IP66 for Box , IP67 for Plug | Maximum altitude | <2000m | |||||
Environment temperature | -25℃ ~ +50℃ | Cooling | Natural air cooling | |||||
Relative humidity | 0-95% non-condensing | salt mist at +35 °C | Pass | |||||
Package | ||||||||
Dimension (W/H/D) | 410/390/10mm | Weight | 3.6KG | |||||
Certification | CE TUV | Packing Method | Neutral Color Box |
We never lost our reputation in the past 10 years.
Current: 32A
Voltage: 220V -380V
Pass TUV, CE. Accept product customization.
Connect to your OCPP Server
Current: 32A
Voltage: 220V
Pass TUV, CE.Accept product customization.
Wifi + RFID Card function
Current: 6A / 8A / 10A / 12A / 16A
Voltage: 220V
Accept product customization.
Type B Current protection: AC 30mA + DC 6mA
Current: 10A / 16A / 20A / 24A / 32A
Voltage: 220V
Accept product customization.
Type B Current protection: AC 30mA + DC 6mA
Current: 6A / 8A / 10A / 12A / 16A
Voltage: 380V
Accept product customization.
Current: 150A
Length: 0.3m
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Any other questions, pls click "Send", we will be reply you within 24 hours.
