Introduction of Mining Rail Flat Car

MPC Series Underground Mining Flat Mine Wagon is suitable for the underground mining, mining, along the underground tunnel and surface industrial site transportation equipment or other items.zmwm09
1.Load:2-18ton
2.Track gauge:600mm,900mm
3.Wheel base:550/600/750/1000/1100

Parameter of Mining Rail Flat Car



Model	Load(t)				Gauge(mm)	Wheel Base(mm)		Wheel Diameter (mm)		Traction(KN)	Traction Height(mm)	Overall Size(LxWxH)		Weight(≤kg)
MPC2-6	2				600	550		300		60	320	2000*880*410		490
MPC3-6	3				600	750		300		60	320	2400*1050*415		530
MPC5-6	5				600	1100		350		60	320	3450*1200*480		900
MPC5-9	5				900	1100		350		60	320	3450*1320*480		910
MPC10-6	10				600	1100		250		60	230	3460*1300*304		1010
MPC10-9	10				900	1100		250		60	230	3460*1300*304		1030
MPC13-6	13				600	1000		300		60	270	3350*1400*342		1015
MPC15-6	15				600	1100		300		90	320	3460*1300*357		1160
MPC15-9	15				900	1100		300		90	320	3460*1300*357		1240

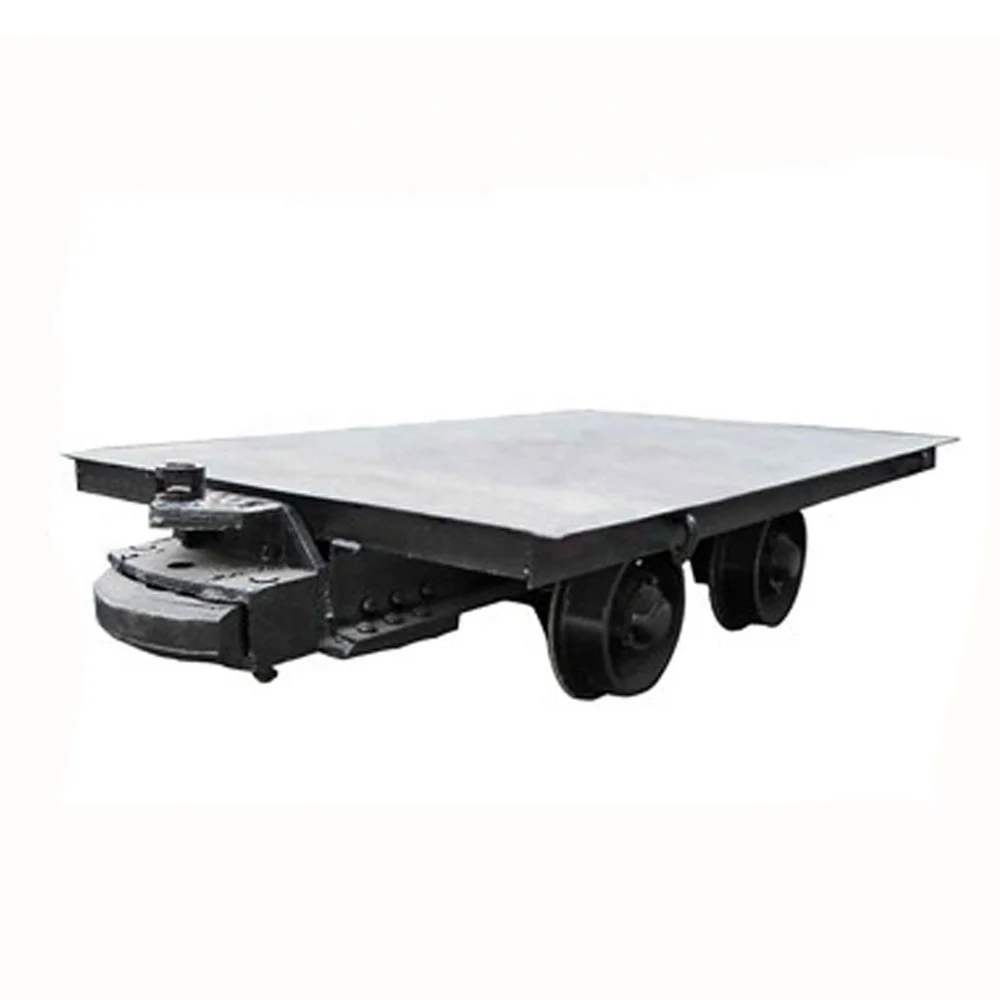

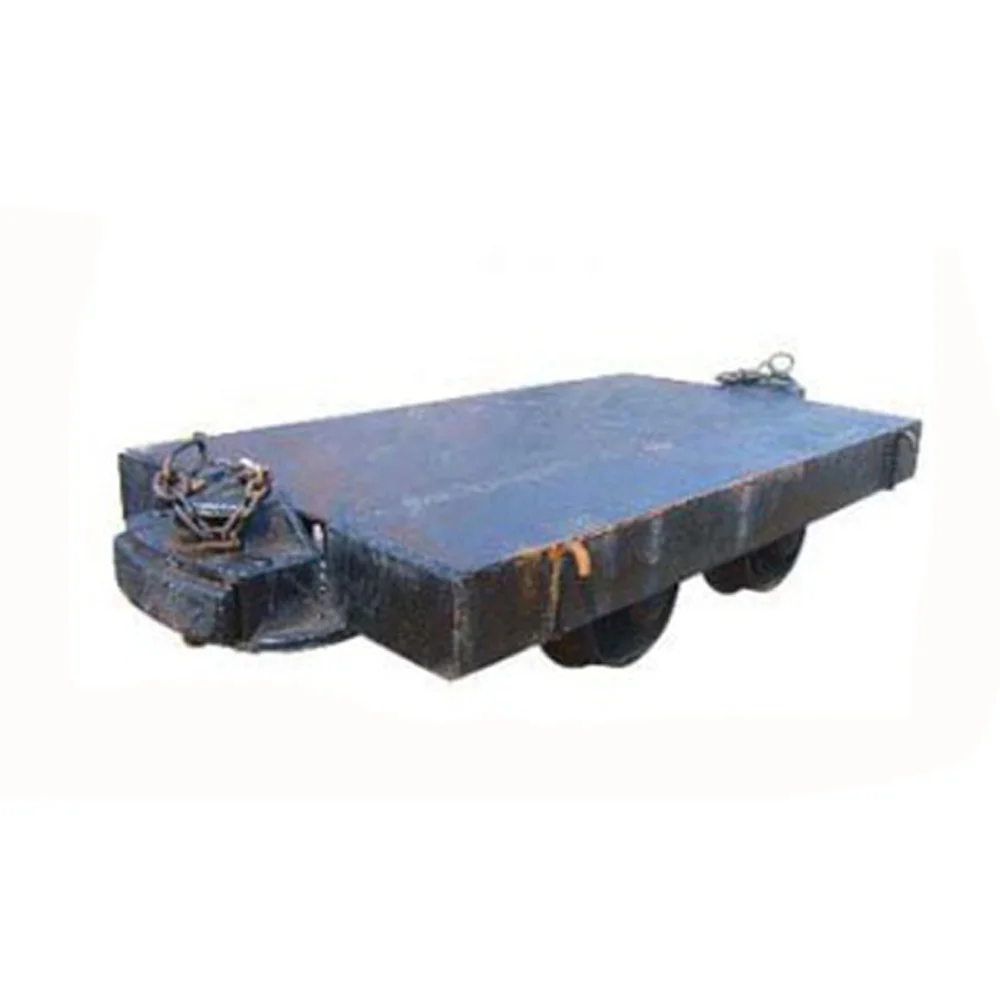

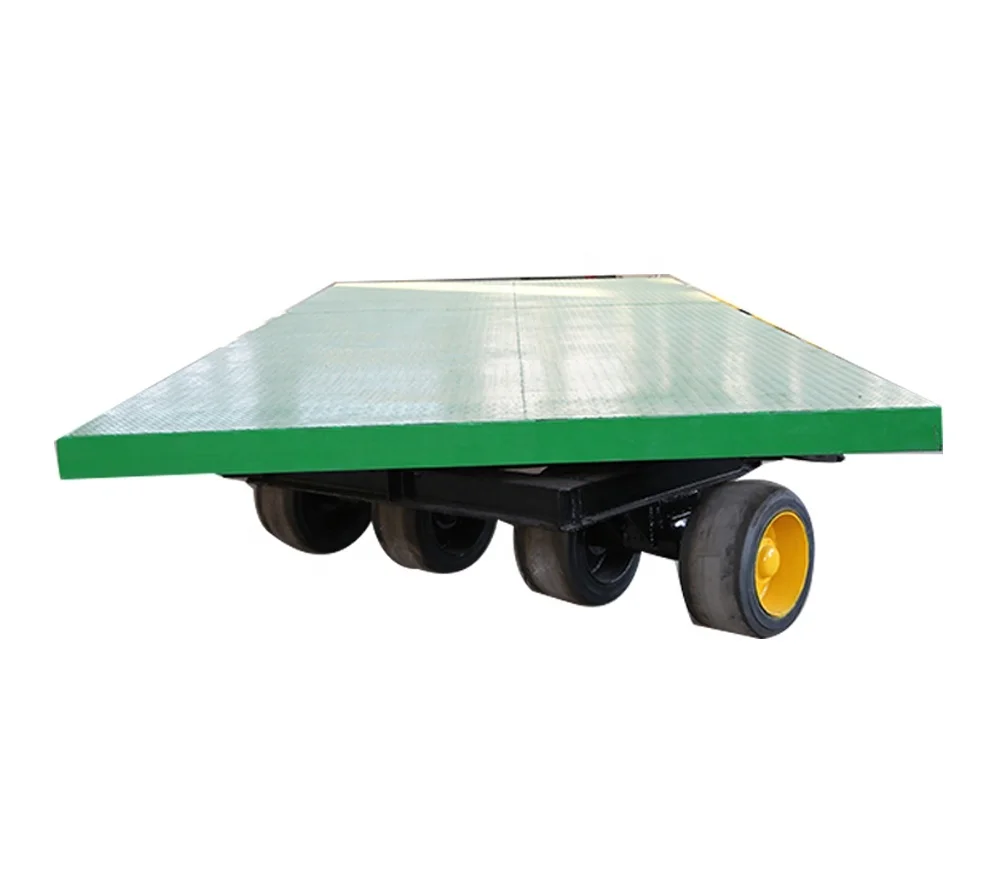

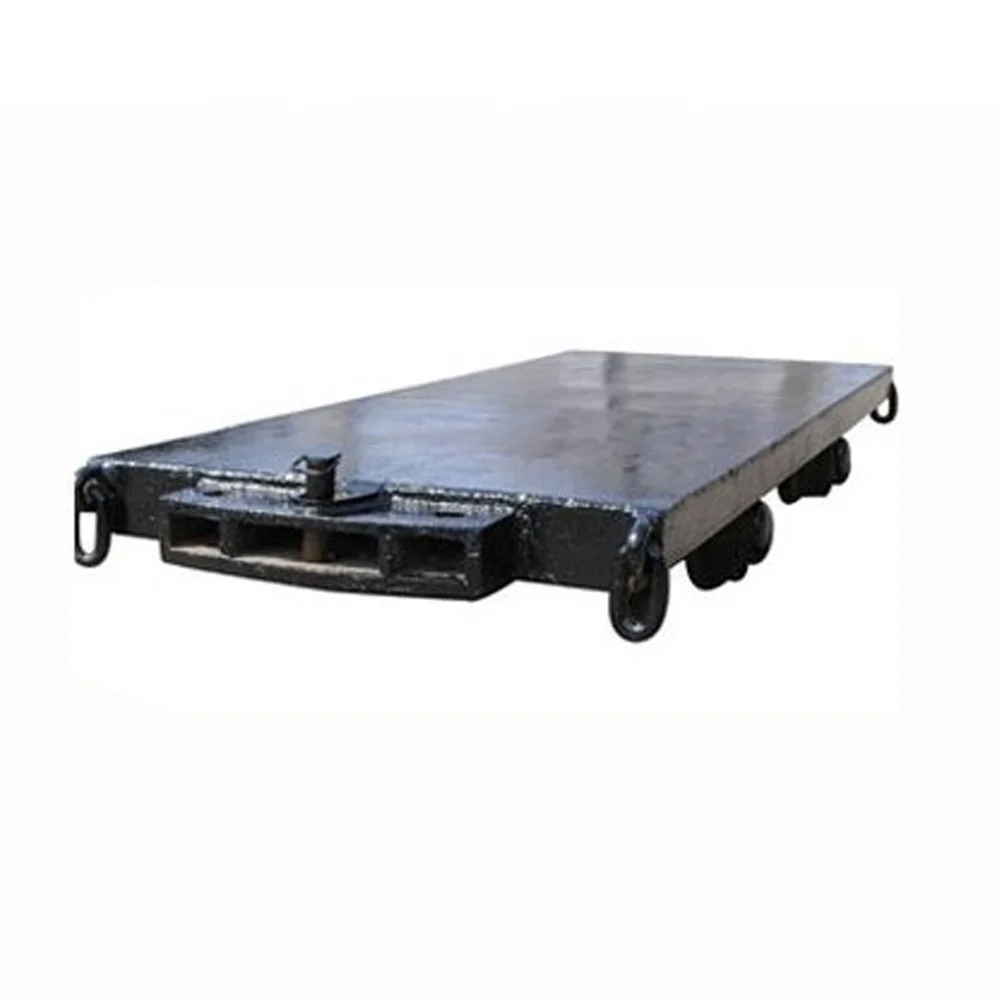

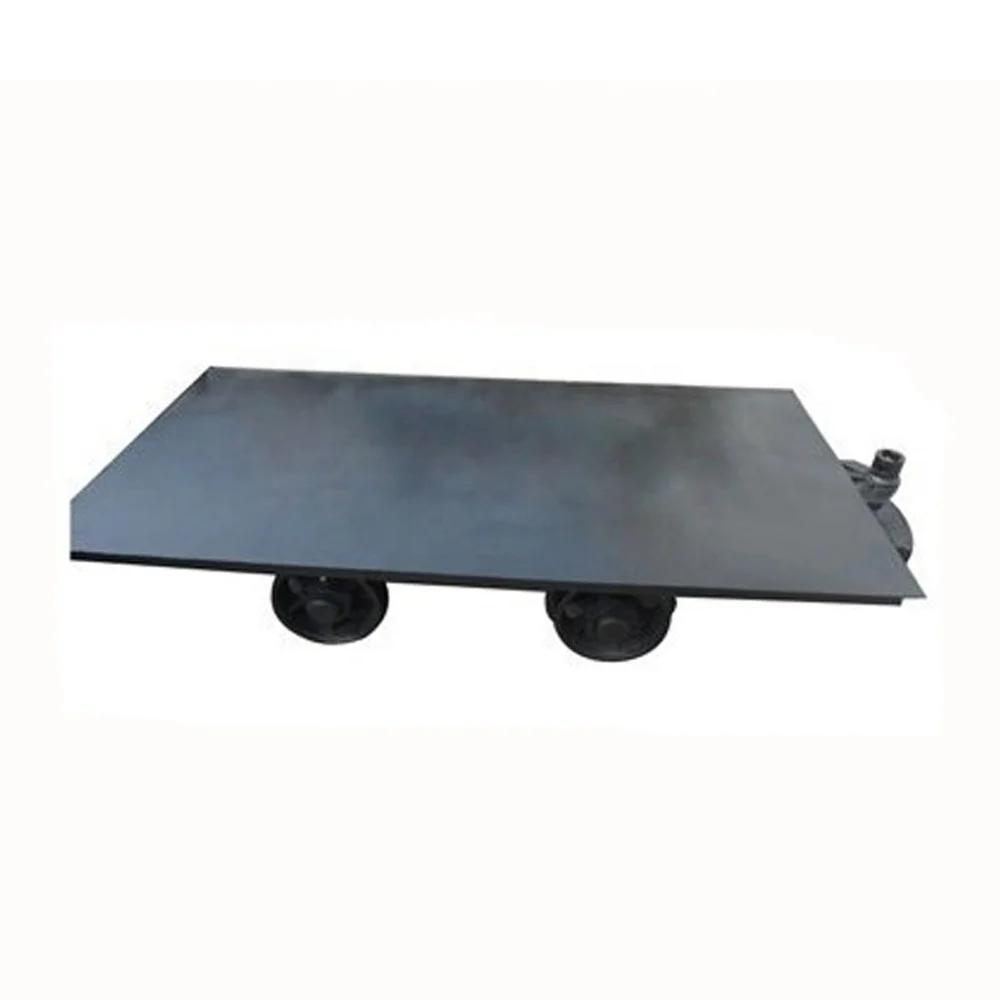

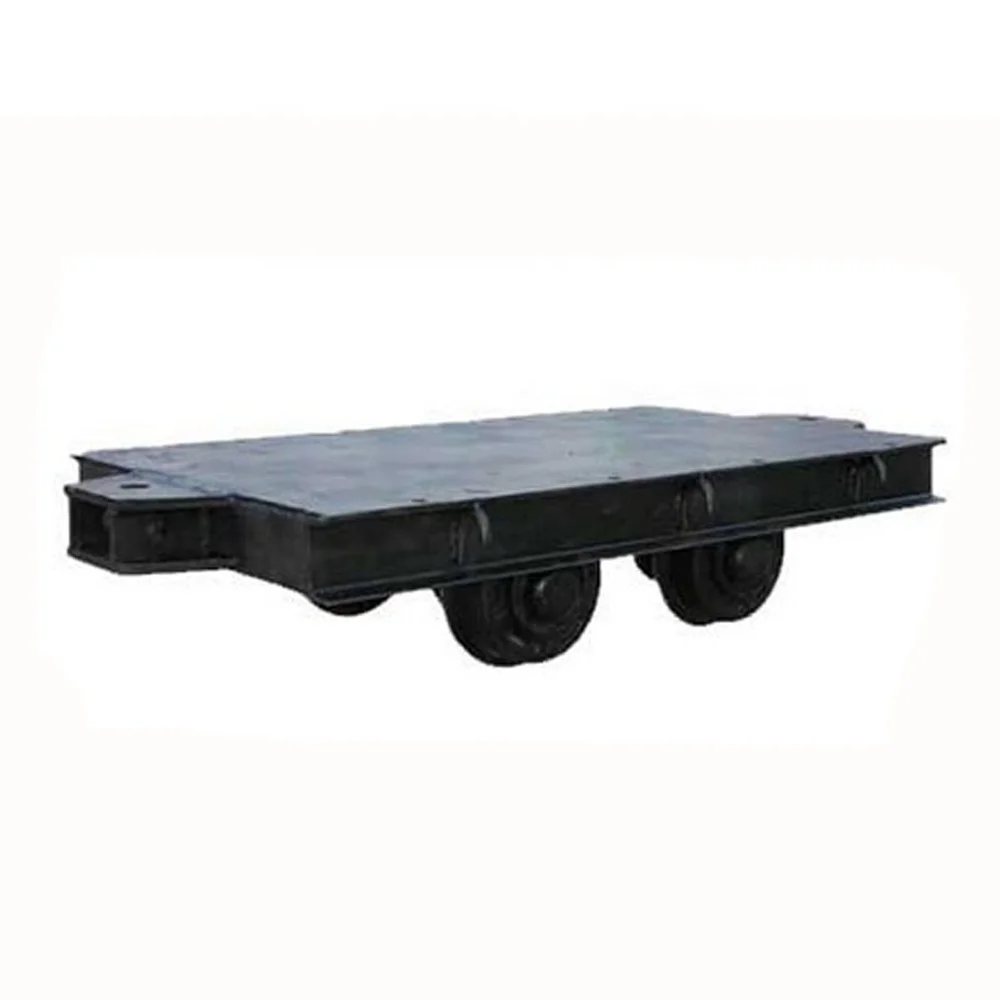

Photos of Mining Rail Flat Car
