Мини-экскаватор HT18 1 8 T китайский мини-экскаватор
- Категория: Excavators >>>
- Поставщик: Jinkung,Industrial,(Shandong),Corporation
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 10710.50 $* | 11246.53 $* |
| Aug-19-2025 | 10620.98 $* | 11151.19 $* |
| Jul-19-2025 | 8910.27 $* | 9356.37 $* |
| Jun-19-2025 | 10440.97 $* | 10962.71 $* |
| May-19-2025 | 9090.60 $* | 9545.87 $* |
| Apr-19-2025 | 10260.51 $* | 10773.59 $* |
| Mar-19-2025 | 10170.77 $* | 10679.89 $* |
| Feb-19-2025 | 10080.49 $* | 10584.96 $* |
| Jan-19-2025 | 9990.75 $* | 10490.8 $* |
Характеристики
HT18 1.8T mini excavator Chinese mini digger for sale
Product Description of 2.0 Ton Mini Excavator
Feature:
1. The easy operation and convenient operation device are in line with the new generation human engineering working environment.
2. The engine has the features of strong power, low noise, low emission, low fuel consumption, and convenient maintenance etc. Its performance, noise, emissions are all up to the highest level in Europe.
3. The strengthened crawler enhances the wear resistance of the track effectively and prolongs the service life of the track at the same time,
4. Reasonable hydraulic layout greatly facilitates the inspection and maintenance of hydraulic system.
5. The precise instrument is the intelligent monitoring housekeeper of the excavator.
20GP load 4pcs, 40HQ load 8pcs
Standard model with Swing Arm
ENGINE | |
Emission Standard | Tier 3/ Stage III |
Make | LAIDONG |
Model | 3TE25 |
Power /Rotation speed | 18.4kw(25HP)@2350rpm |
Number of cylinder | 3 |
TRACK SYSTEM | |
Maximum Travel speed | 3.5km/h |
Width of track shoe(Rubber & steel track) | 230mm |
Number of track shoe per side(Steel track only) | 38 pcs |
Number of upper roller/ bottom roller(per side) | 0/4 |
PERFORMANCE PARAMETER | |
Standard bucket capacity | 0.06m³ |
Swing speed | 10~12 rpm |
Max. Grade ability | 35° |
Max. Bucket digging force | 14KN |
Max. Arm digging force | 10KN |
Hydraulic system pressure | 18Mpa |
Machine weight | 1800kg |
MACHINE SIZE | |
Overall dimension (L*W*H) | 3865mm*1050mm*2270mm |
Axle base(Track length on ground) | 1230mm |
Track gauge | 820mm |
Min.Ground clearance | 210mm |
Swing radius at tail | 1125mm |
WORKING RANGE | |
Max. Digging height | 3365mm |
Max. Dumping height | 2385mm |
Max. Digging depth | 2050mm |
Max. Vertical digging depth | 1725mm |
Max. Digging radius | 3860mm |
Min .swing radius | 1720mm |
Max. Lifting height of blade | 230mm |
Max. Cutting depth of blade | 275mm |
Boom swing angle(Left) | 75° |
Boom swing angle(Right) | 45° |

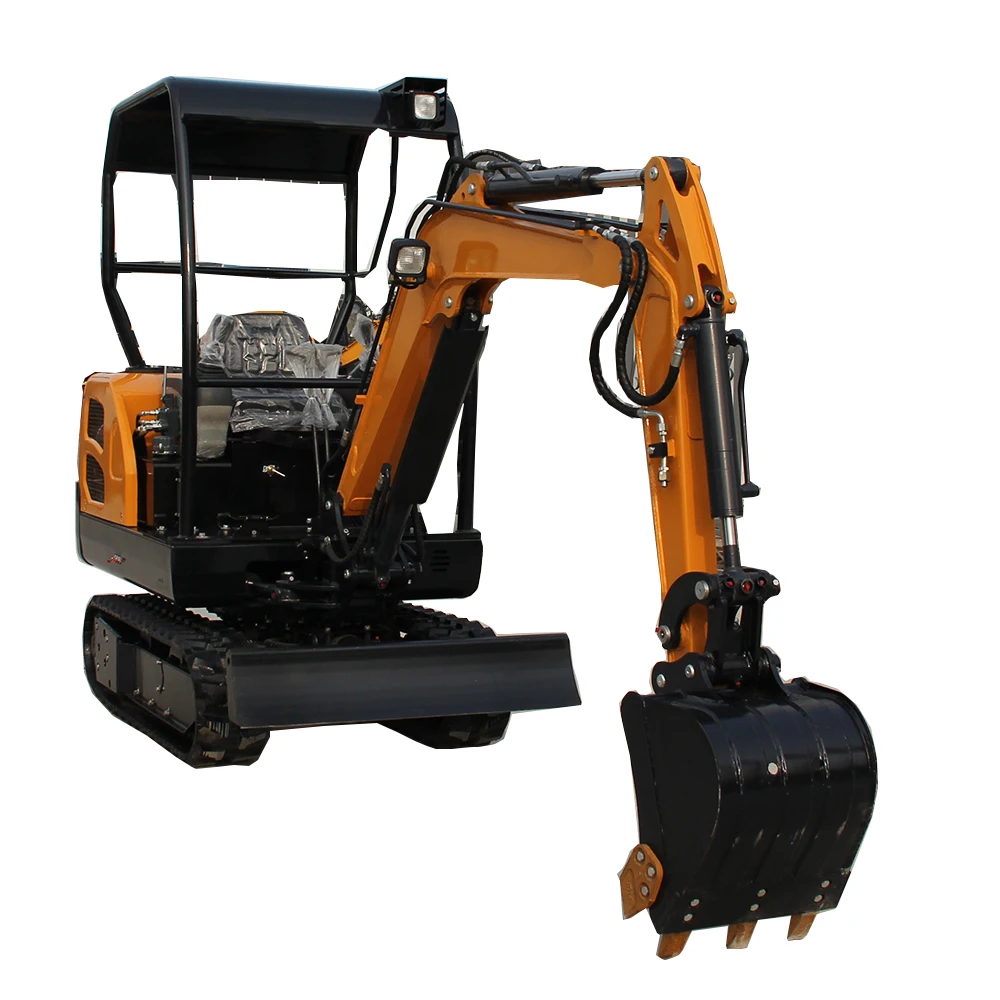

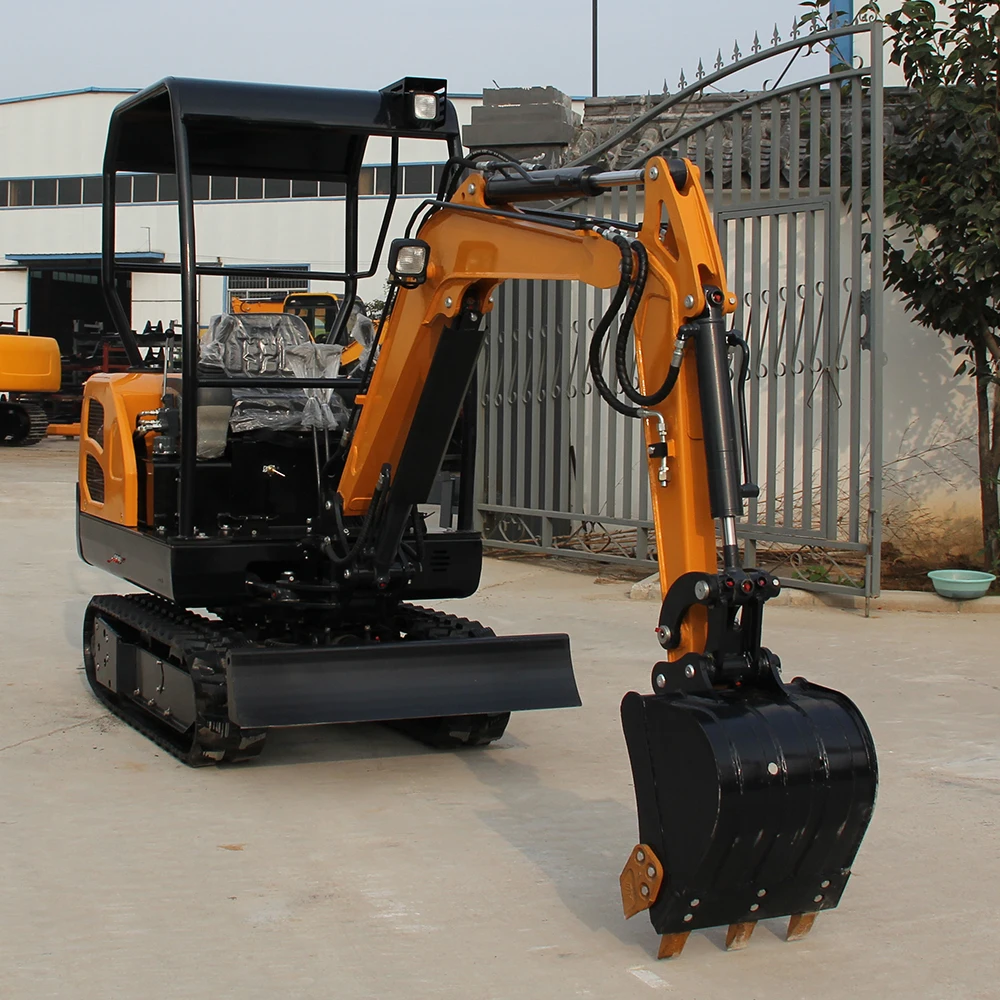

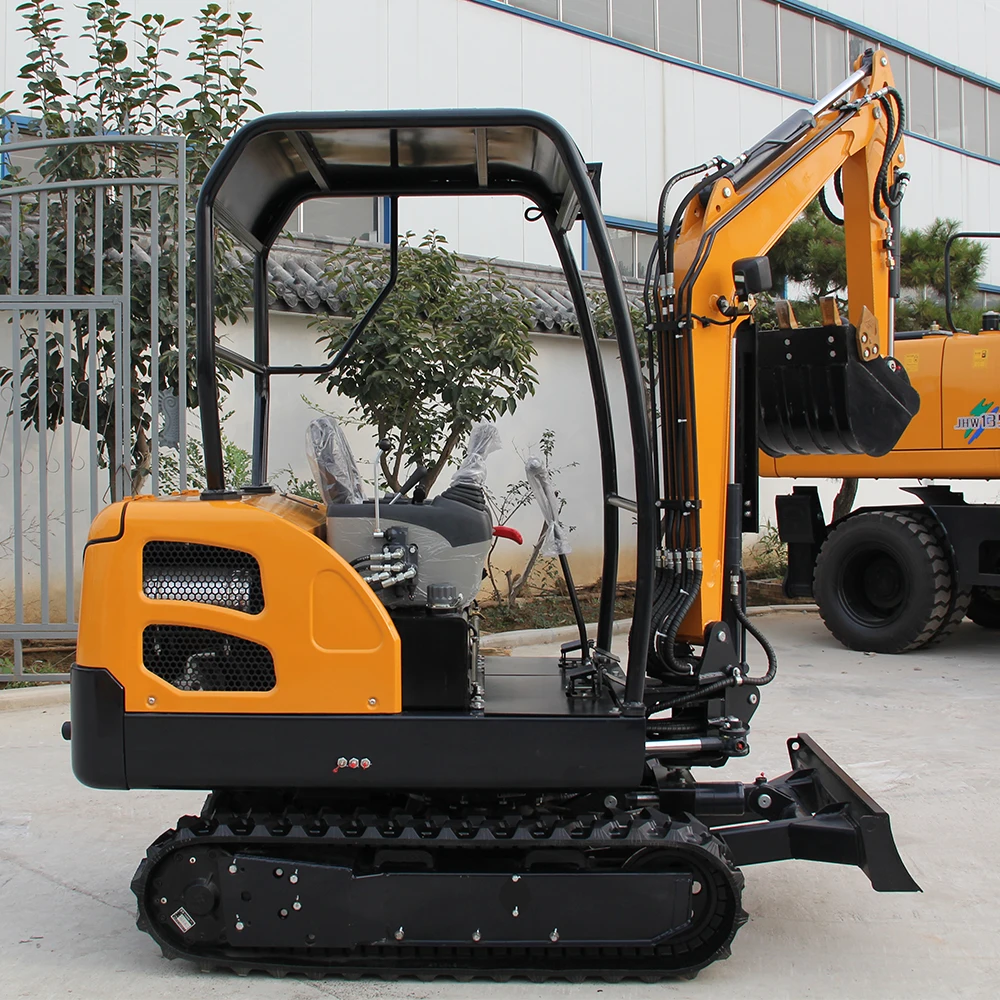

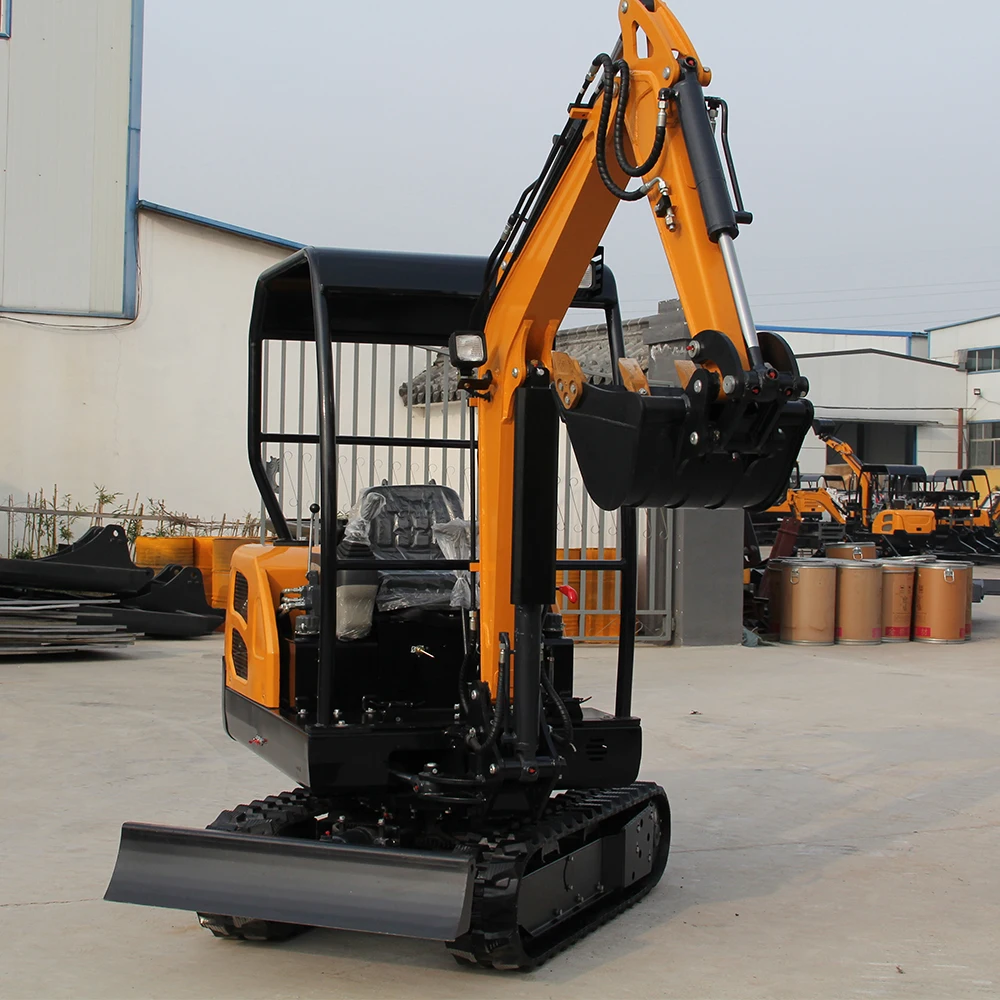

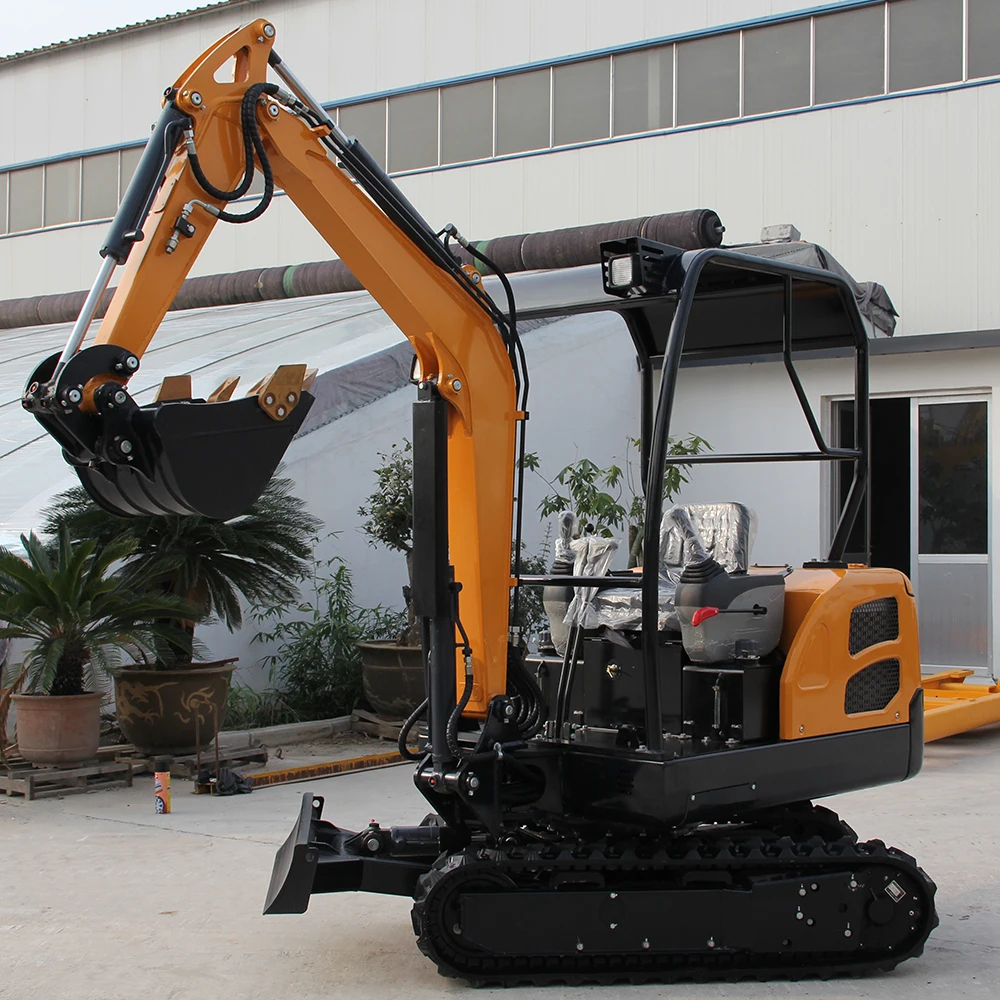

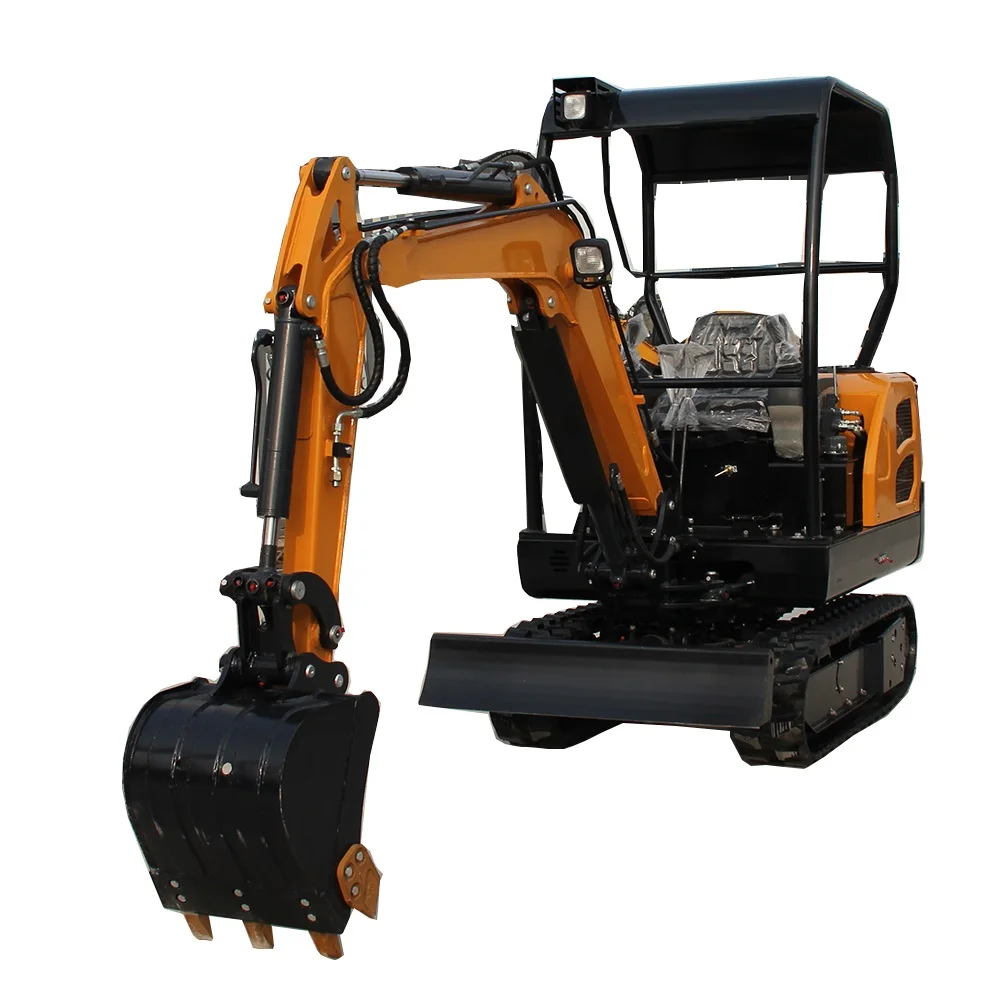

Images of 2.0 Ton Mini Excavator
