Гидравлическая Лебедка для прицепа/тягача/трактора/бульдозера 15

Гидравлическая Лебедка для прицепа/тягача/трактора/бульдозера 15

Категория: Winches >>>
Поставщик: Jiangyin,Zhongxin,Engineering,Equipment,Co.,Ltd.

Цена:2 800,00 $ - 3 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	3332.18 $*	3499.87 $*
Aug-19-2025	3304.25 $*	3469.80 $*
Jul-19-2025	2772.38 $*	2911.94 $*
Jun-19-2025	3248.90 $*	3410.92 $*
May-19-2025	2828.11 $*	2969.4 $*
Apr-19-2025	3192.93 $*	3352.32 $*
Mar-19-2025	3164.24 $*	3322.92 $*
Feb-19-2025	3136.57 $*	3293.71 $*
Jan-19-2025	3108.84 $*	3263.70 $*

Характеристики

Product Description

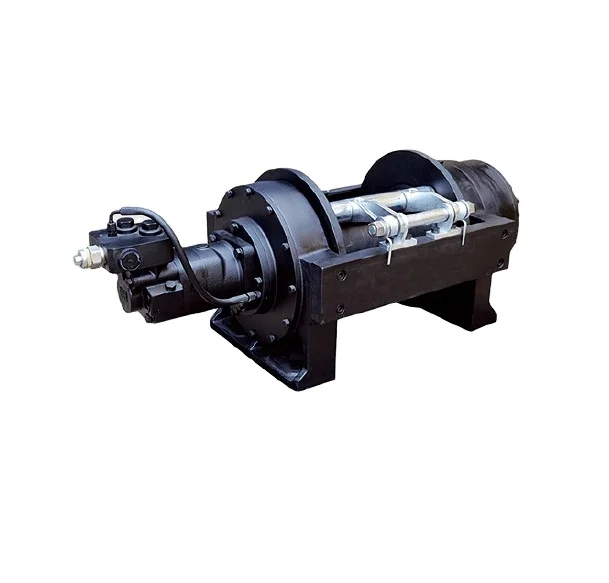

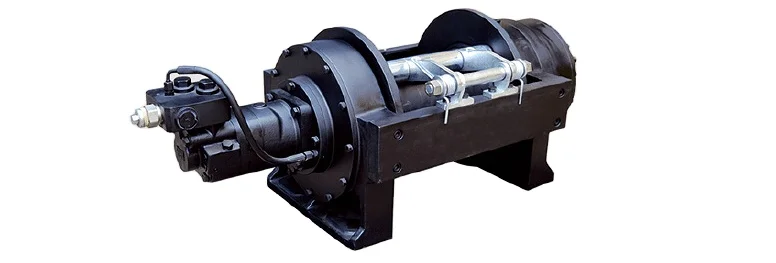

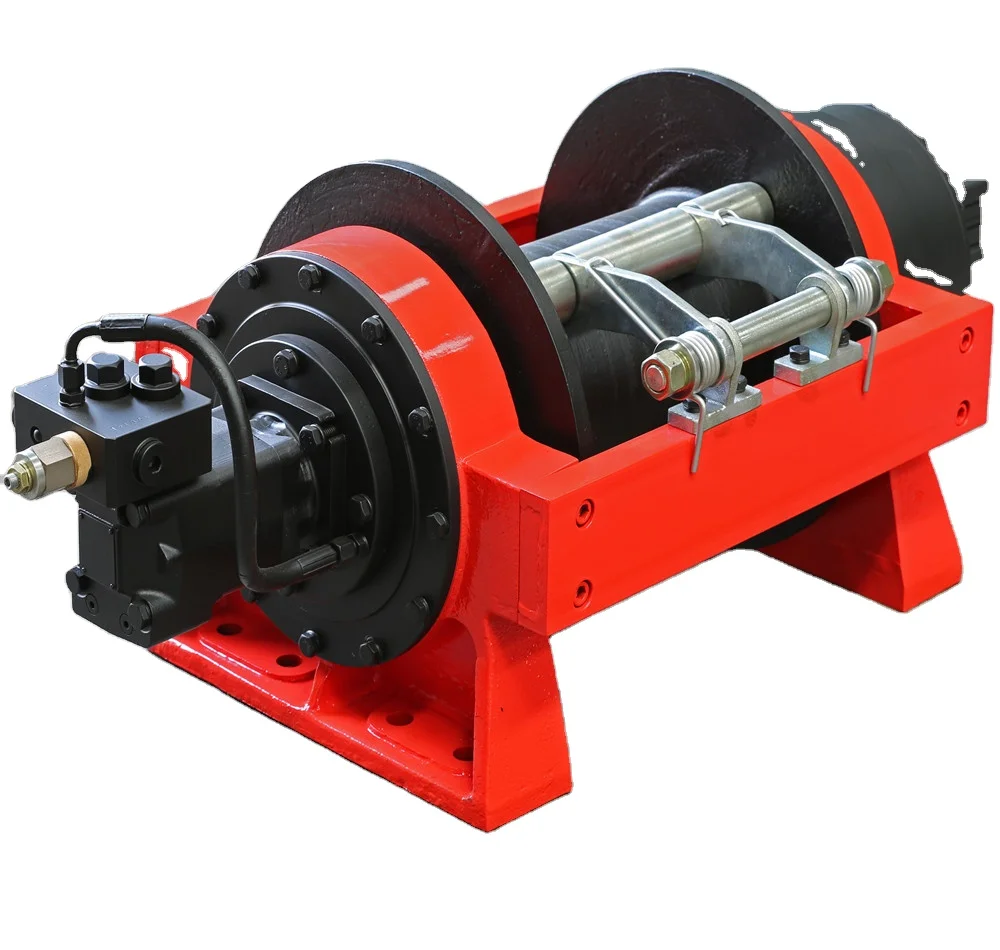

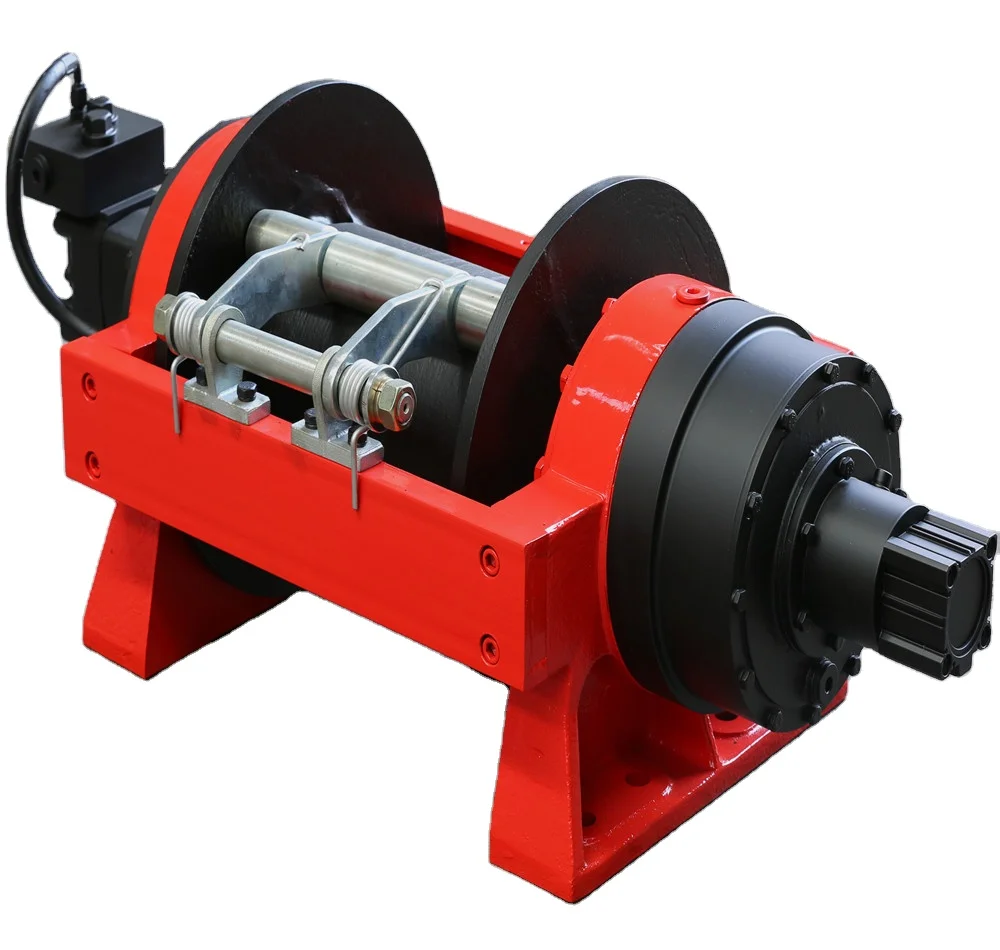

Hydraulic Winch for Trailer/ Tow truck /tractor/bulldozer 15 tons

Hydraulic Winch for Trailer/ Tow truck /tractor/bulldozer 15 tons is especially designed for heavy-duty lifting, pulling and towing operations. It is a good choice when an electric winch machine cannot match your operating and performance conditions. Powered by a hydraulic system, this type of winch has more strength thanan electric power winch, thus it is ideal for the most demanding tasks in construction, mining and marine. Our winches can be designed and built into any size and form to meet your application demands.

2. YJP150 Hydraulic Winch for Trailer/ Tow truck /tractor/bulldozer 15 tons consists of hydraulic motor, 2-stage planetary gear reducer, arrester, drum, etc.
a. High efficiently hydraulic motor(brand motor) .
b. Full-float typed planetary gear reducer
c. Multi-disc friction closed brake
d. Small size
e . Free spooling function.

Specification

Performance
Rated line pull (1st layer)	Kgs / lbs	15000 /35000
Line speed (1st layer)	m/min	6
Response pressure of brake	MPa / Bar	2.5 / 25
Oil pressure	MPa / Bar	16/ 160
Oil flow	L/min	110
Drum diameter x Bottom diameter x Length（internal）	mm	400 X 210 X 340
Drum capacity	m	55
Suggested high-intensity wire rope diameter	mm	Φ22
Net weight	Kg	285

item	value
Warranty	1 year
Customized support	OEM, ODM
Place of Origin	China
	Jiangsu
Brand Name	Zhongxin
Model Number	YJP150
Power Source	Hydraulic
Application	AUTO
Capacity	15 tons

Packing & Delivery

Wooden box

Company Profile

Jiangyin Zhongxin Engineering Equipment Co., Ltd. is a specialized manufacturer which integrates the research, development, production, marketing and service of hydraulic winches and hydraulic lifting mechanisms. Our products can be widely applied to engineering equipment and shipboard equipment. We strictly implement ISO9001 requirements and the regulations of the Lloyd Classification Society.

FAQ

1. Who are we?
We are based in Jiangsu, China, start from 1998. We are factory that producing hydraulic winch for more than 23 years.

2. What is your terms of payment?
A: T/T 30% in advanced,70% see the B/L copy . B.100% Irrevocable LC

3.What is your terms of delivery?
A. FOB, CFR ,CIF or as your requirement.

4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
