Автоматическая система контроля натяжения
- Категория: Printing Machinery Parts >>>
- Поставщик: Suzhou,Magni,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 536.24 $* | 563.18 $* |
| Aug-16-2025 | 531.42 $* | 558.6 $* |
| Jul-16-2025 | 446.68 $* | 468.29 $* |
| Jun-16-2025 | 522.9 $* | 548.28 $* |
| May-16-2025 | 455.52 $* | 478.23 $* |
| Apr-16-2025 | 513.3 $* | 539.15 $* |
| Mar-16-2025 | 509.70 $* | 534.86 $* |
| Feb-16-2025 | 504.77 $* | 529.29 $* |
| Jan-16-2025 | 500.52 $* | 525.84 $* |
Характеристики

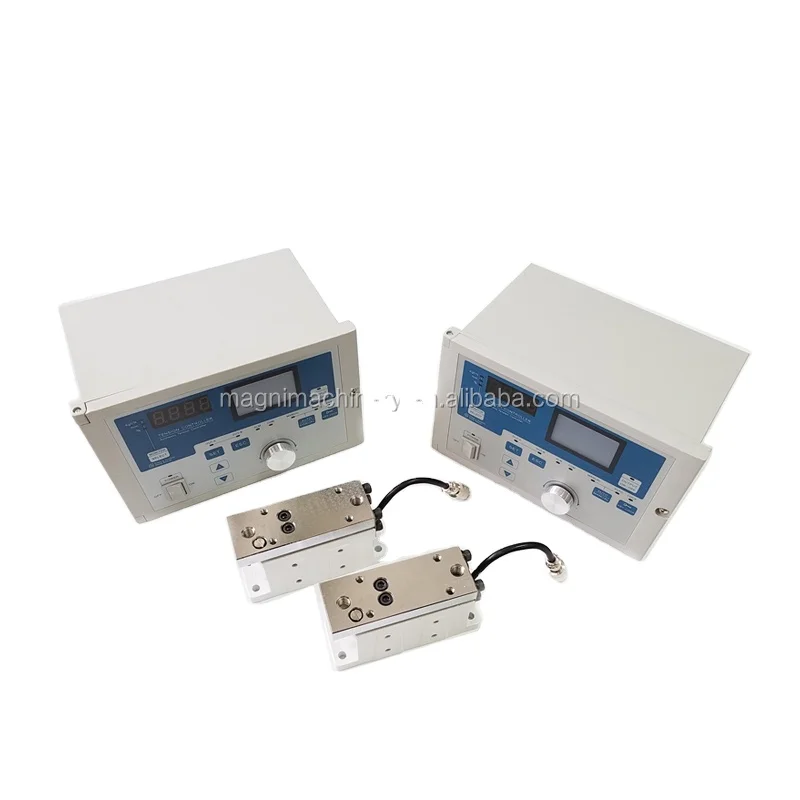

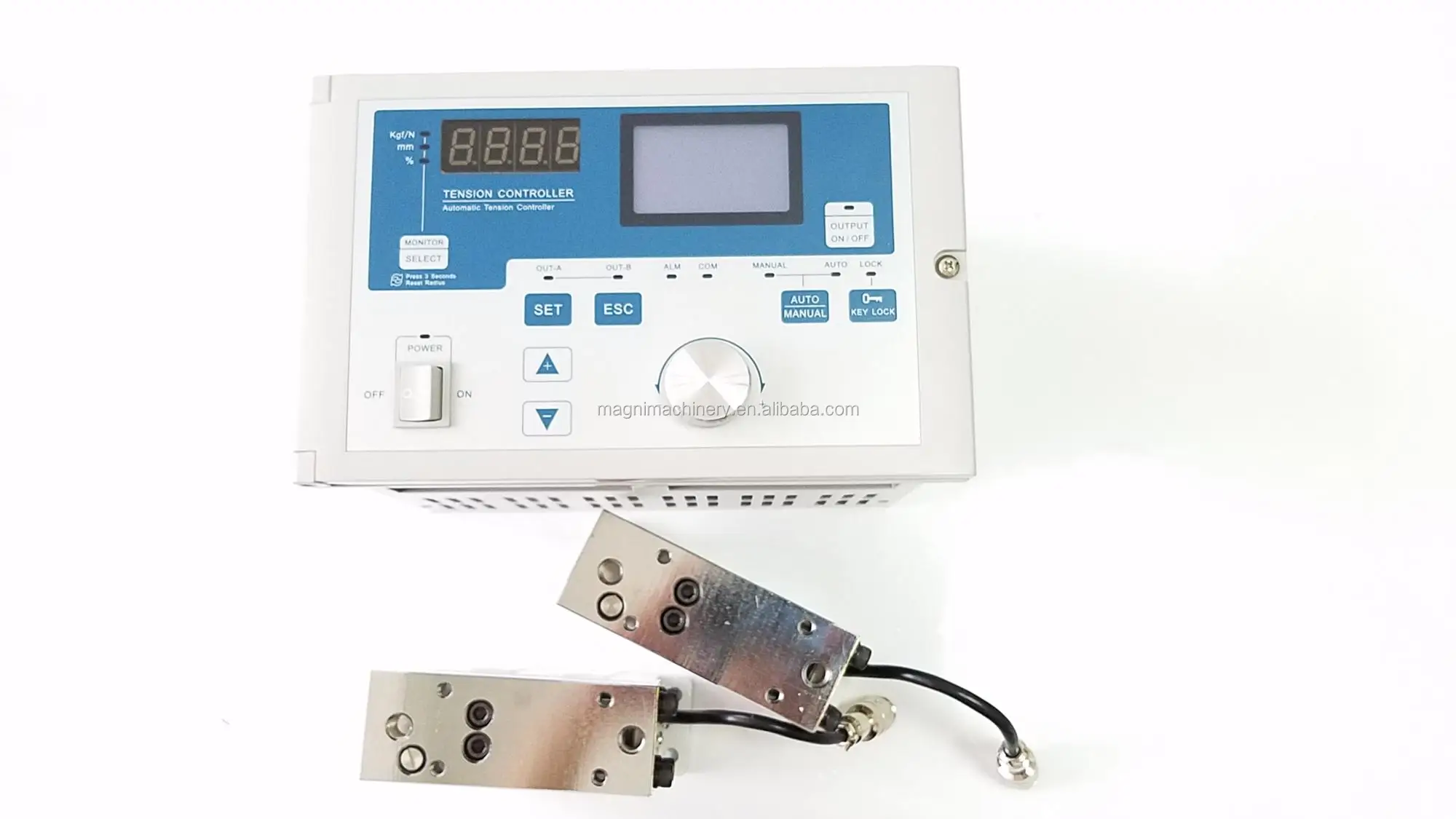

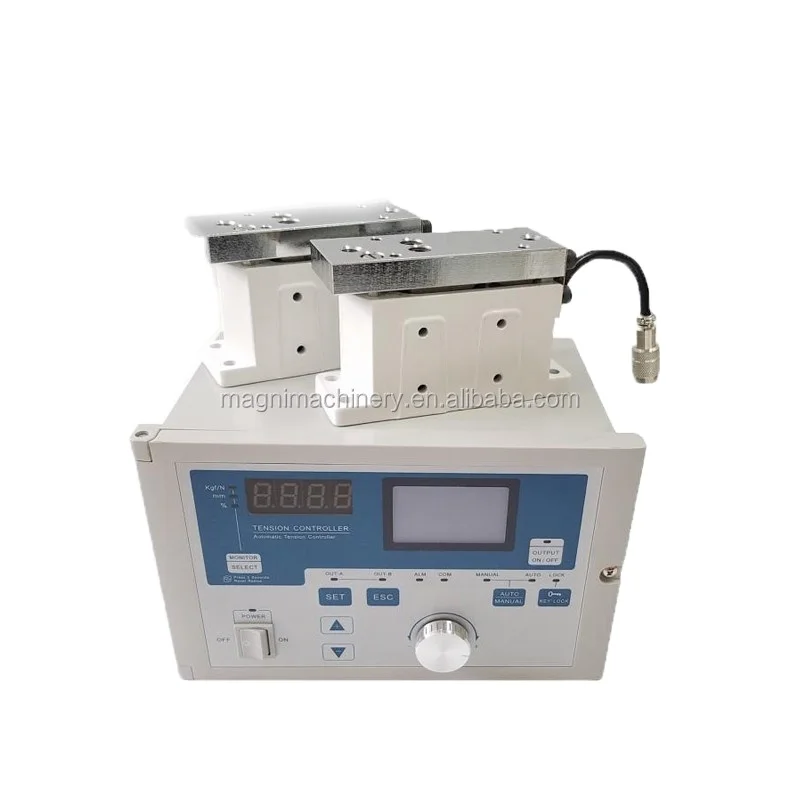

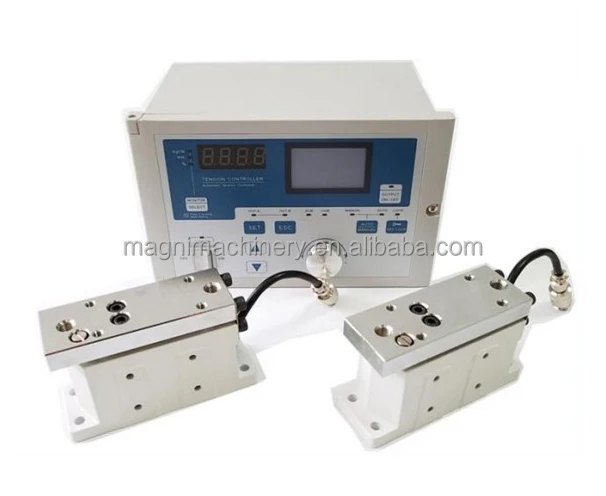

Automatic tension control system
Automatic tension control system
Automatic tension control system overview:
Automatic Tension control system Features
| 1. adopts the 32-bit fast CPU, sketches liquid crystal display, humanized design and easy operation |
| 2. adopts the overshot PI arithmetic, fast and stable tension control |
| 3. double-position switch, acceleration and deceleration compensation |
| 4. 24V/4A two-output, can drive the two-way brake/clutch directly |
| 5.can output the 0-10V,4-20mA servo drive/ servo motor |
| 6.easy installation and trial run, the process of tension calibrating is simple |
| 7.supports the Standard Modbus Communication Protocol, opens up all the parameters, easy connecting to PLC/touch screen |
| 8.protects the password parameters, avoids misoperation |
| 9. tension measurement is high and stable, without temperature drift |
Automatic Tension control system diagram
Tension Sensor(load cell) Specification:
| MODEL: | LX-15Kg | LX-30Kg | LX-50Kg |
| LX-100Kg | LX-200Kg |
The selection of Tension Sensor:
Tension controller Install size:
![8_XR~M8MA)DOA(}]VGC7NC.jpg](http://g02.s.alicdn.com/kf/HTB1C3PZPVXXXXX6aXXXq6xXFXXXN/228235167/HTB1C3PZPVXXXXX6aXXXq6xXFXXXN.jpg)
Application
welcome contact
