Редуктор скорости гармонический редуктор для робота arm
- Категория: Speed Reducers >>>
- Поставщик: Zhengzhou,Defy,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 362.75 $* | 369.74 $* |
| Jul-18-2025 | 294.35 $* | 300.95 $* |
| Jun-18-2025 | 356.57 $* | 363.92 $* |
| May-18-2025 | 353.96 $* | 360.87 $* |
| Apr-18-2025 | 282.61 $* | 288.44 $* |
| Mar-18-2025 | 348.7 $* | 355.95 $* |
| Feb-18-2025 | 345.13 $* | 352.48 $* |
| Jan-18-2025 | 342.87 $* | 349.31 $* |
Характеристики
speed reducer harmonic gearbox for robot arm ratio50
Product Description

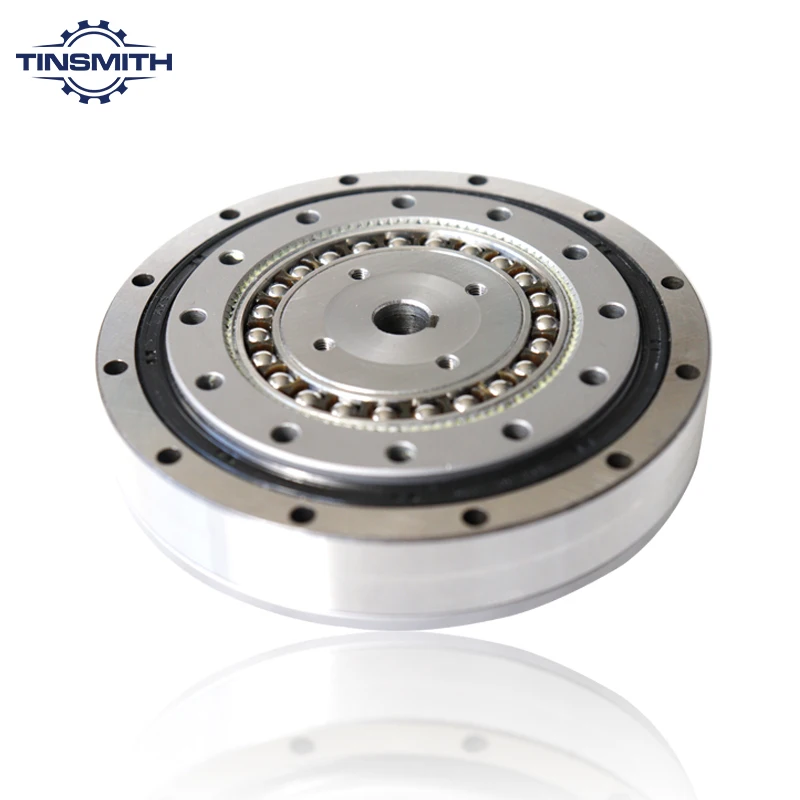

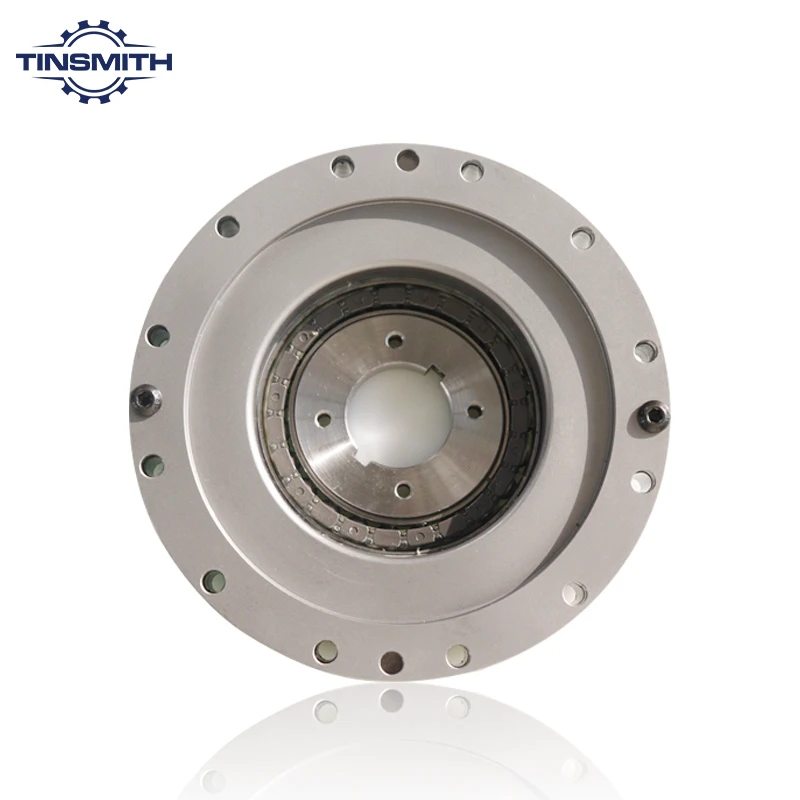

Flat type LSD series harmonic reducer with flanged ultra short cylinder structure flexspline, which can be used by rigid wheel end fixed, flexible wheel end output connection mode. It can also be used by flexible wheel end fixed, rigid wheel end output connection mode. Without changing the performance of the product, the axial length of LSD-II is shortened by about 50%, and that of LSG-I is shortened by about 15%. harmonic gearbox
Product Features
Four advantages of our flat type Harmonic Reducer
1. Superflat structure
2. No tooth clearance
3. High torque
4. Small size and light weight
5. Input and output are in the same box
6. Great positioning and rotating accuracy. harmonic gearbox
With 10 years’ research of harmonic drive reducer, we master the core technology, adopt the latest international S-shape gear transmission mechanism for harmonic reducer. While maintaining the smoothness of the traditional involute tooth type, it can improve the performance of precision, strength, rigidity, service life and so on. harmonic gearbox
Product Parameter
LSD Series compact structure. harmonic gearbox
Model harmonic gearbox | Ratio | Rated speed when input 2000r/min | Allowable peak torque at start stop | The maximum allowable average load torque | Instant maximum allowable torque | ||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | ||
| 14 | 50 | 3.7 | 0.38 | 12 | 1.2 | 4.8 | 0.49 | 24 | 2.4 |
| 80 | 4.2 | 0.43 | 16 | 1.6 | 5.9 | 0.6 | 31 | 3.1 | |
| 100 | 5.4 | 0.55 | 19 | 1.9 | 7.7 | 0.79 | 35 | 3.6 | |
| 17 | 50 | 11 | 1.1 | 23 | 2.3 | 18 | 1.9 | 48 | 4.9 |
| 80 | 14 | 1.4 | 30 | 0.3 | 21 | 2.1 | 58 | 5.9 | |
| 100 | 16 | 1.6 | 37 | 3.8 | 27 | 2.8 | 71 | 7.2 | |
| 20 | 50 | 17 | 1.7 | 39 | 4 | 24 | 2.4 | 69 | 7 |
| 80 | 21 | 2.1 | 46 | 4.7 | 30 | 3.1 | 81 | 0.8 | |
| 100 | 28 | 2.9 | 57 | 5.8 | 34 | 3.5 | 95 | 9.7 | |
| 25 | 50 | 27 | 2.8 | 69 | 7 | 38 | 3.9 | 127 | 13 |
| 100 | 47 | 2.8 | 110 | 11 | 75 | 7.6 | 184 | 19 | |
| 120 | 47 | 4.8 | 123 | 13 | 75 | 7.6 | 204 | 21 | |
| 32 | 50 | 53 | 5.4 | 151 | 15 | 75 | 7.6 | 268 | 27 |
| 100 | 96 | 10 | 233 | 24 | 151 | 15 | 420 | 43 | |
| 160 | 96 | 10 | 261 | 27 | 151 | 15 | 445 | 45 | |
Model harmonic gearbox | Ratio | Allow maximum input speed r/min | Average input speed of allowable parts r/min | Max. Backlash | Lifetime | Weight | ||
| grease lubrication | grease lubrication | arc sec | Hour | kg | ||||
| 14 | 50 | 8500 | 3500 | ≤20 | 7,000 | 0.33 | ||
| 80 | ||||||||
| 100 | ||||||||
| 17 | 50 | 7300 | 3500 | ≤20 | 10,000 | 0.42 | ||
| 80 | ||||||||
| 100 | ||||||||
| 20 | 50 | 6500 | 3500 | ≤20 | 10,000 | 0.5 | ||
| 80 | ||||||||
| 100 | ||||||||
| 25 | 50 | 5600 | 3500 | ≤20 | 10,000 | 1.5 | ||
| 100 | ||||||||
| 120 | ||||||||
| 32 | 50 | 4800 | 3500 | ≤20 | 10,000 | 2.8 | ||
| 100 | ||||||||
| 160 | ||||||||
Application
This model harmonic gear reducer could be used in spraying equipment, CNC machine, printing equipment, packaging machinery and etc. harmonic gearbox
Packaging & Shipping

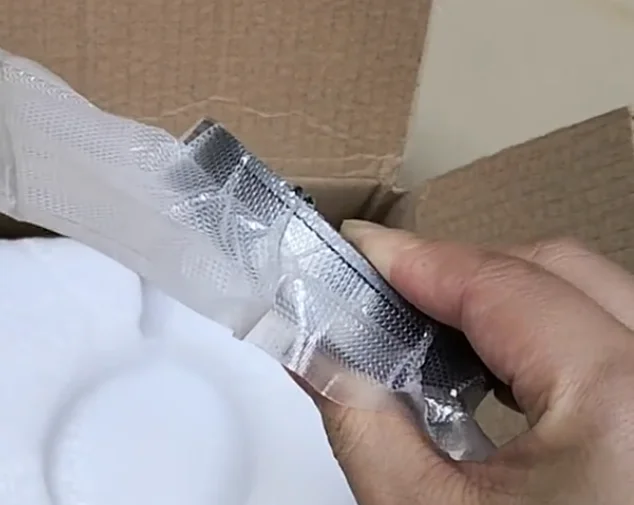

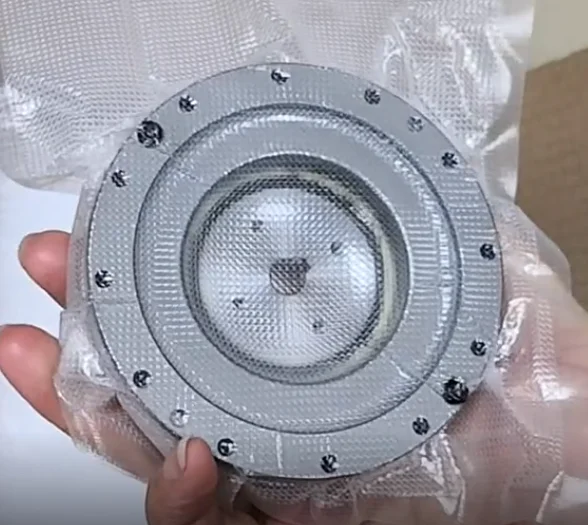

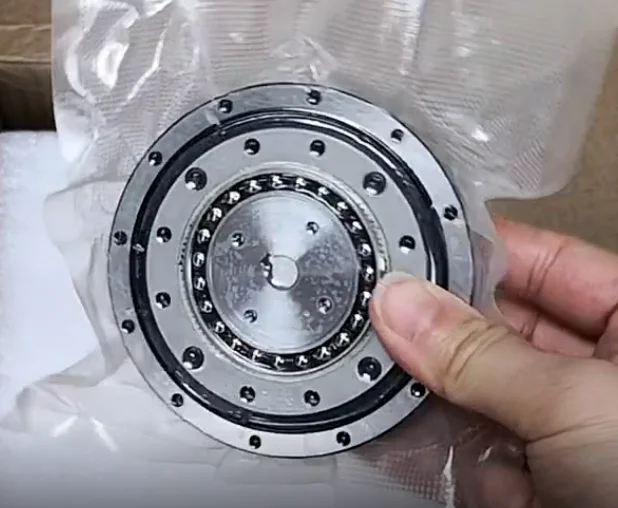

We adopt thick foam inside the carton to protect the harmonic drive reducer. DHL, FEDEX, TNT, EMS are ok for sample order. We also could provide sea transport for large quantity orders of harmonic reducers. harmonic gearbox
Company Information
Zhengzhou Defy Mechanical&Electrical Equipment Co., Ltd is a professional manufacturer of harmonic drive reducer. Our factory dedicates to the research of harmonic reducer since 2010s, more than 10 years’ experience makes our product quality rank in the leading position in China. The precise harmonic reducer developed and produced by our company adopts the latest international S-shaped gear transmission mechanism, which is the only domestic enterprise capable of quantifying the production of this kind of toothed harmonic reducer, with an annual output of 500,000 sets of various products for the market. harmonic gearbox
Our Services
1. We accept small order of harmonic reducer;
2. Sample order of harmonic gear speed reducer delivery time is in 9 days, mass quantity order lead time is 9-15 days;
3. We can accept payment via paypal, T/T and L/C;
4.Quality assurance of our harmonic reducer is 1 year, and we can provide you professional technical support;
5. We provide free software wand training how to use the products. Engineers are available for technical support. harmonic gearbox
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and trading company.
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: How long is your delivery time?
A: Due to the complex process, production takes 8-10 working days. For customized goods, please check with us before order.
Q. How do you ship the goods and how long does it take to arrive?
A: Usually by express, like DHL, UPS, FedEx, EMS or TNT; By air and sea are also available.
Express takes 3-15 days to arrive.
Q: What is your terms of payment?
A: We accept Trade Assurance Order, TT, Paypal, West Union and L/C. harmonic gearbox
