Поставка HCCK ip68 погружной датчик давления 4-20ma Гидростатический Датчик Уровня резервуара для
- Категория: Levels >>>
- Поставщик: Hebei,Huachuang,M&c,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 131.5 $* | 138.50 $* |
| Aug-18-2025 | 130.98 $* | 137.73 $* |
| Jul-18-2025 | 109.85 $* | 114.89 $* |
| Jun-18-2025 | 128.50 $* | 134.34 $* |
| May-18-2025 | 111.10 $* | 117.73 $* |
| Apr-18-2025 | 125.54 $* | 131.97 $* |
| Mar-18-2025 | 124.67 $* | 130.20 $* |
| Feb-18-2025 | 123.75 $* | 129.86 $* |
| Jan-18-2025 | 122.14 $* | 128.24 $* |
Характеристики

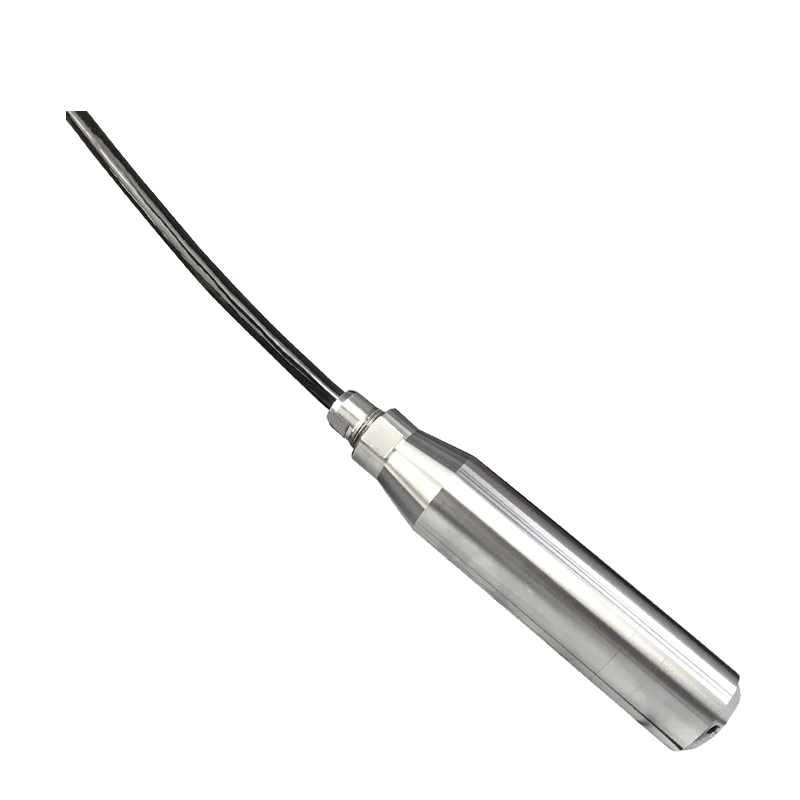

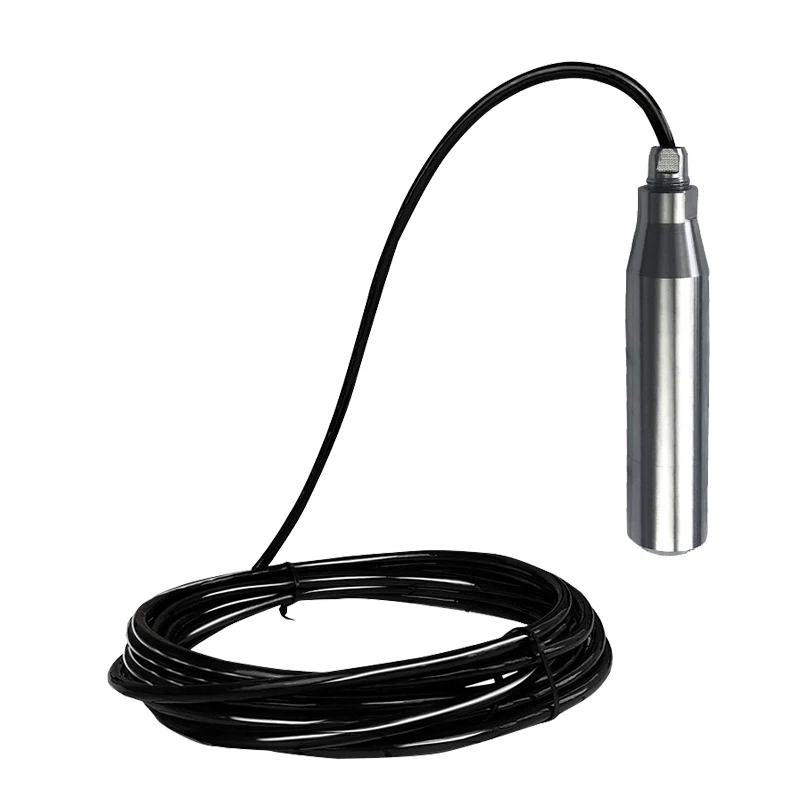

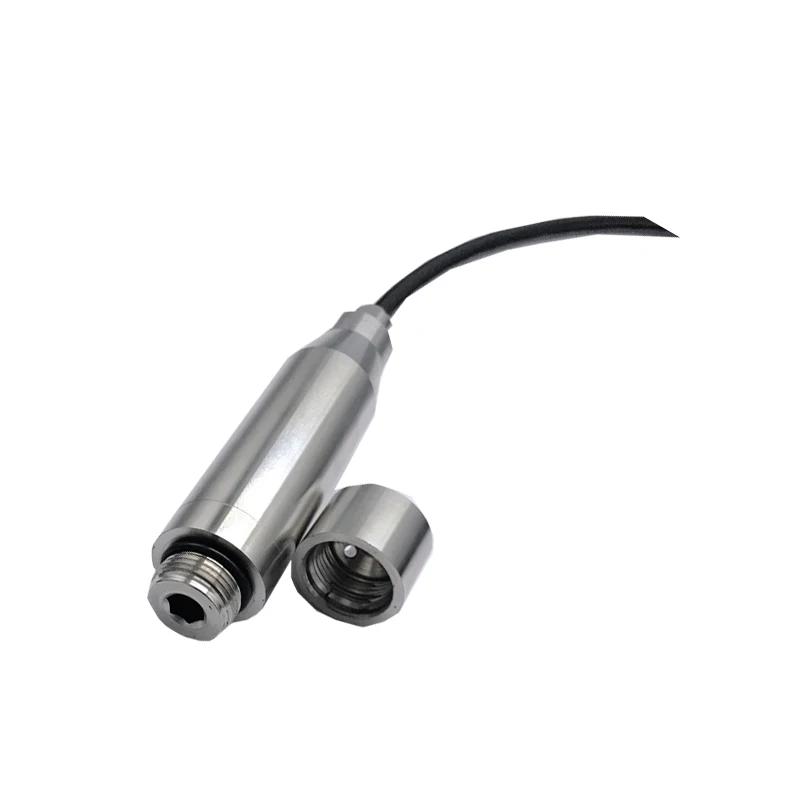

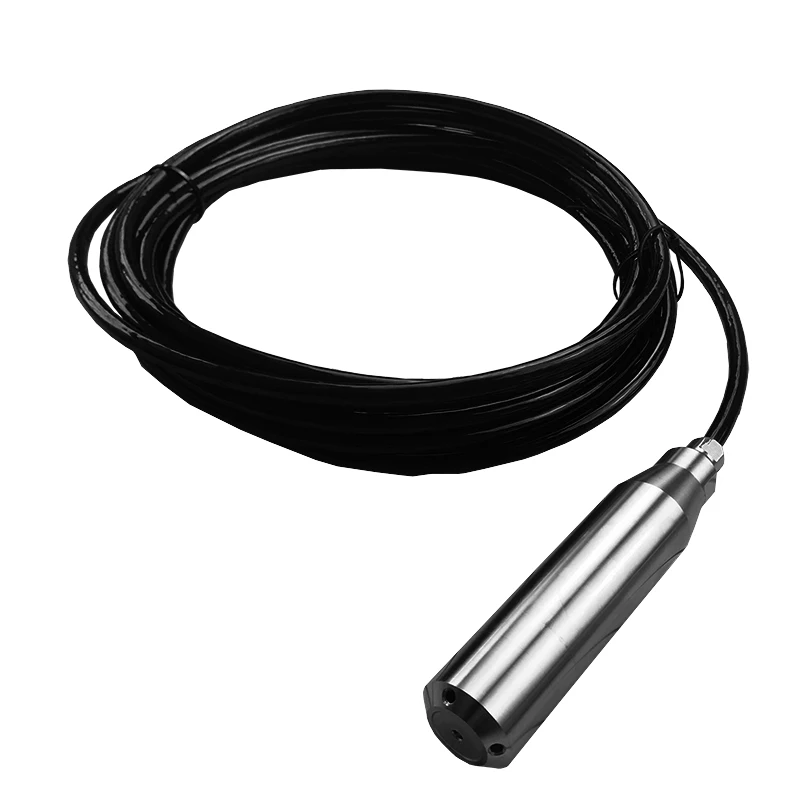

HCCK supply ip68 submersible pressure transducer 4-20ma hydrostatic water tank level sensor
Products Description
Product parameters:
1.Measuring range: 0-350m;
2.Sensor type:Simple type, silicon piezoresistive sensor,no display;
3.Accuracy:0.1%FS 0.2%FS 0.5%FS;
4.Cable material: teflon cable;
5.Signal output：4~20MA;
Note: extra charge for meeting other special needs(Cable material,Accuracy, measuring range,Signal output ,display , etc)
2.Sensor type:Simple type, silicon piezoresistive sensor,no display;
3.Accuracy:0.1%FS 0.2%FS 0.5%FS;
4.Cable material: teflon cable;
5.Signal output：4~20MA;
Note: extra charge for meeting other special needs(Cable material,Accuracy, measuring range,Signal output ,display , etc)
HCCK Guided Wave Radar Level Transmitter Pulse Radar Level Meter Sensor
Product features

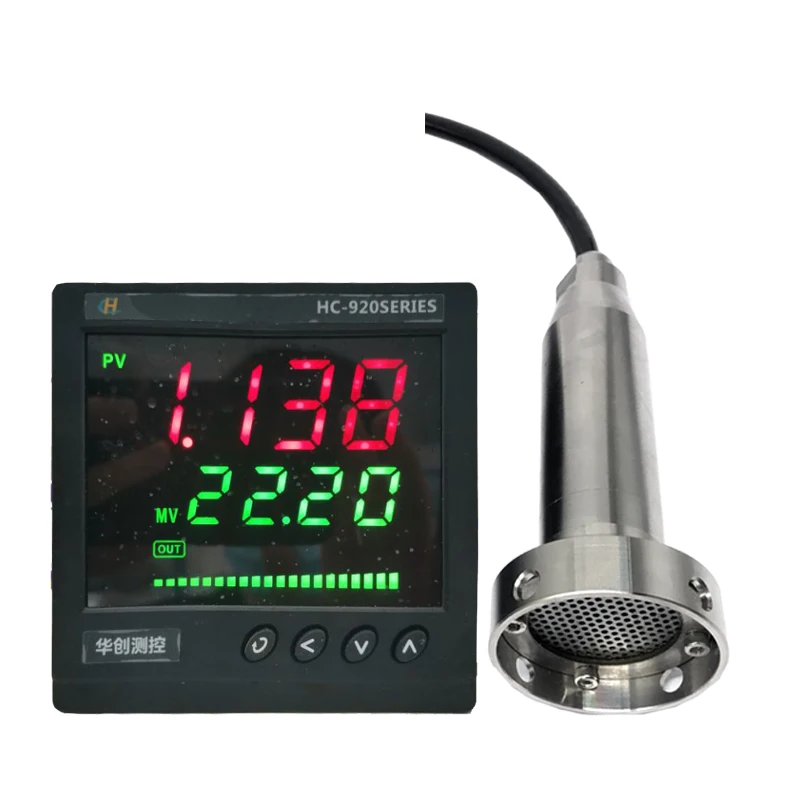

1.use high quality cable with air duct; can choose field display;
2.two kinds of sensors are optional, various application conditions, ceramic sensor
with big hole design, anti-blocking, anti-corrosion.
3.use imported silicon piezoresistive sensor with high accuracy and good stability;
3.directly put into the measured liquid, simple installation.
2.two kinds of sensors are optional, various application conditions, ceramic sensor
with big hole design, anti-blocking, anti-corrosion.
3.use imported silicon piezoresistive sensor with high accuracy and good stability;
3.directly put into the measured liquid, simple installation.
Application Case
HCDB-30 liquid level meter , Simple type, silicon piezoresistive sensor, without head, not directly with field display.The max measuring range can reach 350m ( can customized if beyond this range) . The output signal has two options : (4-20) mA or RS45 standard protocol .
Principle
The input level gauge is based on the principle that the static pressure of the measured liquid is proportional to the height of the liquid. The pressure signal is converted into electrical signal by the pressure sensor, and then converted into standard current signal or digital signal after temperature compensation and linear calibration. When the liquid level transmitter is put into a certain depth in the measured liquid, the pressure formula of the sensor diaphragm is as follows:
Ρ = ρ * g * H + Po
in the formula :
P → Pressure on the sensor diaphragm
ρ → The density of the liquid being measured
g → Local gravitational acceleration
H → The depth of where level sensor is in the liquid
P0 →Liquid surface atmosphere pressure
Use meter pressure sensor , connect the cavity of the level gauge witho the atmospheric pressure through the air tube to offset the P0, so we can get P = ρ * g * H, Obviously, the liquid level height can be obtained by converting the measured pressure value. That is: H = P/(ρ * g)
Ρ = ρ * g * H + Po
in the formula :
P → Pressure on the sensor diaphragm
ρ → The density of the liquid being measured
g → Local gravitational acceleration
H → The depth of where level sensor is in the liquid
P0 →Liquid surface atmosphere pressure
Use meter pressure sensor , connect the cavity of the level gauge witho the atmospheric pressure through the air tube to offset the P0, so we can get P = ρ * g * H, Obviously, the liquid level height can be obtained by converting the measured pressure value. That is: H = P/(ρ * g)
Why Choose Us
Our Service Team
30 foreign trade service personnel,
10 years of foreign trade experience, service more than 95 countries,
10 languages of pre-sales,after-sales service.
Our Service
Respond quickly within 15 minutes,
1 hour quick solution for customer,
12 months warranty,
24 hours online service.
24 hours online service.
Our Production
A complete production system,
3 advanced testing machines,
the quality control is strict,
the qualified rate reaches 99%.
Customer Photos
Certifications
FAQ
1. Customized Product
We have the professional technical personnel and the large-scale production capacity, can customize the product according to the customer demand and provide the corresponding solution.Develop programs for customers.
2. Quality Quarantee
12 months warranty.
3. Shipment & packing
Level sensors are typically shipped by international express companies such as UPS, FedEx, DHL and TNT, and can also be shipped by air or sea.All products will be properly packed in export cartons to ensure their safety.
4. Contact us
Our company has a professional technical team and experienced sales team to serve you.
We have the professional technical personnel and the large-scale production capacity, can customize the product according to the customer demand and provide the corresponding solution.Develop programs for customers.
2. Quality Quarantee
12 months warranty.
3. Shipment & packing
Level sensors are typically shipped by international express companies such as UPS, FedEx, DHL and TNT, and can also be shipped by air or sea.All products will be properly packed in export cartons to ensure their safety.
4. Contact us
Our company has a professional technical team and experienced sales team to serve you.
