Лидер продаж машина для порошкового покрытия огнетушителей/пожарных
- Категория: Metal Coating Machinery >>>
- Поставщик: Hebei,Hanna,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 11429.17 $* | 11658.70 $* |
| Jul-20-2025 | 9269.16 $* | 9454.53 $* |
| Jun-20-2025 | 11249.50 $* | 11474.85 $* |
| May-20-2025 | 11159.33 $* | 11382.24 $* |
| Apr-20-2025 | 8909.2 $* | 9087.90 $* |
| Mar-20-2025 | 10979.77 $* | 11199.53 $* |
| Feb-20-2025 | 10889.44 $* | 11107.16 $* |
| Jan-20-2025 | 10799.78 $* | 11015.7 $* |
Характеристики
Product Description
Automatic powder coating line component
1-Pre-treatment system(Dipping tank/spraying/shotblasting)
2-Drying oven for chemical pretreatment
3-Powder coating
4-Powder curing oven
Process Name | Mode | Temperature(℃) | Time | Remark |
Inspect raw material | RT | |||
Hanging material | Manual | RT | ||
Pretreatment | Automatic | RT | as per the chemical | |
Powder coating | Automatic | RT | 1min | |
Curing | Automatic | 180-220℃ | 10-15min | |
Cooling | Natural | RT | ||
Unloading | Manual | RT | ||
Inspection&Package | RT |
Pre-treatment System
CONTACT US
Stainless Chemical Tank With Pump
Spraying Nozzle
Stainless steel spraying tunnel
Process steps
Every process step consists of a tank with one or more strong vertical pumps distributing the liquid to a number of rinse ramps fitted with nozzles.
Pumps
The pumps are all highly efficient and made of acid proof steel. All motors are 100% IEC standard with no modification, and very easy to replace if needed.All pumps are tested and certified according to the HANNA quality control. They are mounted vertically in the tanks and immersed in the liquid.Reverse cascade system saves water
The rinse water is lead through the line in a reverse cascade rinse to minimize consumption of rinse water. We always design our systems with a minimum of two rinse steps, often even three.The design includes pre and after rinse systems, electronically controlled and ensuring minimal consumption of water, energy and chemicals.
Nozzles
The rinse ramps are made of stainless steel, and the quick clip-on nozzles are made of plastic. This is a very rigid
construction.Also memory nozzles are a possibility, making the cleaning and the service very easy. Both types are easily replaced.
Every process step consists of a tank with one or more strong vertical pumps distributing the liquid to a number of rinse ramps fitted with nozzles.
Pumps
The pumps are all highly efficient and made of acid proof steel. All motors are 100% IEC standard with no modification, and very easy to replace if needed.All pumps are tested and certified according to the HANNA quality control. They are mounted vertically in the tanks and immersed in the liquid.Reverse cascade system saves water
The rinse water is lead through the line in a reverse cascade rinse to minimize consumption of rinse water. We always design our systems with a minimum of two rinse steps, often even three.The design includes pre and after rinse systems, electronically controlled and ensuring minimal consumption of water, energy and chemicals.
Nozzles
The rinse ramps are made of stainless steel, and the quick clip-on nozzles are made of plastic. This is a very rigid
construction.Also memory nozzles are a possibility, making the cleaning and the service very easy. Both types are easily replaced.

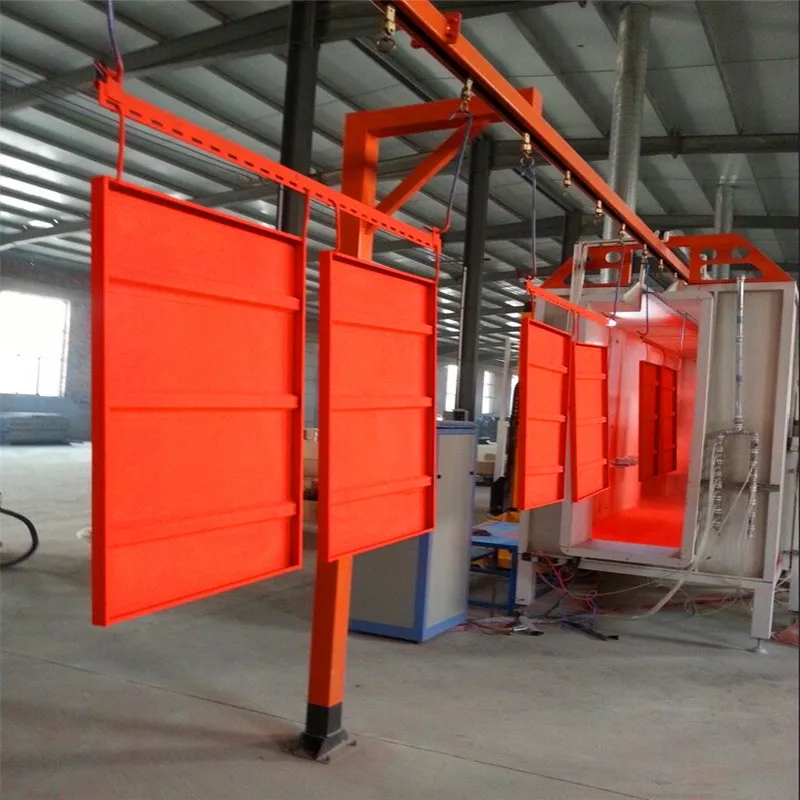

Powder Coating Booth
Quick color change powder coating booth with cyclone
Quick assemble filter recovery powder coating cabin
Drying Oven & Curing Oven
Hanna Brand Oven Advantage
1. Has Air Curtain At The Both Ends , The Hot Air In The Oven Won't Dissipate To Outside,Saving The Fuel .
2. Curing Oven Insulation Board Are All Plug-In Board ,Seamless Docking ,Thermal Bridge Transmission Technology ,
3. Hot Air Circulation Air Supply And Return Reach A Balance ,Reasonable Layout ,Uniform Oven Temperature .
After Testing ,the Temperature Difference In the Oven is Less Than ± 3 ℃
2. Curing Oven Insulation Board Are All Plug-In Board ,Seamless Docking ,Thermal Bridge Transmission Technology ,
3. Hot Air Circulation Air Supply And Return Reach A Balance ,Reasonable Layout ,Uniform Oven Temperature .
After Testing ,the Temperature Difference In the Oven is Less Than ± 3 ℃
150mm thickness insulation layer
Inside view for our curing oven
Oven temperature tracker record
Application
ALUMINUM PROFILES WINDOWS
STORAGE EQUIPMENTS
METAL CABINET/FURNITURE
Case Stories
Let us show and tell
HANNA is a specialist in lifting virtually all types of projects in the business of industrial surface treatment lines.
Having worked with and supplied to almost all industries, we have a unique knowledge of and experience with meeting a very wide range of operational and spatial requirements.
We have installed more than 4800 lines worldwide, and we have chosen some of the references to be described in detail.
Click on the brands to see the case stories with descriptions of the customer product and finishing system.
See the range of industries we work with and our references in these industries.
HANNA is a specialist in lifting virtually all types of projects in the business of industrial surface treatment lines.
Having worked with and supplied to almost all industries, we have a unique knowledge of and experience with meeting a very wide range of operational and spatial requirements.
We have installed more than 4800 lines worldwide, and we have chosen some of the references to be described in detail.
Click on the brands to see the case stories with descriptions of the customer product and finishing system.
See the range of industries we work with and our references in these industries.
Thailand Project
China Project
India Project
Qatar Project
UAE Project
Madagascar Project
Philippines Project
Bulgaria Project
Kenya Project
For more project cases, welcome contact us...
Certifications
