Factory Price Paste Filling Machine With Mixer / Automatic Paste Fill Machine / Paste Filling Machine
Product Description

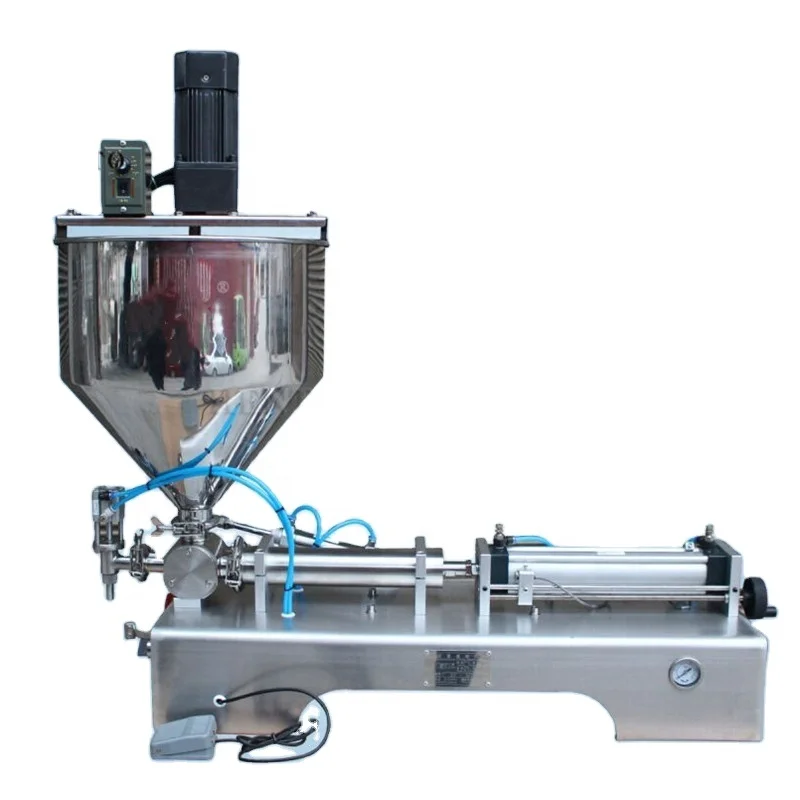

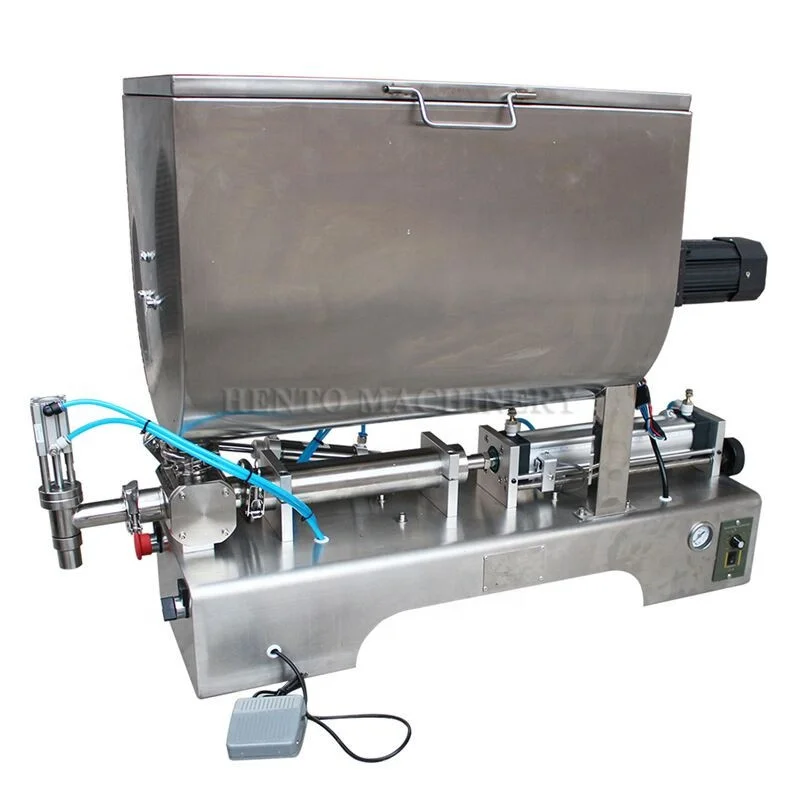

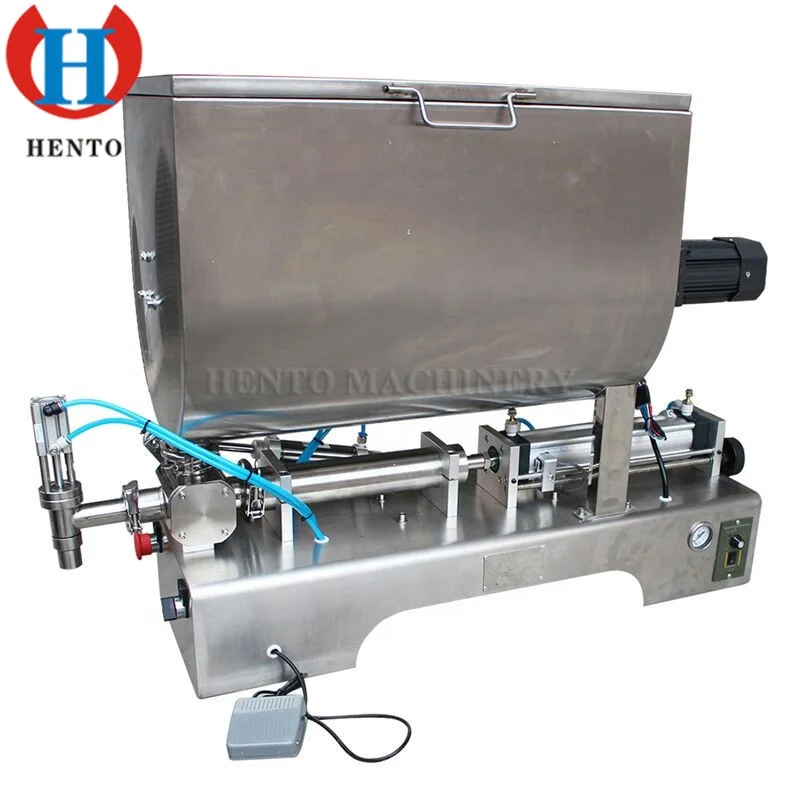

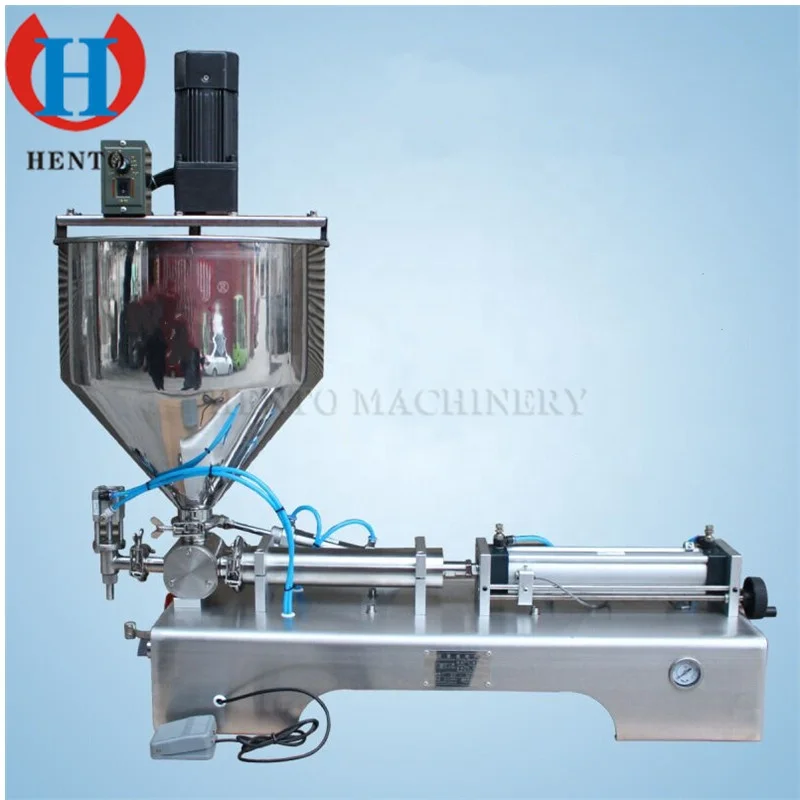

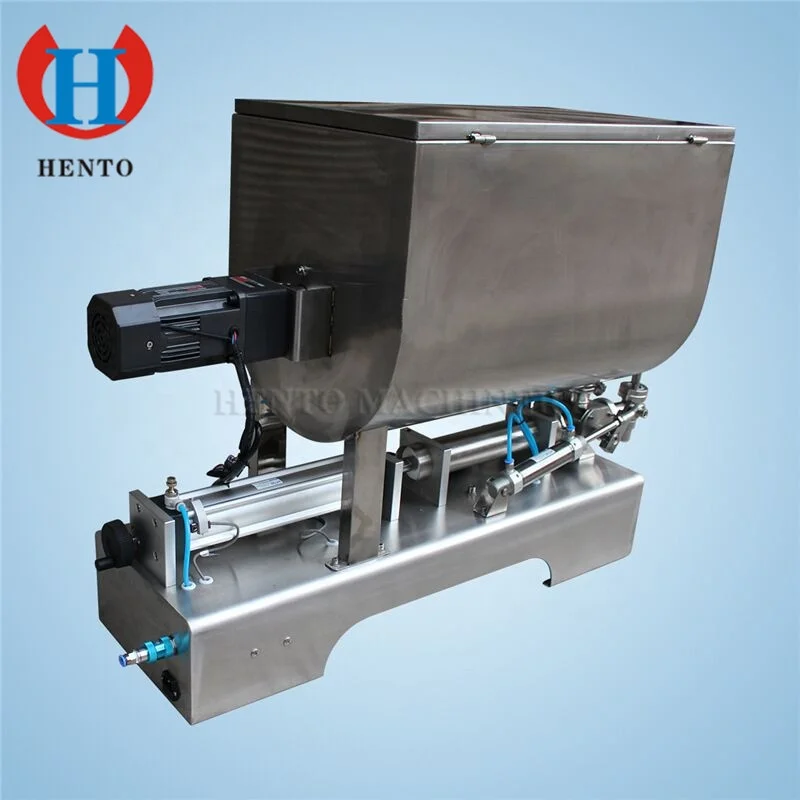

Paste Filling Machine
The vertical stirring pneumatic thick sauce filling machine is a semi-automatic piston
type paste filling machine. Driven by the cylinder-a piston to extract and eject materials, use a three-way rotary valve to control the flow of materials, Reed switch is used to control the stroke of the cylinder, the filling amount can be adjusted, and the air intake of the cylinder can be adjusted The volume can realize fast or slow filling. This machine is suitable for high viscosity, paste, thick sauce with particles Ideal equipment for quantitative filling of liquids, such as sauces, sauces, peanut butter, ketchup, Sesame sauce, seasoning sauce, sweet noodle sauce, bean paste, chili sauce, shrimp paste, salad dressing, apple Jam, caviar, hot sauce, etc. can all be filled quantitatively.
type paste filling machine. Driven by the cylinder-a piston to extract and eject materials, use a three-way rotary valve to control the flow of materials, Reed switch is used to control the stroke of the cylinder, the filling amount can be adjusted, and the air intake of the cylinder can be adjusted The volume can realize fast or slow filling. This machine is suitable for high viscosity, paste, thick sauce with particles Ideal equipment for quantitative filling of liquids, such as sauces, sauces, peanut butter, ketchup, Sesame sauce, seasoning sauce, sweet noodle sauce, bean paste, chili sauce, shrimp paste, salad dressing, apple Jam, caviar, hot sauce, etc. can all be filled quantitatively.
1. The hopper is equipped with an adjustable speed mixing device to make the material more evenly filled;
2. The parts in contact with materials are made of 304 stainless steel, which meets GMP requirements;
3. Adopt tetrafluoroethylene piston and silicone sealing ring, and adopt high-quality brand pneumatic components;
4. Reasonable design, compact model, convenient operation, quick disassembly design of the filling system, easy to disassemble and wash after use;
5. The filling volume adjustment handle, the filling speed can be adjusted, the filling speed is fast, and the filling accuracy is high;
6. The filling head adopts anti-drip, anti-drawing and lifting filling devices;
7. It can be used with a variety of equipment, such as sealing machine, capping machine, vacuum packaging machine, etc.
2. The parts in contact with materials are made of 304 stainless steel, which meets GMP requirements;
3. Adopt tetrafluoroethylene piston and silicone sealing ring, and adopt high-quality brand pneumatic components;
4. Reasonable design, compact model, convenient operation, quick disassembly design of the filling system, easy to disassemble and wash after use;
5. The filling volume adjustment handle, the filling speed can be adjusted, the filling speed is fast, and the filling accuracy is high;
6. The filling head adopts anti-drip, anti-drawing and lifting filling devices;
7. It can be used with a variety of equipment, such as sealing machine, capping machine, vacuum packaging machine, etc.
Product Parameter
Model | HT-GZJ100 |
Filling range(ml) | 10-100 |
FOB Shanghai Price | USD850/Set |
Voltage | 220/110 v 50/60 hz |
Power | 10 w |
The rated pressure | 0.4-0.9MPa |
Air supply | 0.1m³ per min |
Filling speed | 10 to 30 bottle/min |
Filling accuracy | plus or minus 1% |
Details Images
Product Packaging
Packaging Details: Wooden Crate Packing. To avoid machine damage from transportation, ANKO's wood crate is double layered with inner supporting girders and nailed by staggering technique to increase its loading strength.
Port: Qingdao port or as customer's requirements
Port: Qingdao port or as customer's requirements
Company Profile
Henan Hento Co., Ltd. Zhengzhou Hento Machinery Company, Zhengzhou Honest Machinery Company, Shandong Beiqi Company, Hebei Yifeng company, Guangzhou Wancheng Company. Among them, Henan Hento Technology Co., Ltd is specialized in international trade business.
We are engaged in food machines,nut processing machine,packing machines,microwave equipment,drying machines,home products making machines,woodworking machines,construction machinery,etc. We began our UV Light Sterilizer 2015, there days have customers in Georgia, Azerbaijan,Mexico,Malaysia, etc Our company have strict quality-control system.We have passed the supplier assessment of German TUV,Swiss SGS and France BV. Part of our machines are CE certified. And we can provide customers technical supports,pre-sale and after-sale services at any time, which make us become popular supplier in domestic and abroad. Now our sales network has covered Europe,America,Southeast Asia,Middle East,Africa,etc.We are the gold member of Alibaba and Made-In-China. Henan
We are engaged in food machines,nut processing machine,packing machines,microwave equipment,drying machines,home products making machines,woodworking machines,construction machinery,etc. We began our UV Light Sterilizer 2015, there days have customers in Georgia, Azerbaijan,Mexico,Malaysia, etc Our company have strict quality-control system.We have passed the supplier assessment of German TUV,Swiss SGS and France BV. Part of our machines are CE certified. And we can provide customers technical supports,pre-sale and after-sale services at any time, which make us become popular supplier in domestic and abroad. Now our sales network has covered Europe,America,Southeast Asia,Middle East,Africa,etc.We are the gold member of Alibaba and Made-In-China. Henan
Hento Group,always adhere to the guideline “Quality is fundamental, service is the key.” Always with the principle of "Root on honesty, down-to-earth” ,we will keep optimizing after-sale service system and quality control system. We sincerely welcome domestic and foreign customers to join us and seek mutual development and win-win cooperation.
