SHBG630 ленточная пила для стыковой сварки машина цеха многоугольная установка стол hdpe тройник
- Категория: Arc Welders >>>
- Поставщик: Jinan,Bada,Plastic,Pipe,Welding,Equipment,Co.,Ltd.Jinan,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 76719.73 $* | 80555.84 $* |
| Aug-17-2025 | 76075.1 $* | 79879.90 $* |
| Jul-17-2025 | 63825.1 $* | 67016.0 $* |
| Jun-17-2025 | 74785.68 $* | 78524.89 $* |
| May-17-2025 | 65115.87 $* | 68371.41 $* |
| Apr-17-2025 | 73496.66 $* | 77171.58 $* |
| Mar-17-2025 | 72851.81 $* | 76494.24 $* |
| Feb-17-2025 | 72206.68 $* | 75816.30 $* |
| Jan-17-2025 | 71562.22 $* | 75140.55 $* |
Характеристики
Products Description

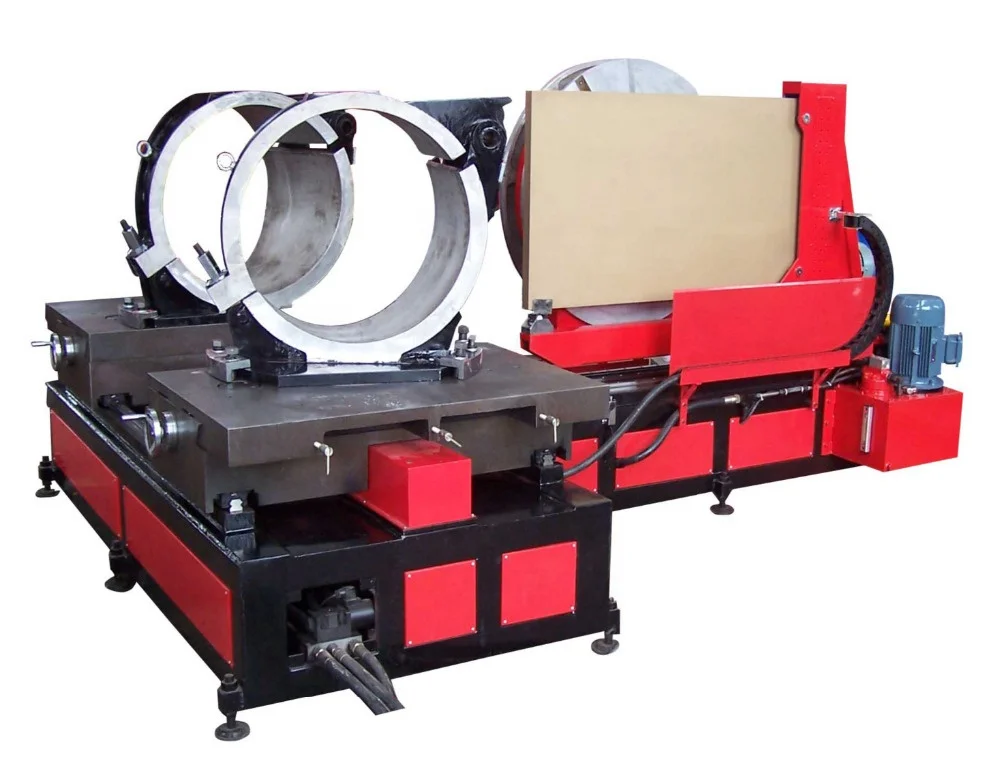

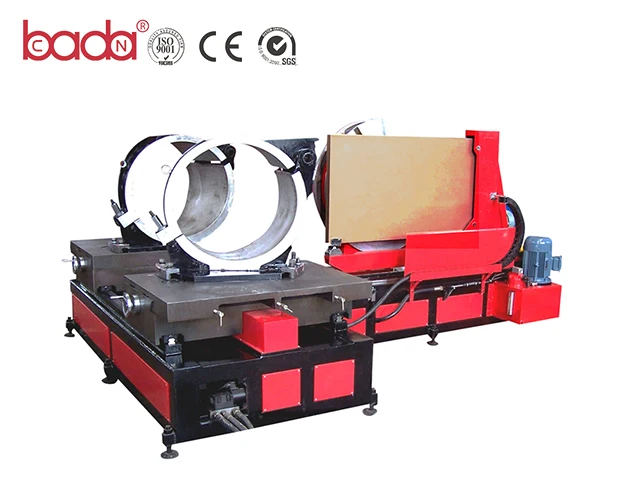

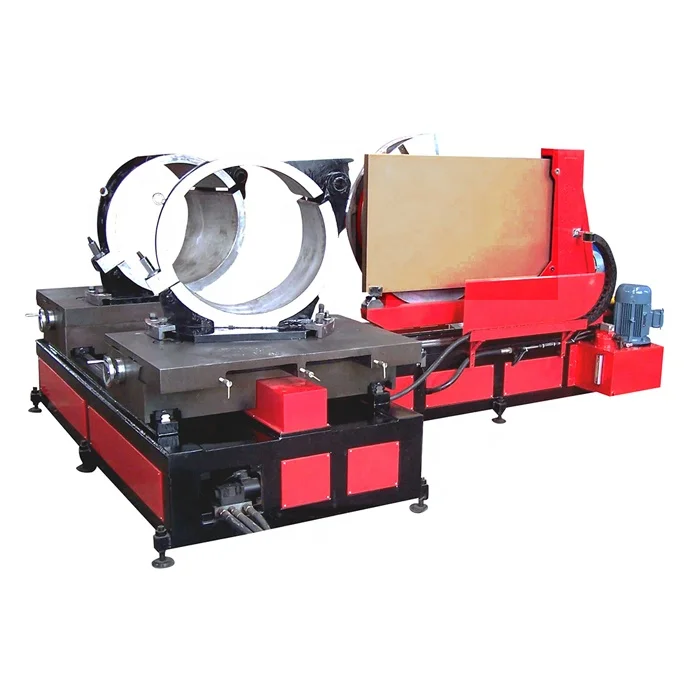

SHBG630 band saw butt welding machine workshop band multi-angle fitting table hdpe tee fabrication butt fusion machine
Details Images
Features
1. SHBG630 band saw butt welding machine workshop band multi-angle fitting table hdpe tee fabrication butt fusion machine with printing is suitable for fabricating elbow, tee, cross and we shape (45 and 609) Fittings of PE, PP, PVDF in work shop
2. Base on the integrated design, if welded different fitting you just need to replace the corresponding fixture
3. Heating plate uses independent temperature control system, removable PTFE coated
4. Electric face with safety limit switch can avoid the milling cutter accidental starting.
5. Low starting pressure ensures reliable welding quality of small pipes.
6.Separate two-channel timer can show both of soaking and cooling time
7. High-precision and shockproof pressure meter displays records clearly
8. Heating plate, milling cutter and support plate is on the linear guide track
9. Complies with 98/37 and 73/23 EEC standards
10. Optional components: short flange welding fixture, short pipe welding fixture.
Model | SHBG630 band saw butt welding machine workshop band multi-angle fitting table hdpe tee fabrication butt fusion machine |
Pipe Sizes(mm) | 90,110,125,140,160,180,200,225,250,280,315 |
Application | 0~90°elbow, tee, cross,wyes |
Pressure adjustment range | 0-6MPa |
Working Voltage | 380V,50Hz |
Heating plate power | 5.15kw |
Cutter power | 0.75kw |
Hydraulic station power | 1.5kw |
Total Power | 7.45kw |
Machine frame material | aluminum ZL104 |
Gross weight | 884kgs |
1. Using Teflon coating material imported from Japan, after twice coating and three processes.
2. The solid core of the Heating plate is thickened and non-stick tube, the heat transfer is even, supporting the aviation
connection line to ensure the contact safety of the power supply.
3. Compared with other manufacturers, the thickness of Heating plate is increased by 5mm, and the heat storage and thermal conductivity are strong.
1. Timer, pressure gauge, temperature controller and alarm shall be installed on the operating table to facilitate observation and improve welding efficiency.
2. The temperature controller and pressure regulating valve are CE certified, and the control precision can reach 0.01%.
3. The hydraulic station is installed with an accumulator, which can realize the function of automatic pressure replenishment and reduce the number of manual pressure replenishment.
1. High power milling cutter, mirror cutter disk, strong motor, high concentricity, smooth milling.
2. High-power Bosch drill is adopted for milling motor, which is strong and strong without slipping
3. The milling cutter is equipped with a limited position switch, which can be rotated only when placed in the frame to prevent accidental injury.
2. The solid core of the Heating plate is thickened and non-stick tube, the heat transfer is even, supporting the aviation
connection line to ensure the contact safety of the power supply.
3. Compared with other manufacturers, the thickness of Heating plate is increased by 5mm, and the heat storage and thermal conductivity are strong.
1. Timer, pressure gauge, temperature controller and alarm shall be installed on the operating table to facilitate observation and improve welding efficiency.
2. The temperature controller and pressure regulating valve are CE certified, and the control precision can reach 0.01%.
3. The hydraulic station is installed with an accumulator, which can realize the function of automatic pressure replenishment and reduce the number of manual pressure replenishment.
1. High power milling cutter, mirror cutter disk, strong motor, high concentricity, smooth milling.
2. High-power Bosch drill is adopted for milling motor, which is strong and strong without slipping
3. The milling cutter is equipped with a limited position switch, which can be rotated only when placed in the frame to prevent accidental injury.
1. Easy to use
2. Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.
3.Welding position can transform that it is convenient for welding all kinds of pipe fittings.

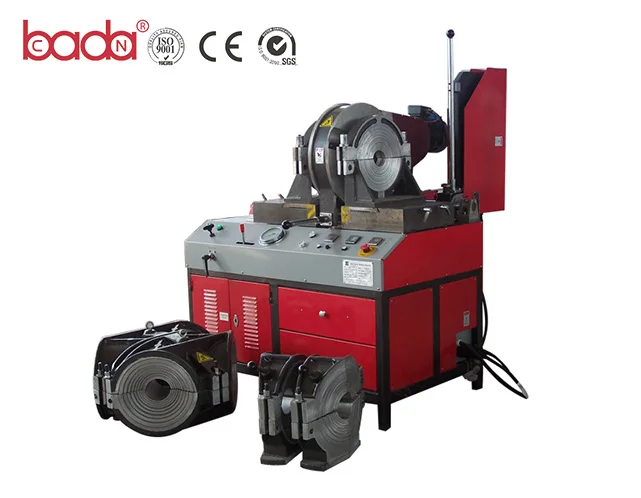

Recommend Products
Company Profile
Certifications
WHY CHOOSE US
1) Advanced laboratory
2) Mature fusion welding technology
3) Spare parts warehousing quality inspection, inspection during the production process, complete machine inspection and commissioning before delivery.
4) Cooperate with well-known universities, participate in the drafting of GB national standard, provide training for fusion welding technicians at home and abroad, and support free online video guidance.
5) Sufficient spare parts inventory, short delivery time, less than 50 sets, delivery time 7-10 working days, in line with ROHS 2.0 standard.
2) Mature fusion welding technology
3) Spare parts warehousing quality inspection, inspection during the production process, complete machine inspection and commissioning before delivery.
4) Cooperate with well-known universities, participate in the drafting of GB national standard, provide training for fusion welding technicians at home and abroad, and support free online video guidance.
5) Sufficient spare parts inventory, short delivery time, less than 50 sets, delivery time 7-10 working days, in line with ROHS 2.0 standard.
7) CE, SGS, ISO9001 certificate
8) Provide on line video technique teaching of fusion welding
9) 2 years warranty
8) Provide on line video technique teaching of fusion welding
9) 2 years warranty

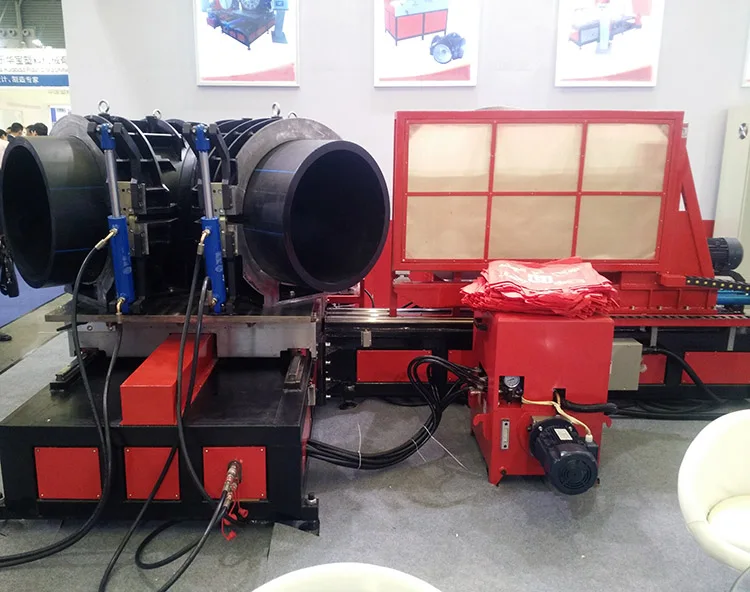

Exhibition
