Sunward 2500 мм диаметр сверления роторный свайный буровая установка SWDM300H сваебойная машина
- Категория: Pile Driver >>>
- Поставщик: Oriemac,Machinery,&,Equipment,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 476000.60 $* | 499800.84 $* |
| Aug-17-2025 | 472000.81 $* | 495600.79 $* |
| Jul-17-2025 | 396000.30 $* | 415800.38 $* |
| Jun-17-2025 | 464000.17 $* | 487200.80 $* |
| May-17-2025 | 404000.95 $* | 424200.76 $* |
| Apr-17-2025 | 456000.32 $* | 478800.93 $* |
| Mar-17-2025 | 452000.31 $* | 474600.51 $* |
| Feb-17-2025 | 448000.56 $* | 470400.47 $* |
| Jan-17-2025 | 444000.27 $* | 466200.64 $* |
Характеристики
Product Description

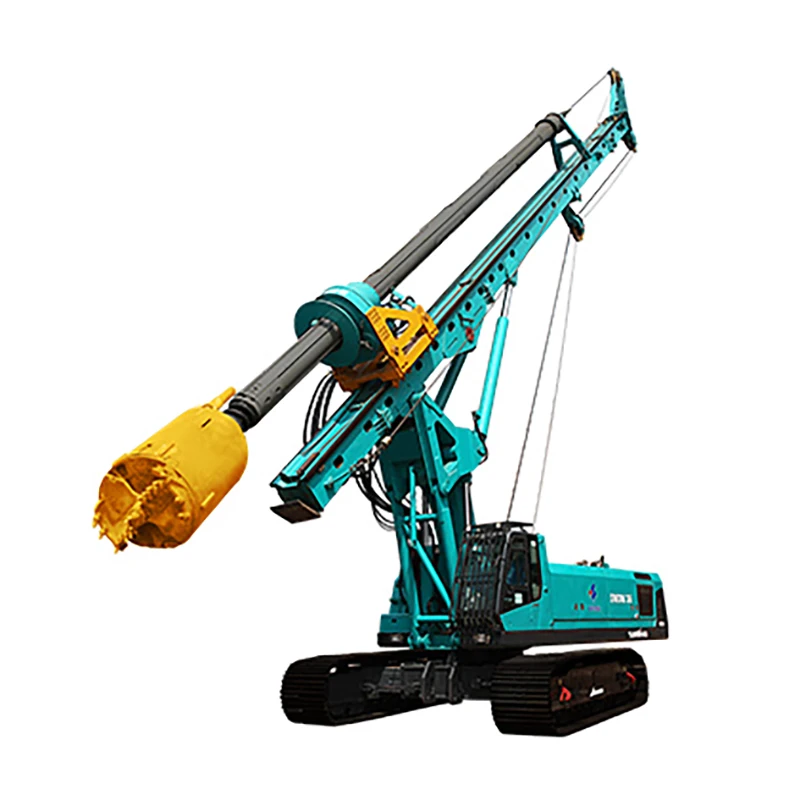

Sunward SWDM 300H Piling Machine 2.5m Diameter 100m Depth Rotary Drilling Rig
Sunward Rotary Drilling Rig has unique advantages in complete machine stability,control technology,steel wire rope consumption and other performance indicators, and its comprehensive performance has reached the international advanced level.Sunward rotary drilling rig is not afraid of medium(slight) weathering, hard sand layer,large gravel layer and other complicated geological conditions, and has successively participated in the construction of Panzhihua Steel Vanadium and Titanium Base, Hong Kong-Zhuhai-Macao Bridge, Harbin-Dalian Passenger Dedicated Line, Bird's Nest Stadium, Shanghai-Nanjing Railway, Shanghai-Kunming Railway,Lasa-Rikaze Railway, Lanzhou-Urumqi High-speed Railway and other major projects.At the same time, Sunward rotary drilling rigs have also been exported to Southeast Asia, Europe,America, Africa and other countries and regions in large quantities to participate in local key projects.
Specification
Model | SWDM300H | SWDM360 | SWDM360H-2 | SWDM360H-3 | SWDM400 | |
Max. drilling diameter | mm | 2500 | 2500 | 2500 (3000) | 2500 (3000) | 2500 (3000) |
Max. drilling depth | m | 95/62 | 100/64 | 96/62 | 102/66 | 104/69 |
Engine power | kw | 298 | 298 | 399 | 399 | 399 |
Max. torque | kN.m | 320 | 360 | 418 | 418 | 418 |
Rotation speed | rpm | 6~32 | 6~32 | 6~25 | 6~25 | 6~25 |
High-speed throwing soil (optional) | rpm | / | / | / | / | / |
Working weight | t | 105 | 115 | 130 | 132 | 135 |
Working height | mm | 25130 | 26150 | 25790 | 27200 | 27200 |

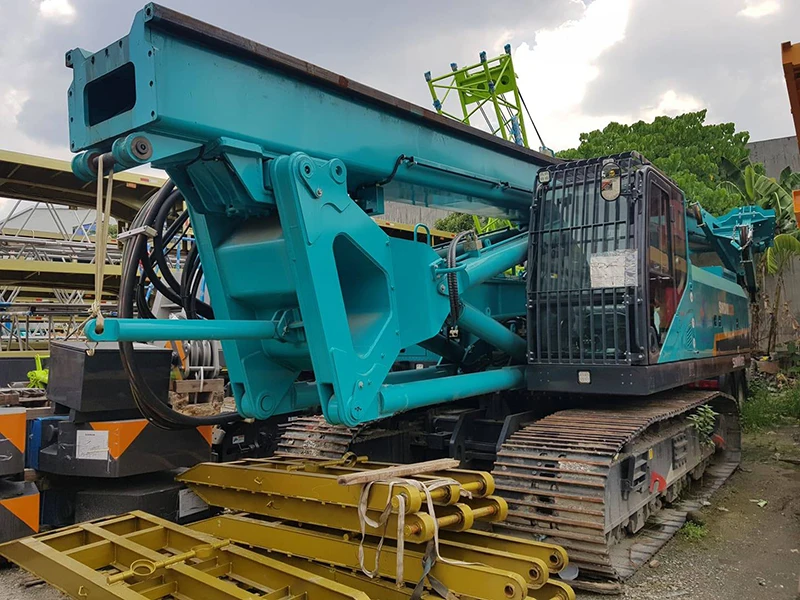

Product Show

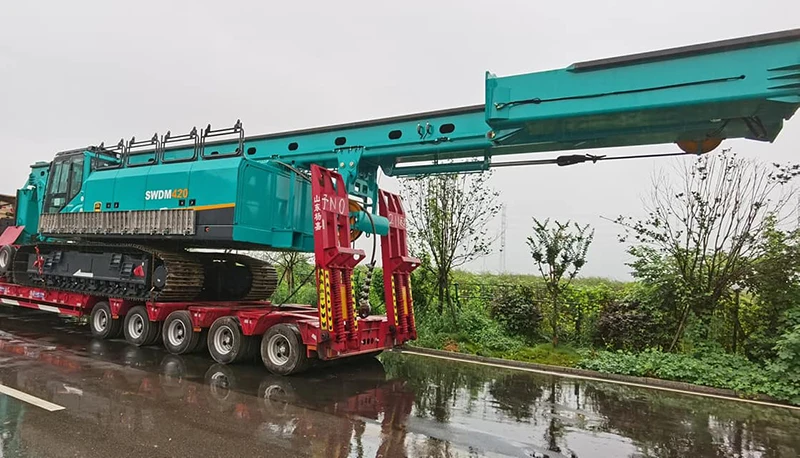

Packing & Shipping
