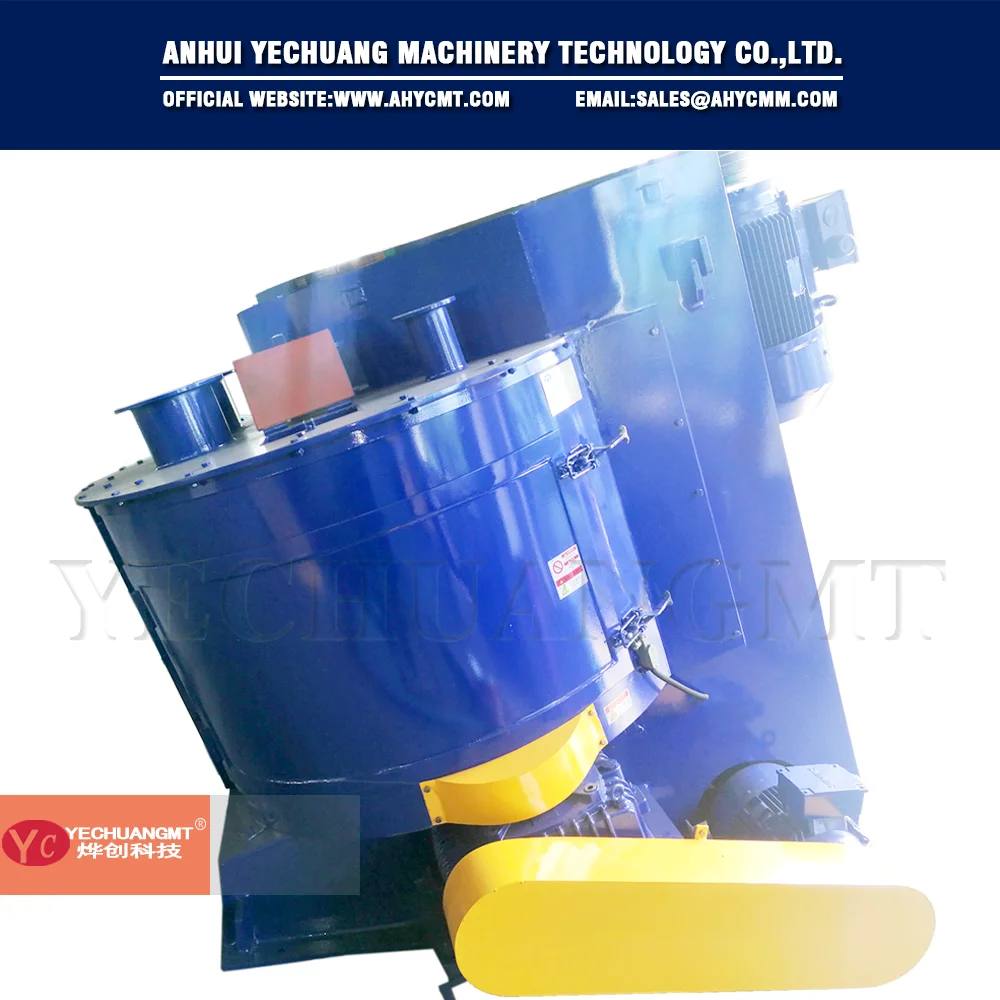

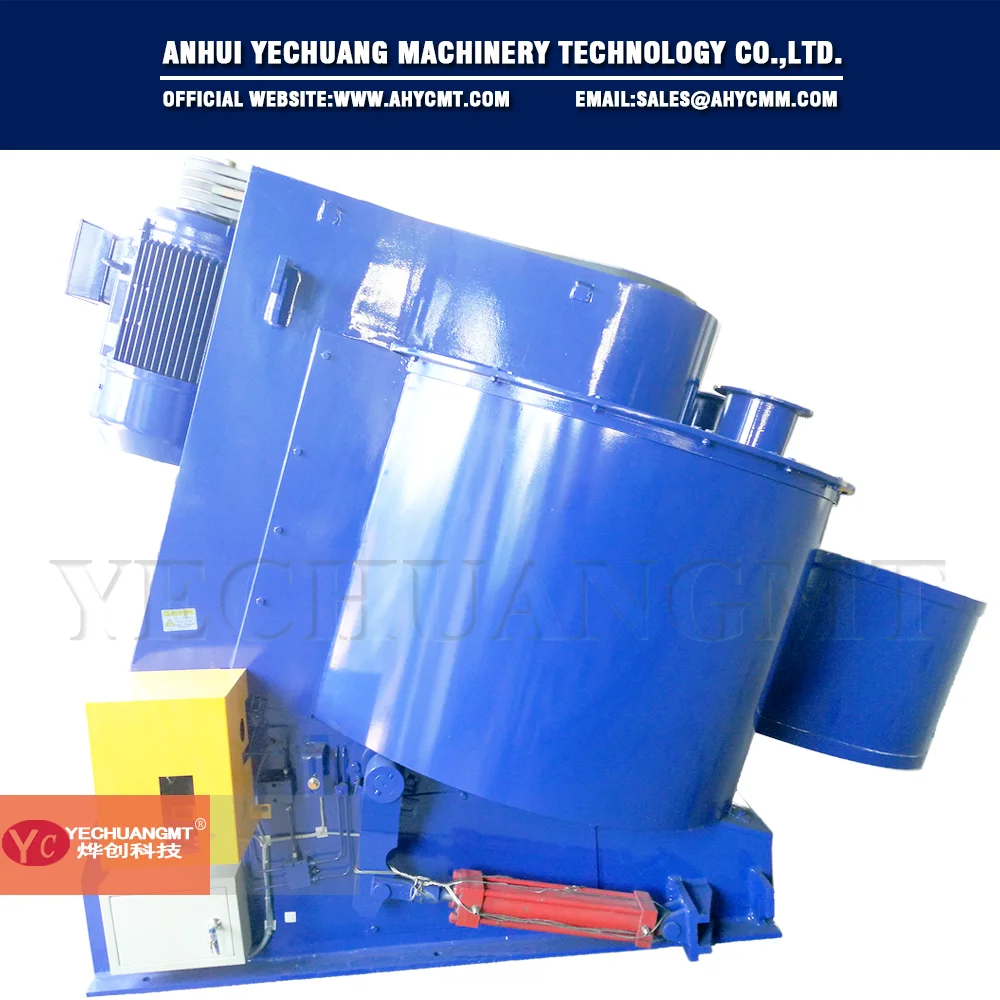

Стационарный миксер MX12 емкостью 300 л для огнеупорных
- Категория: Mixing Equipment >>>
- Поставщик: Anhui,Yechuang,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 62229.61 $* | 63474.2 $* |
| Jul-15-2025 | 50469.59 $* | 51478.10 $* |
| Jun-15-2025 | 61249.91 $* | 62474.11 $* |
| May-15-2025 | 60759.13 $* | 61974.58 $* |
| Apr-15-2025 | 48509.0 $* | 49479.58 $* |
| Mar-15-2025 | 59779.49 $* | 60975.48 $* |
| Feb-15-2025 | 59289.78 $* | 60475.96 $* |
| Jan-15-2025 | 58799.87 $* | 59975.3 $* |
Характеристики
Product Description
Product Application
We design,manufacture and supply batch and continuous mixing machinery and system for the processing of raw materials,compounds,waste and residue in the following fields:
Refractories,Ceramics,Glass,Building Materials,Chemicals,Energy,Carbon Graphite,Welding Flux etc.
SPECIFICATIONS OF MX SERIES INTENSIVE MIXERS | ||||||||||||||||||
Model | MX03T | MX05T | MX08T | MX09T | MX11 | MX12 | MX15 | MX19 | ||||||||||
Mixing Bowl | Mixing Volume | 10L | 40L | 75L | 150L | 200L | 300L | 500L | 1000L | |||||||||
Bowl Dimensions | Φ350×275 | Φ500×360 | Φ800×500 | Φ900×700 | Φ1100×750 | Φ1250×800 | Φ1500×820 | Φ1900×890 | ||||||||||
Inclined Angle | 30° | 30° | 30° | 30° | 20° | 20° | 20° | 20° | ||||||||||
Rotating Speed | 36rpm | 27rpm | 32rpm | 22rpm | 20rpm | 19rpm | 17rpm | 11rpm | ||||||||||
Driving Motor Power | 1.1KW | 1.5KW | 4.5KW | 5.5KW | 7.5KW | 11KW | 18.5KW | 15KW | ||||||||||

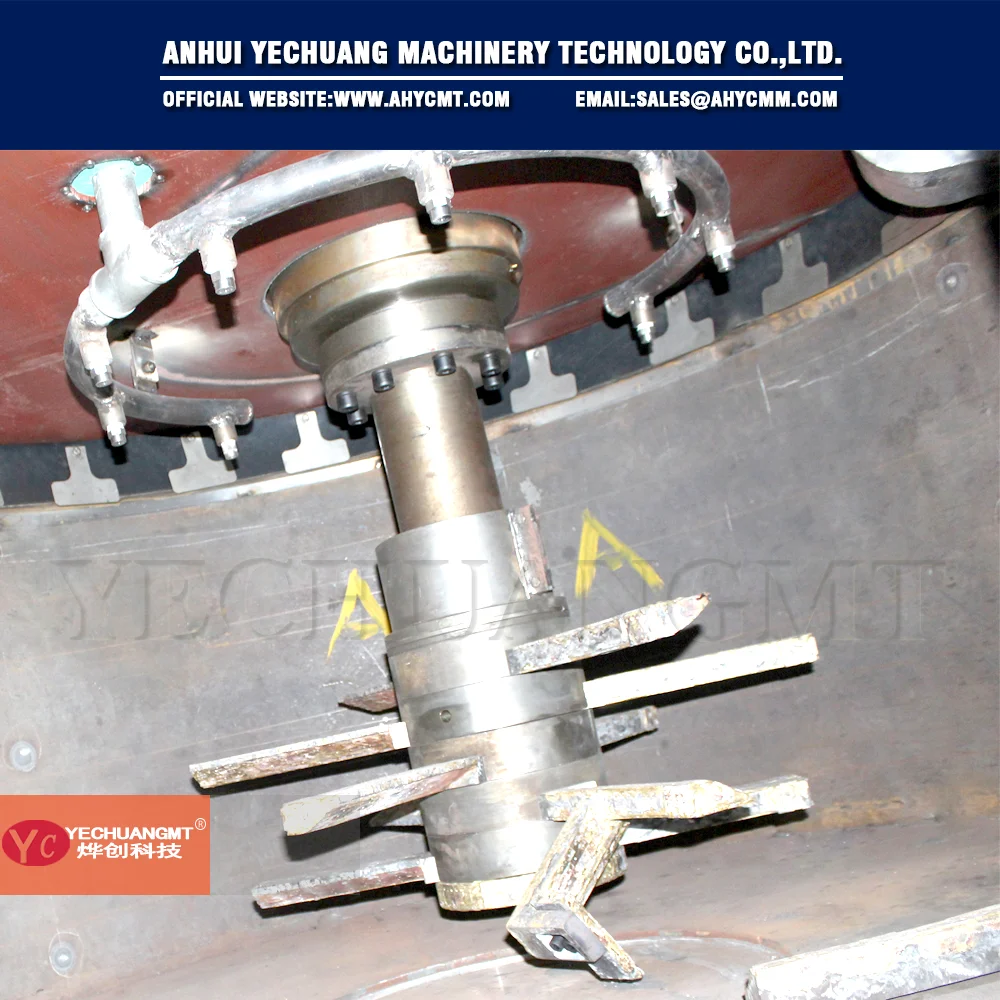

Mixing Rotor | Rotor Diameter | 180mm | 280mm | 350mm | 450mm | 580mm | 650mm | 700mm | 900mm | |||||||||
Rotating Speed | 400rpm | 1200rpm | 700rpm | 750rpm | 600rpm | 300rpm | 500rpm | 500rpm | ||||||||||
Driving Motor Power | 4KW | 15KW | 15KW | 22KW | 22KW | 37KW | 75KW | 75KW | ||||||||||
Discharging Door | Discharging Way | Silo Inclines to Discharge | Silo Inclines to Discharge | Silo Inclines to Discharge | Silo Inclines to Discharge | Hydraulic Central Discharge | Hydraulic Central Discharge | Hydraulic Central Discharge | Hydraulic Central Discharge | |||||||||
Pressure | 70Kg/cm² | 70Kg/cm² | 70Kg/cm² | 70Kg/cm² | 70Kg/cm² | 70Kg/cm² | 70Kg/cm² | 70Kg/cm² | ||||||||||
Driving Motor Power | 0.75KW | 0.75KW | 2.2KW | 2.2KW | 2.2KW | 2.2KW | 2.2KW | 2.2KW | ||||||||||
Dimensions(L*W*H) | 950*550*1750 | 1088*700*2020 | 1750*1000*2500 | 1800*1100*2800 | 2100*1500*2100 | 2200*1700*2300 | 2800*1970*2600 | 3300*2400*2900 | ||||||||||
Weight(KG) | 900 | 1000 | 2600 | 3000 | 3500 | 4300 | 7000 | 11000 | ||||||||||
Main Features
1) A rotating mixing pan that continually transports the material to the rotating mixing tool,including counter-flowing currents of materials with a high velocity differential.
2) An inclined rotating mixing pan,which together with a stationary multi-purpose wall-bottom scraper produces high vertical flow rates.
3) A multi-purpose wall-bottom scraper designed to prevent residue accumulations on the walls and bottom surface of the mixing pan and to accelerate material discharge at the end of the mixing cycle.
4) Rugged and minimum-maintenance design.Easy replacement of mixing blades.The shape and the number of mixing blades are adapted to the process material.
5) Intermittent or continuous mode of operation optional.
Detailed Images

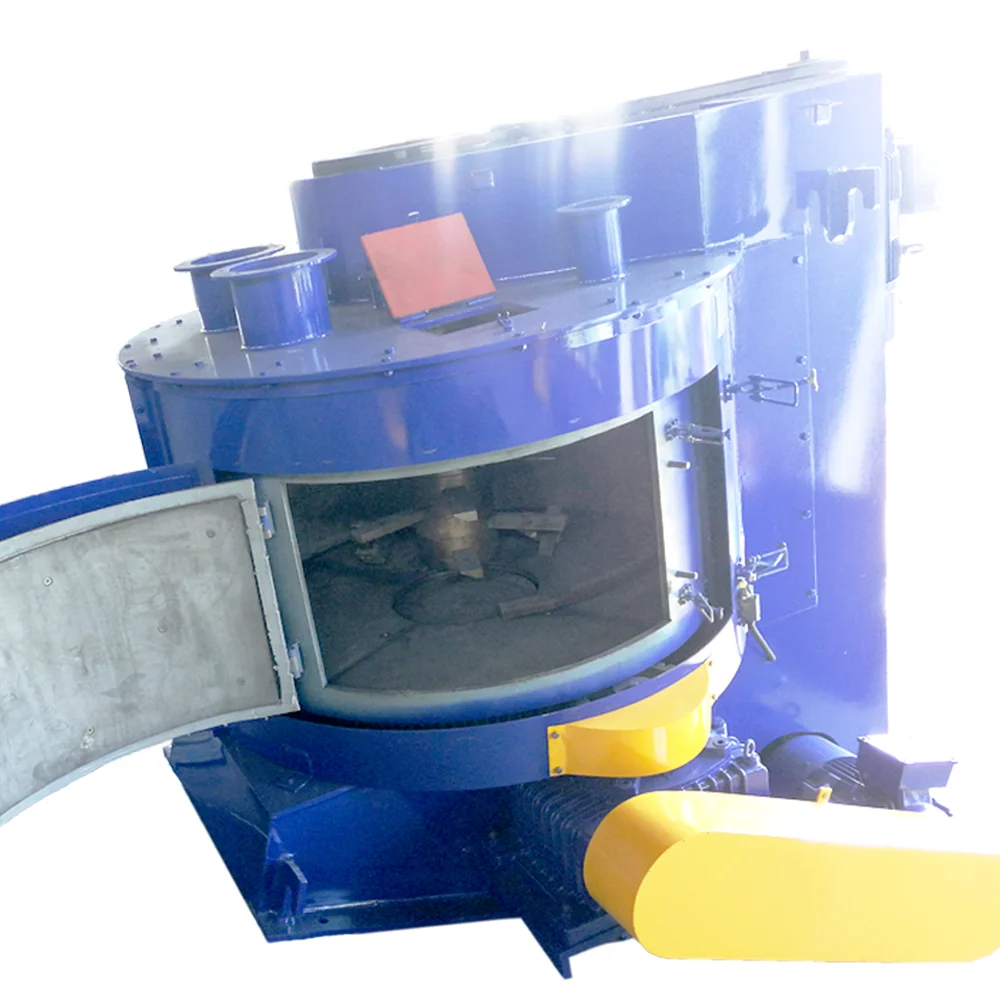

MIXING BOWL
Brand: YECHUANG
Original: China(mainland)
Bottom,cover and side walls with smooth finished surfaces for easy cleaning.Individually designed to charge and discharge according to the product parameters and the conditions of installation.
LUBRICATION CONTROL SYSTEM
Brand: Tilorms
Original: China(Taiwan)
Applying Tilorms model RF-3 lubrication control system(made in Taiwan),monitoring the hydraulic pump and reducer oil temperature,oil level real-timely.

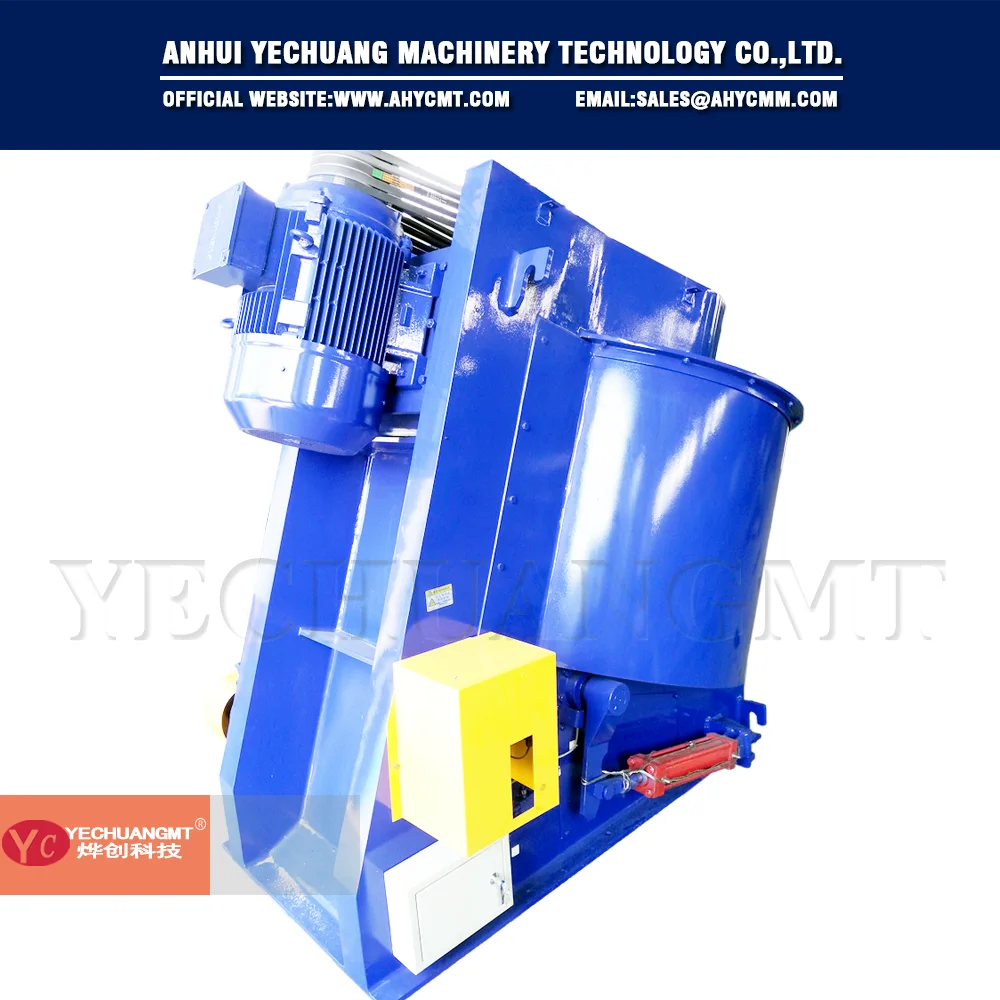

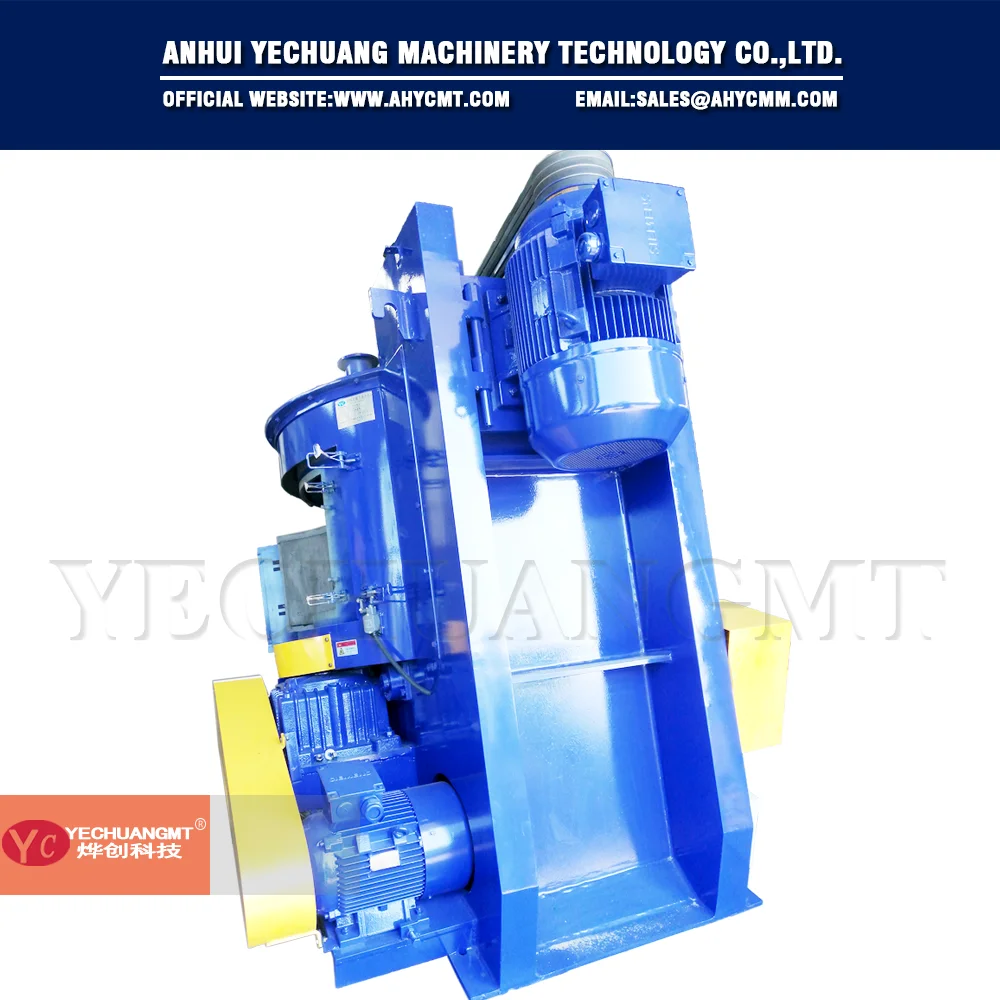

MIXING ROTOR DRIVING MOTOR
Brand: Siemens Beide
Original: Sino-Germany Joint Venture
The mixing rotor driving motor is at the back top of the mixer.Power requirement,speed and the type of power transmission are chosen in accordance with the particular application.
HYDRAULIC PUMP STATION
Brand: Kompass
Original: China(Taiwan)
We use Taiwan Kompass hydraulic pressure pump station to serve the oil cylinder.Normally, since the factors of safety on shipment,the oil will be empty when delivery.
Manufacturing & Installation
At present, Yechuang MT has more than 20 engineers and r&d personnel of various types, and has successively applied for or owned more than 10 patents for invention and utility model.
Honest management is the foundation of a strong enterprise.Over the years, the company adhering to the "highest quality, sincere service" business philosophy, customer satisfaction as the highest requirement, quick and thoughtful zero-defect service, has won a high degree of trust from at home and abroad users.
Customer Visitings & Free Testings
POLISH CUSTOMERS COMING TO VISIT OUR FACTORY FOR CARBON BLACK GRANULE PROCESSING
Date: Sep.21th to Jul.16th.2018.
Testing Machine:MX03T Granulator
Raw Materials:
Carbon Black(5kg)+Water(500ml) Granulating Time:3-4mins
Mesh Screen:20-40mesh
Production Rate(first batch):≥95%
Testing Machine:MX03T Granulator
Raw Materials:
Carbon Black(5kg)+Water(500ml) Granulating Time:3-4mins
Mesh Screen:20-40mesh
Production Rate(first batch):≥95%
INDIAN CUSTOMERS COMING FOR PROPPANT PROCESSING(400-650 MICRONS)
Date: Dec.5th to Dec.8th.2017.
Testing Machine:MX03T Granulator
Raw Materials:Bauxite(5kg)+Water
& Silicate Sodium(750ml)
Granulating Time:4-5mins
Mesh Screen:16-32mesh
Production Rate(first batch):90%-95%
SHANDONG CUSTOMERS COMING FOR WATER COAL PASTE PREPARATION
Date: Aug.30th.2019.
Testing Machine:MX05T Lab Mixer
Raw Materials:Coal Powder(10kg)+
Testing Machine:MX05T Lab Mixer
Raw Materials:Coal Powder(10kg)+
Water & Dispersing Agent(1000ml)
Mixing Time:3-5mins
Fluidity:Smoothy
Processing Efficiency:≥98%
Fluidity:Smoothy
Processing Efficiency:≥98%
Successful Cases
Finished Particle Samples
Zirconia Granules
Raw Materials:Zirconia Powder+Water
Mixer Rotor:Granulating Pins
Bauxite Granules
Raw Materials:Bauxite(Aluminous Soil)+Sodium Silicate(Water Glass)
Mixer Rotor:Mixing Blades
Fly Ash Granules
Raw Materials:Fly Ash(Pulverized Fuel Ash or Coal Ash)+Water
Mixer Rotor:Granulating Pins
Packing & Delivery
Packaging | ||
Size(mm) | 1750 (L) * 1000 (W) * 2500 (H) | |
Weight(kg) | 2800 | |
Main Parts | Mixer Main Body,Control Cabinet,Hydraulic Pressure Station | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If container is too tight,we will use pe film for packing or pack it according to customers special request. | |
Port of Departure | Shanghai,Guangzhou | |
Spare Parts
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Professional technical explanation.
* Help customers design product applications,providing total solutions.
* Detailed quotation with specification.
After-Sales Service
* Quick delivery and shipment.
* Free trainings on installation,operation and maintenance.
* Use-friendly English software ,user manual and detailed videos/CDs
* Provide long-term maintenance and spare parts supply.
* Engineers available to service machinery overseas.
