Характеристики
Grinding Your Device, Shining Our Dream

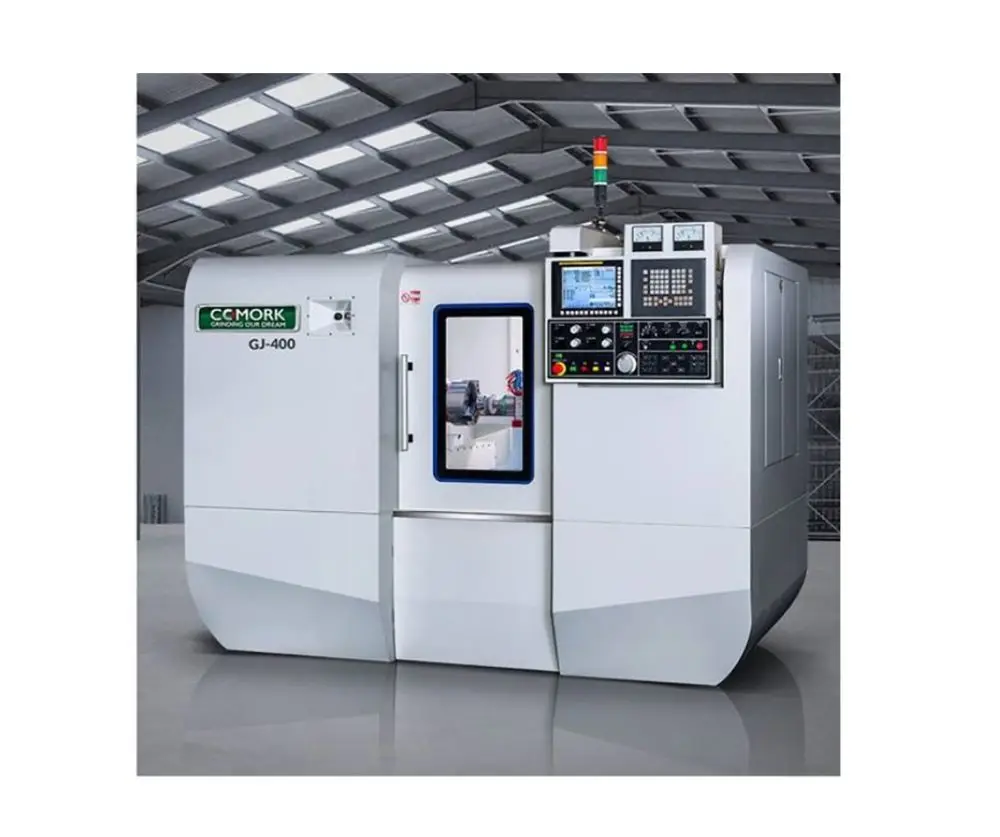

CNC Hybrid ID&OD Grinding machine
GJ-400A
product specifications
Machine Specification
Cateorgy | GJ-400A |
Max. workpiece diameter | 400mm |
Workhead revolve speed | 0-1000rpm |
Spindle plane manual angle adjust | +15˚ ~ -2˚ |

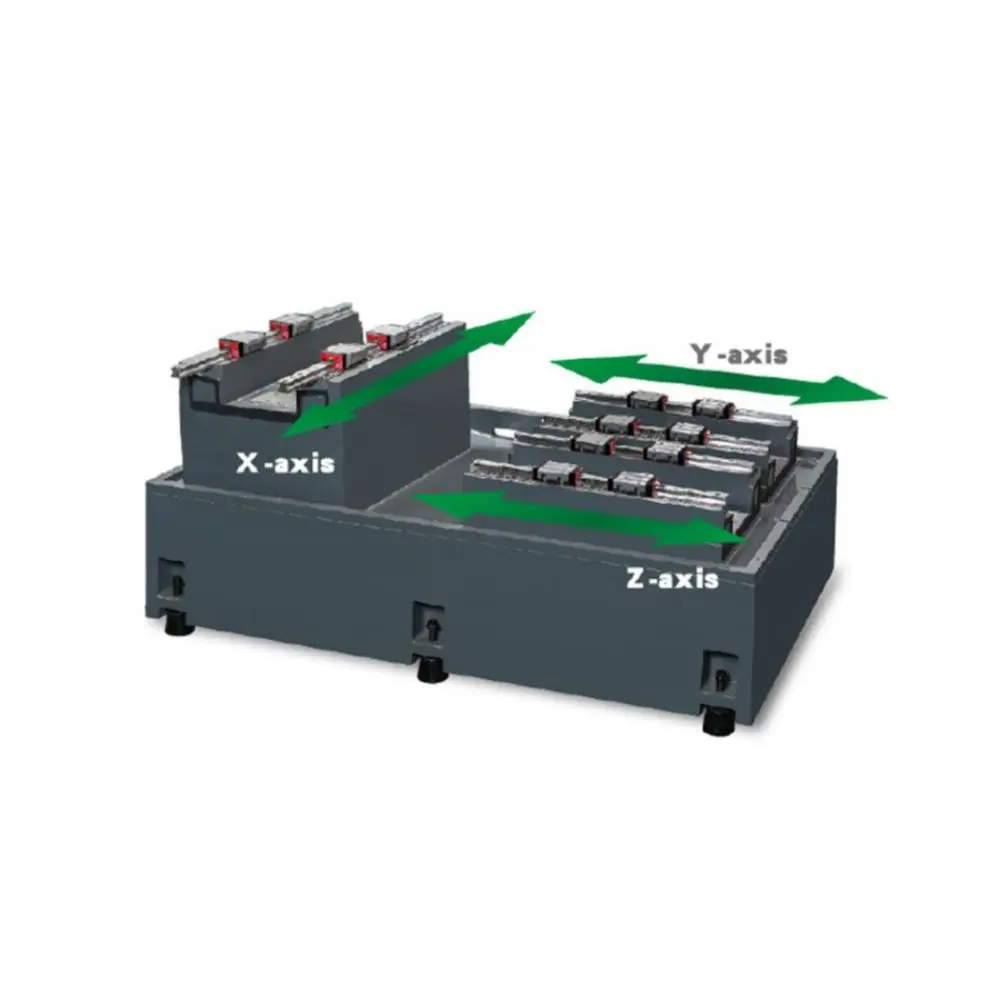

Max travel: X axis | 360mm |
Max travel: Y/Z axis | 340+240mm |
ID processing scope | Ø 0 ~ 310 mm |
OD processing scope | 380 mm x 100 mm |
Length processing scope(ID) | 250 mm |
Max. workpiece weight | 56kg |
X/Y/Z axis travel speed | 0 ~ 10,000 mm / min |
Axis travel unit | 0.0001 mm |
Spindle motor type | 3HP 2kw 2P |
Spindle rotation speed | 8,000 ~ 50,000 rpm |
Power demand | 15kw |
Machine net weight | 4500kg |
Main Product
GJ-400A
GJ-400B
GO-350
G0-354
GO-356
GJ-412
Belt Driven Spindle
Built-in Motor Spindle
Precision component manufacturing
OEM
Our Advantages
Curved surface
Use our Know-how and our independent development pictoprogramming to processing.
Enhance the technology of grinding field.
Enhance the technology of grinding field.

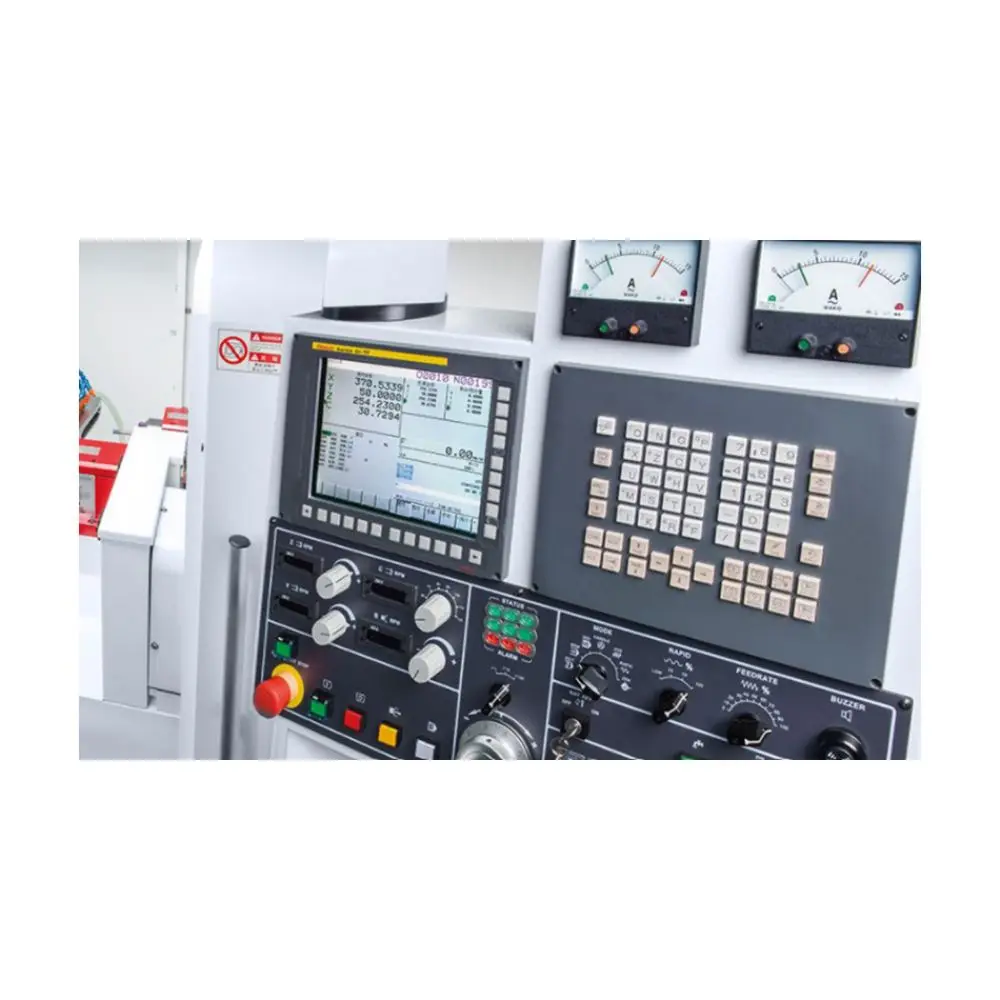

Pictogramming
Original pictograming based on FANUC system ,all controls are clearly and engoromically arranged,an important role is played by the manual control unit ,which facilitate setup close to the grinding process.
And built-in security settings and error warning,prevent new wrokers keyin error,so new wrokers also can finish setup procedure
and manufacture.
And built-in security settings and error warning,prevent new wrokers keyin error,so new wrokers also can finish setup procedure
and manufacture.
Multifaceted processing
Take controller special software and design,to grinding complex workpiece and multifaceted processing can do once and for all.
Make sure of high efficiency and high degree of precision,both lower the cost of manufacturing.
Make sure of high efficiency and high degree of precision,both lower the cost of manufacturing.
Current monitoring system
Monitoring the current of spindle motor, when wheel touch the workpiece, the current strength of spindle motor will rise.
By this phenomenon to eliminate empty stroke.
By this phenomenon to eliminate empty stroke.
Manufacturing Process
Standardizing Manufacturing Process
All the machine and after services are follow these rule, then whole of the handover machine process it's finish.
