【Function Description】
1.Display: High-Definition LED display to monitor the insemination process.

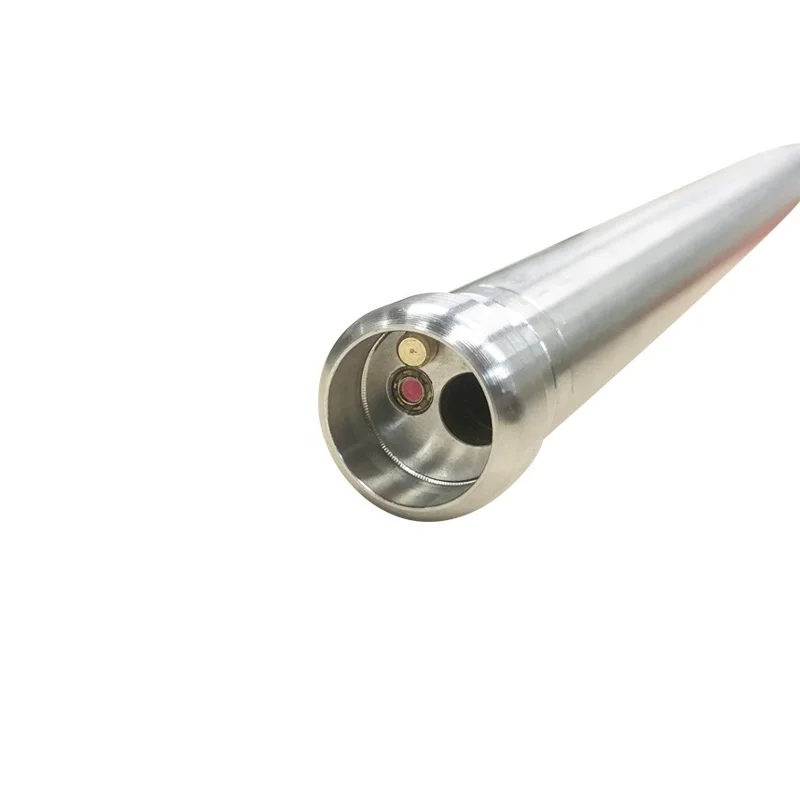

2. Probe: The probe is made of medical stainless-steel. It is waterproof, anti-corrosive, rust-proof
and it can be cleaned with disinfectants. The built-in heating and vibration function can relieve
tensions of cows.
3. Micro lens camera: Ultra-clear cold light source camera which can take photos, record videos.
The lens hood covers the camera that is convenient for cleaning, disinfecting the camera and
observing the condition of the uterus.
4. Blowing and vibration features: Due to the hysterotrismus and the vaginismus caused by fear
and discomfort of cows, it is difficult to insert the insemination needle into the uterus. Squeeze the
trigger can activate the vibration feature to relieve the cramp. Activate the vibration feature after
the completion of the insemination can promote uterine contraction, sperm capacitation and well
distribution.Built-in electric air pump will also be activated when squeezing the trigger. The air gate can blow away the fog caused by temperature difference and the mucus on the camera during the operation.

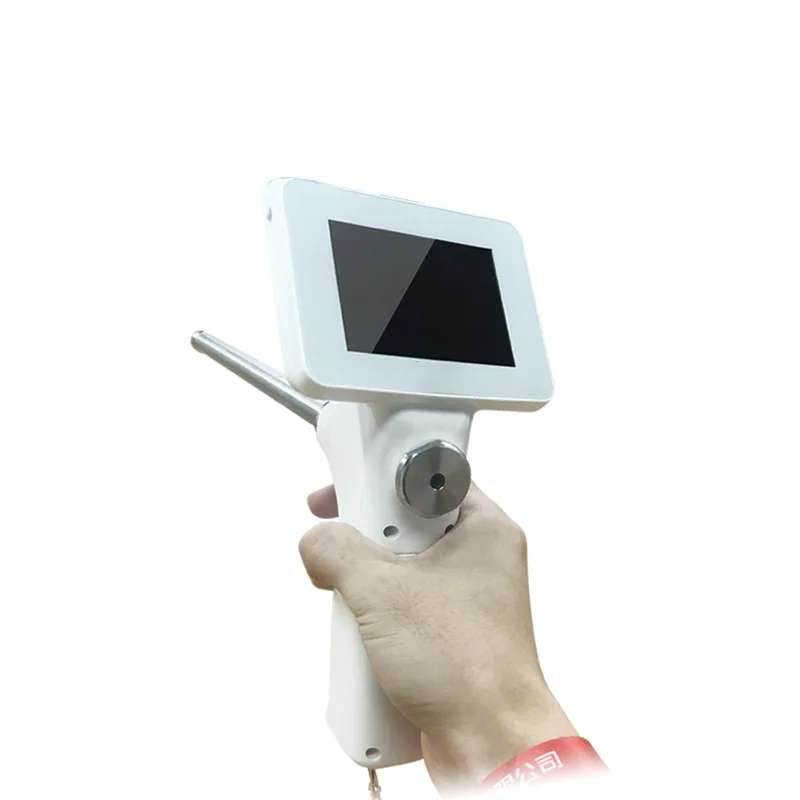

5.Grip: The handle was designed according to the shape of the hand. The grip is comfortable to
hold. The anti-drop rope is designed under the handle to prevent the device from falling.
6. Heating socket: The gun can be connected to a mobile power source to heat the probe. Heating
and thermostat can avoid damage and discomfort to the vagina due to temperature difference in
winter.

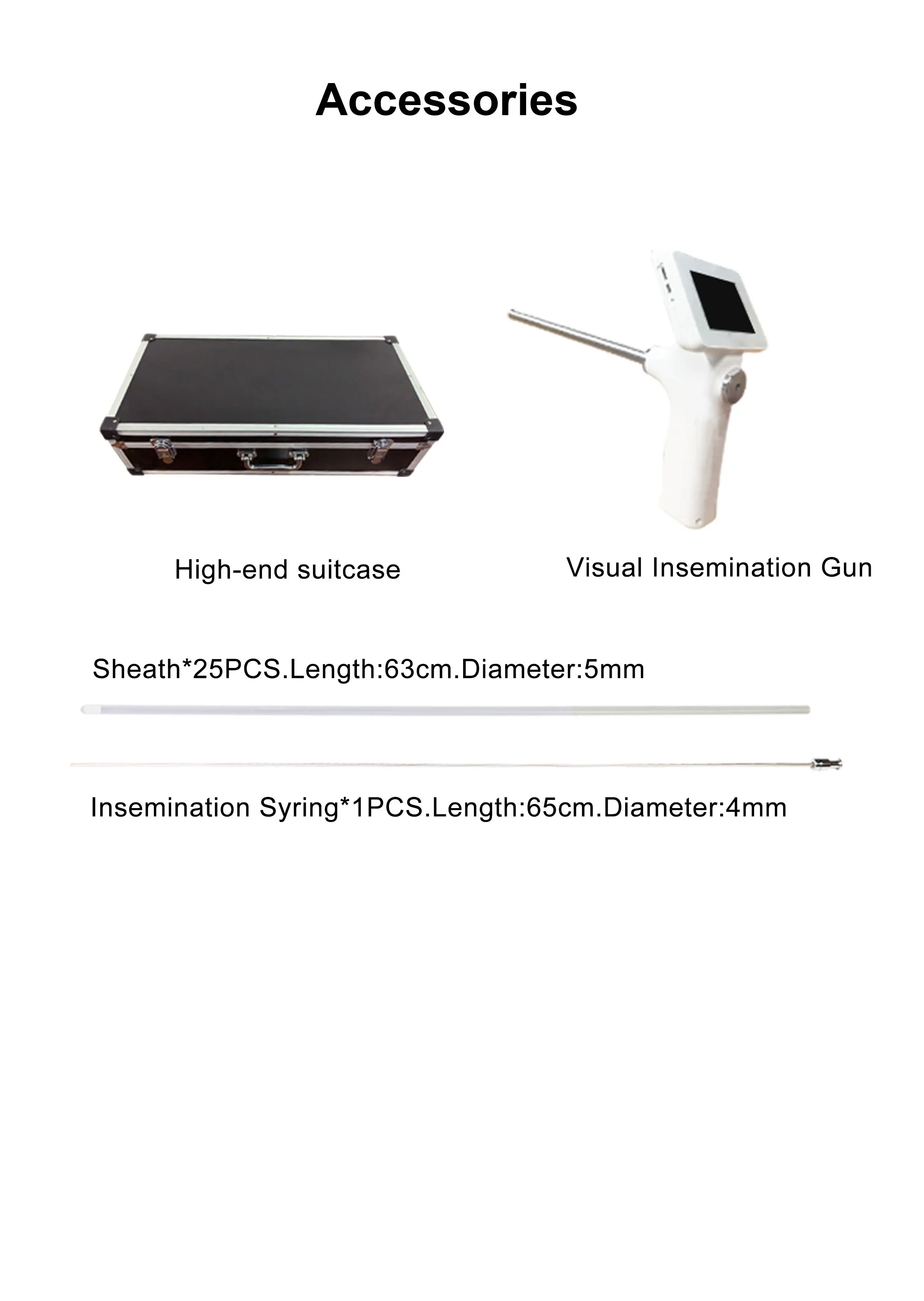

7. Insemination syring channel: The insemination syring with a disposable sheathis inserted from
the insemination syring channel of the visual gun. The design of disposable sheath can easily enter
the uterus orifice and go through the multi-layered pleated cervix (about 6-13 cm) .It can also
avoid cross-infection caused by traditional insemination with hand in rectum.
8. Disposable insemination sheath: The circular arc design of the insemination sheath is designed
to easily pass through the cervix to reach the intrauterine insemination.
