Резиновая лента для дробеструйной машины
- Категория: Rubber Belts >>>
- Поставщик: Yancheng,Fengyao,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.78 $* | 0.92 $* |
| Aug-20-2025 | 0.14 $* | 0.98 $* |
| Jul-20-2025 | 0.52 $* | 0.54 $* |
| Jun-20-2025 | 0.59 $* | 0.63 $* |
| May-20-2025 | 0.53 $* | 0.6 $* |
| Apr-20-2025 | 0.75 $* | 0.56 $* |
| Mar-20-2025 | 0.56 $* | 0.79 $* |
| Feb-20-2025 | 0.65 $* | 0.43 $* |
| Jan-20-2025 | 0.88 $* | 0.43 $* |
Характеристики

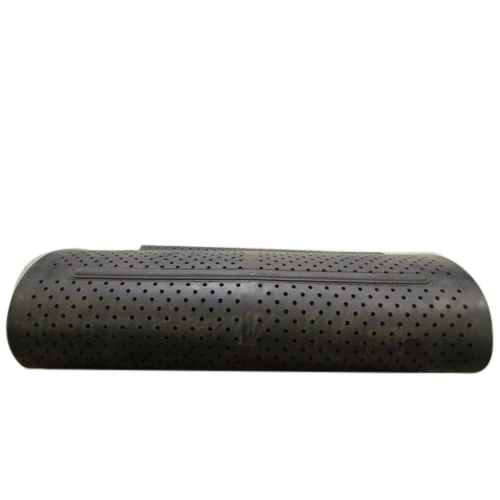

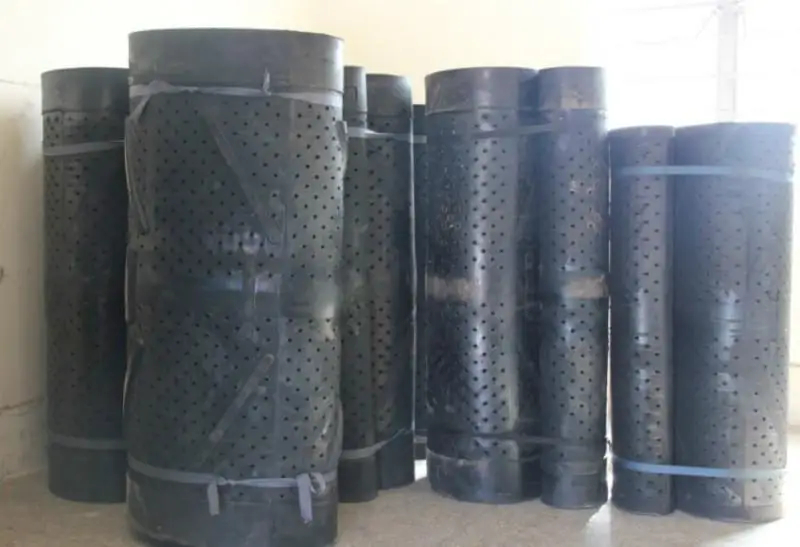

Rubber belt for shot blasting machine
Rubber belt track is mainly used for shot blasting machine,

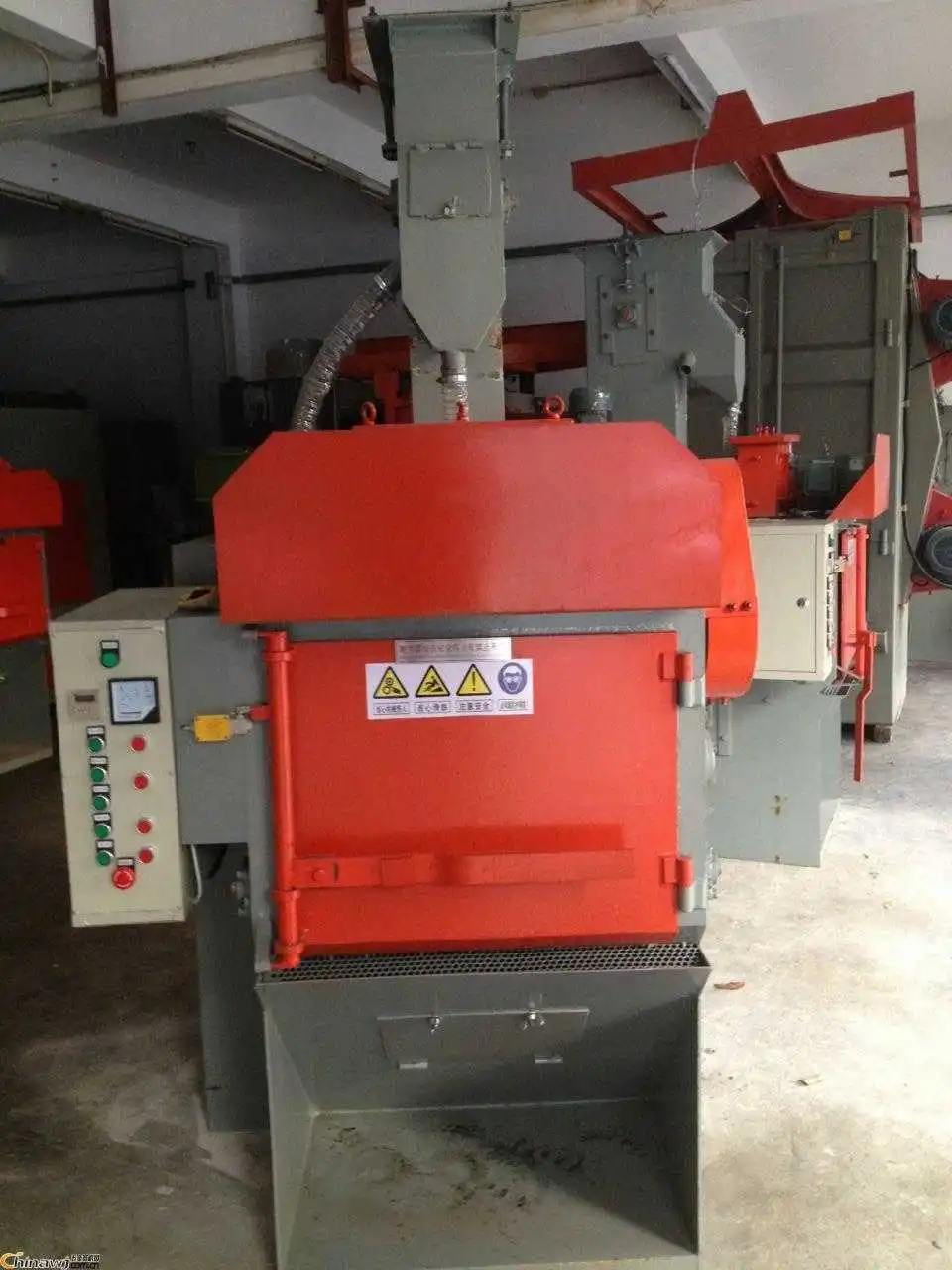

Crawler shot blasting machine can be used for cleaning tools, spring chain, precision casting, die casting, copper parts, stainless steel products, etc.
Model of rubber track of shot blasting machine: q326, Q320, etc.
The crawler shot blasting machine adopts wear-resistant rubber track, and the internal structure of the track is composed of 5 * 8 cotton canvas.

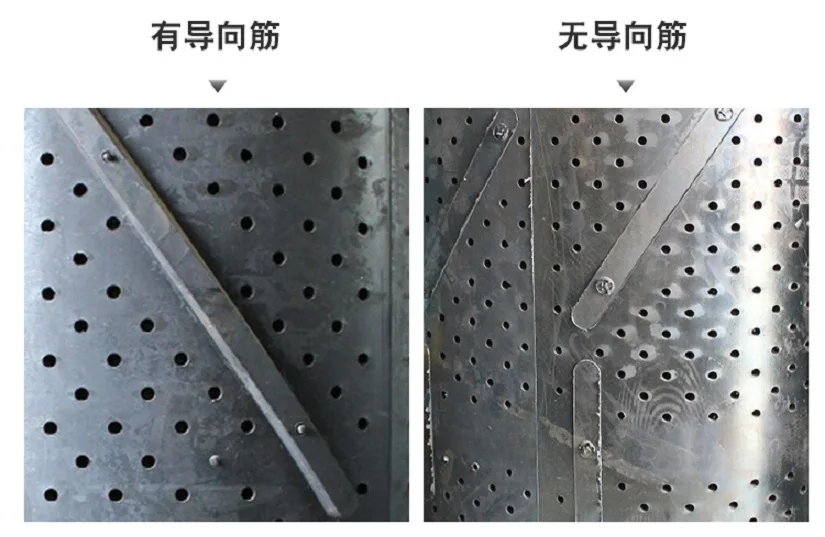

The track is equipped with 11 same interval areas, with 3586 sand leakage holes with a diameter of 6mm. The working face is equipped with 11 "human" pattern, which improves the rolling times and cleaning effect. A guide bar is set in the middle of the non working face to ensure the track runs normally in the specified position and direction. The collision and damage of workpiece are reduced, and the noise of the machine is reduced.
Model | Perimeter | width | thickness | Hole diamter | Loading weight | Guide rib |
Q326 | 3300 | 1100 | 17 | 6 | 200 | Y/N |
Q326 | 3300 | 1100 | 17 | 10 | 200 | Y/N |
Q3210 | 4900 | 1400 | 20 | 10 | 500 | Y/N |
Q3210A | 4900 | 1400 | 20 | 13 | 500 | Y/N |
