Месяц | Минимальная цена | Макс. стоимость |
---|---|---|
Sep-19-2025 | 10322.83 $* | 10838.24 $* |
Aug-19-2025 | 10235.9 $* | 10747.8 $* |
Jul-19-2025 | 8587.38 $* | 9016.5 $* |
Jun-19-2025 | 10062.42 $* | 10565.78 $* |
May-19-2025 | 8761.73 $* | 9199.56 $* |
Apr-19-2025 | 9888.70 $* | 10382.65 $* |
Mar-19-2025 | 9802.11 $* | 10292.72 $* |
Feb-19-2025 | 9715.89 $* | 10201.69 $* |
Jan-19-2025 | 9628.86 $* | 10109.15 $* |
Because the price of express delivery to different countries is somewhat different, if you need to place an order, please leave a message to us to consult the specific shipping cost. Thank you~
Model NO.:LW-070F2
Item Description:
1.This monitor and reverse camera can be used with Trucks/ Caravans/Cars

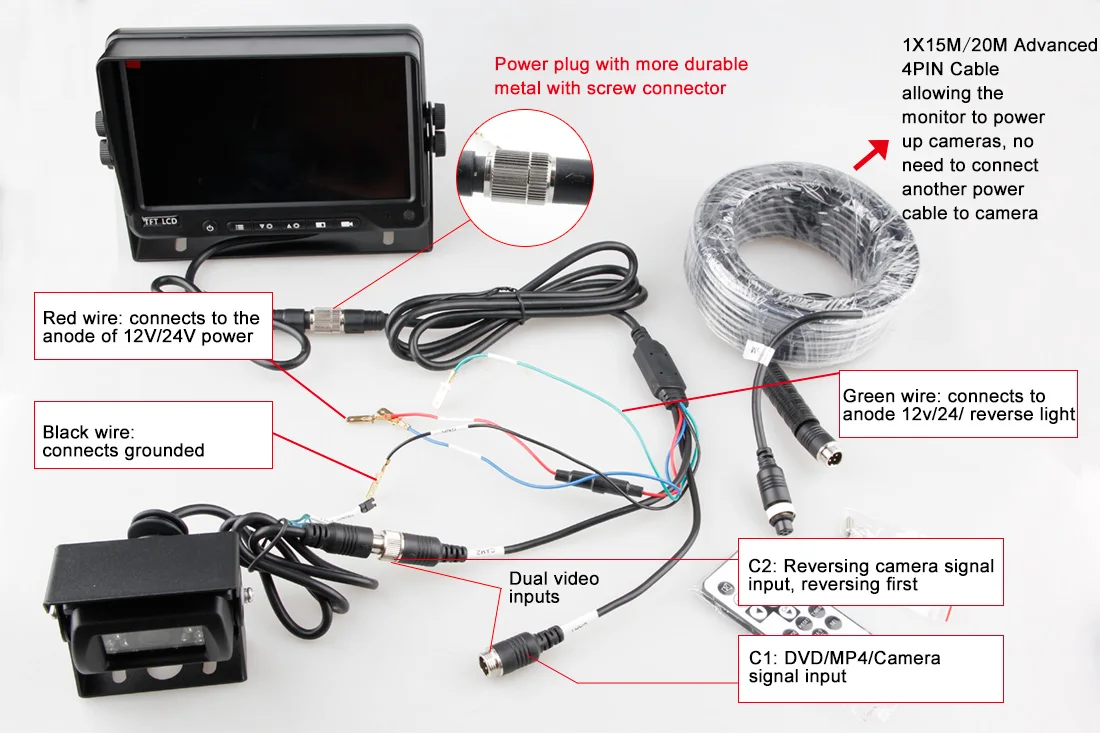

2 video inputs, reversing first Connect 2 cameras to the monitor(2nd camera - optional). You can view one camera while driving and the 2nd camera will turn on automatically when reversing.16:9/4:3 switch freely
2.1x 15m advanced 4PIN cables Allows the monitor to power up cameras, no need to connect to another power cable.Connect and disconnect the cable between your trailer/caravan easily.
3.Easy to install. You can D.I.Y. as long as you can locate your vehicle’s 12V/24V/32V power source.

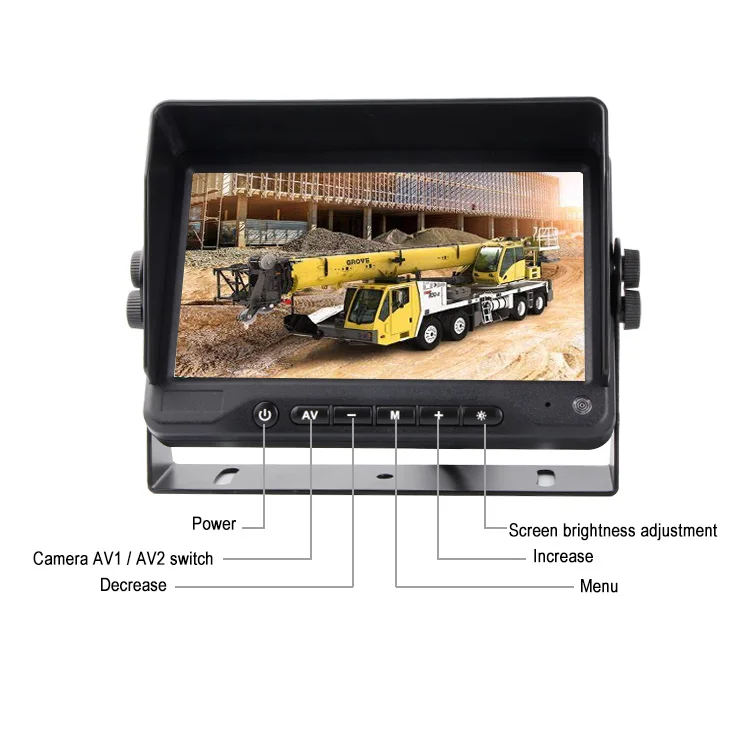

LM-070F2 LCD Monitor Specifications:
Screen size: | 7 inches new AU TFT-LCD panel |
Type: | Stand-alone monitor (16:9) display |
Display Resolution: | 800 R.G.B x480 dots dightal display / AHD1024*600 optional |
System: | PAL/NTSC TV system auto switching |
Video input: | 2 Channels input/ (4CHs/ quad monitor optional) |
Power supply | 12~32V DC power input |
Power consumption | Less than 7W |
Image | Up/down, Left/right functions |
Loudspeaker | Optional |
Remote control | Yes |
Operating temperature | -10 ~ +65degrees |
Storage temperature | -40 ~ +65degrees |
Without signal | Video signal disappear, display blue screen |
Languages | English, Dutch, French, Spanish, Russian, German, Italian |
Suitable for | Camera/DVD/VCD player |
Trigger cable | Yes |
Color | Black color |
Warranty | 18 Months |
(Model NO:LC-018A) Rear View Camera Specification: | |||
Type | 1080P | 960P | CMOS |
Sensor | 1/3" APTINA CMOS | 1/3" APTINA CMOS | 1/3 CMOS CCD |
Resolution: | 1920*1080 (2.0M Pixels) | 1280*960 (1.2M Pixels) | N:510×492 pixels P: 500×582 pixels |
Effective Pixels | 2,000,000 pixels | 1,300,000 pixels | 2,000,000 pixels |
Lens: | 2.8mm | 2.8mm | 2.8mm |
Min illumination: | 0Lux (LED ON) | 0Lux (LED ON) | 0Lux (LED ON) |
IR led: | 18pcs | 18pcs | 18pcs |
Night Vision distance: | 15m | 15m | 10m |
Waterproof | IP69K | IP69K | IP69K |
View angle: | 140°/115° | 120°/92° | 140°/115° |
Power voltage: | 12V | 12V | 12V |
Operation Temp.: | -20°C~+70°C | -20°C~+70°C | -20°C~+70°C |
Heater built-in(optional) | -40°C~+70°C | -40°C~+70°C | -40°C~+70°C |
Microphone | optional | optional | optional |
IR cut | optional | optional | / |

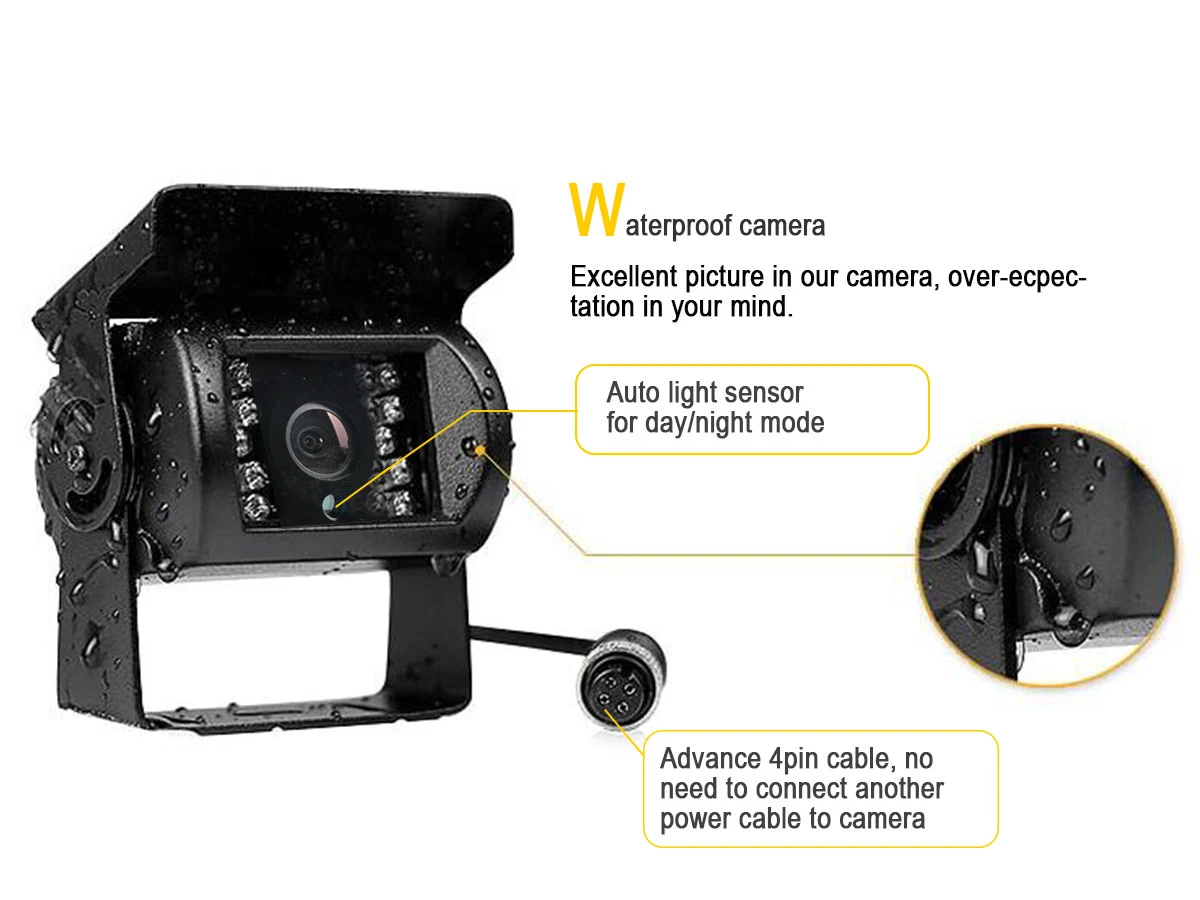

Waterproof Camera:
1.18pcs IR LED
2.1x15m 4PIN cable
3.Lens Angle:Horizontal90 degree
4.Heavy duty night vision IR CCD Reversing Camera
5.Waterproof IP69K and Mudproof
Please click here>>>>Contract us for more factory price shipping and discouts<<<<

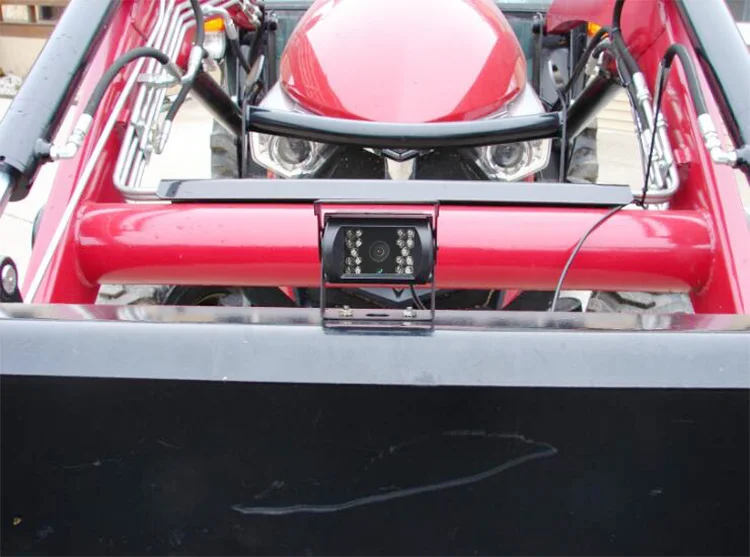

Application:
Hot sell product recommend:

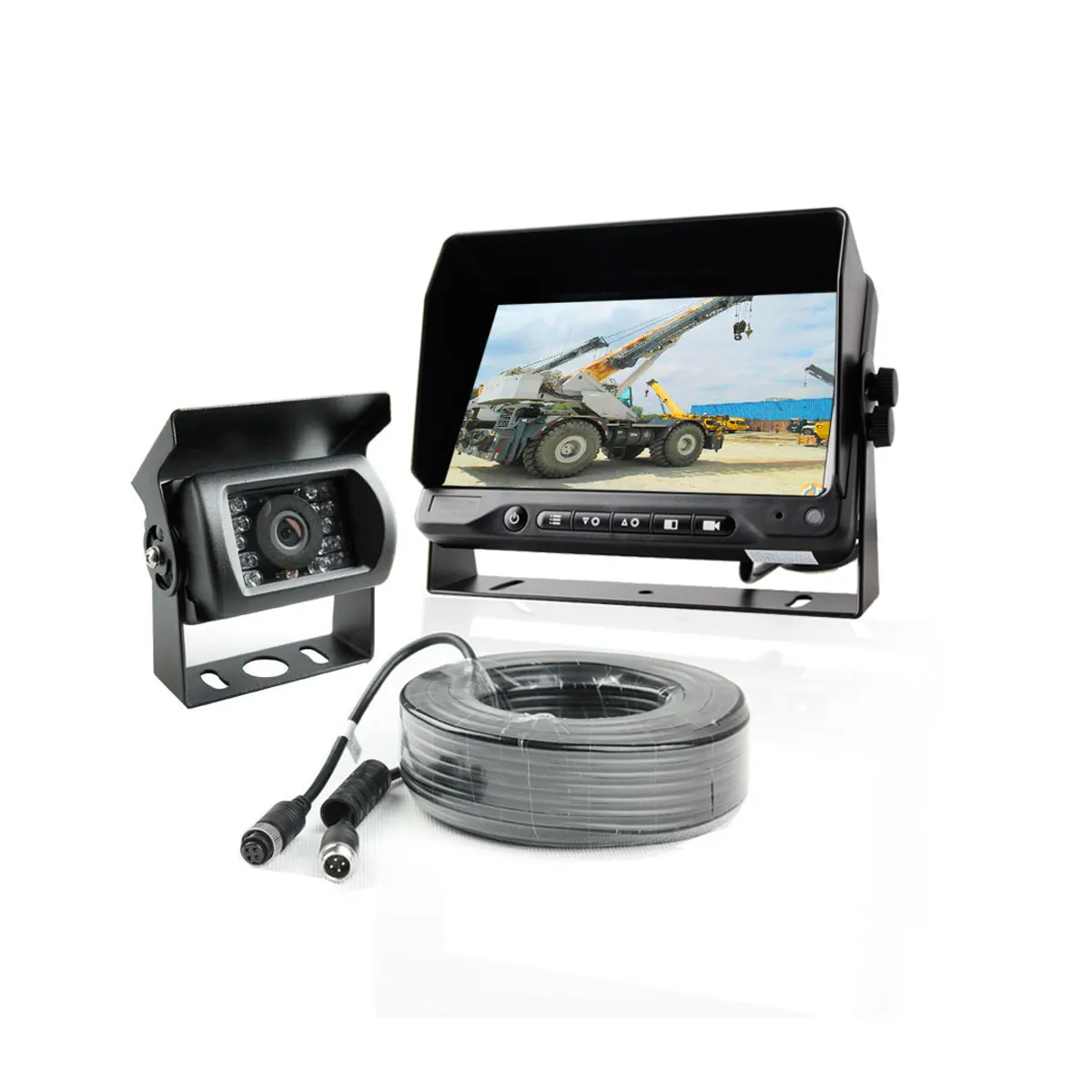

1.Packing include:
--1pc x 7-inch LCD monitor
--1pc x User manual
--1pc x Remote control
--1pc x Power cable
--1pc x Waterproof CCD IR camera with 4 pin plug
--1pcx15 meter 4 pin screw on extension cable (Optional 5M, 10M, 15M, 20M)
DONGGUAN KYSAIL TECH LTD established on 2020-12-24, co-invested by LINTECH ENTERPRISES LIMITED, a senior industry company, dedicated to the development, research, production, testing and sales of vehicle rear-view systems and vehicle monitoring products, as well as other parking lot self-service machine transceiver card solutions, mainly products include high-definition camera systems, 360 panoramic camera systems, special cameras for explosion-proof environments, forklift wireless camera systems, brake light cameras, truck parking sensor systems, automotive LCD monitors, transceiver card readers, etc., which are widely used in automotive electronics and consumer electronics , Industry, agriculture, manufacturing, public transportation and other fields.
Kysail accordance with ISO quality management system. In order to ensure product quality, we strictly implement international standards from raw material procurement/inspection, production and processing, finished product inspection, packaging to delivery. We strictly implement the IATF 16949:2009 quality management system. Based on APQP / DFMEA / PFMEA / MAS / SPC / PPAP quality control methods to control product design, production, quality inspection, to ensure finally we make the highest reliability of products.
Kysail is equipped with advanced production equipment and testing equipment, such as load generators, instruments for IP69K waterproof tester, vibration tester, and ambient temperature tester (high temperature and salt spray exposure tester). Basic on different requirements, products have passed various tests and obtained relevant certificates, such as E-MARK, ATEX, SAE, DOT, CE, FCC, RoHS and other certificates.
1.Can I use this camera system on my Forklift and garbage truck?
---Yes, that is available.
2. Can I see the Distance and images shows on the screen?
--- Yes, drivers can see what happen when they are reversing.
3.How long can I get the sample for testing?
--- 3~7days after the product details and payment confirmed.
Please click here>>>>Contract us for more factory price shipping and discouts<<<<
