BR-HQ-120 и он имеет высокую эффективность резак спиральный ножи гофрированного картона на

Описание и отзывы

Трекер стоимости

Характеристики

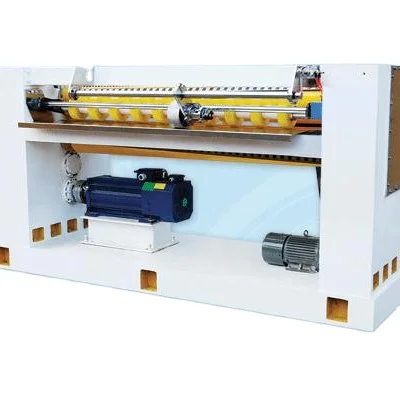

Product name	BR-HQ-120 Cutter helical knives
Service	Support customization

Technical parameters:

1,Effective width:2200mm

2,Operation direction:left or right(determined to the customer’s factory)

3,Highest machinery speed:150m/min

4,Mechanical configuration:computer-control helical cross cutter

5,Minimum cutting length:500mm

6,Maximum cutting length:9999mm

7,Precision of cutting paper:uniform ±1mm,non-uniform±2mm

8,Equipment size:Lmx4.2*Wmx1.2*Hmx1.4

9,Single weight:MAX3500Kg

Structural feature:

1/It can store 200 units orders,replace the cutter specifications quickly and accurately,changing orders without stop,And enables networked computers to facilitate production management.

2/Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy.

3/Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife. scissors, shears, shear force, long blade life.

4/Around feed rollers are used  the sun gear platen way, smooth delivery, pressure evenly, easy to crush plate board or cause blockage.

5/This model is the braking energy storage (non-dynamic braking), so the energy consumption in the production process, the average electricity consumption is 1/3 of an ordinary NC cutting machine, saving more than 70% power to reach the goal of saving money .

6/Precision adjustable no gap gear to ensure precise blade engagement, running balance.

7/Using an independent oil pump and filter with two copper distribution in each gear position oil, lubrication and cooling.

8/Knife roller: fine quality forged steel material, the balanced, with good stability.
