High reliability 85 Ton XGC85 crawler crane with 58m boom telescopic with factory price
Product Description

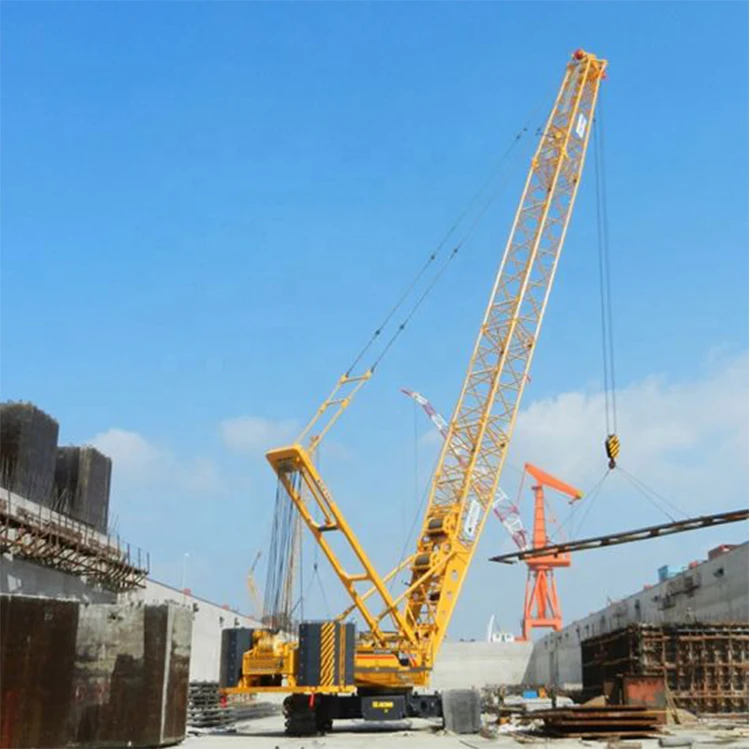

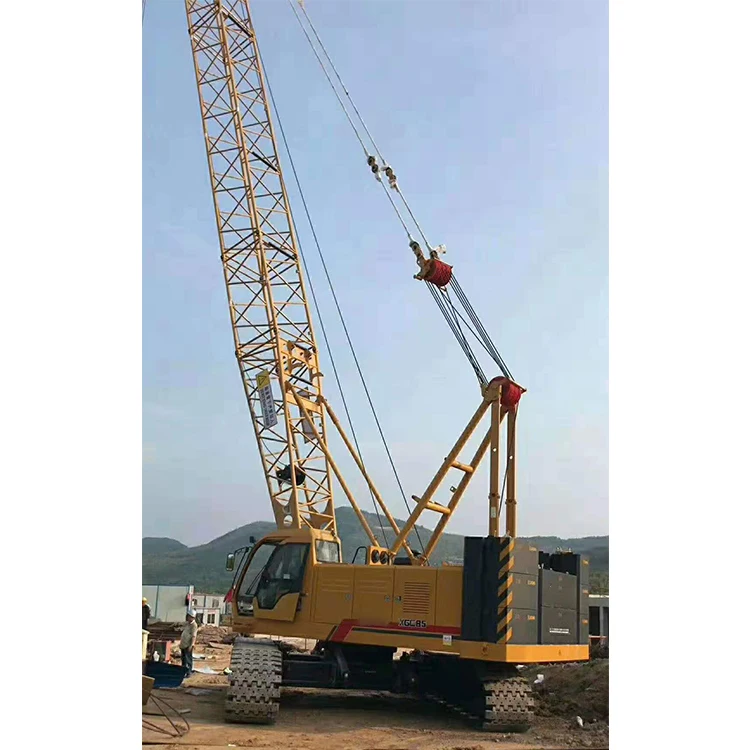

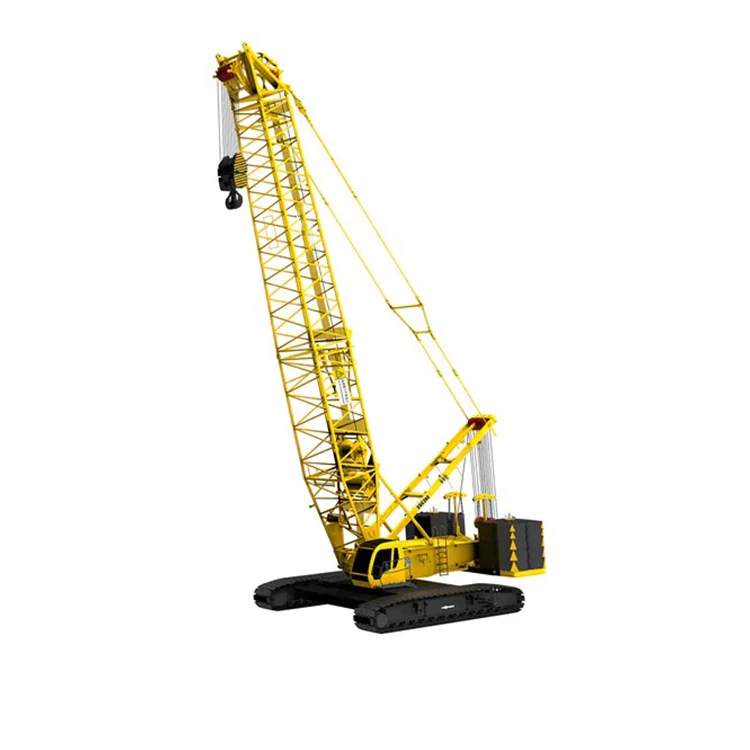

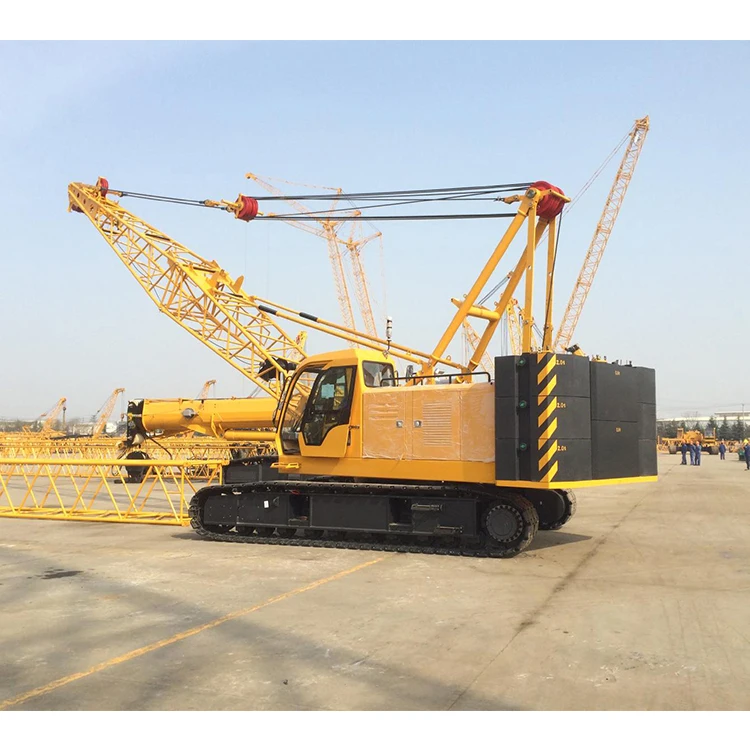

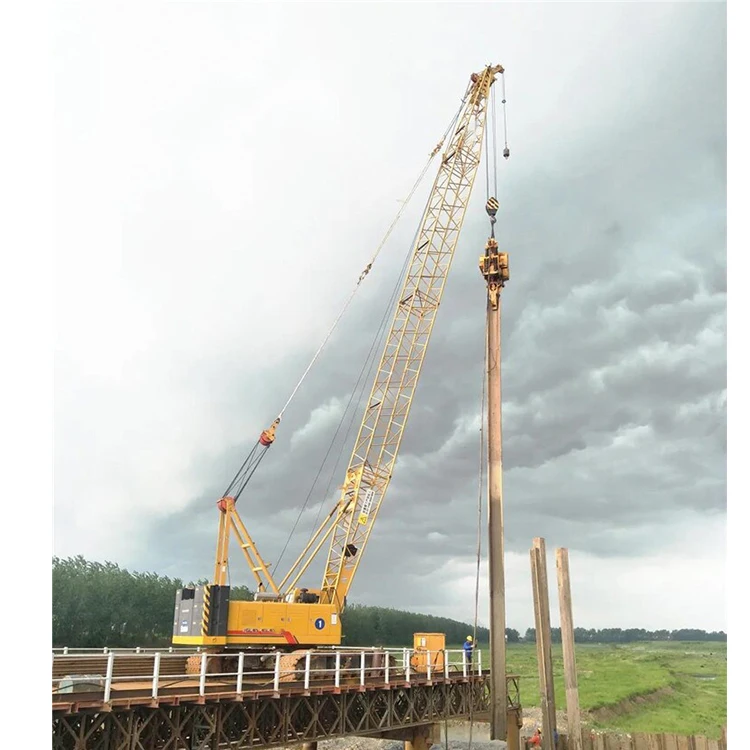

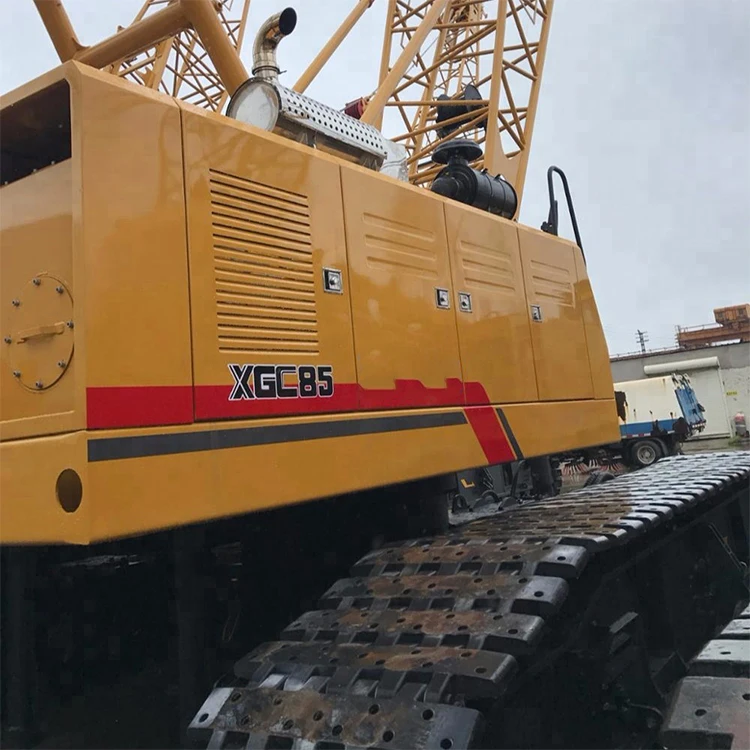

XGC85 is a new generation crawler crane
Inheriting the advantages from the old generation product, XGC85 crawler crane pays more attention to the improvement of lifting performance, assembly/disassembly and transport economy, maintenance convenience and operation comfort. The system is mature and reliable with complete safety devices. Fitted with multiple advanced technologies, such as gantry self-erecting function, basic machine integration transport and etc, the crane’s performance is superior to that with other domestic brands in various aspects.
An overall research on market application was carried out during the initial development period of XGC85 crawler crane, main and aux. hook one-key switch function is specially designed, greatly improve the lifting operation efficiency.
Main Parameter
| Item | Unit | Parameter value |
| Parameter Item | - | XGC85 |
| Operation performance parameter | * | |
| Max. rated lifting capacity for boom | (t) | 85 |
| Max. rated lifting capacity for fixed jib | (t) | 12 |
| Max. rated lifting capacity for luffing jib | (t) | — |
| Max. load moment | (t.m) | 341 |
| Max. rated lifting capacity for tower jib | (t) | — |
| Max. rated lifting capacity for boom single top | (t) | 8 |
| Max. rated lifting capacity for special jib | (t) | — |
| Dimension parameter | * | |
| Boom length | (m) | 13~58 |
| Boom luffing angle | (°) | -3~80 |
| Fixed jib length | (m) | 7~19 |
| Tower jib length | (m) | — |
| Max. dimension of single unit in transport state(L×W×H) | (m) | 13.05×3.4×3.3 |
| Fixed jib offset angle | (°) | 10,30 |
| Special jib length | (m) | — |
| Speed parameter | * | |
| Max. single line speed for hoist mechanism | (m/min) | 120 |
| Max. single line speed for boom luffing mechanism | (m/min) | 70 |
| Max. single line speed for jib luffing mechanism | (m/min) | — |
| Max. slewing speed | (r/min) | 2 |
| Max. travel speed | (km/h) | 0.9 |
| Grade ability | (%) | 30 |
| Mean ground pressure | (MPa) | 0.087 |
| Max. single line speed for tower jib luffing mechanism | (m/min) | — |
| Max. single line speed for superlift luffing | (m/min) | — |
| Engine | * | |
| Model | - | SC9DK270G3/QSC8.3 |
| Engine power | (kW) | 200/183 |
| Emission | - | National III/ EU III |
| Mass parameter | * | |
| Overall crane mass | (t) | 71.5 (main hook, 13mboom) |
| Max. mass of single unit in transport state | (t) | 41.2 |
