Полуавтоматическая горизонтальная машина G1WG для розлива арахиса шоколада джема кетчупа йогурта меда
- Категория: Tobacco Processing Machinery >>>
- Поставщик: Xiamen,Junfan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 666.11 $* | 699.14 $* |
| Aug-15-2025 | 661.21 $* | 694.19 $* |
| Jul-15-2025 | 554.25 $* | 582.34 $* |
| Jun-15-2025 | 650.18 $* | 683.40 $* |
| May-15-2025 | 566.93 $* | 594.87 $* |
| Apr-15-2025 | 638.83 $* | 670.83 $* |
| Mar-15-2025 | 633.17 $* | 665.16 $* |
| Feb-15-2025 | 627.84 $* | 658.70 $* |
| Jan-15-2025 | 622.6 $* | 653.0 $* |
Характеристики
Product Description
It based on factory is introdution of advanced filling machine technology in Europe and America, transformation and innovation of the product.
The material contact part of machine is made of 304 stainless steel, removable , simple and reasonable structure, High filling accuracy, Easy to operate;
The machine can be foot-operated or photoelectric switch control filling and can be automatically filled online.
The material contact part of machine is made of 304 stainless steel, removable , simple and reasonable structure, High filling accuracy, Easy to operate;
The machine can be foot-operated or photoelectric switch control filling and can be automatically filled online.
1. This machine adopts piston injection filling principle, fine liquid cylinder, high filling precision.
2. All stainless steel body, clean and hygienic, meet food hygiene requirements.
3. Electrical automatic control, easy to operate.
4. Linear arrangement, not limited by the height and width of the bottle, suitable for a wide range of bottles, special-shaped
bottles can be customized.
5. Suitable for filling small amount of viscous liquid such as oil, honey, detergent and hand sanitizer.
6. Corrosive liquid is made of 316L stainless steel, and the sealing ring is made of fluoroplastic o-ring
2. All stainless steel body, clean and hygienic, meet food hygiene requirements.
3. Electrical automatic control, easy to operate.
4. Linear arrangement, not limited by the height and width of the bottle, suitable for a wide range of bottles, special-shaped
bottles can be customized.
5. Suitable for filling small amount of viscous liquid such as oil, honey, detergent and hand sanitizer.
6. Corrosive liquid is made of 316L stainless steel, and the sealing ring is made of fluoroplastic o-ring
Specification
Machine model | G1WG-100 | G1WG-300 | G1WG-500 | G1WG-1000 | G1WG-3000 | G1WG-5000 | |||||
Filling range | 10~100ml | 30~300ml | 50~500ml | 100~1000ml | 500~3000ml | 1000~5000ml | |||||
Air pressure | 0.4~0.6mpa | ||||||||||
Filling speed | 5-20b/min(take water for example) | ||||||||||
Filling error | ≤±1% | ||||||||||
Voltage | AC220/100V 50/60HZ | ||||||||||
Power | 20w | ||||||||||
Machine size (L*W*H)(mm) | 806*180*690 | 880*230*665 | 880*230*665 | 1065*230*665 | 1250*400*300 | 1390*420*380 | |||||
Weight | 30kg | 35kg | 40kg | 45kg | 60kg | 80kg | |||||
NOTE: | Need a air compressor by yourself | ||||||||||

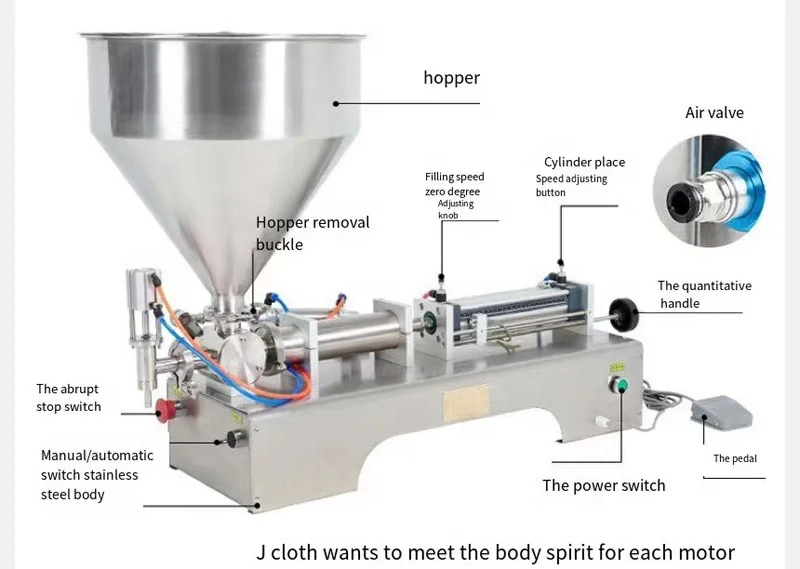

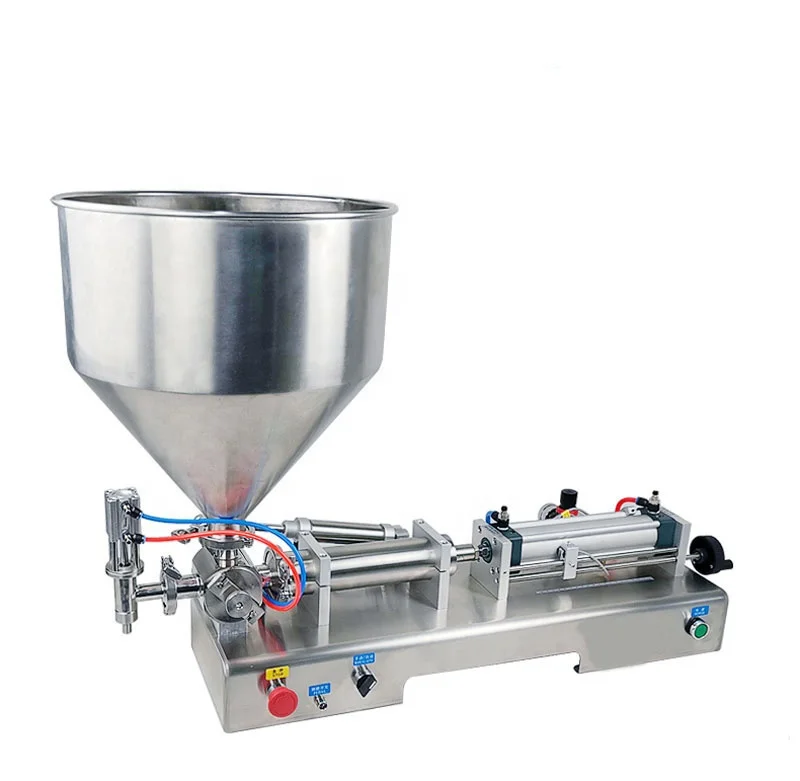

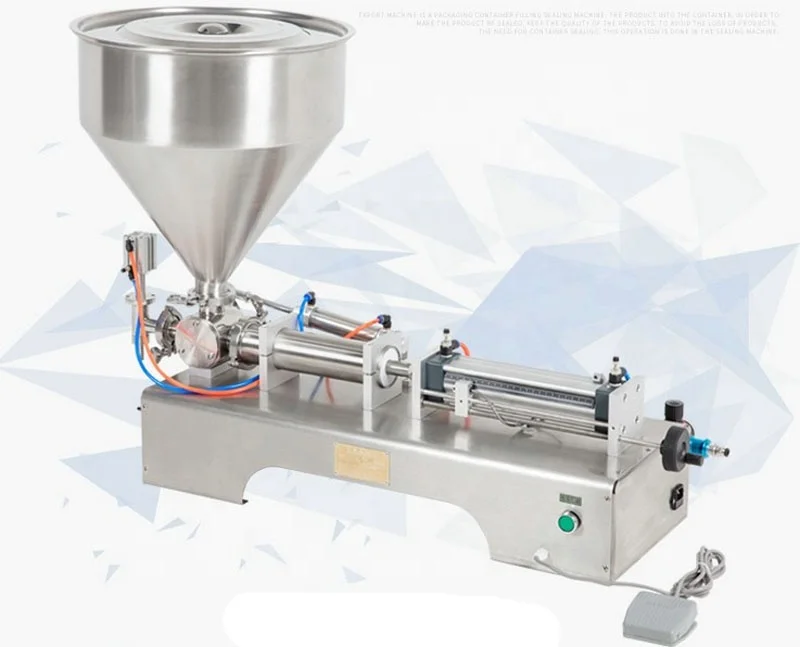

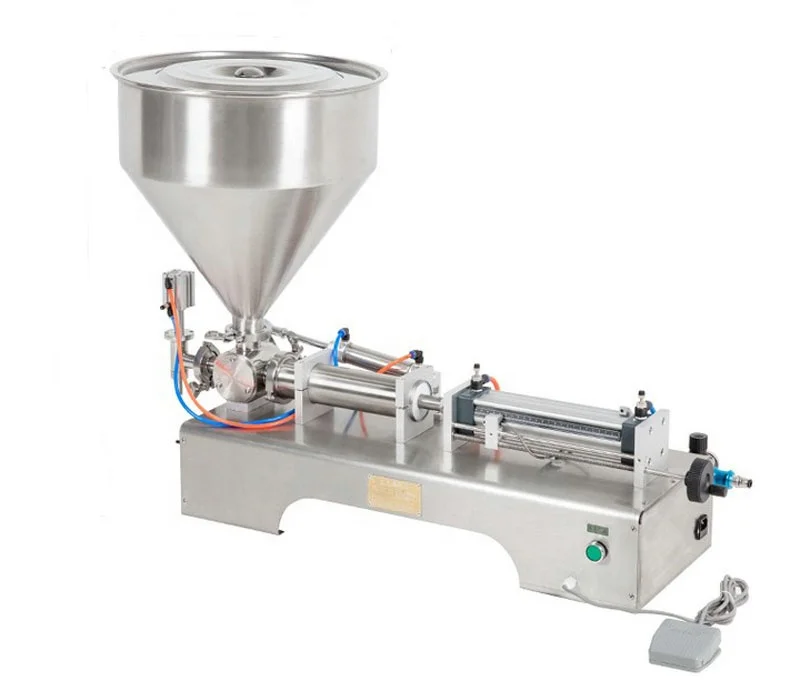

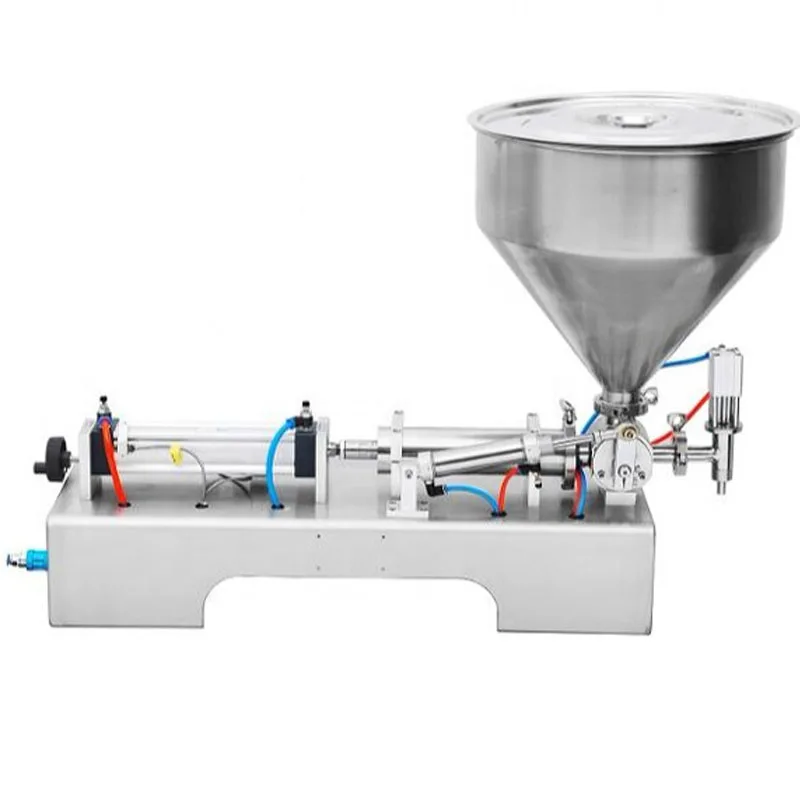

Machine Photos
Recommend Products
Company Profile
Packing & Delivery
Our service
1. Each machine is manufactured by professional experienced staff.
2. Production process is under strict supervision and adopts China and world toppest production engineering.
3. The warranty time is one year. Quick-wear part is excluded.
4. When warranty date expires, lifetime maintenance service is provided.
2. Production process is under strict supervision and adopts China and world toppest production engineering.
3. The warranty time is one year. Quick-wear part is excluded.
4. When warranty date expires, lifetime maintenance service is provided.
