WENLIN-HS-2A PVC card cutter id card cutter Name card business automatic die cutter
Product Description

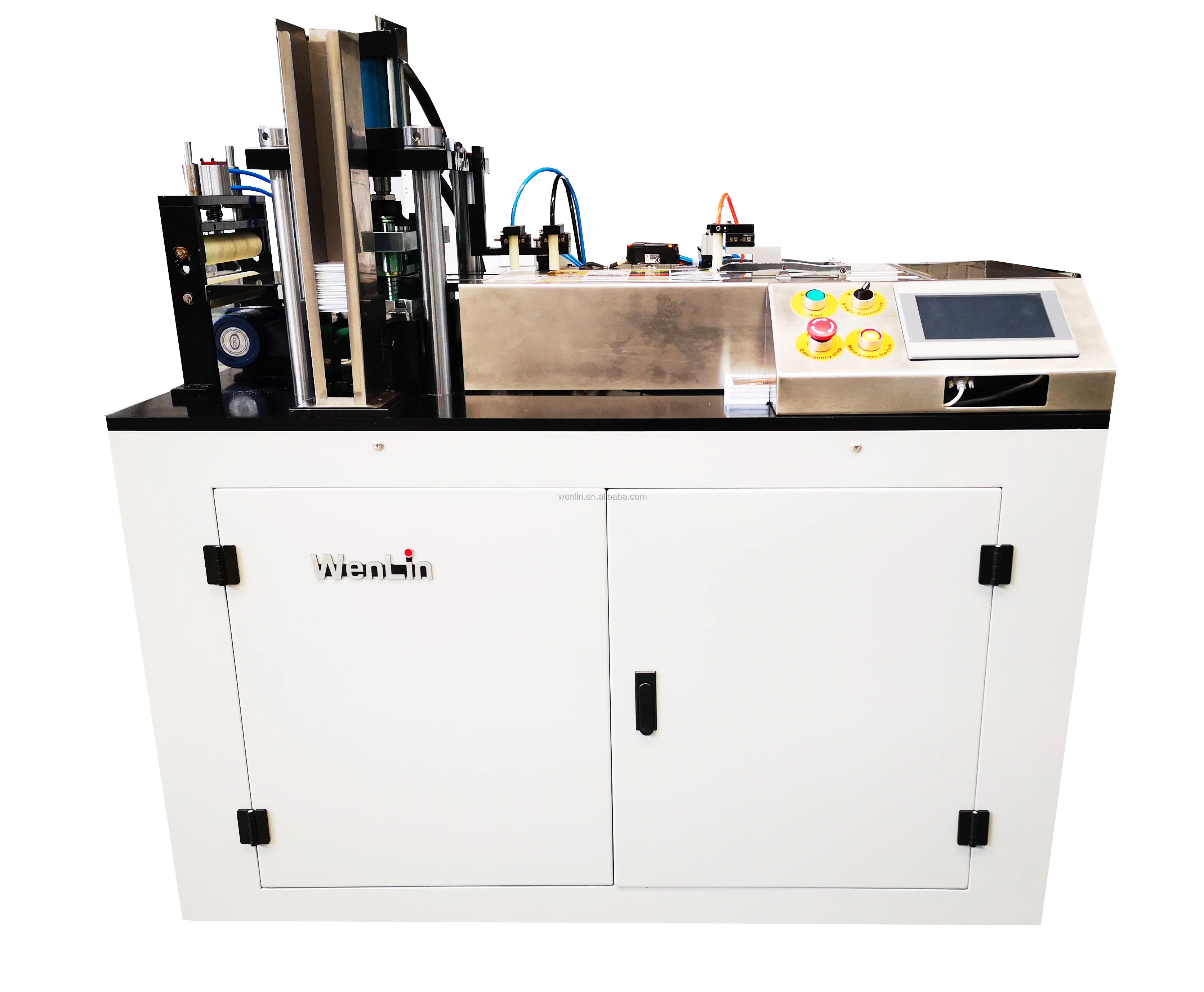

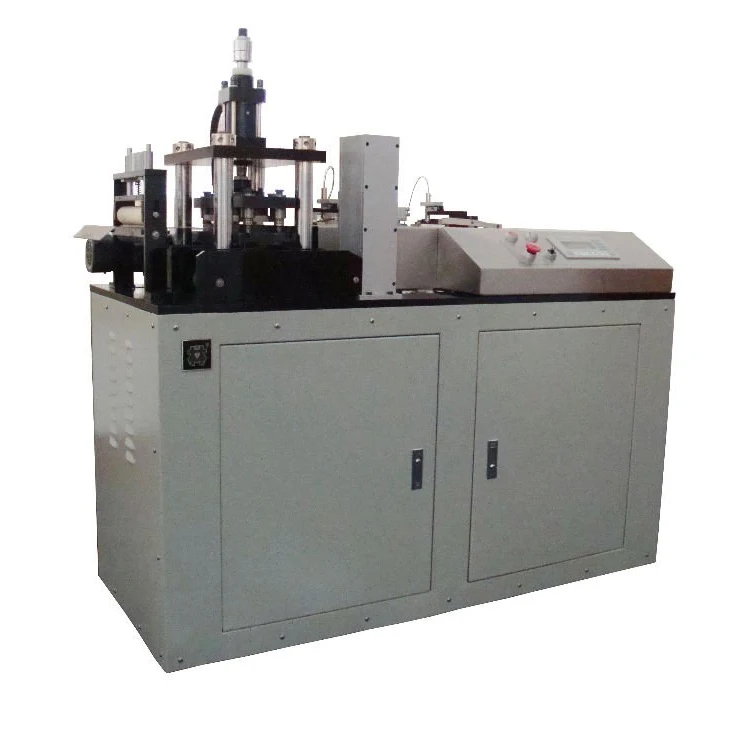

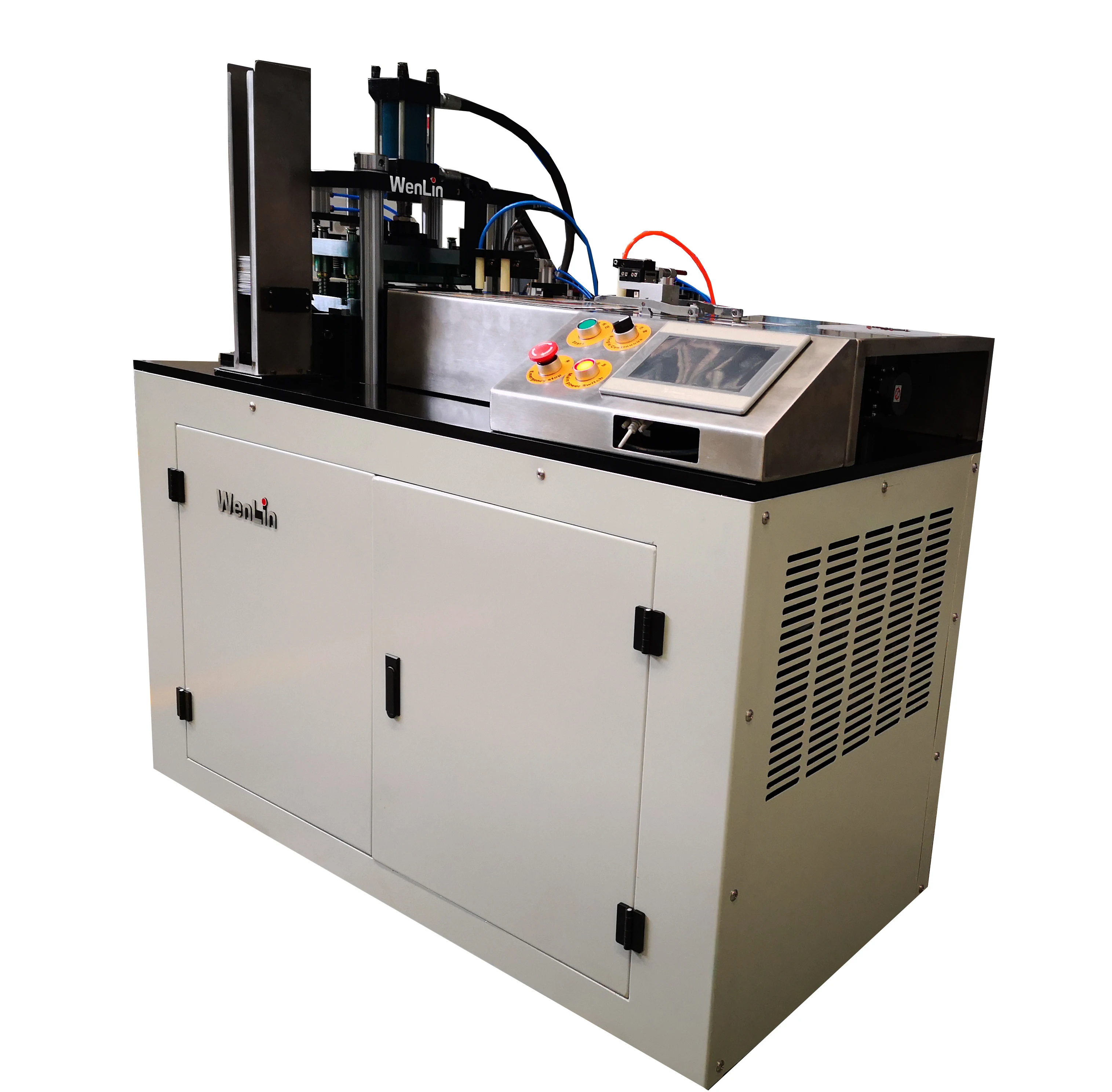

Wenlin-HS-2A high speed automatic card punching machine is a best seller of PVC card die cutter, which adopts PLC control man-machine interface.The feeding system of this card puncher adopts imported servo motor, imported high-precision ball screw and linear guide rail, with smooth movement and accurate movement distance.Make positioning accuracy less than 0.10mm.
Wenlin-HS-2A card cutting machine use professional high sensitivity photoelectric identification device to read the positioning mark, positioning accurate and reliable.Imported hydraulic pump, low noise, large flow.Hydraulic cylinder, smooth punching and cutting, low noise.The mould is made of imported die steel.Strong software function, material deformation or mechanical wear can ensure the accuracy of punching.The punching speed is 30% higher than similar products.Double die for punching and cutting, suitable for small and medium card factory.
Application range
Wenlin-HS-2A PVC IC ID card punch machine suitable for punching PVC, ABS and other materials of A4 size. This card puncher can be used for cutting various kinds of smart cards such as loyalty cards/ membership card /reward card / library card /VIP.
Technical parameter
| Modle | WENLIN-HS-2A High speed automatic card punching machine |
| Punching Size | International standard size for credit cards( 85.7*54mm) |
| Card Material Size | 210 mm×297 mm |
| Applicable Materials | 0.3~1.0mm PVC or other plastic materials |
| Punching Layout | 2*5 |
| Maximum Impact Force | 0 ~ 5000 kg Adjustable |
| Cylinder Stroke | 18mm |
| Capacity of Oil Tank | 120 L |
| Air Supply | 0.6 MPa |
| Air Consumption | 100 L/min |
| Power Supply | AC380V / 220 v Optional 50/60 hz |
| Power | 4.5KW |
| Control Method | PLC |
| Output | 5000 cards/hour |
| Dimension | L1350mm *W600mm *H1300mm |
| G.W | 600kg |
