12-48 в 4 позиции 1-2-выключатели питания с обеих
- Категория: Auto Switches >>>
- Поставщик: AVS,(Ningbo),Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 9.81 $* | 9.80 $* |
| Jul-19-2025 | 7.19 $* | 7.68 $* |
| Jun-19-2025 | 9.81 $* | 9.79 $* |
| May-19-2025 | 9.19 $* | 9.23 $* |
| Apr-19-2025 | 7.99 $* | 7.20 $* |
| Mar-19-2025 | 9.30 $* | 9.38 $* |
| Feb-19-2025 | 8.12 $* | 8.62 $* |
| Jan-19-2025 | 8.32 $* | 8.6 $* |
Характеристики
Products Description

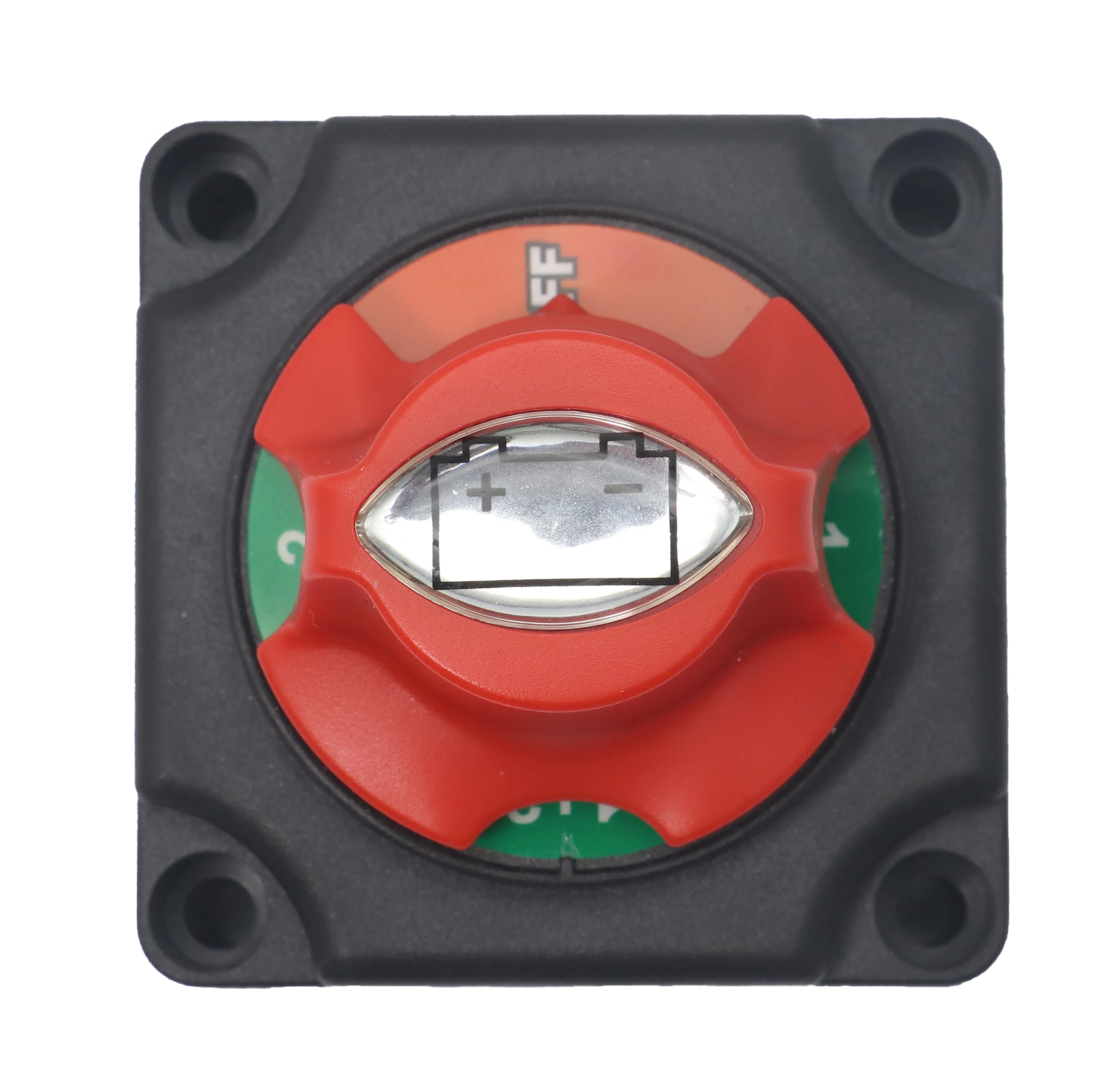

1-2-Both-Off Battery Switch BS2
Edge offers 12-48V 4 positions 1-2-Both-Off Battery Power Switches. They are used for the battery to isolate and secure theelectrical system, eliminate any power drain from the battery when vehicle or boat is not in use, disconnect the battery safely,and it can stand alone or be locked together with other switches. Widely used for Car, Vehicle, RV, and Boat batteries

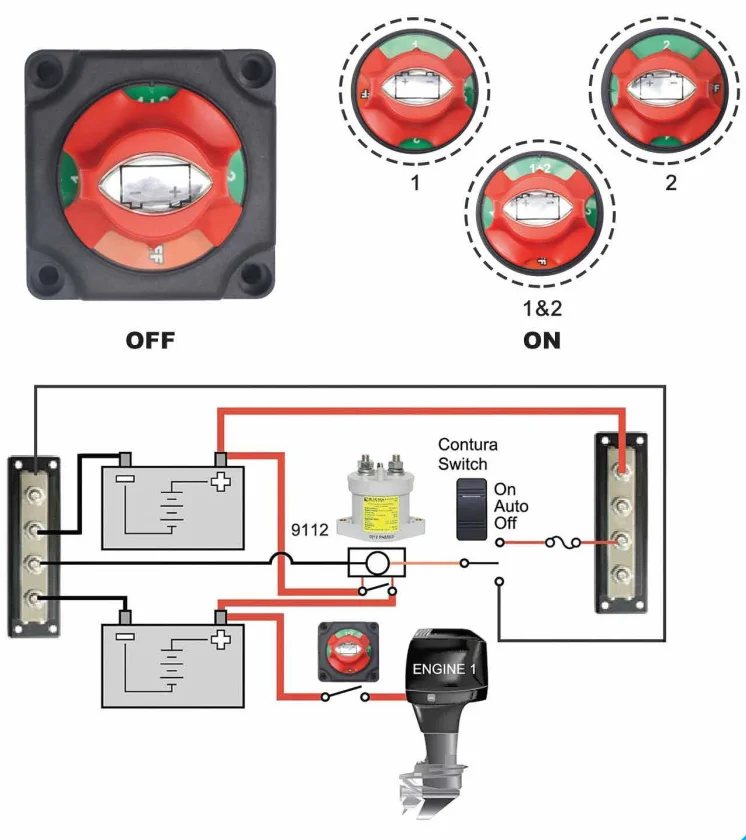

• Operation: 1-2-Both-Off 4 Positions
• Voltage Rating: 12-48 Volts DC
• Specification:
-200 A continuous at DC 12V,
-300 A intermittent at DC 12V,
-1000 A momentary at DC 12V.

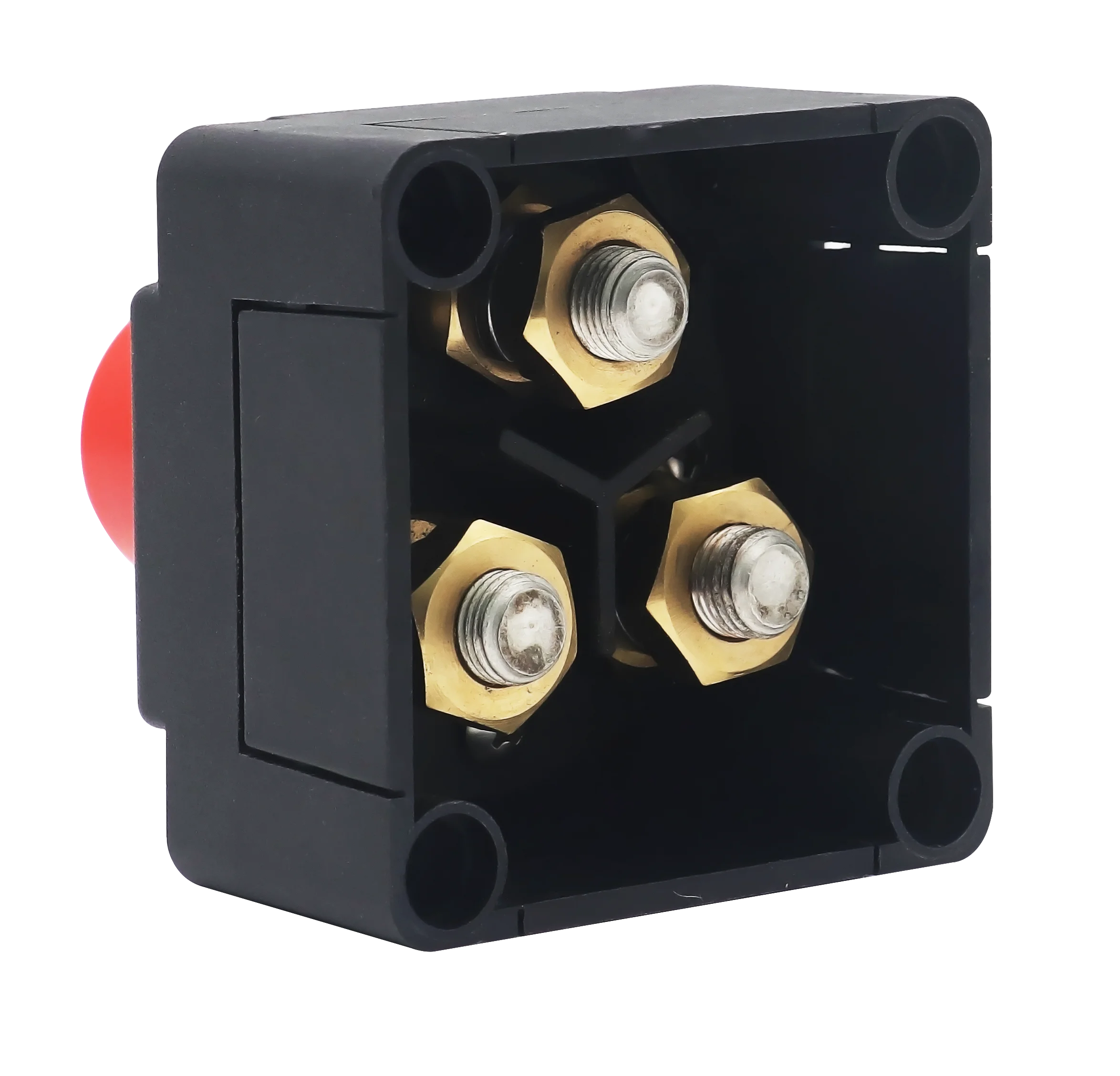

• Tin-Plated Brass Studs & Nuts
• Ignition Protected
• Heavy-duty ABS plastic housing is super durable for safety use.
• It has four removable side plates that provide access to up to 1/0AWG wire.
• Rear cover insulates terminals against any short of circuits.
• Termination Stud Size: 3×5/16" (8mm)
• Dimensions: 69×69×75H mm
• Mounting: Recessed or Surface

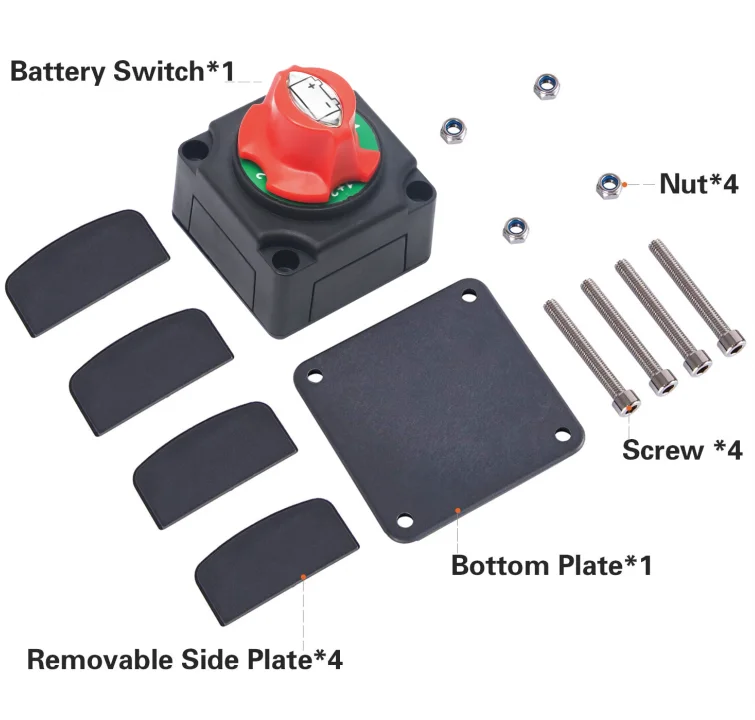

1* Battery Switch
1*Backing Plate
4*Side Plates
4*Mounting Bolts
3*4AWG 5/16" Ring Terminals
& Heat shrink Sleeve
Edge offers 12-48V 4 positions 1-2-Both-Off Battery Power Switches. They are used for the battery to isolate and secure theelectrical system, eliminate any power drain from the battery when vehicle or boat is not in use, disconnect the battery safely,and it can stand alone or be locked together with other switches. Widely used for Car, Vehicle, RV, and Boat batteries
• Operation: 1-2-Both-Off 4 Positions
• Voltage Rating: 12-48 Volts DC
• Specification:
-200 A continuous at DC 12V,
-300 A intermittent at DC 12V,
-1000 A momentary at DC 12V.
• Tin-Plated Brass Studs & Nuts
• Ignition Protected
• Heavy-duty ABS plastic housing is super durable for safety use.
• It has four removable side plates that provide access to up to 1/0AWG wire.
• Rear cover insulates terminals against any short of circuits.
• Termination Stud Size: 3×5/16" (8mm)
• Dimensions: 69×69×75H mm
• Mounting: Recessed or Surface
1* Battery Switch
1*Backing Plate
4*Side Plates
4*Mounting Bolts
3*4AWG 5/16" Ring Terminals
& Heat shrink Sleeve
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Product packaging
We can do all kind of OEM packing! Such as: blister packing、neutral packing、hanging packing、bulk pack、consumer pack、large packing、foam-tray package, gift-wrap、plastic bag、zipper bag, etc.
Certifications
Company Profile
Edge Wireless
We specialized in car audio products since 2001, we are the OEM/ODM supplier for many car audio brands. Compare to other vendors in China, R&D ability is our core competence.
Please contact us for catalogue and start to introduce new products if you are interested.
