Полипропиленовый мембранный фильтр высокого

Категория: Filter Press Equipment >>>
Поставщик: Henan,Jincheng,Filter,Equipment,Co.,Ltd.

Цена:6 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	7140.61 $*	7497.76 $*
Aug-17-2025	7080.56 $*	7434.90 $*
Jul-17-2025	5940.15 $*	6237.97 $*
Jun-17-2025	6960.81 $*	7308.70 $*
May-17-2025	6060.77 $*	6363.78 $*
Apr-17-2025	6840.4 $*	7182.48 $*
Mar-17-2025	6780.61 $*	7119.30 $*
Feb-17-2025	6720.42 $*	7056.76 $*
Jan-17-2025	6660.80 $*	6993.32 $*

Характеристики

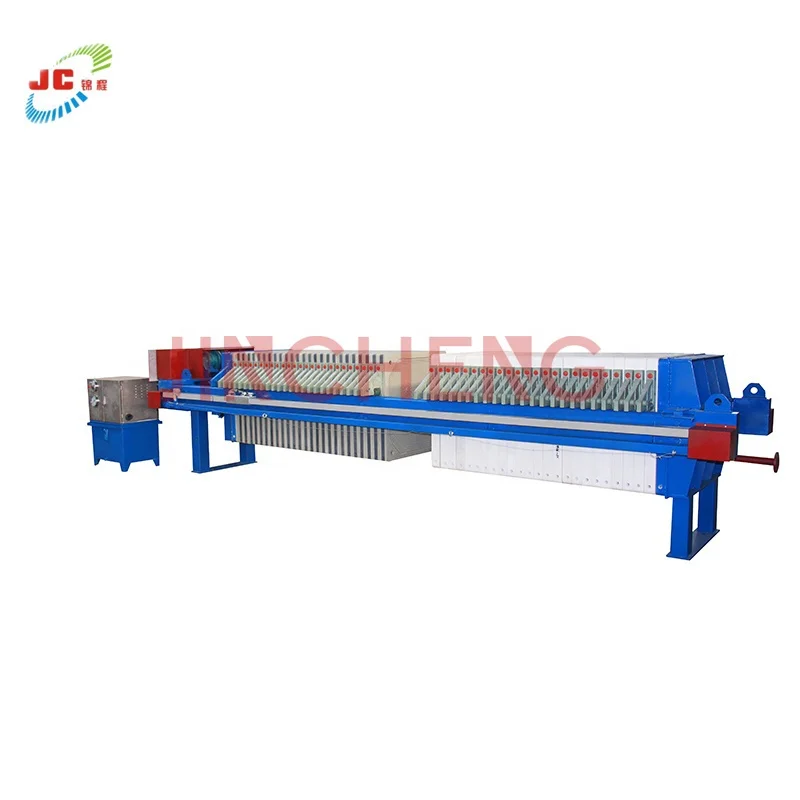

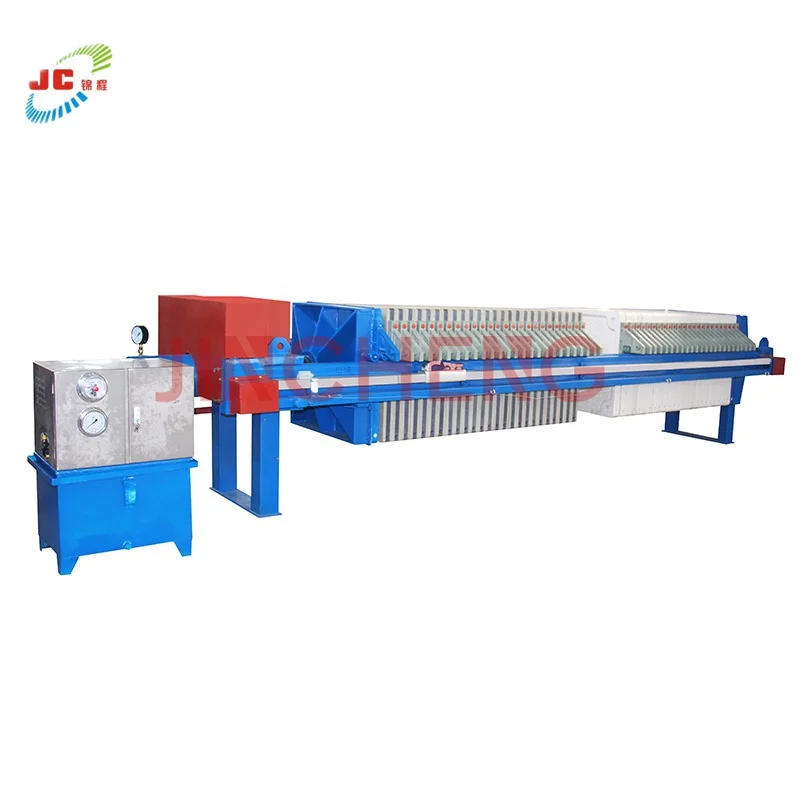

High Pressure PP Membrane Filter Press

1.Product description:

Henan Jincheng Filter Equipment Co., Ltd is a professional manufacturer of filtering equipments. We are one of the key enterprises specializing in manufacturing filter press. Our products range covers series of plate and frame filter press, chamber filter press, belt vacuum filter press, membrane filter press, centrifuge, shale shaker, industrial pumps, deep cone thickener, flotation column, etc.

The 1250 press filter is a kind of intermittent operation of the pressurized filtration equipment which is suitable for the solid-liquid separation

2.Usage of the 1250 press filter machine

It is widely used in coal washing , Oil, chemicals, dyes, metallurgy, medicine, food, alcohol and other fields, but also for textile, printing and dyeing, pharmaceutical, paper, leather and other industrial waste water and urban sewage treatment and other areas that need to be solid-liquid separation.

3. Details of the 1250 press filter machine

4.Functions of 1250 press filter machine

You can choose different systems based on your requirements, for example , free-flow or under flow, manual or automatic ,washing or with belt conveyor;

This is belt conveyor under machine which can transport the dry cake out;

Skid-mounted filter press with working platform, buffering tank, feeding pump together;

Small test machine easy handle, longer service life;

5.Working principle

When the recessed filter press works, all the filter plates are pressed between the movable head plate and the fixed tail plate, so that the adjacent filter plate is formed with a sealed filtering chamber around. After all the filter chambers are filled with pulp, the pressure filtration process begins, and the slurry is separated from the pulp by the feed pump.The solid particles are left in the filter chamber due to the barrier of the filter cloth, and the filtrate is discharged through the filter cloth along the drainage channel on the filter plate,and the filtrate is not discharged, that is, the dewatering process is completed. At this point, the material can be stopped and the head plate is returned to the original position.

6.Specification

Model	Filter plate No.	Volume
XMY80/1000-30U	46	1200L
XMY90/1000-30U	52	1360L
XMY100/1000-30U	58	1510L
XMY120/1250-30U	44	1830L
XMY140/1250-30U	52	2150L
XMY150/1250-30U	56	2310L
XMY160/1250-30U	59	2430L

7.The filtering effect and case of our factory

8. Customer visiting and exhibitions

we have export to a lots of countries around the world, for example, USA, Russia, South Africa, India, Iraq,German,Brazil,Sri Lanka and so on

9. Our workshop

10.Package and transport

11 Certificate

12.Guarantee

Service：
1. we have professional technical team to offer advice before ordering;
2. There have technical support service online;
3.We will offer video or instruction to help install the machine;
4.If necessary, the engineer will door to door for debugging the machine;
5.Electrical elements is 1 year warranty（Except quick-wear parts）
6.Frame is 5 years warranty.

13.FAQ

Q1: What's your business range?
A: We manufacture Water quality analysis instruments and provide dosing pump, diaphragm pump, water pump, pressure instrument,flow meter, level meter and dosing system.

Q2: May I visit your factory?
A: Of course, our factory is located in Yuzhou,Henan, welcome your arrival.

Q3: Why should I use Alibaba Trade Assurance orders?
A: Trade Assurance order is a guarantee to buyer by Alibaba, For after-sales, returns, claims etc.

Q4: Why choose us?
1. We have more than 20 years of industry experience in water treatment.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.
