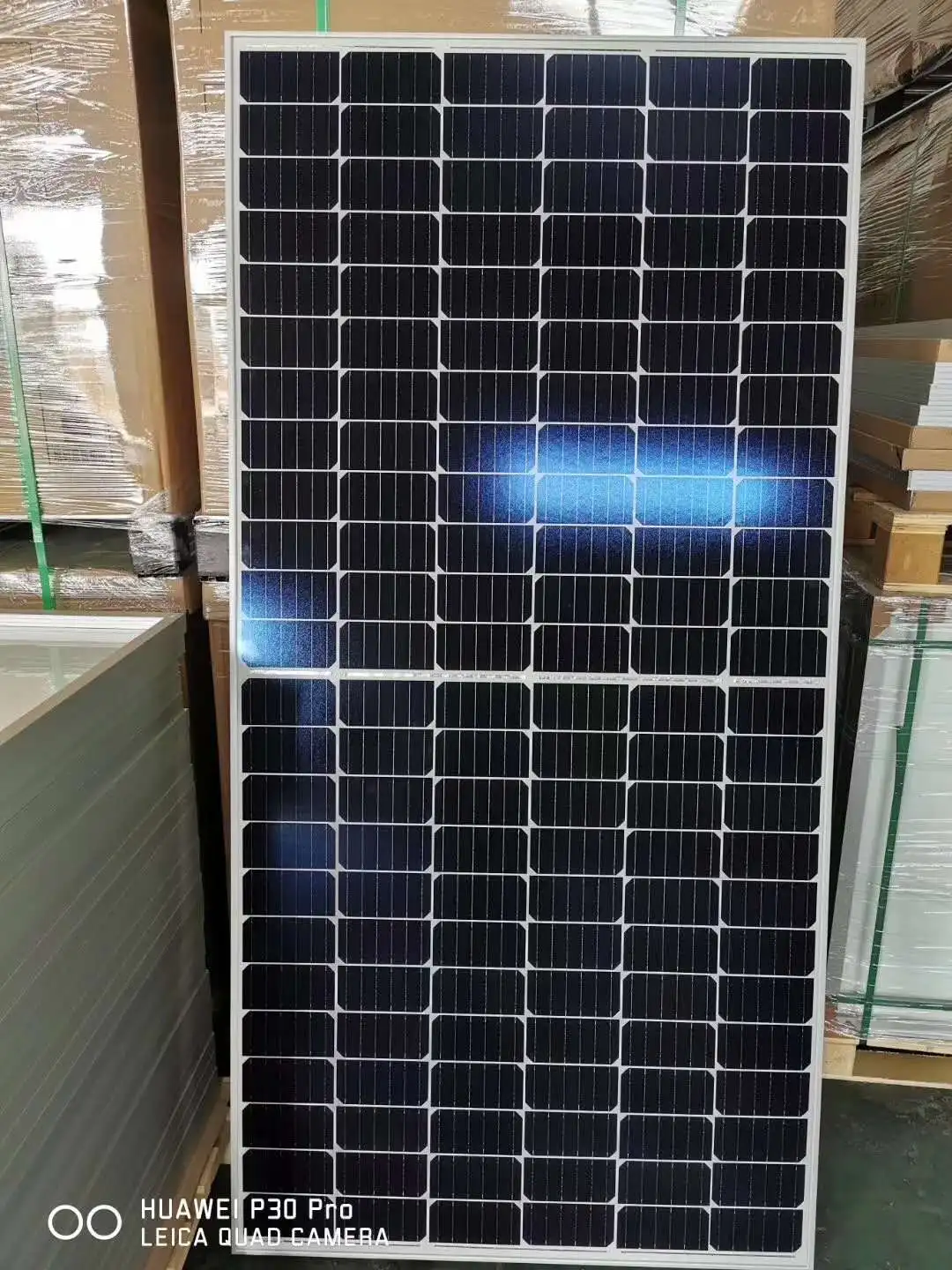

Высокоэффективная солнечная панель класса А Yangtze 680 Вт 700 изготовленная из 210 мм солнечных
- Категория: Solar Panels >>>
- Поставщик: Hefei,Yangtze,Solar,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.44 $* | 0.9 $* |
| Aug-20-2025 | 0.73 $* | 0.26 $* |
| Jul-20-2025 | 0.77 $* | 0.41 $* |
| Jun-20-2025 | 0.67 $* | 0.63 $* |
| May-20-2025 | 0.96 $* | 0.90 $* |
| Apr-20-2025 | 0.60 $* | 0.80 $* |
| Mar-20-2025 | 0.44 $* | 0.83 $* |
| Feb-20-2025 | 0.37 $* | 0.2 $* |
| Jan-20-2025 | 0.57 $* | 0.49 $* |
Характеристики
Product Description&Specification
Model Type | YS660M-66 | YS670M-66 | YS680M-66 | YS690M-66 | YS700M-66 | |||||
Rated Maximum Power at STC | 660W | 670W | 680W | 690W | 700W | |||||
Maximum Power Voltage (Vmp) | 38.38V | 38.68V | 38.98V | 39.28V | 39.58V | |||||
Maximum Power Current (Imp) | 17.20A | 17.33A | 17.45A | 17.57A | 17.69A | |||||
Open Circuit Voltage ( Voc) | 45.55V | 45.85V | 46.15V | 46.45V | 46.75V | |||||
Short Circuit Current (Isc) | 18.45A | 18.54A | 18.66A | 18.79A | 18.92A | |||||
Module Efficiency | 21.1% | 21.4% | 21.7% | 22.0% | 22.3% | |||||
Working Conditions&Working Conditions | ||||||||||
Operating Temperature | -40°c~+85°c | |||||||||
Maximum System Voltage | DC 1000V(IEC) / 1500V(IEC) | |||||||||
Maximum Series Fuse | 25A | |||||||||
Power Tolerance | 0~+5W | |||||||||
Temperature Coefficient of Pmax | -0.35%/°c | |||||||||
Temperature Coefficient of Voc | -0.29%/°c | |||||||||
Temperature Coefficient of Isc | +0.048%/°c | |||||||||
STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5 | ||||||||||
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S | ||||||||||
Manufacturing Technique
Shading loss of half-cell is much better than normal module in certain shading conditions
Under the same shadow condition, the power loss of half-cell component is less than that of the full-cell component.
Apple-to-Apple Temperature measured in R&D PV system in Oct.2017, Half-cell module is around ~2 degrees lower

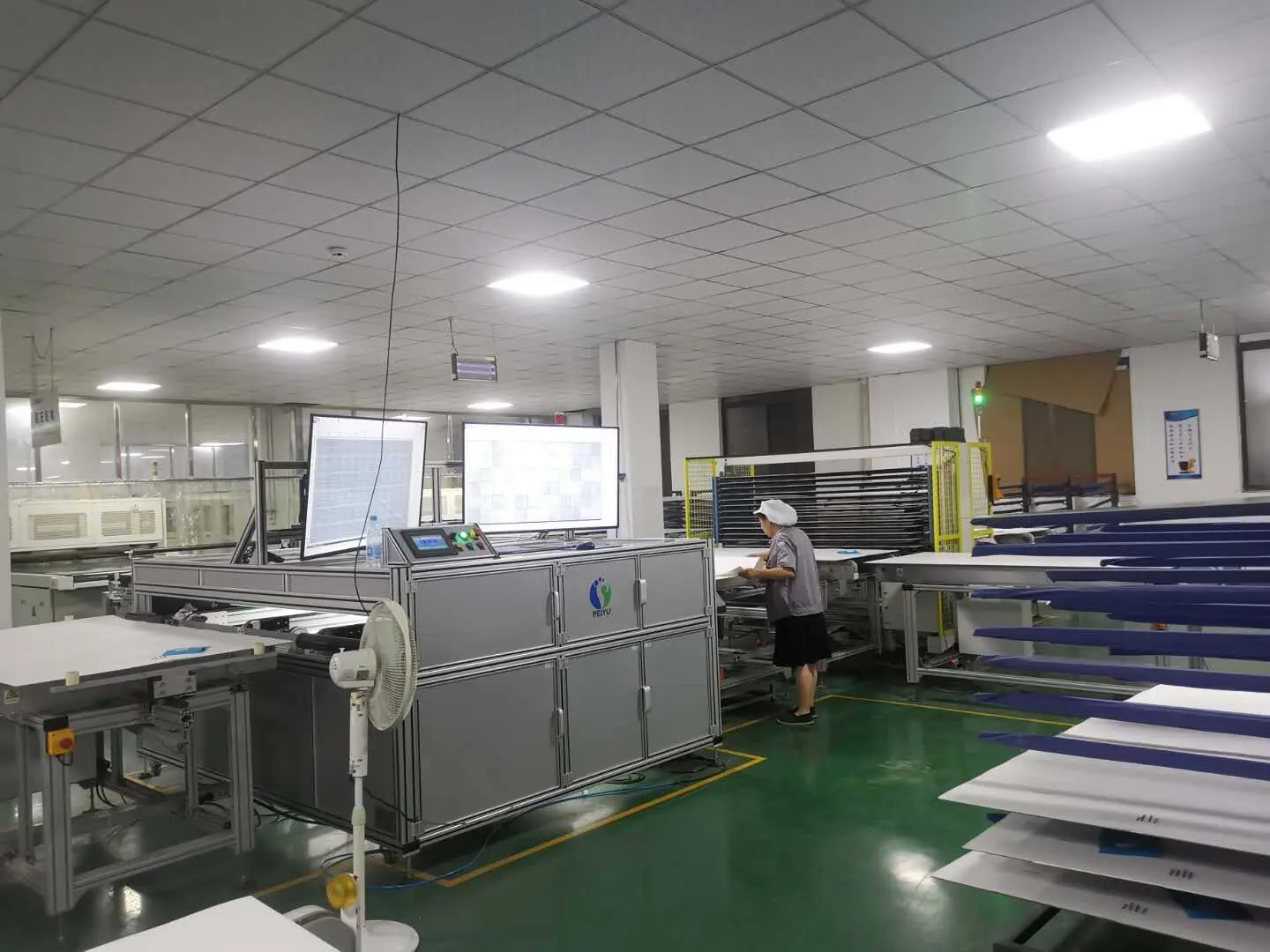

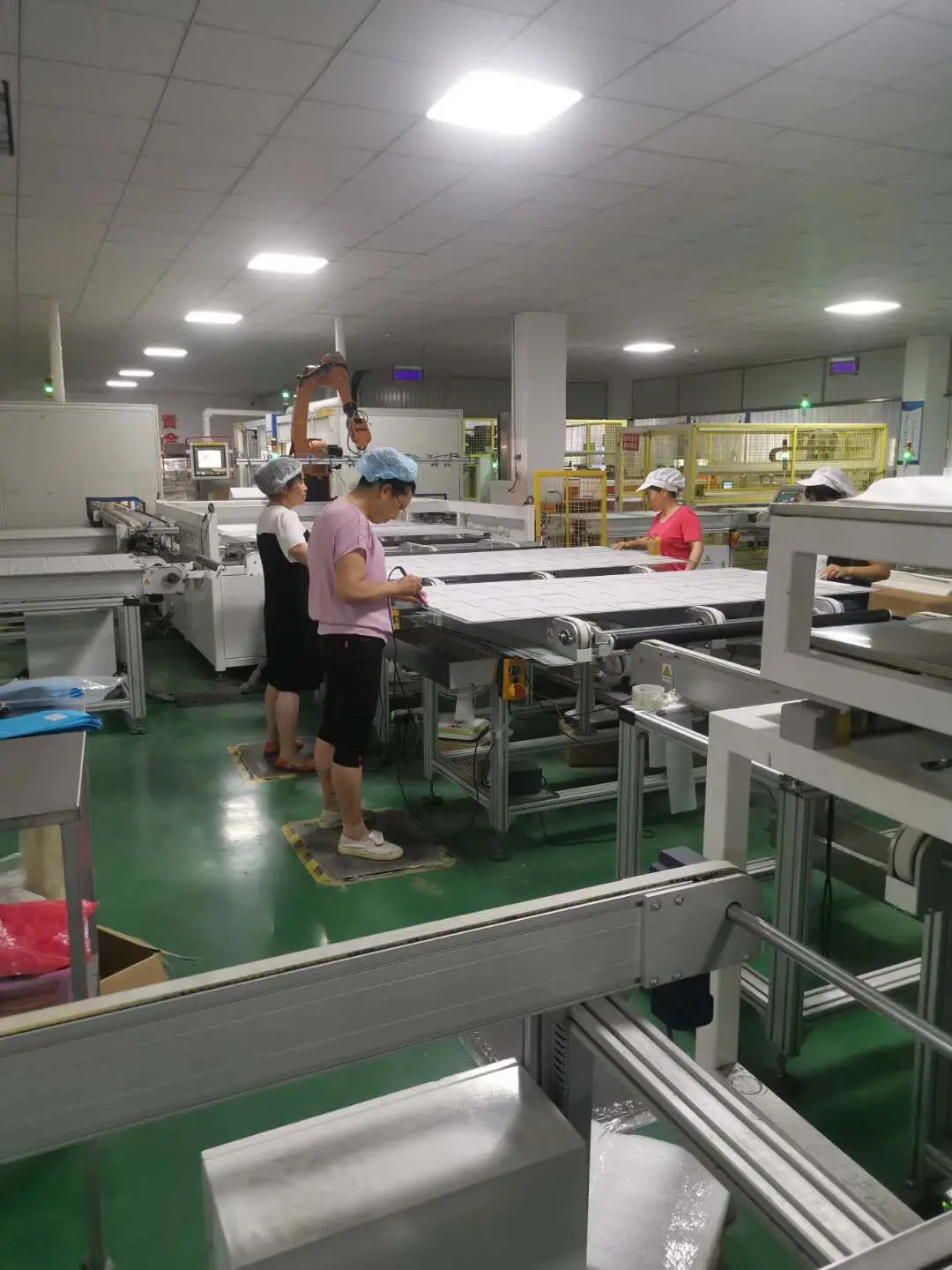

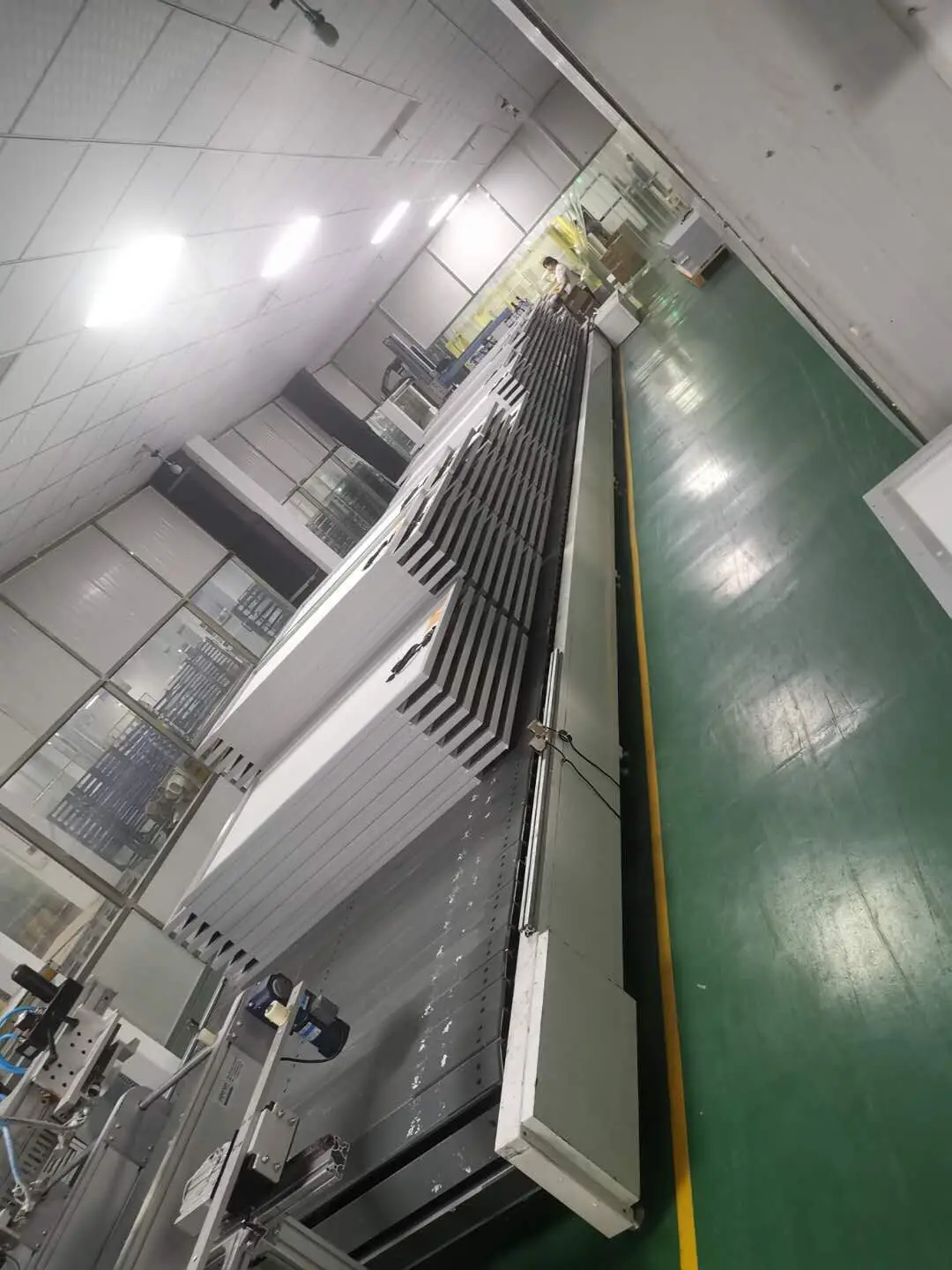

Our Factory&Packaging
Factory Details:
♦ Founded in 1994 , 300MW solar panel production capacity , millions of battery, charge controller and inverter production
capacity
♦ Three factories , solar panel factory , battery factory , solar charge controller and inverter factory
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) ,CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
capacity
♦ Three factories , solar panel factory , battery factory , solar charge controller and inverter factory
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) ,CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
Certifications
Solar Project
Exhibition
Customer Photos
