Панель управления доступом WG26 блок питания 12 В 3 А преобразователь связи для парковки и к
- Категория: Other Access Control Products >>>
- Поставщик: Shenzhen,ExcelSoo,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.45 $* | 0.52 $* |
| Aug-18-2025 | 0.18 $* | 0.47 $* |
| Jul-18-2025 | 0.93 $* | 0.43 $* |
| Jun-18-2025 | 0.97 $* | 0.11 $* |
| May-18-2025 | 0.89 $* | 0.95 $* |
| Apr-18-2025 | 0.98 $* | 0.93 $* |
| Mar-18-2025 | 0.71 $* | 0.15 $* |
| Feb-18-2025 | 0.31 $* | 0.42 $* |
| Jan-18-2025 | 0.7 $* | 0.12 $* |
Характеристики
Product Description

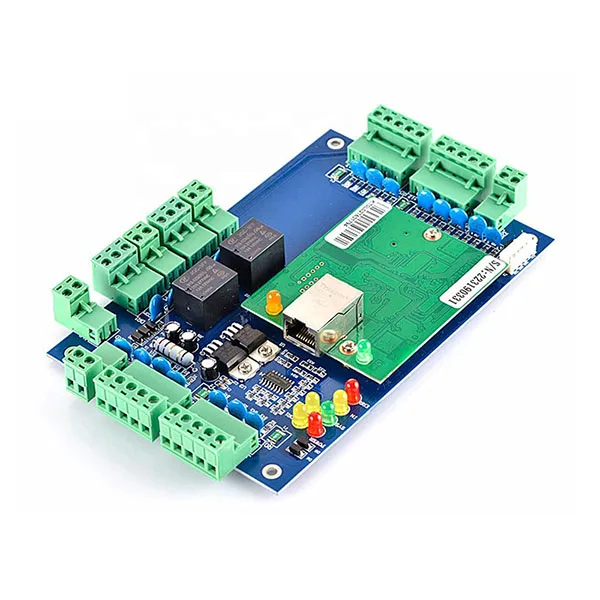

Excelsoo Wiegand 1 Door 2 / 4 Doors IP Networked Access Controller with Free SDK
Excelsoo Door Access Controllers offer users various functions of access control. With its high adaptability, the device is suitable for a range of different application scenarios, and can be integrated with various other devices, such as card readers, locks or push buttons, to satisfy any user's unique requirements.
* Can Control 1/2/4 doors, open the door by reading card, get out door by exit button or by reading card;
* User capacity: 20,000 user, offline record capacity:100,000;
* Auto open/close at any pre-set time during any day. Support "who" can enter which door at certain time, authorized access control;
* User capacity: 20,000 user, offline record capacity:100,000;
* Auto open/close at any pre-set time during any day. Support "who" can enter which door at certain time, authorized access control;
* Record never lost in case of power failure. High-speed flash memory design, never lost;
* TCP/IP Network communication;
* Software supportable database: access & SQL server. Support win7/win8/win10 32/64 bit.
* TCP/IP Network communication;
* Software supportable database: access & SQL server. Support win7/win8/win10 32/64 bit.
Specification
EX-AS01
1 Door
Wiegand Reader * 2
Door Button * 1
Electric Magnetic Lock* 1
Electric Magnetic Lock* 1
EX-AS02
2 Doors
Wiegand Reader * 4
Door Button * 2
Electric Magnetic Lock* 2
Electric Magnetic Lock* 2

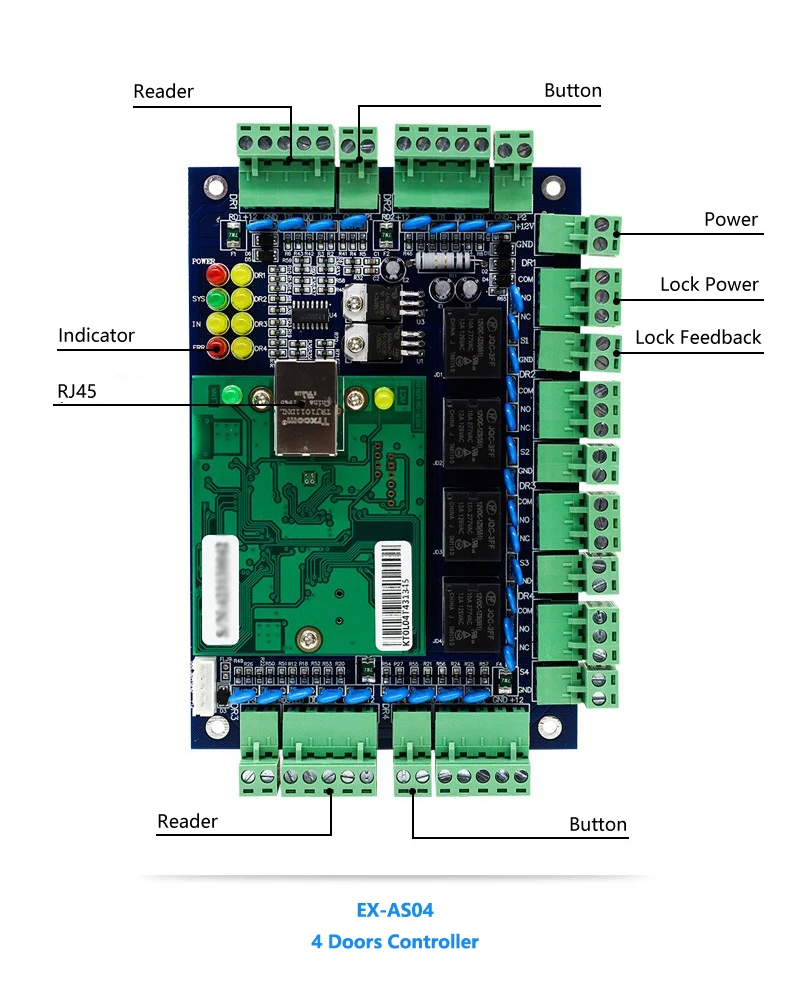

EX-AS03
4 Doors
Wiegand Reader * 8
Door Button * 4
Electric Magnetic Lock* 4
Model | EX-AS01 | EX-AS02 | EX-AS04 | ||
Communication | TCP/IP | ||||
Board Size | 160 * 106MM (L*W) | ||||
Power | 12V DC 3A | ||||
Power Consumption | <200mA | ||||
Input Reader | Wiegand 26/40 bit | ||||
Door Open Delay | 1-600S adjustable | ||||
Max. QTY in Network | Unlimited | ||||
Working Temperature | -40 ~ 70℃ | ||||
Working Humidity | 10-90％RH, No Condensation | ||||
User | 20,000 | ||||
Offline Record | 100,000 | ||||
Power Fail Safeguard | High-speed flash memory design, never lost. | ||||
Reader Distance | Max. 100, optimal 80m | ||||
PBX01
Power Box
Size (mm) | 260 * 100 * 350 (W*T*H) | ||||
Power | Input: 100-240V AC, 50/60Hz, 1.0A Output: 12V DC, 3A | ||||
Packing & Delivery
Paper Box
Company Profile
Shenzhen ExcelSoo Technology Co., Ltd. , is a large-scale high-tech private enterprise integrating research & development, production, sale. We concentrate on designing and producing in equipments & system integration of ITS (Intelligent Transportation System), and we supply a complete set of solutions, for example,
PMS (Parking Management Systems)
PGS (Parking Guidance System)
Boom Barrier Gate, Ticket Machine and
Other Security Equipments: parking card dispenser machine, vehicle loop sensor, RFID reader, parking access controller, barrier gate, ticket machine, parking LED Facilities - More than 10,000m2 factory and 50 skilled employees.....
PMS (Parking Management Systems)
PGS (Parking Guidance System)
Boom Barrier Gate, Ticket Machine and
Other Security Equipments: parking card dispenser machine, vehicle loop sensor, RFID reader, parking access controller, barrier gate, ticket machine, parking LED Facilities - More than 10,000m2 factory and 50 skilled employees.....
