Домашняя Зарядка Электрический автомобиль 32a Smart Evse 3 фазы 7kw зарядное
- Категория: Charging Stations >>>
- Поставщик: Zhengzhou,Saichuan,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.57 $* | 0.47 $* |
| Aug-19-2025 | 0.13 $* | 0.57 $* |
| Jul-19-2025 | 0.39 $* | 0.69 $* |
| Jun-19-2025 | 0.98 $* | 0.31 $* |
| May-19-2025 | 0.39 $* | 0.3 $* |
| Apr-19-2025 | 0.69 $* | 0.72 $* |
| Mar-19-2025 | 0.9 $* | 0.80 $* |
| Feb-19-2025 | 0.87 $* | 0.40 $* |
| Jan-19-2025 | 0.90 $* | 0.6 $* |
Характеристики
Product Introduction

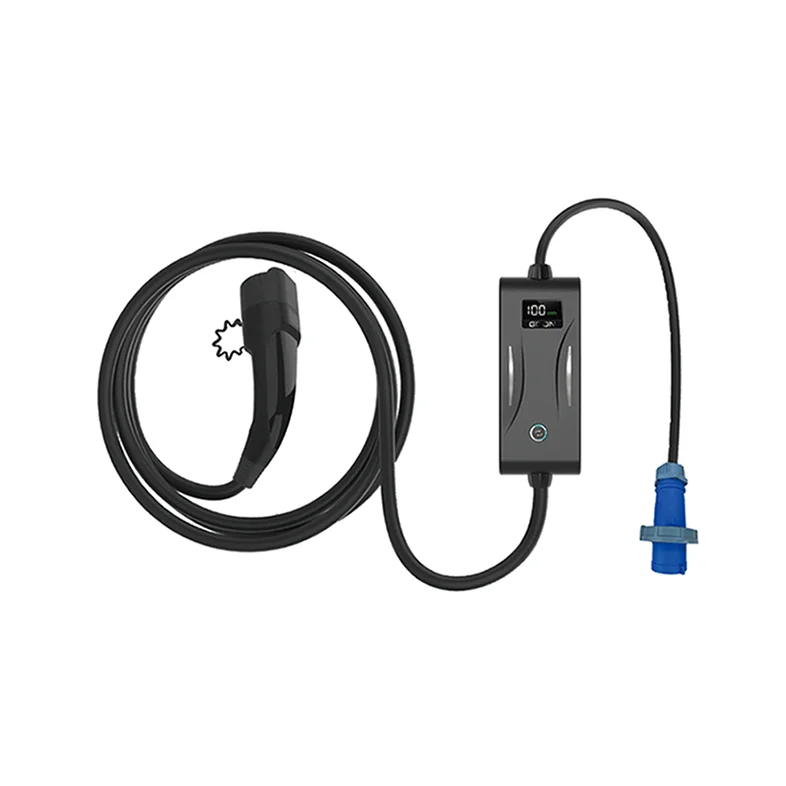

Type 2 electric Vehicle Charging Connector 32A adjustable Portable Chargers Box Car Ev Home Charger
Type 2 5 meters length.
A portable and easy charging solution for
your new energy car.
In the situation when you are traveling or you are away from a traditional charging station.
has Type 2 port from main household/public sockets. recommended for everyday use
charger as a spare for emergency situations.
A portable and easy charging solution for
your new energy car.
In the situation when you are traveling or you are away from a traditional charging station.
has Type 2 port from main household/public sockets. recommended for everyday use
charger as a spare for emergency situations.
Product Paramenters
Type | Portable Ev Charger |
PCBA size | 137mmx 66mmx 22mm |
Maximum output current | 32 A |
Project | Note |
Input interface | Single phase AC：L、N、PE |
Output Interface | Single phase AC：L、N、PE；CP signal：CP |
CP signals | Frequency, duty cycle, magnitude, |
Allow maximum operating current | 32A |
Working voltage | 220V ±20% |
Working temperature | -25~55℃ |
Working humidity | <95％RH no condensation |
Dielectric strength | Input - ground, output - ground :2000Vac,60S ,<10mA |
Insulation impedance | Input - ground, output - ground :500Vdc,>10MΩ |
Signal frequency | 1000Hz ±30Hz |
1.Single phase AC, support output current 32A
2.The display screen shows the running status
3.LED indicator light available multiple indicator versions
4.Input plug temperature detection
5.Multiple protection: high temperature, overvoltage, undervoltage,
grounding, overcurrent, short circuit, leakage current, etc
grounding, overcurrent, short circuit, leakage current, etc
Details Images
