DN50 304/316 stainless steel immersion rod water heater tank boiler heating
- Категория: Industrial Heater >>>
- Поставщик: Yancheng,Honleader,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.95 $* | 0.32 $* |
| Aug-17-2025 | 0.68 $* | 0.27 $* |
| Jul-17-2025 | 0.22 $* | 0.40 $* |
| Jun-17-2025 | 0.68 $* | 0.17 $* |
| May-17-2025 | 0.10 $* | 0.7 $* |
| Apr-17-2025 | 0.32 $* | 0.75 $* |
| Mar-17-2025 | 0.61 $* | 0.34 $* |
| Feb-17-2025 | 0.43 $* | 0.84 $* |
| Jan-17-2025 | 0.85 $* | 0.66 $* |
Характеристики
Product Description

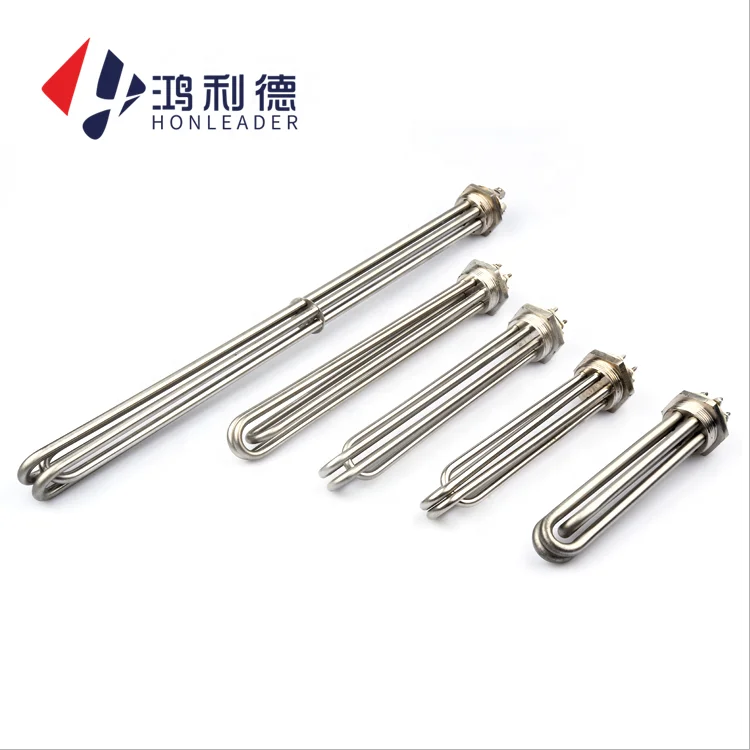

Stainless steel electric heating rod (electric heating tube) is a metal tube as the shell, and spiral electric heating alloy wires (nickel-chromium, iron-chromium alloy) are uniformly distributed along the central axis of the tube. The gaps are filled and compacted with magnesium oxide powder with good insulation and thermal conductivity. Both ends are sealed with silica gel or ceramics. This metal armored electric heating element can be widely used for heating water, oil, air, nitrate solution, acid solution, alkali solution and low melting point metals (aluminum, zinc, tin, babbitt alloy) , It has the advantages of good heating efficiency, uniform temperature, high temperature resistance, corrosion resistance, and good safety performance.
Specification
Voltage | 24V AC ~ 600V AC Available |
Wattage | 3KW~200KW/Customizable |
Immersion Length | 50mm-1000mm /Customizable |
Sheath Material | SS304, 316L, 310S /T2 Copper/Incoloy800,840/Customizable |
Screw Thread size | G / NPT / BSPP Thread 1'' 1 1/4'' 1 1/2'' 2'' etc /Customizable |
Round Flange size | DN80 /DN100/DN120/DN150/DN200,etc/Customizable |
Terminal Cover Material | Stainless steel/Nylon /Plastic |
Resistance wire material | 0Cr25Al5,0Cr21Al6Nb,0Cr27Al7Mo2,Cr20Ni80,GH140 |
Wattage density | (High/Middle/Low)1-25w/cm² |
Pipe diameter | 6mm,6.5mm,8mm,10mm,12mm,14mm,16mm,20mm |
Details Images

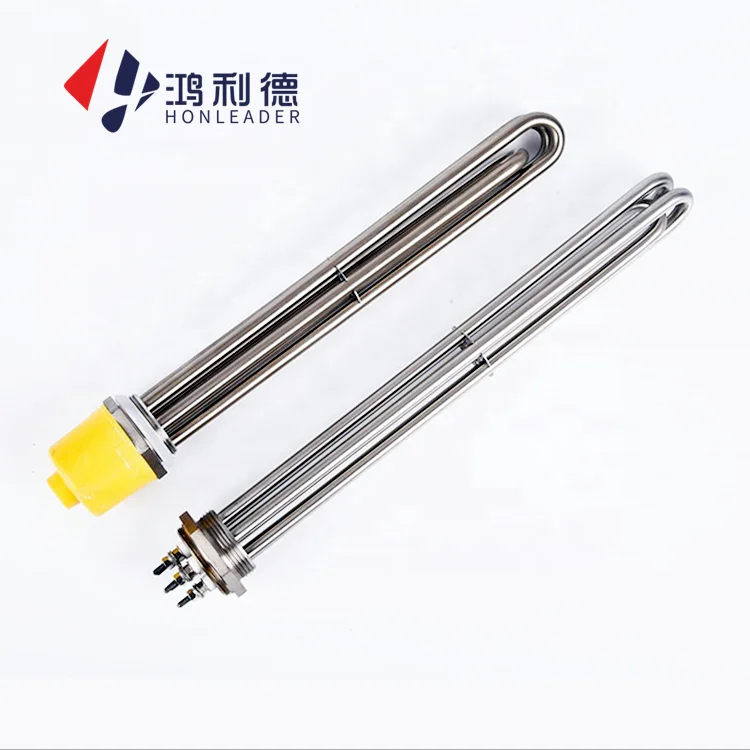

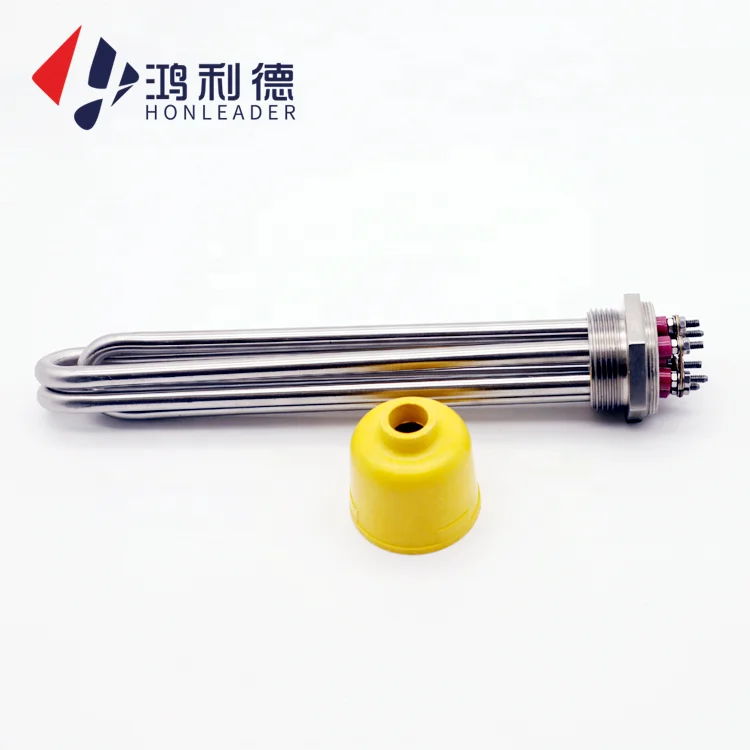

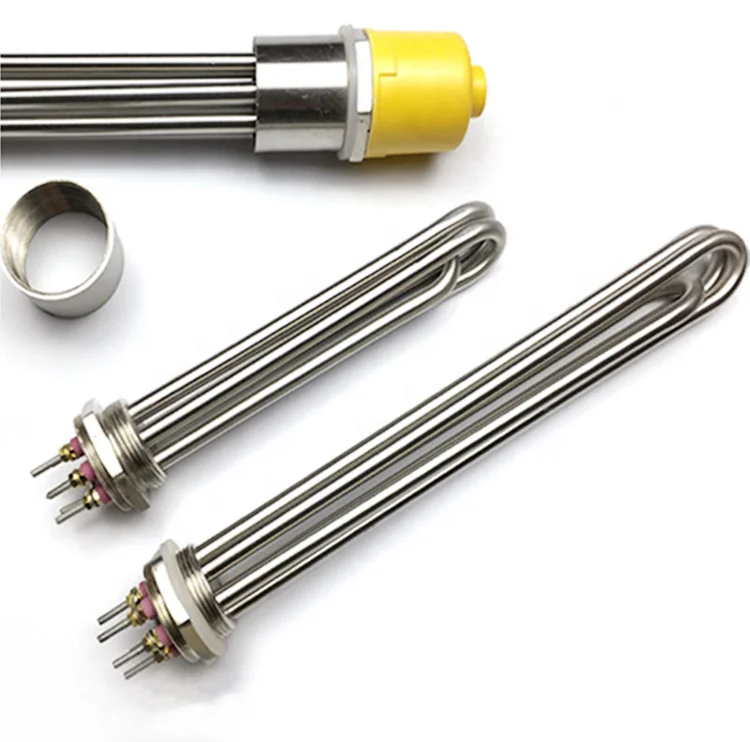

* Pure Stainless Steel 304 or higher grade Flange or Screw plug
* Pure Stainless Steel 304 connected fittings
* High-frequency insulation ceramic for fittings
* 100% Nichrome Heating Resistance Wire
* Pure Stainless Steel or Incoloy Elements Sheath
* Pure Stainless Steel 304 connected fittings
* High-frequency insulation ceramic for fittings
* 100% Nichrome Heating Resistance Wire
* Pure Stainless Steel or Incoloy Elements Sheath
* High-quality stainless steel seamless pipe with wall thickness of 1.0mm, long service life
* Rapid heating, Uniform heating, Stable performance, High thermal efficiency
* Easy installation, Fast delivery, reliable Quality, support Customization
* Rapid heating, Uniform heating, Stable performance, High thermal efficiency
* Easy installation, Fast delivery, reliable Quality, support Customization
Recommend Products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
YANCHENG HONLEADER ELECTRIC CO.,LTD. has been focusing on the solutions to heater application and development for many years. We not only provide you with high-quality products and services,Well-trained engineers will also provide you with technical supports.It takes 3-4 days for general samples, and 1 week for customzied sample or requests, with ISO, CE, ROHS certification. Our products are exported to the Europe, America, Oceania, Asia, Africa and Latin America.
We are famous for innovative products.With years of production experience as well as the strong support of our partners, Honleader continues to introduce new and customer-satisfied heaters,and have at the same time been working with many branded companies, online store companies, medical institutions, university laboratories and other institutions,whic from the USA and Europe customers to customize their products.We have our own factories and freight forwarders, we can provide more competitive prices and more professional services at low cost.
With rich expertise, our professional team members can respond to customer inquiries more effectively than most competitors, enabling our customers to enjoy from us the following benefits: A)professional service; B)high quality products; C)short sample and production lead time; D) placing OEM or ODM orders We believe in partnership, and are fully committed to control the supply chain in order to provide our customers high quality products, at competitive price, and in a timely manner. We look forward to building up long-term business relationship with you to our mutual benefit.
We are famous for innovative products.With years of production experience as well as the strong support of our partners, Honleader continues to introduce new and customer-satisfied heaters,and have at the same time been working with many branded companies, online store companies, medical institutions, university laboratories and other institutions,whic from the USA and Europe customers to customize their products.We have our own factories and freight forwarders, we can provide more competitive prices and more professional services at low cost.
With rich expertise, our professional team members can respond to customer inquiries more effectively than most competitors, enabling our customers to enjoy from us the following benefits: A)professional service; B)high quality products; C)short sample and production lead time; D) placing OEM or ODM orders We believe in partnership, and are fully committed to control the supply chain in order to provide our customers high quality products, at competitive price, and in a timely manner. We look forward to building up long-term business relationship with you to our mutual benefit.
FAQ
Q: Are your products original?
A: Yes! All products are original and produced by the original manufacturer. Our parts can accept any type of testing, and we will be responsible if there is a quality problem.
Q: What is your warranty?
A: within 360 days after receiving the package.
Q: What is your delivery time?
A: Normally samples need 3-5 days.
Mass production need 7-10 days.
Q: What is the minimum order quantity for your products?
A: MOQ 5Pc. Please feel free to contact us.
Q: Can I provide samples for testing?
A: Yes! You only need to pay the freight and you can send free samples for testing.
Q: How do I pay for the order?
A: We support such as TT, Paypal,Western Union and Alibaba online payment methods.Or you can consult us.
Q: How will my package be shipped?
A: Usually we use DHL, FedEx, TNT, EMS, etc. Otherwise, please contact us.
A: Yes! All products are original and produced by the original manufacturer. Our parts can accept any type of testing, and we will be responsible if there is a quality problem.
Q: What is your warranty?
A: within 360 days after receiving the package.
Q: What is your delivery time?
A: Normally samples need 3-5 days.
Mass production need 7-10 days.
Q: What is the minimum order quantity for your products?
A: MOQ 5Pc. Please feel free to contact us.
Q: Can I provide samples for testing?
A: Yes! You only need to pay the freight and you can send free samples for testing.
Q: How do I pay for the order?
A: We support such as TT, Paypal,Western Union and Alibaba online payment methods.Or you can consult us.
Q: How will my package be shipped?
A: Usually we use DHL, FedEx, TNT, EMS, etc. Otherwise, please contact us.
