Цифровая видеокамера высокого разрешения изображения full hd влагалище ручной

Цифровая видеокамера высокого разрешения изображения full hd влагалище ручной

Категория: Ultrasonic, Optical, Electronic Equipment >>>
Поставщик: Kernel,Medical,Equipment,Co.,Ltd.

Цена:2 300,00 $ - 3 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	2737.88 $*	2874.24 $*
Aug-19-2025	2714.93 $*	2850.20 $*
Jul-19-2025	2277.67 $*	2391.61 $*
Jun-19-2025	2668.63 $*	2801.79 $*
May-19-2025	2323.81 $*	2439.66 $*
Apr-19-2025	2622.15 $*	2753.47 $*
Mar-19-2025	2599.57 $*	2729.82 $*
Feb-19-2025	2576.37 $*	2705.10 $*
Jan-19-2025	2553.72 $*	2681.99 $*

Характеристики

Product Description

Kernel KN-2200I CE cleared Sony HD Digital Video Colposcope gynecology digital electronic HD colposcope camera gyn colposcopy

A colposcopy is a simple procedure used to look at the cervix, the lower part of the womb at the top of the vagina. It's often done if cervical screening finds abnormal cells in your cervix.
These cells often go away on their own, but sometimes there's a risk they could eventually turn into cervical cancer if not treated.
A colposcopy can confirm whether cells in your cervix are abnormal and determine whether you need treatment to remove them.

Why it's done?
Female reproductive systemOpen pop-up dialog box
VulvaOpen pop-up dialog box
Your doctor may recommend colposcopy if a Pap test or pelvic exam revealed abnormalities.
Colposcopy can be used to diagnose:
* Genital warts
* Inflammation of the cervix (cervicitis)
* Precancerous changes in the tissue of the cervix
* Precancerous changes in the tissue of the vagina
* Precancerous changes of the vulva

Imaging Sensor			1/2.8 inch Sony CCD
Effective pixels			2.1million
Image Size			1920*1080
Horizontal resolution			1080p/50；1080p/60
Image output way			3G-SDI，transmission rate：2.97Gb/S
Magnification times			System zoom:480X; Optical zoom:30X; Digital zoom:16X
Depth of field			4.3mm～129mm
Work ditance			200-400mm
Color saturation			95%
Geometric distortion of the image			≤2.5%
Light source			LED
LED lifespan			≥5000 hours
Light spot			Diameter≥80mm
Color temperature			5000-5500K
Color rendering index			≥95
LED QTY			20 Groups
Light intensity of illumination			≥4300Lux（Work distance L=250mm），≥2400Lux（Work distance L=400mm）

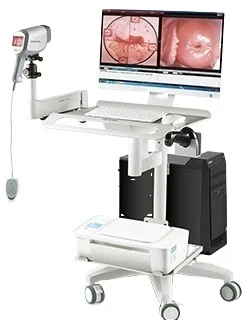

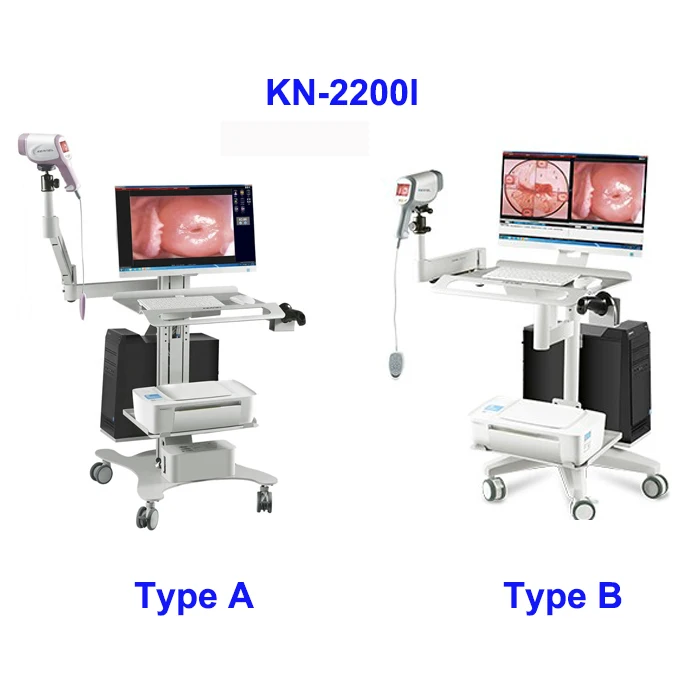

Premium Option 1: All-in one trolley with two HD monitors display

Economic Option 2: Simple three segment vertical stand

Moderate Option 3:Flexible and space-saving full damped Free cantilever,easy to lock and fix at any angle and position.

Detailed Images

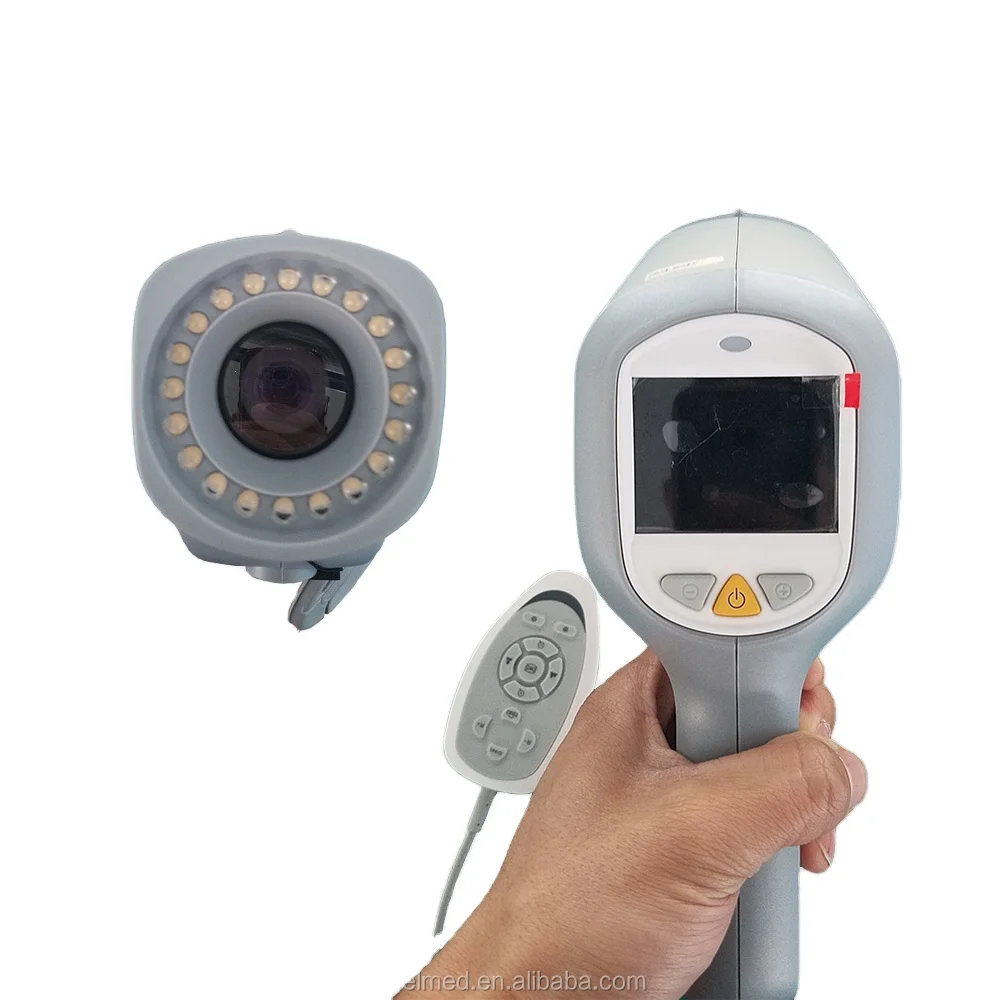

Camera

**Full HD colposcope imaging system,adopt Sony Latest HD technology,3.27 Million effective pixels,30X optical zoom,with high-quality amplification effect ,easy to observe various subtle pathological cells,accurately positioning the biopsy for lesion area.

Dramatically improve the precision of diagnosis various cervical diseases and precancerous screening,decrease the misdiagnose rate.

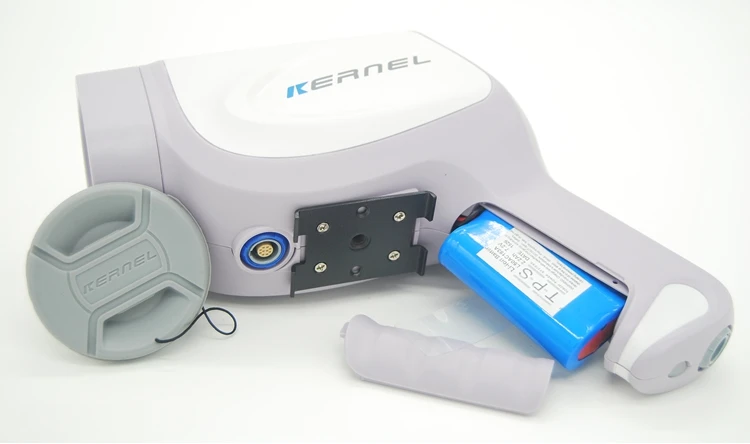

**Optional 2.5 inch back screen，combined with internal Li-ion battery，able to realize wireless operation without controlling of the workstation. Easy to serve and versatile use for fast screening and large-scale examination

Control handle

Adopt palm-type handle design,humanized operation panel.

Silicone button Oval layout

Can realize zoom,focus,imaging mode,acetic acid timing,image marking,brightness adjustment and other functions with sigle hand.

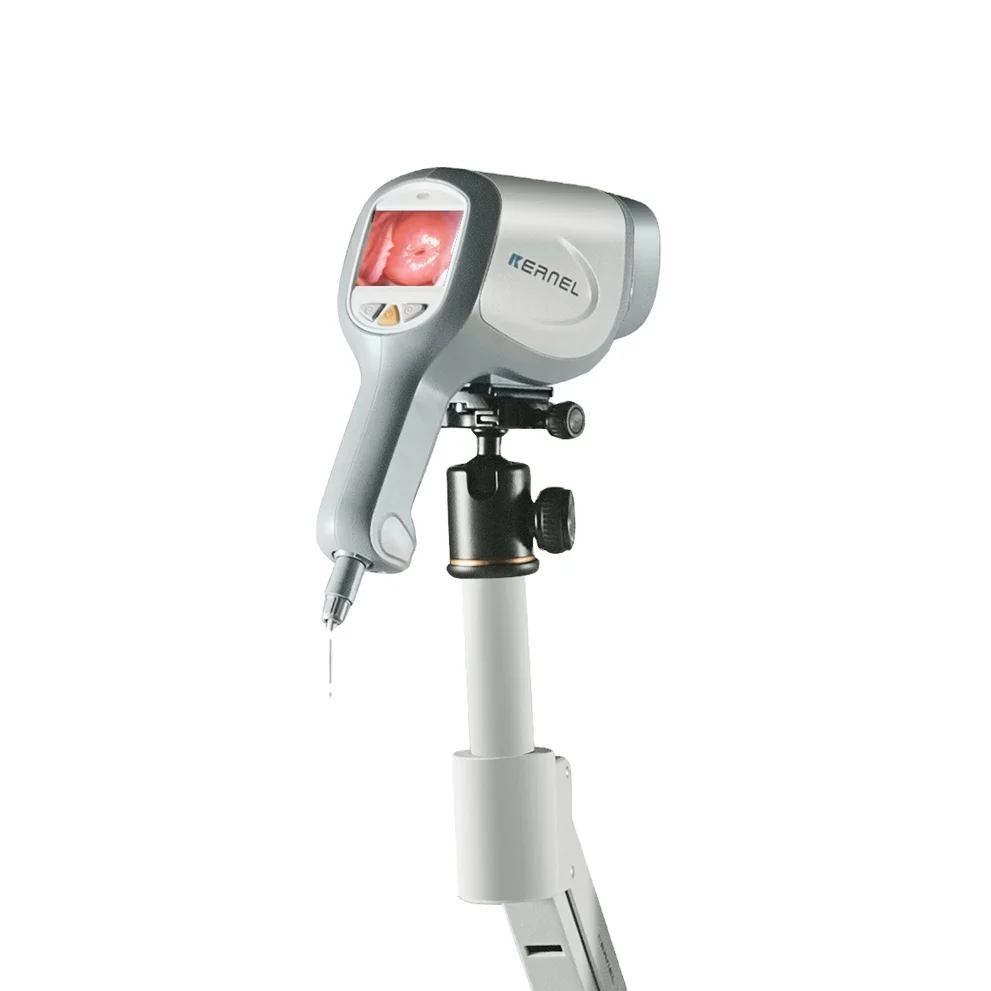

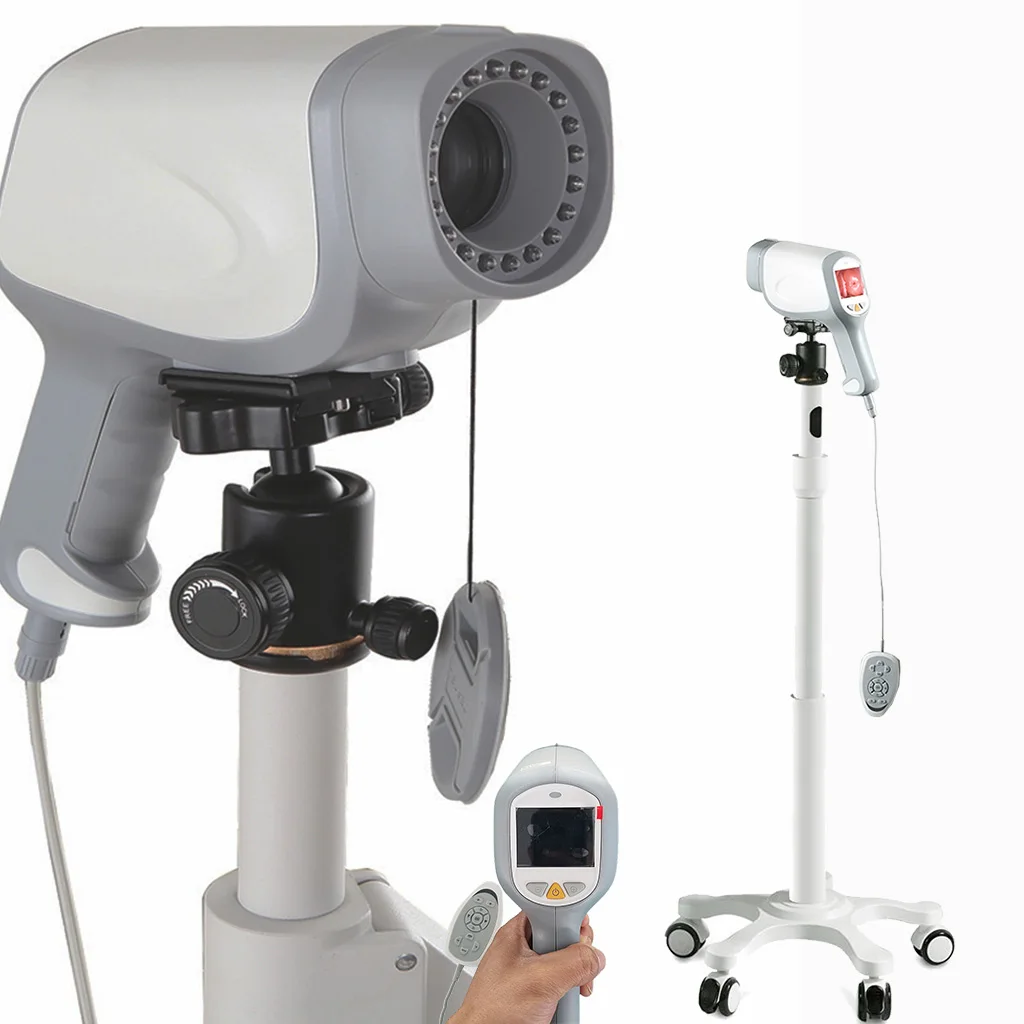

Vertical stand

New vertical stand,flexible and simple operation,light weight.Can adjust the lens up dan down.

Three-segment design,easy to disassemble and carry on patient visit.

Product Presentation

Unique image capture function	With foot switch and software two ways of capturing, recording, and can realize dynamic, static, full screen image capture, 100 color images can be collected at each check each inspection is able to collect 100 color images.
Powerful image processing function	With dynamic and static image comparison function, can be compared with standard image, and the collected images can be zoomed in, zoomed out, negatively imaged, marked, text annotated, partial magnified , area perimeter calculated etc, which is more convenient for doctors to identify the diseased tissue.
Professional clinical diagnostic function	Professional case database (up to 175),satisfied cases images can be added,suitable for clinical contrast.The professional clinical diagnosis knowledge database provides a large number of editable clinical terms. With RCI automatic assessment system to make the inspection more objective and accurate.
Rich report editing function	Built-in 19 standard case report template,convenient for editing and printing. It can display 1-6 pictures in the same screen . The report template can be designed, modified, and output in PDF format. Provides evidence for prevention of medical disputes.
Convenient and quick query statistics function	Search cases via case number,name, bar code, date of birth and date of examination ;Image display,data modification,save,re-examination and video reply to the retrieved cases.Convenient for hospital information management, improve management efficiency.
